ASA33L-CNPXKK (2008)
Toyota Rav4 (Nap)
(0811- )NAP
U140F,U151E,U151F,U241E

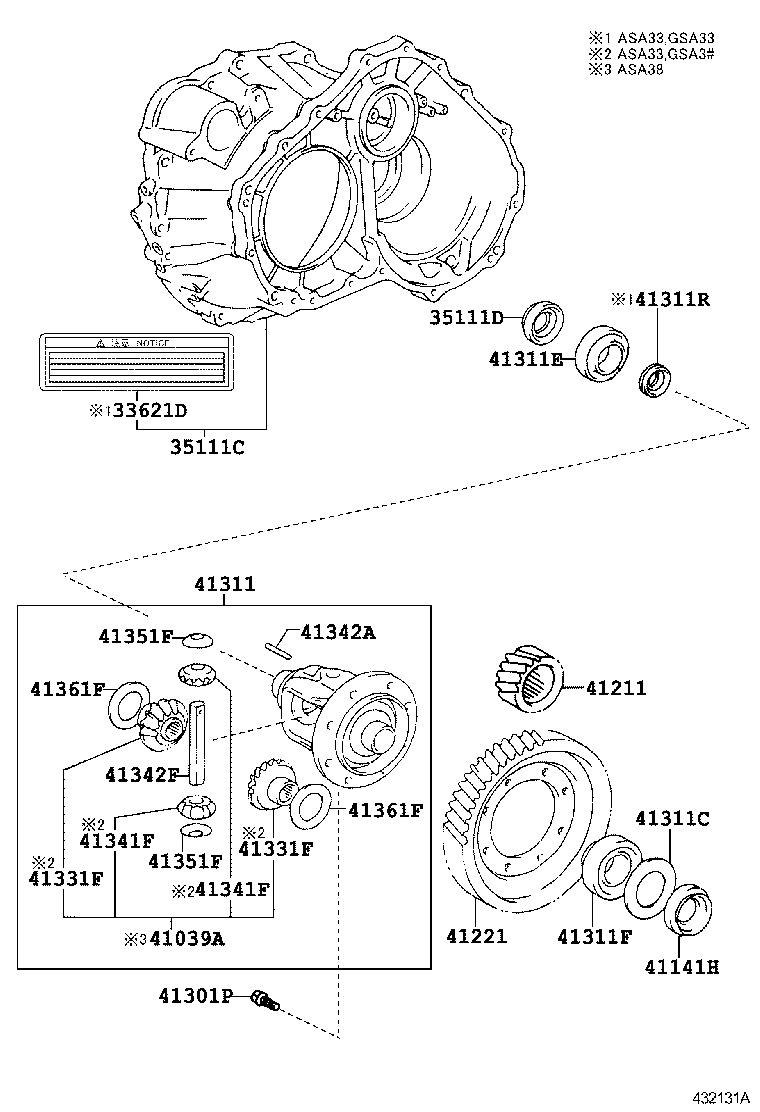

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33621D - LABEL, TRANSAXLE OIL INFORMATION | ||||
| 33621-42010 |
ASA33,GSA33..NAP |
1 | ||
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-28044 |
ASA33..NAP |
1 | ||
| 35111D - SEAL, OIL (FOR TRANSAXLE HOUSING) | ||||
| 90311-55005 |
ASA33,GSA33..NAP |
1 | ||
| 41141H - SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 90311-50037 |
ASA33,GSA3#..NAP |
1 | ||
| 90311-50052 |
ASA33,GSA3#..NAP |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41211-28080 |
ASA33..NAP |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-28100 |
ASA33..NAP |
1 | ||
| 41301P - SCREW(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90105-12303 |
ASA33,GSA3#..NAP |
14 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-42180 |
ASA33..NAP |
1 | ||
| 41301-28100 |
ASA33..NAP |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-79004 |
ASA33,GSA3#..NAP T=2.15,MARK 3 |
1 | ||
| 90564-79002 |
ASA33,GSA3#..NAP T=2.05,MARK 1 |
1 | ||
| 90564-79001 |
ASA33,GSA3#..NAP T=2.00,MARK 0 |
1 | ||
| 90564-79006 |
ASA33,GSA3#..NAP T=2.25,MARK 5 |
1 | ||
| 90564-79007 |
ASA33,GSA3#..NAP T=2.30,MARK 6 |
1 | ||
| 90564-79013 |
ASA33,GSA3#..NAP T=2.60,MARK C |
1 | ||
| 90564-79008 |
ASA33,GSA3#..NAP T=2.35,MARK 7 |
1 | ||
| 90564-79016 |
ASA33,GSA3#..NAP T=2.75,MARK F |
1 | ||
| 90564-79014 |
ASA33,GSA3#..NAP T=2.65,MARK D |
1 | ||
| 90564-79005 |
ASA33,GSA3#..NAP T=2.20,MARK 4 |
1 | ||
| 90564-79095 |
ASA33,GSA3#..NAP T=2.275,MARK P |
1 | ||
| 90564-79015 |
ASA33,GSA3#..NAP T=2.70,MARK E |
1 | ||
| 90564-79090 |
ASA33,GSA3#..NAP T=2.025,MARK J |
1 | ||
| 90564-79091 |
ASA33,GSA3#..NAP T=2.075,MARK K |
1 | ||
| 90564-79094 |
ASA33,GSA3#..NAP T=2.225,MARK N |
1 | ||
| 90564-79009 |
ASA33,GSA3#..NAP T=2.40,MARK 8 |
1 | ||
| 90564-79093 |
ASA33,GSA3#..NAP T=2.175,MARK M |
1 | ||
| 90564-79097 |
ASA33,GSA3#..NAP T=2.375,MARK R |
1 | ||
| 90564-79003 |
ASA33,GSA3#..NAP T=2.10,MARK 2 |
1 | ||
| 90564-79017 |
ASA33,GSA3#..NAP T=2.80,MARK G |
1 | ||
| 90564-79092 |
ASA33,GSA3#..NAP T=2.125,MARK L |
1 | ||
| 90564-79096 |
ASA33,GSA3#..NAP T=2.325,MARK Q |
1 | ||
| 90564-79010 |
ASA33,GSA3#..NAP T=2.45,MARK 9 |
1 | ||
| 90564-79100 |
ASA33,GSA3#..NAP T=2.525,MARK U |
1 | ||
| 90564-79099 |
ASA33,GSA3#..NAP T=2.475,MARK T |
1 | ||
| 90564-79101 |
ASA33,GSA3#..NAP T=2.575,MARK V |
1 | ||
| 90564-79018 |
ASA33,GSA3#..NAP T=2.85,MARK H |
1 | ||
| 90564-79103 |
ASA33,GSA3#..NAP T=2.675,MARK X |
1 | ||
| 90564-79012 |
ASA33,GSA3#..NAP T=2.55,MARK B |
1 | ||
| 90564-79104 |
ASA33,GSA3#..NAP T=2.725,MARK Y |
1 | ||
| 90564-79098 |
ASA33,GSA3#..NAP T=2.425,MARK S |
1 | ||
| 90564-79105 |
ASA33,GSA3#..NAP T=2.775,MARK AA |
1 | ||
| 90564-79011 |
ASA33,GSA3#..NAP T=2.50,MARK A |
1 | ||
| 90564-79106 |
ASA33,GSA3#..NAP T=2.825,MARK AB |
1 | ||
| 90564-79102 |
ASA33,GSA3#..NAP T=2.625,MARK W |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-62004 |
ASA33,GSA33..NAP |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-50106 |
ASA33,GSA3#..NAP |
1 | ||
| 41311R - SEAL, OIL (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90316-34001 |
ASA33,GSA33..NAP |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-48070 |
ASA33..NAP |
2 | ||
| 41331-48050 |
ASA33..NAP |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-48070 |
ASA33..NAP |
2 | ||
| 41331-48050 |
ASA33..NAP |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-48040 |
ASA33..NAP |
2 | ||
| 41341-48060 |
ASA33..NAP |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-48040 |
ASA33..NAP |
2 | ||
| 41341-48060 |
ASA33..NAP |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ASA3#,GSA3#..NAP |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-28020 |
ASA33,GSA3#..NAP |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-33011 |
ASA33,GSA3#..NAP |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-33011 |
ASA33,GSA3#..NAP |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-33010 |
ASA33,GSA3#..NAP T=1.625 |
2 | ||
| 41362-33080 |
ASA33,GSA3#..NAP T=1.725 |
2 | ||
| 41363-33010 |
ASA33,GSA3#..NAP T=1.825 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-33010 |
ASA33,GSA3#..NAP T=1.625 |
2 | ||
| 41362-33080 |
ASA33,GSA3#..NAP T=1.725 |
2 | ||
| 41363-33010 |
ASA33,GSA3#..NAP T=1.825 |
2 | ||
