ASA33L-CNPXKK (2008)

Toyota Rav4 (Nap)

Production Nov 2008 - Jan 2013
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )ASA33,GSA33..NAP

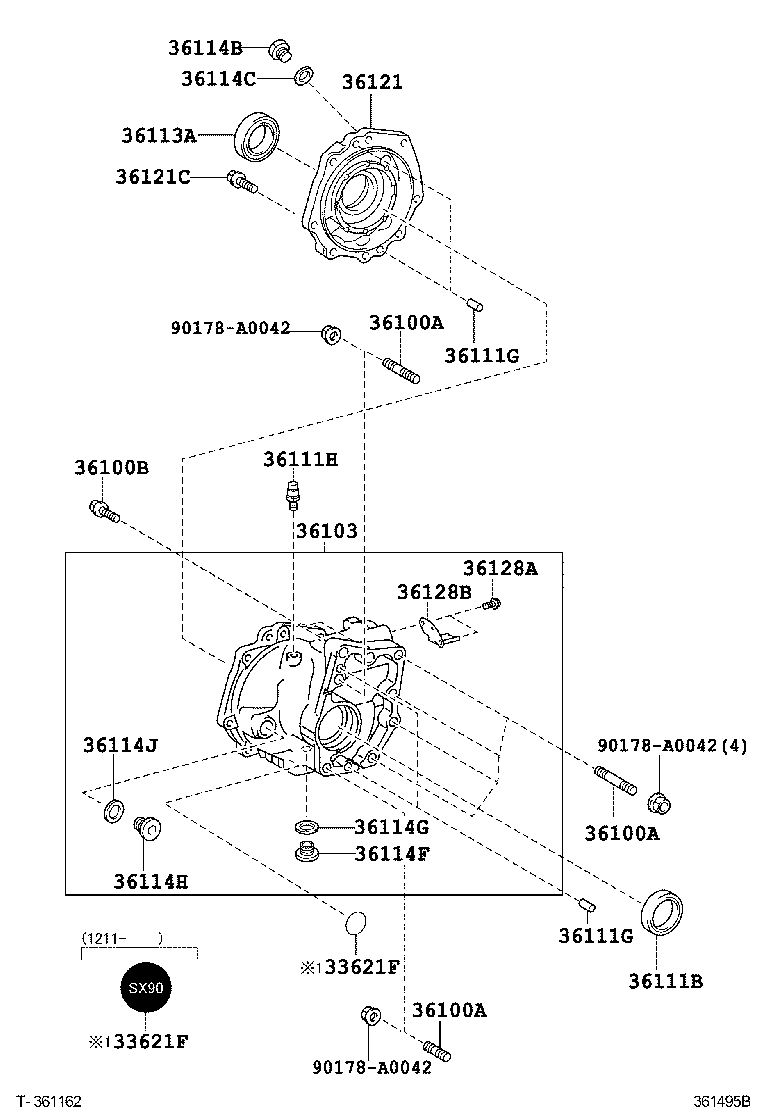

Click highlighted areas on diagram

diagram 33621F 33621F 36100A 36100A 36100A 36100B 36103 36111B 36111G 36111G 36111H 36113A 36114B 36114C 36114F 36114G 36114H 36114J 36121 36121C 36128A 36128B 90178A0042 90178A0042 90178A0042
Part # Description Qty Price
33621F - LABEL, TRANSAXLE OIL INFORMATION
33621-42040

ASA33,GSA33..NAP

 1
33621F - LABEL, TRANSAXLE OIL INFORMATION
33621-42040

ASA33,GSA33..NAP

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

ASA33,GSA33..NAP

S=19 & 19,L=47,(J)

 1
90116-12028

ASA33,GSA33..NAP

S=22 & 22,L=69

 1
90080-11565

ASA33,GSA33..NAP

S=19 & 19,L=47,(L)

 1
90116-12034

ASA33,GSA33..NAP

S=19 & 19,L=47

 1
90116-12041

ASA33,GSA33..NAP

S=30 & 22,L=64

 4
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

ASA33,GSA33..NAP

S=19 & 19,L=47,(J)

 1
90116-12028

ASA33,GSA33..NAP

S=22 & 22,L=69

 1
90080-11565

ASA33,GSA33..NAP

S=19 & 19,L=47,(L)

 1
90116-12034

ASA33,GSA33..NAP

S=19 & 19,L=47

 1
90116-12041

ASA33,GSA33..NAP

S=30 & 22,L=64

 4
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

ASA33,GSA33..NAP

S=19 & 19,L=47,(J)

 1
90116-12028

ASA33,GSA33..NAP

S=22 & 22,L=69

 1
90080-11565

ASA33,GSA33..NAP

S=19 & 19,L=47,(L)

 1
90116-12034

ASA33,GSA33..NAP

S=19 & 19,L=47

 1
90116-12041

ASA33,GSA33..NAP

S=30 & 22,L=64

 4
36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING)
90105-12298

ASA33,GSA33..NAP

*12-1.25PX53-35

 2
36103 - CASE SUB-ASSY, TRANSFER
36103-42040

ASA33..NAP

 1
36103-42010

ASA33..NAP

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-55002

ASA33,GSA33..NAP

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

ASA33,GSA33..NAP

L=20,OD=10

 4
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

ASA33,GSA33..NAP

L=20,OD=10

 4
36111H - PLUG, BREATHER (FOR TRANSFER CASE)
90930-03133

ASA33,GSA33..NAP

 1
36113A - SEAL, OIL (FOR TRANSFER CASE RH)
90311-35056

ASA33,GSA33..NAP

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

ASA33,GSA33..NAP

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
12157-10010

ASA33,GSA33..NAP

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18051

ASA33,GSA33..NAP

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
12157-10010

ASA33,GSA33..NAP

 1
36114H - PLUG, NO.2 (FOR TRANSFER CASE)
90341-18023

ASA33,GSA33..NAP

 1
36114J - GASKET, NO.2 (FOR TRANSFER CASE)
12157-10010

ASA33,GSA33..NAP

 1
36121 - COVER, TRANSFER CASE, NO.1
36121-52020

ASA33..NAP

 1
36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE
91552-81030

ASA33,GSA33..NAP

 8
36128A - BOLT (FOR BREATHER OIL DEFLECTOR)
91621-60614

ASA33,GSA33..NAP

 2
36128B - DEFLECTOR, BREATHER OIL
36128-42010

ASA33,GSA33..NAP

 1
Common parts
90178-A0042
