ASA33L-CNPXKK (2008)
Toyota Rav4 (Nap)
Production
Nov 2008
-
Jan 2013
Engine
2ARFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )ASA3#..NAP

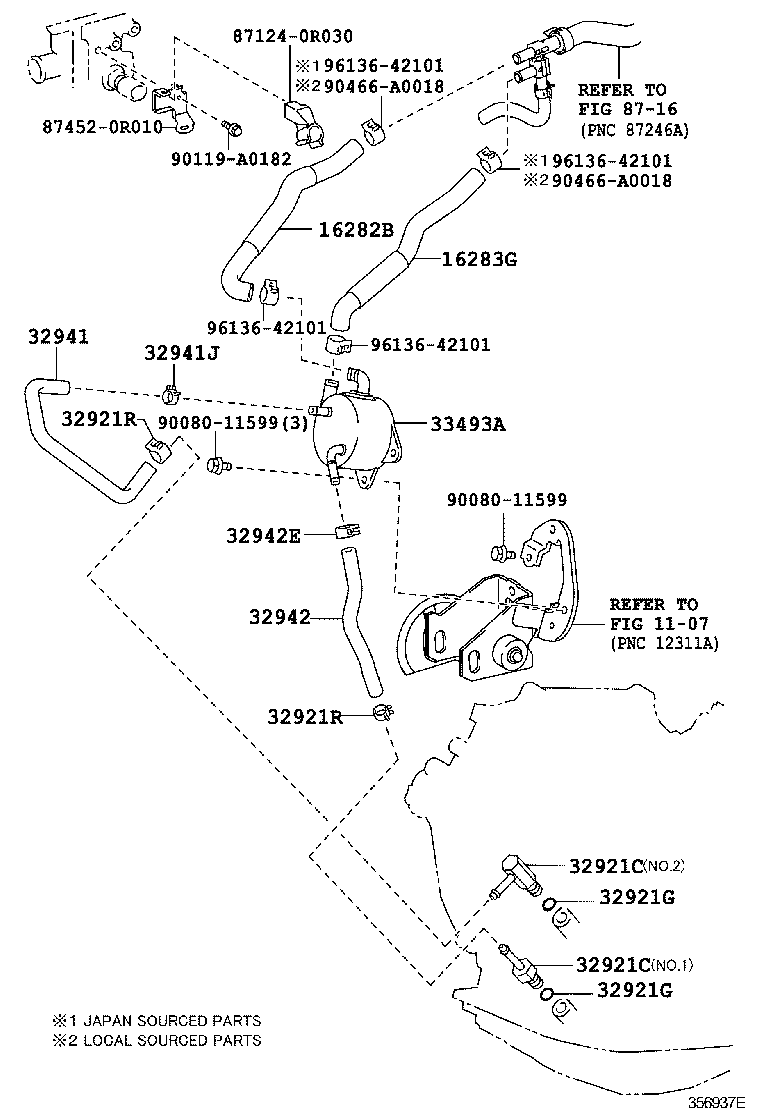

Click highlighted areas on diagram
U140F,U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16282B - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-36010 |
2ARFE..ASA3#..NAP |
1 | ||
| 16282-36011 |
2ARFE..ASA3#..NAP |
1 | ||
| 16283G - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-36010 |
2ARFE..ASA3#..NAP |
1 | ||
| 16283-36011 |
2ARFE..ASA3#..NAP |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-13004 |
ASA3#..NAP NO.1 |
1 | ||
| 90407-13009 |
ASA3#..NAP NO.2 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-13004 |
ASA3#..NAP NO.1 |
1 | ||
| 90407-13009 |
ASA3#..NAP NO.2 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ASA3#,GSA3#..NAP |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ASA3#,GSA3#..NAP |
2 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-A0014 |
ASA3#..NAP (L) |
2 | ||
| 90466-16004 |
ASA3#..NAP (J) |
2 | ||
| 90466-16004 |
ASA3#..NAP |
2 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-A0014 |
ASA3#..NAP (L) |
2 | ||
| 90466-16004 |
ASA3#..NAP (J) |
2 | ||
| 90466-16004 |
ASA3#..NAP |
2 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-42040 |
ASA3#..NAP |
1 | ||
| 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
ASA3#..NAP |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-42030 |
ASA3#..NAP |
1 | ||
| 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
ASA3#..NAP |
1 | ||
| 33493A - COOLER, TRANSMISSION OIL | ||||
| 33493-42060 |
ASA3#..NAP |
1 | ||
| Common parts | ||||
| 87124-0R030 | ||||
| 87452-0R010 | ||||
| 90080-11599 | ||||
| 90119-A0182 | ||||
| 90466-A0018 | ||||
| 96136-42101 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 8716 | ||||
