ASA33L-CNPXKK (2008)

Toyota Rav4 (Nap)

Production Nov 2008 - Jan 2013
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )2ARFE..NAP

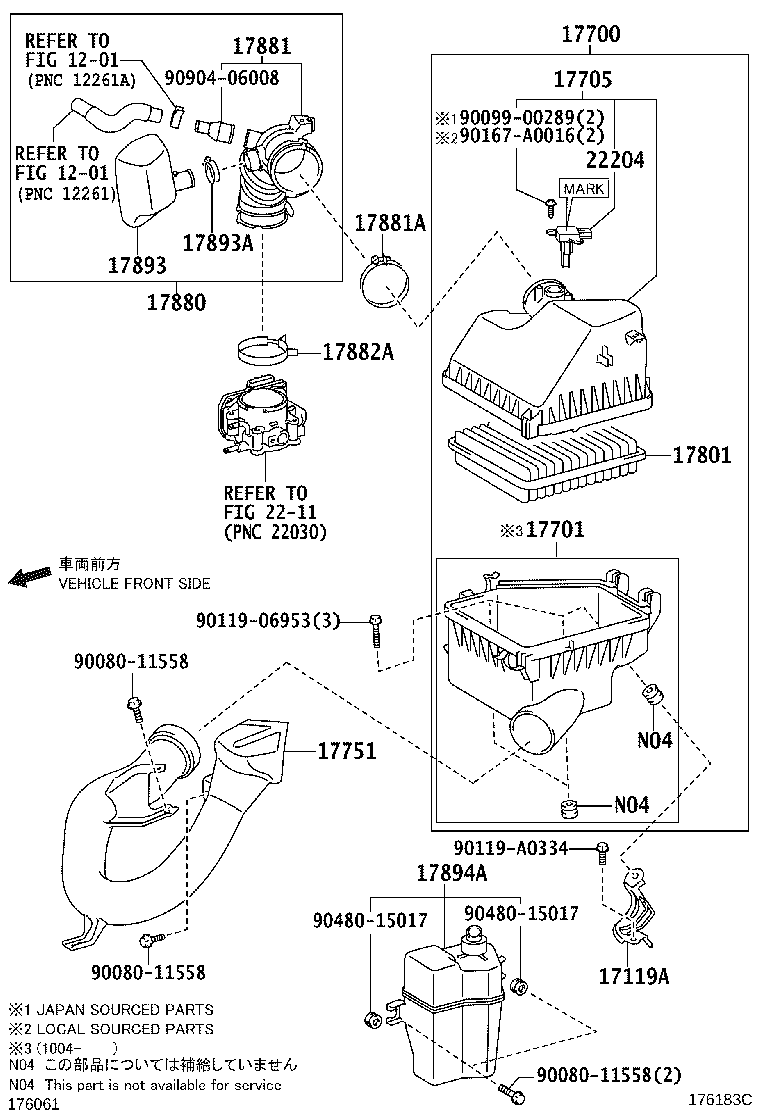

Click highlighted areas on diagram

diagram 1201 1201 17119A 17700 17701 17705 17751 17801 17880 17881 17881A 17882A 17893 17893A 17894A 2211 22204 9008011558 9008011558 9008011558 9009900289 9011906953 90119A0334 90167A0016 9048015017 9048015017 9090406008
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-0V010

2ARFE..ASA3#..NAP

 1
17700 - CLEANER ASSY, AIR
17700-0V010

2ARFE..ASA3#..NAP

 1
17700-0V011

2ARFE..ASA3#..NAP

 1
17700-0V012

2ARFE..ASA3#..NAP

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0V010

2ARFE..ASA3#..NAP

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0V010

2ARFE..ASA3#..NAP

 1
17705-0V012

2ARFE..ASA3#..NAP

 1
17705-0V011

2ARFE..ASA3#..NAP

 1
17751 - INLET, AIR CLEANER, NO.1
17751-0V010

2ARFE..ASA3#..NAP

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-31120

2ARFE..ASA3#..NAP

(J)

 1
17801-AD010

2ARFE..ASA3#..NAP

(L)

 1
17801-31120

2ARFE..ASA3#..NAP

(J)

 1
17801-AD010

2ARFE..ASA3#..NAP

(L)

 1
17880 - HOSE ASSY, AIR CLEANER
17880-36010

2ARFE..ASA3#..NAP

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-36040

2ARFE..ASA3#..NAP

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

2ARFE..ASA3#..NAP

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90466-71001

2ARFE..ASA3#..NAP

 1
17893 - RESONATOR, INTAKE AIR
17893-36010

2ARFE..ASA3#..NAP

 1
17893A - CLAMP, HOSE
96111-10450

2ARFE..ASA3#..NAP

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-0V020

2ARFE..ASA3#..NAP

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0H010

2ARFE..ASA3#..NAP

 1
22204-0P010

2ARFE..ASA3#..NAP

MARK 22204-0P010

 1
22204-0H010

2ARFE..ASA3#..NAP

MARK 22204-0H010

 1
22204-31020

2ARFE..ASA3#..NAP

MARK 22204-31020

 1
Common parts
90080-11558
90099-00289
90119-06953
90119-A0334
90167-A0016
90480-15017
90904-06008
Linked diagrams
1201
2211
