ASA33L-CNPXKK (2008)

Toyota Rav4 (Nap)

Production Nov 2008 - Jan 2013
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )2ARFE..NAP

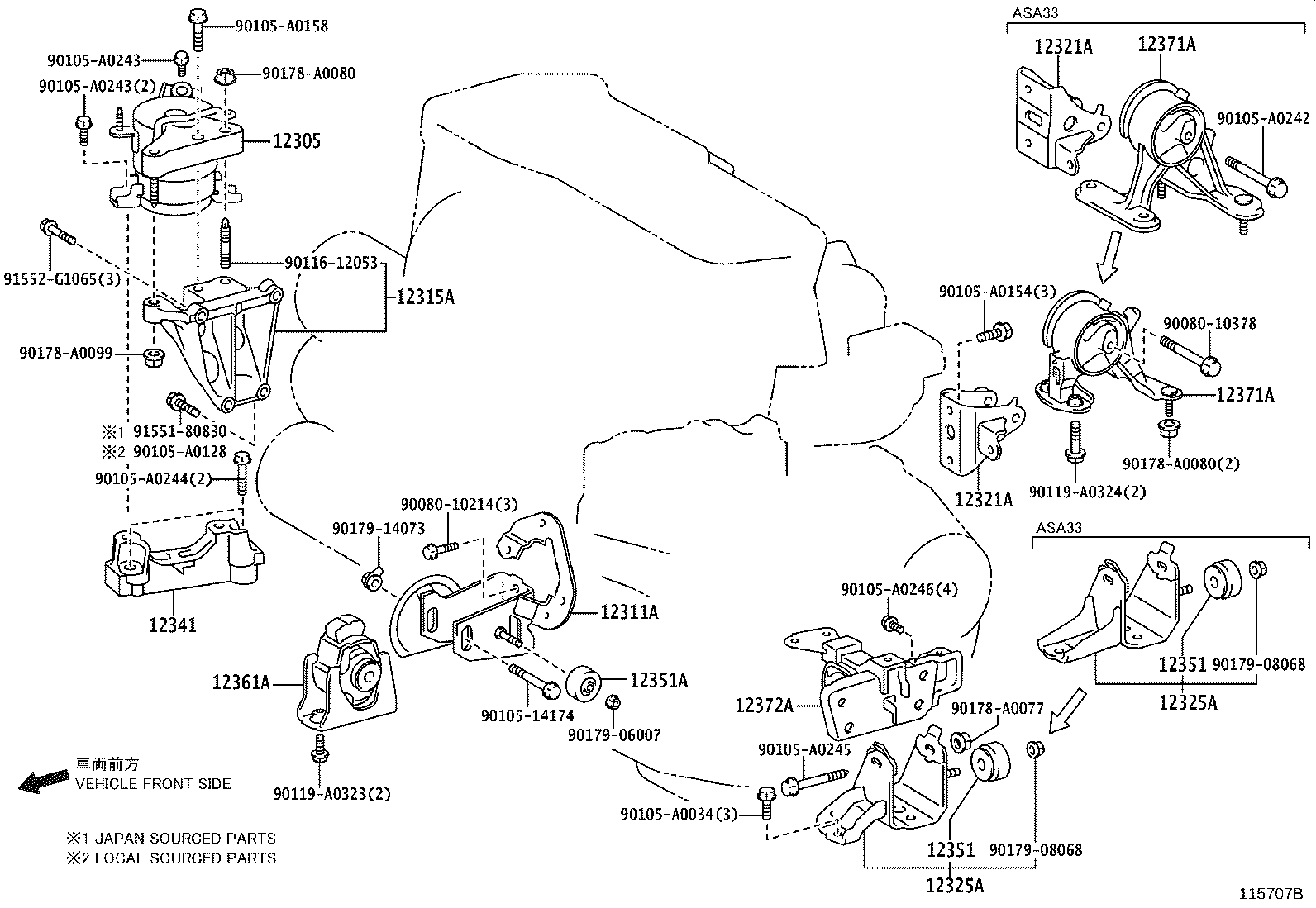

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12321A 12325A 12325A 12341 12351 12351 12351A 12361A 12371A 12371A 12372A 9008010214 9008010378 9010514174 90105A0034 90105A0128 90105A0154 90105A0158 90105A0242 90105A0243 90105A0243 90105A0244 90105A0245 90105A0246 9011612053 90119A0323 90119A0324 90178A0077 90178A0080 90178A0080 90178A0099 9017906007 9017908068 9017908068 9017914073 9155180830 91552G1065
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0V020

2ARFE..ASA33..NAP

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-28270

2ARFE..ASA33..NAP

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-36010

2ARFE..ASA3#..NAP

*107

 1
12315-0V010

2ARFE..ASA3#..NAP

(L),*212

 1
12315-36010

2ARFE..ASA3#..NAP

(J),*212

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-28210

2ARFE..ASA33..NAP

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-28210

2ARFE..ASA33..NAP

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12304-28160

2ARFE..ASA33..NAP

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12304-28160

2ARFE..ASA33..NAP

 1
12341 - SPACER, ENGINE MOUNTING
12341-26011

2ARFE..ASA3#..NAP

 1
12351 - DAMPER, ENGINE MOUNTING
12351-11072

2ARFE..ASA33..NAP

 1
12351 - DAMPER, ENGINE MOUNTING
12351-11072

2ARFE..ASA33..NAP

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-28110

2ARFE..ASA3#..NAP

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0V011

2ARFE..ASA3#..NAP

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-36030

2ARFE..ASA33..NAP

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-36030

2ARFE..ASA33..NAP

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-36010

2ARFE..ASA33..NAP

 1
Common parts
90080-10214
90080-10378
90105-14174
90105-A0034
90105-A0128
90105-A0154
90105-A0158
90105-A0242
90105-A0243
90105-A0244
90105-A0245
90105-A0246
90116-12053
90119-A0323
90119-A0324
90178-A0077
90178-A0080
90178-A0099
90179-06007
90179-08068
90179-14073
91551-80830
91552-G1065
