ASA33L-CNPXKK (2008)

Toyota Rav4 (Nap)

Production Nov 2008 - Jan 2013
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )2ARFE..NAP

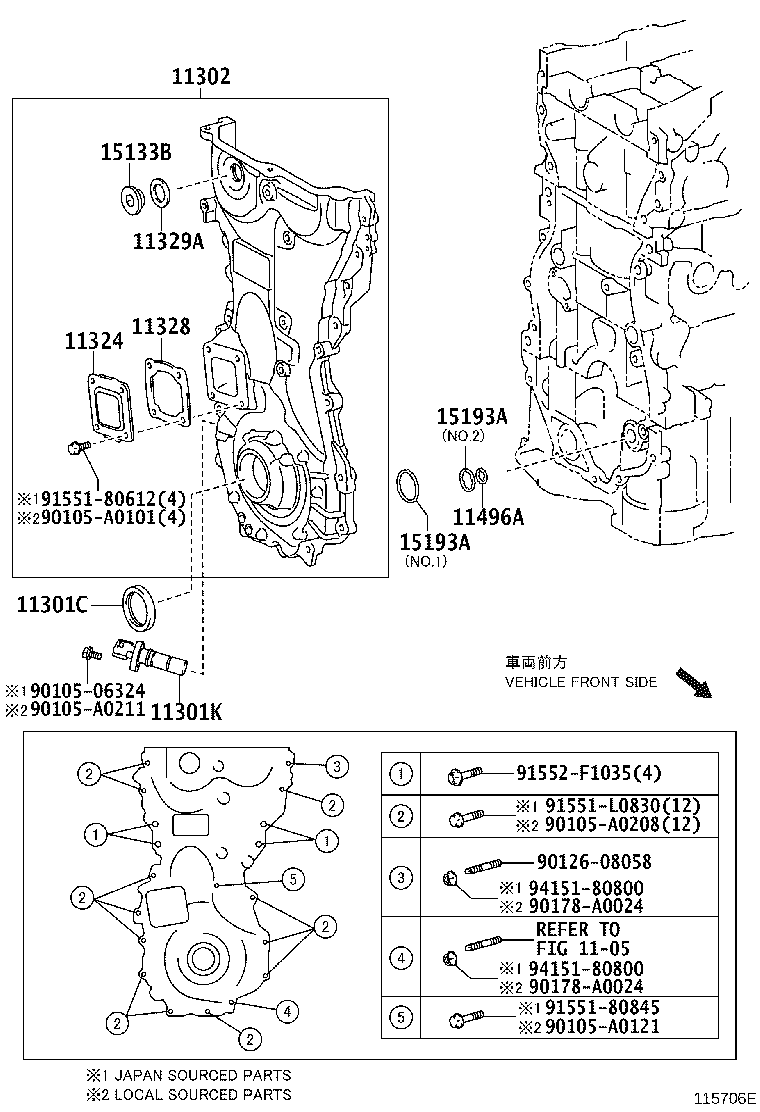

Click highlighted areas on diagram

diagram 1105 11301C 11301K 11302 11324 11328 11329A 11496A 15133B 15193A 15193A 9010506324 90105A0101 90105A0121 90105A0208 90105A0211 9012608058 90178A0024 90178A0024 9155180612 9155180845 91551L0830 91552F1035 9415180800 9415180800
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42043

2ARFE..ASA3#..NAP

*107

 1
90311-A0015

2ARFE..ASA3#..NAP

*212

 1
90311-A0019

2ARFE..ASA3#..NAP

*212

 1
90311-A0015

2ARFE..ASA3#..NAP

*212

 1
11301K - SENSOR, CRANK POSITION
90919-05070

2ARFE..ASA3#..NAP

*107

 1
90919-05070

2ARFE..ASA3#..NAP

(J),*212

 1
90919-A5004

2ARFE..ASA3#..NAP

(L),*212

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-0V020

2ARFE..ASA3#..NAP

(L),*212

 1
11310-36040

2ARFE..ASA3#..NAP

*107,(J),*212

 1
11310-36020

2ARFE..ASA3#..NAP

*107

 1
11310-36020

2ARFE..ASA3#..NAP

*107,(J),*212

 1
11324 - PLATE, TIMING CHAIN COVER
11324-36010

2ARFE..ASA3#..NAP

*107

 1
11324-36010

2ARFE..ASA3#..NAP

(J),*212

 1
11324-0V010

2ARFE..ASA3#..NAP

(L),*212

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-0V010

2ARFE..ASA3#..NAP

(L),*212

 1
11328-36020

2ARFE..ASA3#..NAP

(J),*212

 1
11328-36020

2ARFE..ASA3#..NAP

*107

 1
11329A - GASKET, TIMING BELT OR CHAIN COVER, NO.2
11329-36010

2ARFE..ASA3#..NAP

*212

 1
11329-36010

2ARFE..ASA3#..NAP

*107

 1
11496A - GASKET, OIL HOLE COVER
11496-36010

2ARFE..ASA3#..NAP

*212

 1
11496-36010

2ARFE..ASA3#..NAP

*107

 1
15133B - PLUG, OIL PUMP RELIEF VALVE
15133-36020

2ARFE..ASA3#..NAP

*212

 1
15133-36020

2ARFE..ASA3#..NAP

*107

 1
15193A - GASKET, OIL PUMP
15197-36010

2ARFE..ASA3#..NAP

*107,NO.2

 1
15193-36010

2ARFE..ASA3#..NAP

*107,NO.1

 1
15197-36010

2ARFE..ASA3#..NAP

*212,NO.2

 1
15193-36010

2ARFE..ASA3#..NAP

*212,NO.1

 1
15193A - GASKET, OIL PUMP
15197-36010

2ARFE..ASA3#..NAP

*107,NO.2

 1
15193-36010

2ARFE..ASA3#..NAP

*107,NO.1

 1
15197-36010

2ARFE..ASA3#..NAP

*212,NO.2

 1
15193-36010

2ARFE..ASA3#..NAP

*212,NO.1

 1
Common parts
90105-06324
90105-A0101
90105-A0121
90105-A0208
90105-A0211
90126-08058
90178-A0024
91551-80612
91551-80845
91551-L0830
91552-F1035
94151-80800
