ASA33L-CNPXKK (2008)

Toyota Rav4 (Nap)

Production Nov 2008 - Jan 2013
Engine 2ARFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

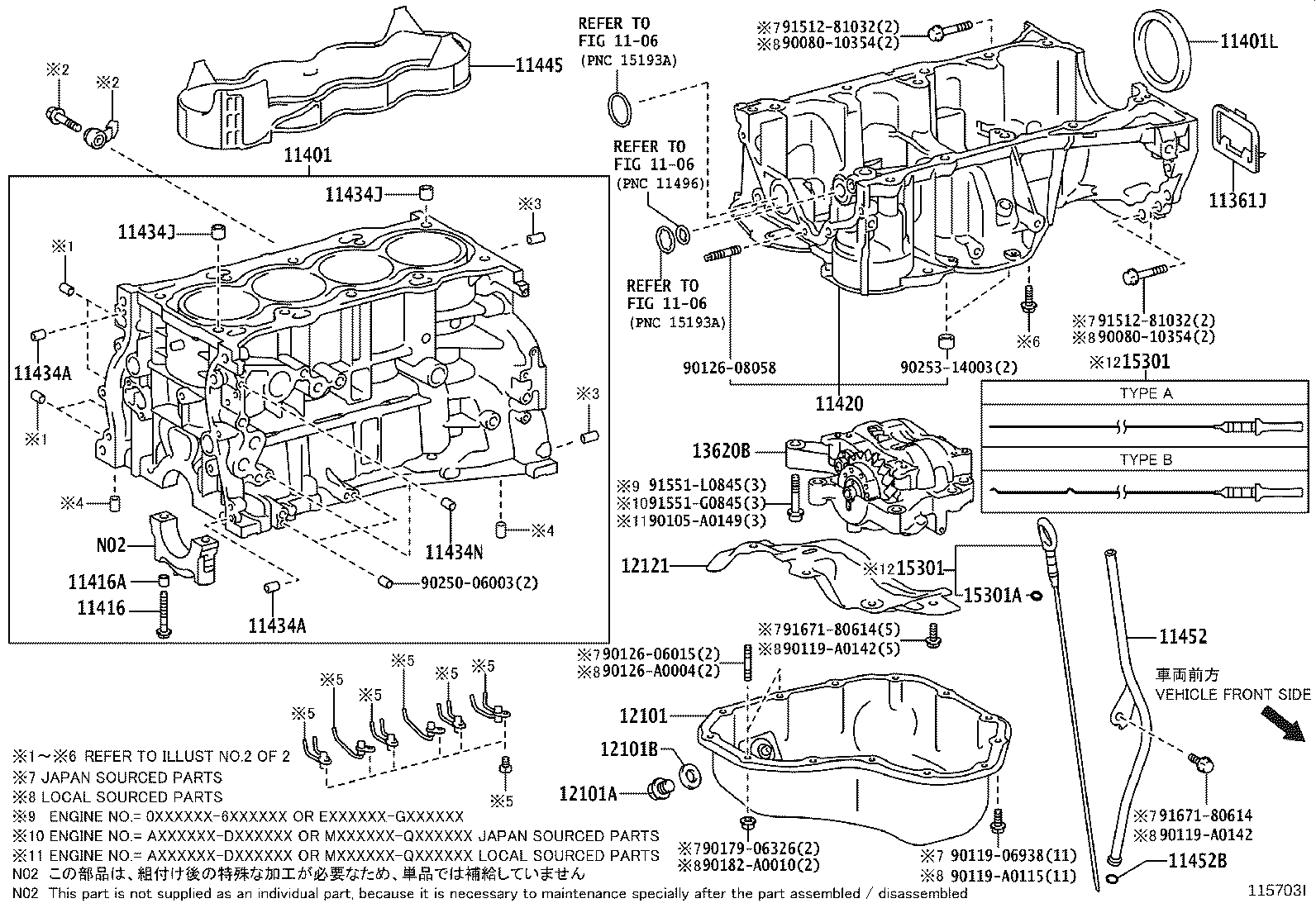

ILLUST NO. 1 OF 2(0811- )2ARFE..NAP

Click highlighted areas on diagram

diagram 1106 1106 1106 11361J 11401 11401L 11416 11416A 11420 11434A 11434A 11434J 11434J 11434N 11445 11452 11452B 12101 12101A 12101B 12121 13620B 15301 15301 15301A 9008010354 9008010354 90105A0149 9011906938 90119A0115 90119A0142 90119A0142 9012606015 9012608058 90126A0004 9017906326 90182A0010 9025006003 9025314003 9151281032 9151281032 91551G0845 91551L0845 9167180614 9167180614
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-0H020

2ARFE..ASA3#..NAP

(L)

 1
11361-28010

2ARFE..ASA3#..NAP

(J)

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-09395

2ARFE..ASA3#..NAP

*212

 1
11410-39075

2ARFE..ASA3#..NAP

*107

 1
11410-39125

2ARFE..ASA3#..NAP

*107

 1
11401L - SEAL, ENGINE REAR OIL
90311-89005

2ARFE..ASA3#..NAP

*107

 1
90311-A0020

2ARFE..ASA3#..NAP

*212

 1
90311-89006

2ARFE..ASA3#..NAP

*107

 1
90311-A0016

2ARFE..ASA3#..NAP

*212

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02173

2ARFE..ASA3#..NAP

*107

 10
90910-A2008

2ARFE..ASA3#..NAP

*212

 10
11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET)
90253-13017

2ARFE..ASA3#..NAP

*107

 10
90253-13017

2ARFE..ASA3#..NAP

*212

 10
11420 - CRANKCASE ASSY, STIFFENING
11420-36010

2ARFE..ASA3#..NAP

*212

 1
11420-36010

2ARFE..ASA3#..NAP

*107

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06003

2ARFE..ASA3#..NAP

L=14,OD=6,*212

 2
90250-06003

2ARFE..ASA3#..NAP

L=14,OD=6,*107

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06003

2ARFE..ASA3#..NAP

L=14,OD=6,*212

 2
90250-06003

2ARFE..ASA3#..NAP

L=14,OD=6,*107

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15001

2ARFE..ASA3#..NAP

*212

 2
90253-15001

2ARFE..ASA3#..NAP

*107

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15001

2ARFE..ASA3#..NAP

*212

 2
90253-15001

2ARFE..ASA3#..NAP

*107

 2
11434N - PIN, STRAIGHT(FOR WATER INLET HOUSING)
90250-06003

2ARFE..ASA3#..NAP

*107

 2
90250-06003

2ARFE..ASA3#..NAP

*212

 2
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-36010

2ARFE..ASA3#..NAP

*107

 1
11445-0V010

2ARFE..ASA3#..NAP

*212

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-36020

2ARFE..ASA3#..NAP

*107

 1
11452-36021

2ARFE..ASA3#..NAP

*107

 1
11452-0V010

2ARFE..ASA3#..NAP

*212

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96741-19010

2ARFE..ASA3#..NAP

*212

 1
96741-19010

2ARFE..ASA3#..NAP

*107

 1
12101 - PAN SUB-ASSY, OIL
12101-36050

2ARFE..ASA3#..NAP

*107

 1
12101-0V030

2ARFE..ASA3#..NAP

(L),*212

 1
12101-36050

2ARFE..ASA3#..NAP

(J),*212

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

2ARFE..ASA3#..NAP

*107

 1
90341-12012

2ARFE..ASA3#..NAP

*212

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

2ARFE..ASA3#..NAP

*212

 1
90430-12031

2ARFE..ASA3#..NAP

*107

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-36030

2ARFE..ASA3#..NAP

*107

 1
12121-0V010

2ARFE..ASA3#..NAP

*212

 1
13620B - BALANCER ASSY, ENGINE
13620-36010

2ARFE..ASA3#..NAP

*107

 1
13620-36011

2ARFE..ASA3#..NAP

(J),*212

 1
13620-36011

2ARFE..ASA3#..NAP

*107

 1
13620-0V021

2ARFE..ASA3#..NAP

(L),*212

 1
13620-36020

2ARFE..ASA3#..NAP

*107,(J),*212

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-36031

2ARFE..ASA3#..NAP

*212T/P B:SEE ILLUST

 1
15301-36031

2ARFE..ASA3#..NAP

*107

 1
15301-0V020

2ARFE..ASA3#..NAP

(L),*212

 1
15301-0V020

2ARFE..ASA3#..NAP

*212

 1
15301-36030

2ARFE..ASA3#..NAP

(J),*212

 1
15301-0V020

2ARFE..ASA3#..NAP

*212T/P A:SEE ILLUST

 1
15301-36030

2ARFE..ASA3#..NAP

*107

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-36031

2ARFE..ASA3#..NAP

*212T/P B:SEE ILLUST

 1
15301-36031

2ARFE..ASA3#..NAP

*107

 1
15301-0V020

2ARFE..ASA3#..NAP

(L),*212

 1
15301-0V020

2ARFE..ASA3#..NAP

*212

 1
15301-36030

2ARFE..ASA3#..NAP

(J),*212

 1
15301-0V020

2ARFE..ASA3#..NAP

*212T/P A:SEE ILLUST

 1
15301-36030

2ARFE..ASA3#..NAP

*107

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005

2ARFE..ASA3#..NAP

 1
Common parts
90080-10354
90105-A0149
90119-06938
90119-A0115
90119-A0142
90126-06015
90126-08058
90126-A0004
90179-06326
90182-A0010
90250-06003
90253-14003
91512-81032
91551-G0845
91551-L0845
91671-80614
Linked diagrams
1106

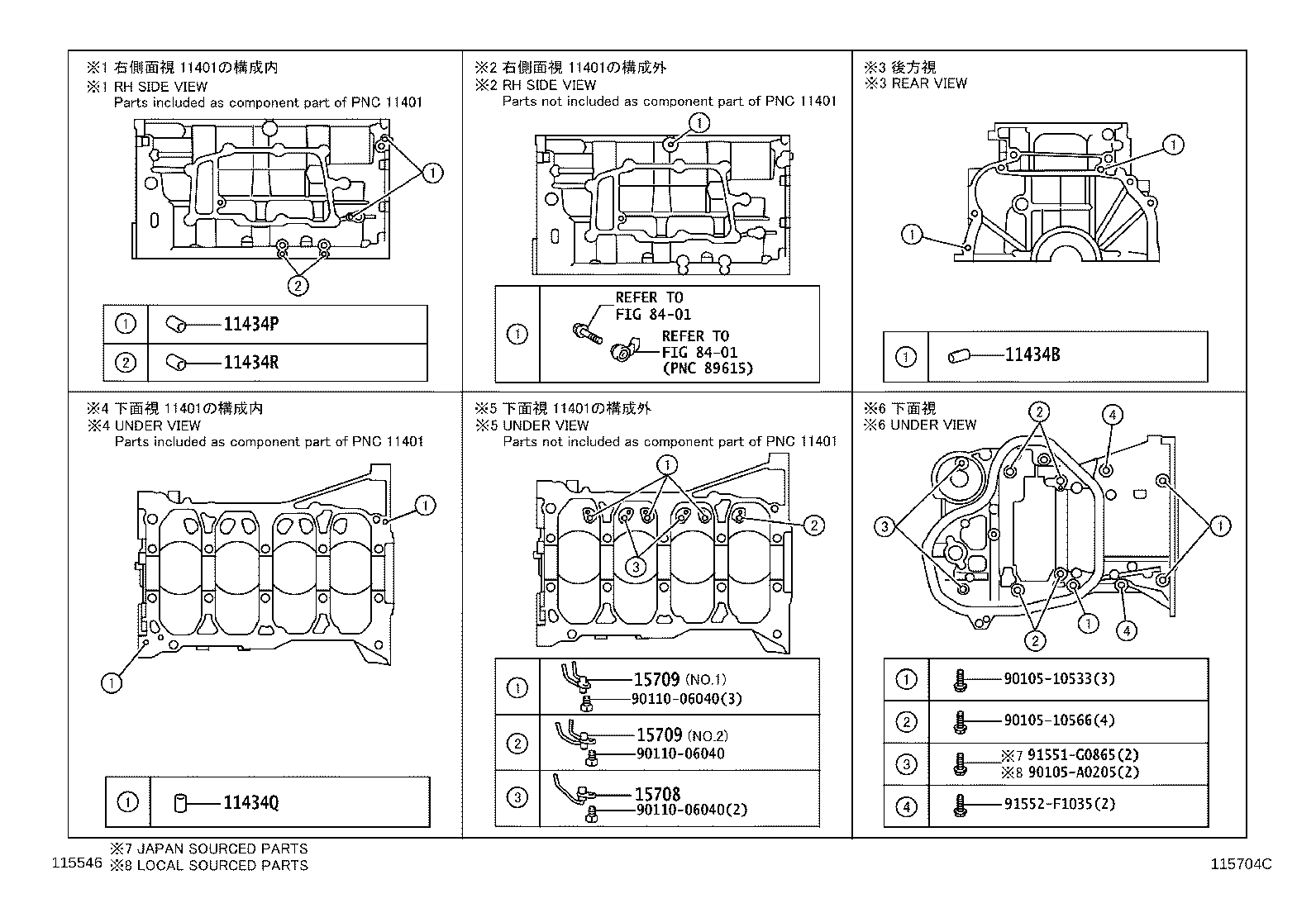

ILLUST NO. 2 OF 2(0811- )2ARFE..NAP

Click highlighted areas on diagram

diagram 11434B 11434P 11434Q 11434R 15708 15709 15709 8401 8401 9010510533 9010510566 90105A0205 9011006040 9011006040 9011006040 91551G0865 91552F1035
Part # Description Qty Price
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

2ARFE..ASA3#..NAP

L=22,OD=10,*107

 2
90250-10113

2ARFE..ASA3#..NAP

L=22,OD=10,*212

 2
11434P - PIN, STRAIGHT(FOR OIL PUMP SET)
90250-06003

2ARFE..ASA3#..NAP

L=14,OD=6,*107

 2
90250-06003

2ARFE..ASA3#..NAP

L=14,OD=6,*212

 2
11434Q - PIN, STRAIGHT(FOR CRANKCASE)
90250-06003

2ARFE..ASA3#..NAP

L=14,OD=6,*212

 2
90250-06003

2ARFE..ASA3#..NAP

L=14,OD=6,*107

 2
11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
90250-06003

2ARFE..ASA3#..NAP

*107

 2
90250-06003

2ARFE..ASA3#..NAP

*212

 2
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-36010

2ARFE..ASA3#..NAP

*107

 2
15708-36010

2ARFE..ASA3#..NAP

*212

 2
15709 - NOZZLE SUB-ASSY, OIL, NO.2
15709-36010

2ARFE..ASA3#..NAP

*107,NO.1

 3
15709-36020

2ARFE..ASA3#..NAP

*212,NO.2

 1
15709-36020

2ARFE..ASA3#..NAP

*107,NO.2

 1
15709-36010

2ARFE..ASA3#..NAP

*212,NO.1

 3
15709 - NOZZLE SUB-ASSY, OIL, NO.2
15709-36010

2ARFE..ASA3#..NAP

*107,NO.1

 3
15709-36020

2ARFE..ASA3#..NAP

*212,NO.2

 1
15709-36020

2ARFE..ASA3#..NAP

*107,NO.2

 1
15709-36010

2ARFE..ASA3#..NAP

*212,NO.1

 3
Common parts
90105-10533
90105-10566
90105-A0205
90110-06040
91551-G0865
91552-F1035
Linked diagrams
8401
