MXAA54L-RNXMBX (2019)
Toyota Rav4 (Jpp)

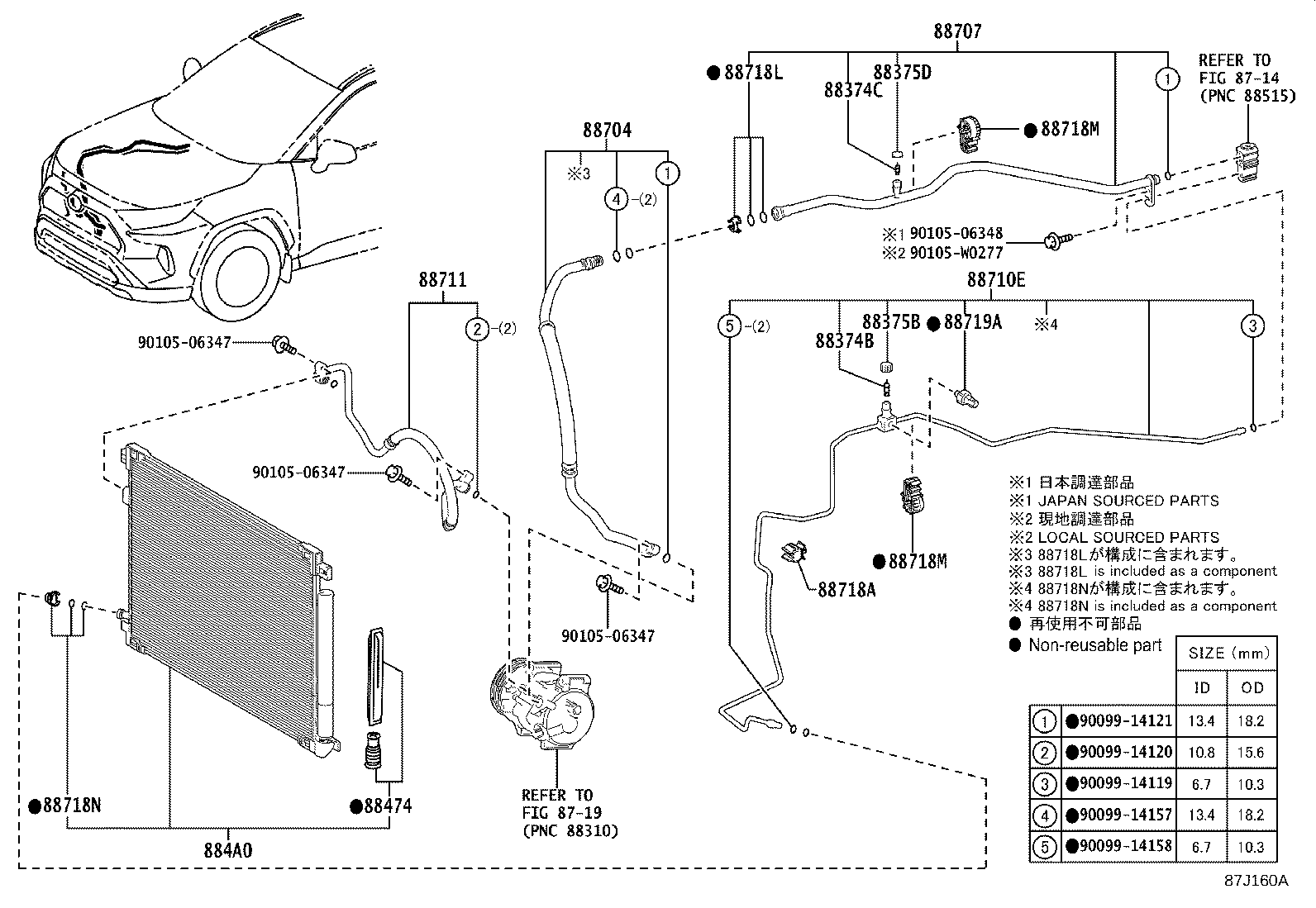

(1811-2007)MXAA5#..LHD..EUR,GEN ; (1910-2010)MXAA5#..RUS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 88374-30010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
MXAA52..G,X;AXAA5#,MXAA54;MXAA52..CVT..M;MXAA52..LHD..6F..M;AXAH5#,AXAL5#..LHD..EUR;AXAH5#,AXAL5#..ARL,GCC,GEN,RUS |
1 | ||
| 88375-30280 |
AXAA54,MXAA5#..RUS |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
MXAA52..G,X;AXAA5#,MXAA54;MXAA52..CVT..M;MXAA52..LHD..6F..M;AXAH5#,AXAL5#..LHD..EUR;AXAH5#,AXAL5#..ARL,GCC,GEN,RUS |
1 | ||
| 88375-30290 |
MXAA52..CVT;AXAH54..LHD..EUR;AXAA52,AXAH52..LHD;AXAH52,AXAL5#..ARL;MXAA54..LHD..(M,X);AXAH54..LHD..M..GEN;AXAH54..M..(ARL,GCC);MXAA52..LHD..6F..GEN;AXAA54..(M,V,X)..ARL;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54..(G,X)..(ARL,GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12020 |
AXAA54,MXAA5#..RUS |
1 | ||
| 88474-12020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 884A0 - CONDENSER ASSY, COOLER | ||||
| 884A0-33010 |
MXAA52..G,X;AXAA5#,MXAA54;MXAA52..CVT..M;MXAA52..LHD..6F..M |
1 | ||
| 884A0-33010 |
AXAA54,MXAA5#..RUS |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-42720 |
MXAA5# |
1 | ||
| 88704-42720 |
MXAA52..CVT;MXAA54..LHD..(M,X);MXAA52..LHD..6F..GEN;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);MXAA54..(G,V)..(EUR,GEN,RUS,SA) |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-42180 |
AXAH5#,AXAL5#,MXAA52..LHD;AXAA5#,MXAA54..LHD..(EUR,GEN,RUS) |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-42120 |
AXAA5#,MXAA5#..LHD..(EUR,GEN,RUS) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-42040 |
MXAA52..CVT;MXAA54..LHD..(M,X);MXAA52..LHD..6F..GEN;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);MXAA54..(G,V)..(EUR,GEN,RUS,SA) |
1 | ||
| 88711-42040 |
MXAA5# |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-2F110 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88718-2F110 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88718-52280 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 88718-52280 |
MXAA52..CVT;MXAA54..LHD..(M,X);AXAA54..(M,V,X)..ARL;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAA52,MXAA52..LHD..(6F,8FC)..(GCC,GEN) |
1 | ||
| 88718M - CLAMP, PIPING | ||||
| 88718-33490 |
AXAH54..G;MXAA52..CVT;MXAA54..RHD..CVT;AXAA54..GEN,RUS,SA;AXAH54..LHD..(M,X);AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA52,AXAH52..LHD..GEN;MXAA52..6F..(EUR,RUS,SA);MXAA54..LHD..(EUR,GEN,RUS);AXAA54,AXAH54..(M,V,X)..ARL;AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
2 | ||
| 88718-33490 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GEN,RUS,SA |
2 | ||
| 88718M - CLAMP, PIPING | ||||
| 88718-33490 |
AXAH54..G;MXAA52..CVT;MXAA54..RHD..CVT;AXAA54..GEN,RUS,SA;AXAH54..LHD..(M,X);AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA52,AXAH52..LHD..GEN;MXAA52..6F..(EUR,RUS,SA);MXAA54..LHD..(EUR,GEN,RUS);AXAA54,AXAH54..(M,V,X)..ARL;AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
2 | ||
| 88718-33490 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GEN,RUS,SA |
2 | ||
| 88718N - CLAMP, PIPING | ||||
| 88718-1E150 |
AXAA54,MXAA5#..RUS |
1 | ||
| 88718-1E150 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 88719-11010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-06347 | ||||
| 90105-06348 | ||||
| 90105-W0277 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

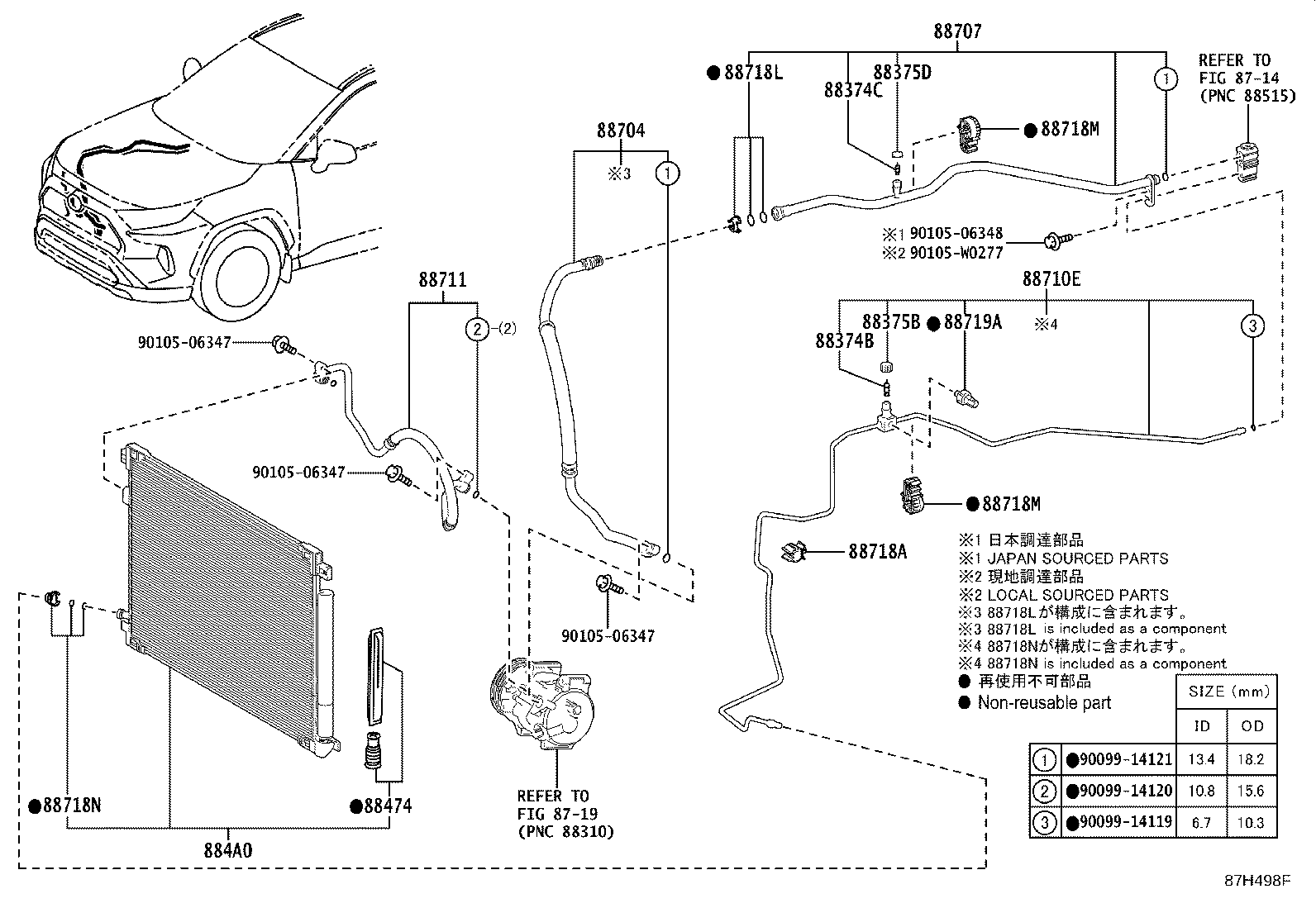

(2008- )MXAA5#..LHD..EUR,GEN ; (2010- )MXAA5#..RUS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 88374-30010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
MXAA52..G,X;AXAA5#,MXAA54;MXAA52..CVT..M;MXAA52..LHD..6F..M;AXAH5#,AXAL5#..LHD..EUR;AXAH5#,AXAL5#..ARL,GCC,GEN,RUS |
1 | ||
| 88375-30280 |
AXAA54,MXAA5#..RUS |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
MXAA52..G,X;AXAA5#,MXAA54;MXAA52..CVT..M;MXAA52..LHD..6F..M;AXAH5#,AXAL5#..LHD..EUR;AXAH5#,AXAL5#..ARL,GCC,GEN,RUS |
1 | ||
| 88375-30290 |
MXAA52..CVT;AXAH54..LHD..EUR;AXAA52,AXAH52..LHD;AXAH52,AXAL5#..ARL;MXAA54..LHD..(M,X);AXAH54..LHD..M..GEN;AXAH54..M..(ARL,GCC);MXAA52..LHD..6F..GEN;AXAA54..(M,V,X)..ARL;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54..(G,X)..(ARL,GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12020 |
AXAA54,MXAA5#..RUS |
1 | ||
| 88474-12020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 884A0 - CONDENSER ASSY, COOLER | ||||
| 884A0-33010 |
MXAA52..G,X;AXAA5#,MXAA54;MXAA52..CVT..M;MXAA52..LHD..6F..M |
1 | ||
| 884A0-33010 |
AXAA54,MXAA5#..RUS |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-42720 |
MXAA5# |
1 | ||
| 88704-42720 |
MXAA52..CVT;MXAA54..LHD..(M,X);MXAA52..LHD..6F..GEN;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);MXAA54..(G,V)..(EUR,GEN,RUS,SA) |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-42180 |
AXAH5#,AXAL5#,MXAA52..LHD;AXAA5#,MXAA54..LHD..(EUR,GEN,RUS) |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-42120 |
AXAA5#,MXAA5#..LHD..(EUR,GEN,RUS) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-42040 |
MXAA52..CVT;MXAA54..LHD..(M,X);MXAA52..LHD..6F..GEN;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);MXAA54..(G,V)..(EUR,GEN,RUS,SA) |
1 | ||
| 88711-42040 |
MXAA5# |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-2F110 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88718-2F110 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88718-52280 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 88718-52280 |
MXAA52..CVT;MXAA54..LHD..(M,X);AXAA54..(M,V,X)..ARL;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAA52,MXAA52..LHD..(6F,8FC)..(GCC,GEN) |
1 | ||
| 88718M - CLAMP, PIPING | ||||
| 88718-33490 |
AXAH54..G;MXAA52..CVT;MXAA54..RHD..CVT;AXAA54..GEN,RUS,SA;AXAH54..LHD..(M,X);AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA52,AXAH52..LHD..GEN;MXAA52..6F..(EUR,RUS,SA);MXAA54..LHD..(EUR,GEN,RUS);AXAA54,AXAH54..(M,V,X)..ARL;AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
2 | ||
| 88718-33490 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GEN,RUS,SA |
2 | ||
| 88718M - CLAMP, PIPING | ||||
| 88718-33490 |
AXAH54..G;MXAA52..CVT;MXAA54..RHD..CVT;AXAA54..GEN,RUS,SA;AXAH54..LHD..(M,X);AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA52,AXAH52..LHD..GEN;MXAA52..6F..(EUR,RUS,SA);MXAA54..LHD..(EUR,GEN,RUS);AXAA54,AXAH54..(M,V,X)..ARL;AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
2 | ||
| 88718-33490 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GEN,RUS,SA |
2 | ||
| 88718N - CLAMP, PIPING | ||||
| 88718-1E150 |
AXAA54,MXAA5#..RUS |
1 | ||
| 88718-1E150 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 88719-11010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14157 | ||||
| 90099-14158 | ||||
| 90105-06347 | ||||
| 90105-06348 | ||||
| 90105-W0277 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
