MXAA54L-RNXMBX (2019)

Toyota Rav4 (Jpp)

Production Oct 2019 - Oct 2020
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1811-1911)AXAH54..EUR,RUS ; (1811-1911)AXAA54,AXAH52,MXAA5#..EUR ; (1910-1911)RUS

Click highlighted areas on diagram

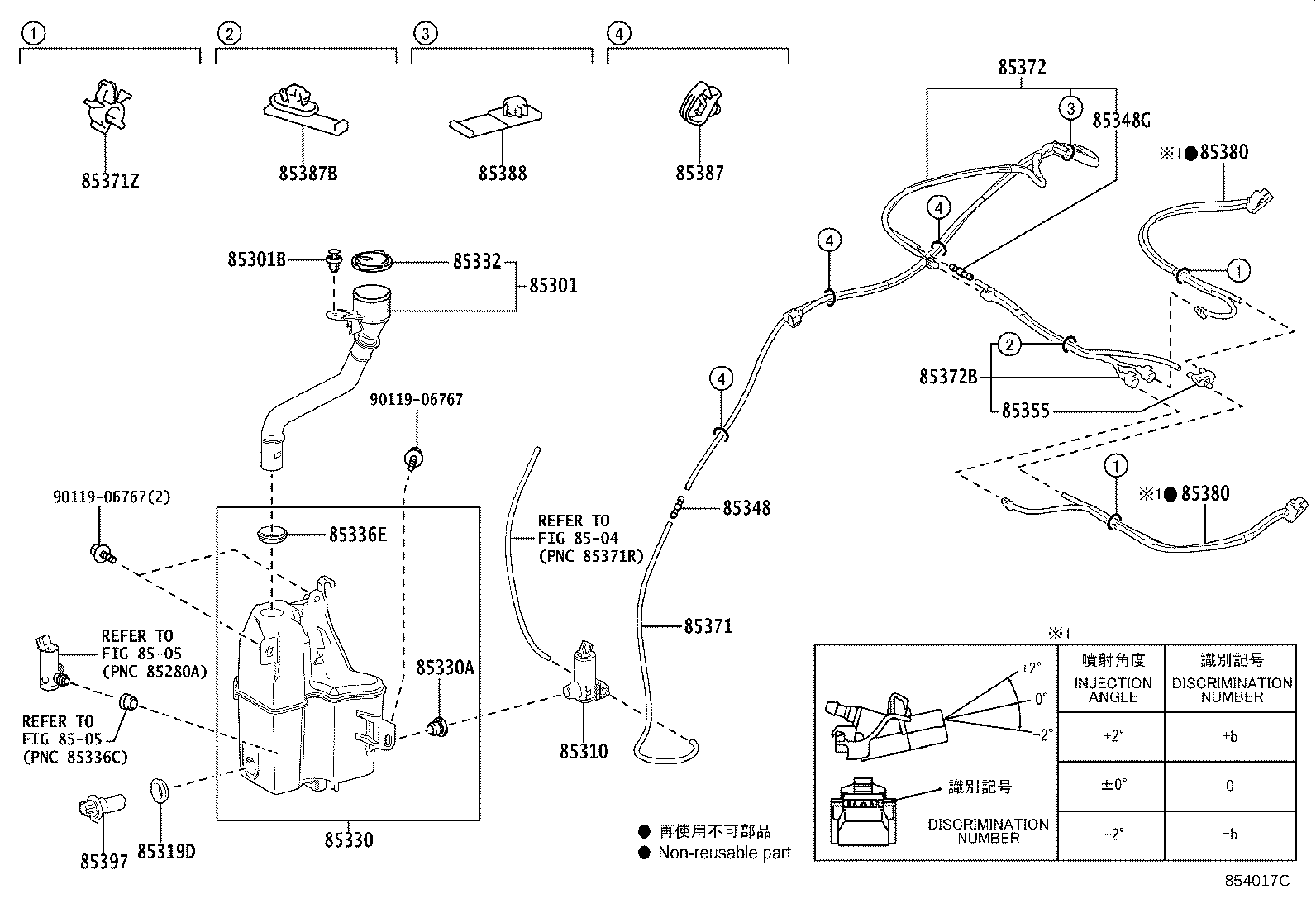

W(HEADLAMP CLEANER & HEATER)

diagram 8504 8505 8505 85301 85301B 85310 85319D 85330 85330A 85332 85336E 85348 85348G 85355 85371 85371Z 85372 85372B 85380 85380 85387 85387B 85388 85397 9011906767 9011906767
Part # Description Qty Price
85301 - INLET SUB-ASSY, WASHER
85301-42031

AXAA54,AXAH5#,AXAL5#,MXAA5#..EUR,RUS

 1
85301-42031

AXAA54,MXAA5#..EUR,RUS;AXAH5#,AXAL5#..(G,M)..EUR;AXAH5#,AXAL5#..LHD..X..EUR

 1
85301-42030

AXAA54,AXAH5#,MXAA5#..EUR,RUS

 1
85301B - CLIP, WASHER
90467-07215

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
90467-07215

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-47100

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
85330-47100

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
90099-32089

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-42030

AXAA5#,AXAH5#,MXAA5#

 1
85316-42031

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85316-42031

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-30160

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
85336-30160

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
85349-89122

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-10260

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
85375-10260

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85321-28020

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

AXAA5#,AXAH5#,AXAL5#,MXAA5#

*H,L=590

 1
90099-33080

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

*H,L=590

 1
85371Z - CLAMP, WASHER HOSE
90469-07011

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
90469-07011

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-35520

AXAA5#,AXAH5#,MXAA5#

 3
82711-35520

AXAA54,MXAA5#..RUS

 1
Common parts
90119-06767
Linked diagrams
8504
8505

(1911-2002)EUR,RUS ; (2002-2007)AXAL5#..LHD..G,M; (2002-2007)AXAA54,AXAH5#,MXAA5#.

Click highlighted areas on diagram

W(HEADLAMP CLEANER & HEATER)

diagram 8504 8505 8505 85301 85301B 85310 85319D 85330 85330A 85332 85336E 85348 85348G 85355 85371 85371Z 85372 85372B 85380 85380 85387 85387A 85387B 85388 85397 9011906767 9011906767
Part # Description Qty Price
85301 - INLET SUB-ASSY, WASHER
85301-42031

AXAA54,AXAH5#,AXAL5#,MXAA5#..EUR,RUS

 1
85301-42031

AXAA54,MXAA5#..EUR,RUS;AXAH5#,AXAL5#..(G,M)..EUR;AXAH5#,AXAL5#..LHD..X..EUR

 1
85301-42030

AXAA54,AXAH5#,MXAA5#..EUR,RUS

 1
85301B - CLIP, WASHER
90467-07215

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
90467-07215

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-47100

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
85330-47100

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
90099-32089

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-42030

AXAA5#,AXAH5#,MXAA5#

 1
85316-42031

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85316-42031

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-30160

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
85336-30160

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
85349-89122

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-10260

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
85375-10260

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85321-28020

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

AXAA5#,AXAH5#,AXAL5#,MXAA5#

*H,L=590

 1
90099-33080

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

*H,L=590

 1
85371Z - CLAMP, WASHER HOSE
90469-07011

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
90469-07011

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-35520

AXAA5#,AXAH5#,MXAA5#

 3
82711-35520

AXAA54,MXAA5#..RUS

 1
85387A - CLAMP, WASHER, NO.2
82711-16790

AXAA54,MXAA5#..RUS

 3
82711-16790

AXAA54,MXAA5#..RUS

 2
Common parts
90119-06767
Linked diagrams
8504
8505

(2002-2010)RUS ; (2010- )RUS

Click highlighted areas on diagram

W(HEADLAMP CLEANER & HEATER)

diagram 8504 8505 8505 85301 85301B 85310 85319D 85330 85330A 85332 85336E 85348 85348G 85355 85371 85371Z 85372 85372B 85380 85380 85387A 85387B 85388 85397 9011906767 9011906767
Part # Description Qty Price
85301 - INLET SUB-ASSY, WASHER
85301-42031

AXAA54,AXAH5#,AXAL5#,MXAA5#..EUR,RUS

 1
85301-42031

AXAA54,MXAA5#..EUR,RUS;AXAH5#,AXAL5#..(G,M)..EUR;AXAH5#,AXAL5#..LHD..X..EUR

 1
85301-42030

AXAA54,AXAH5#,MXAA5#..EUR,RUS

 1
85301B - CLIP, WASHER
90467-07215

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
90467-07215

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-47100

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
85330-47100

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
90099-32089

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-42030

AXAA5#,AXAH5#,MXAA5#

 1
85316-42031

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85316-42031

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-30160

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
85336-30160

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
85349-89122

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-10260

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
85375-10260

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85321-28020

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

AXAA5#,AXAH5#,AXAL5#,MXAA5#

*H,L=590

 1
90099-33080

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

*H,L=590

 1
85371Z - CLAMP, WASHER HOSE
90469-07011

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
90469-07011

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 2
85387A - CLAMP, WASHER, NO.2
82711-16790

AXAA54,MXAA5#..RUS

 3
82711-16790

AXAA54,MXAA5#..RUS

 2
Common parts
90119-06767
Linked diagrams
8504
8505
