MXAA54L-RNXMBX (2019)
Toyota Rav4 (Jpp)
(1910- )ATM,CVT..RUS

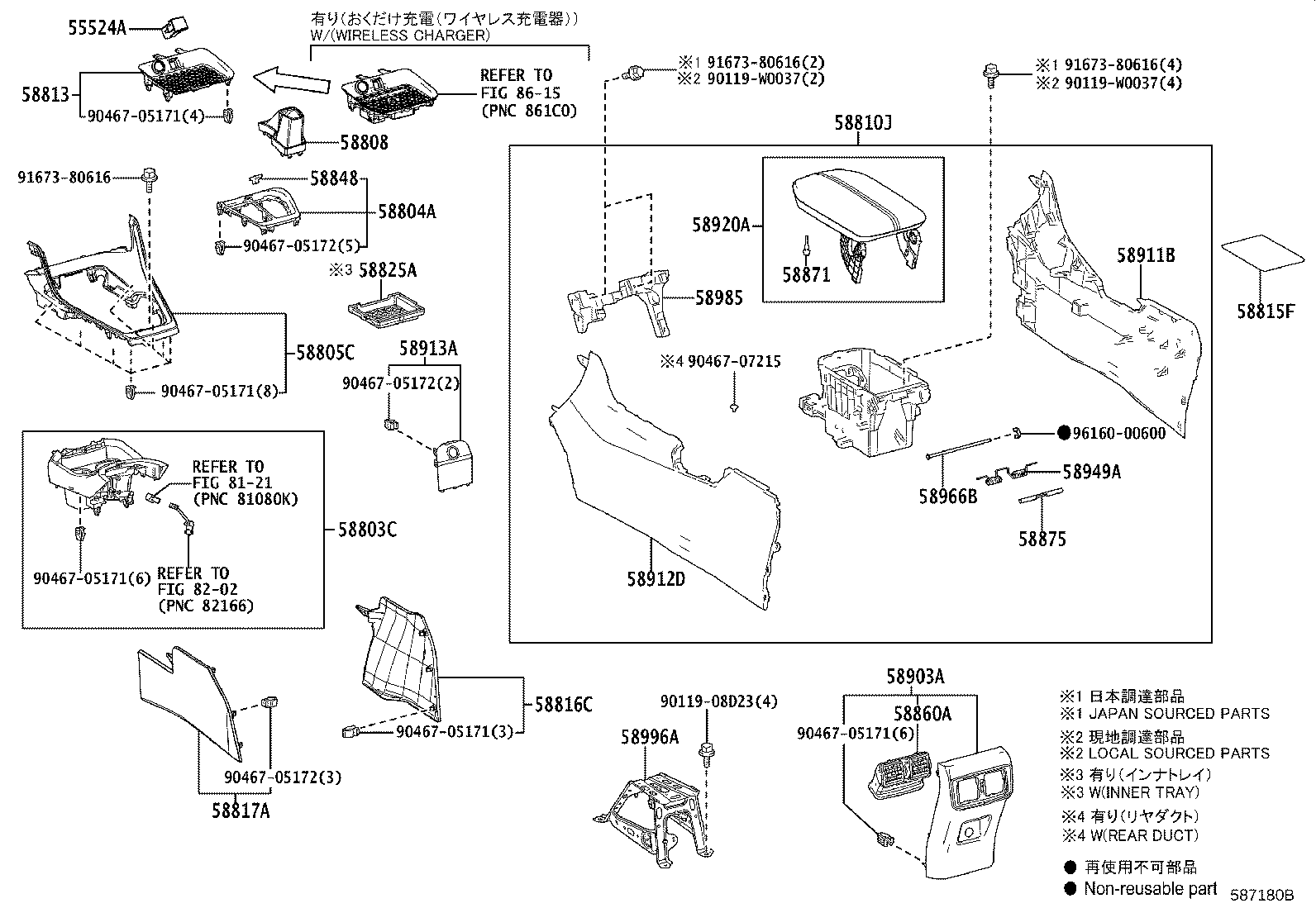

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55524A - COVER, SWITCH BASE HOLE | ||||
| 55524-12010C0 |
AXAA5#,AXAH54,MXAA5#..X..(GCC,RUS) AUDIO-6SPEAKER(AUDIO LESS),BLACK |
1 | ||
| 55524-12010C0 |
AXAA5#,AXAH54,MXAA5#..X..(GCC,RUS) AUDIO-6SPEAKER(AUDIO LESS),BLACK |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-42050C5 |
AXAA54,MXAA54..V ORANGE,TRIM2#,4# |
1 | ||
| 58803-42030C3 |
AXAA54,AXAH5#,AXAL5#,MXAA5#..(ATM,CVT)..(M,X)..(EUR,RUS) BLACK,TRIM2# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-0R230 |
AXAA54,MXAA5#..(ATM,CVT)..RUS |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-42080 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD..(ATM,CVT) |
1 | ||
| 58805-42080 |
MXAA54..LHD..CVT..(M,X);MXAA54..LHD..CVT..(G,V)..(EUR,GEN,RUS);AXAA5#,AXAH5#,AXAL5#,MXAA52..LHD..(ATM,CVT) |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-42110C0 |
AXAL5#..LHD..G;AXAH54..(G,M)..GCC;AXAA5#..LHD..(G,M);MXAA54..CVT..(EUR,RUS);MXAA54..LHD..CVT..(G,M)..(GCC,GEN);AXAH5#,MXAA52..LHD..CVT..(EUR,GEN,RUS) BLACK,TRIM1#,2#,4# |
1 | ||
| 58808-42110C0 |
AXAA54,MXAA5#..(ATM,CVT)..RUS;AXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,X)..EUR BLACK,TRIM2# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-42030C1 |
AXAA54,MXAA54..LHD..V BLACK,TRIM2#,4# |
1 | ||
| 58810-42030C1 |
AXAH54..LHD..G;AXAA54,MXAA5#..(ATM,CVT)..(M,X)..RUS;AXAA5#,AXAH52,AXAL5#,MXAA5#..LHD..(ATM,CVT)..G..(EUR,GCC,GEN) BLACK,TRIM1#,2#,4# |
1 | ||
| 58810-42030C1 |
AXAA54,MXAA5#..(ATM,CVT)..RUS;AXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,X)..EUR BLACK,TRIM2# |
1 | ||
| 58813 - BOX, CONSOLE, UPPER | ||||
| 58813-42040E8 |
AXAA54,MXAA54..LHD..V WIRELESS CHARGER-WITH,ORANGE,TRIM2#,4# |
1 | ||
| 58813-42040E8 |
AXAA54,MXAA54..LHD..V ORANGE,TRIM2#,4# |
1 | ||
| 58813-42060C2 |
MXAA54..CVT..(M,X)..RUS;AXAA54,AXAH54,MXAA52..M..RUS;AXAH5#,AXAL5#,MXAA52..LHD..CVT..X..(EUR,RUS) BLACK,TRIM2# |
1 | ||
| 58813-42060C2 |
AXAA54,MXAA52..M..RUS;MXAA54..CVT..(M,X)..RUS;AXAH5#,AXAL5#,MXAA52..LHD..CVT..X..(EUR,RUS) BLACK,TRIM2# |
1 | ||
| 58815F - CARPET, CONSOLE BOX | ||||
| 58815-0R100 |
AXAA54,MXAA5#..RUS |
1 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-42020C0 |
AXAL5#..LHD..G;MXAA54..EUR,RUS;AXAH54..(G,M)..GCC;MXAA52..X..(EUR,RUS);MXAA52..LHD..CVT..X..GEN;AXAA5#,MXAA52..LHD..(G,M);AXAH5#..LHD..(EUR,GEN,RUS);MXAA54..LHD..(G,M)..(GCC,GEN) BLACK,TRIM1#,2#,4# |
1 | ||
| 58816-42020C0 |
MXAA52..G..RUS;MXAA54..M..EUR;AXAA54,MXAA54..RUS;AXAH5#,AXAL5#,MXAA52..LHD..(M,X)..(EUR,RUS) BLACK,TRIM2# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-42020C0 |
AXAL5#..LHD..G;MXAA54..EUR,RUS;AXAH54..(G,M)..GCC;MXAA52..X..(EUR,RUS);MXAA52..LHD..CVT..X..GEN;AXAA5#,MXAA52..LHD..(G,M);AXAH5#..LHD..(EUR,GEN,RUS);MXAA54..LHD..(G,M)..(GCC,GEN) BLACK,TRIM1#,2#,4# |
1 | ||
| 58817-42020C0 |
MXAA52..G..RUS;MXAA54..M..EUR;AXAA54,MXAA54..RUS;AXAH5#,AXAL5#,MXAA52..LHD..(M,X)..(EUR,RUS) BLACK,TRIM2# |
1 | ||
| 58848 - COVER, SHIFT LEVER HOLE | ||||
| 58848-42010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD..(ATM,CVT) |
1 | ||
| 58848-42010 |
MXAA54..LHD..CVT..(M,X);MXAA54..LHD..CVT..(G,V)..(EUR,GEN,RUS);AXAA5#,AXAH5#,AXAL5#,MXAA52..LHD..(ATM,CVT) |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-48050C2 |
AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS) BLACK,TRIM1#,2#,4# |
1 | ||
| 58860-48050C2 |
MXAA52..G..RUS;AXAA54,MXAA54..RUS;AXAH54..RHD..M..EUR;AXAH52,AXAL5#..LHD..X;AXAH54..LHD..(M,X)..EUR;MXAA52..(M,X)..(EUR,RUS);AXAH52,AXAL5#,MXAA54..M..EUR BLACK,TRIM2# |
1 | ||
| 58871 - CUSHION, CONSOLE BOX | ||||
| 90541-03078 |
AXAH54,MXAA52..G;MXAA54..(G,V)..GEN;AXAH54..LHD..(M,X)..EUR;AXAA54..(G,V)..(GCC,GEN);MXAA52..CVT..M..(ARL,EUR,RUS);AXAH52,AXAL5#..(G,M)..(ARL,EUR);AXAA52,AXAH52..LHD..G..(GCC,GEN);AXAA54,AXAH54..RHD..(M,V)..(ARL,EUR);AXAA54,MXAA54..(ATM,CVT)..(EUR,RUS,SA);AXAH52,AXAL5#,MXAA52..LHD..CVT..X..(EUR,RUS) |
4 | ||
| 90541-03078 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
4 | ||
| 58875 - SPACER, CONSOLE BOX | ||||
| 58875-42010 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 58875-42010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-42050C0 |
MXAA5#..X..RUS AUDIO-6SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,4# |
1 | ||
| 58903-42060C0 |
AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#,MXAA54..(G,M)..(ARL,GCC);AXAH5#,MXAA52..LHD..X..(EUR,RUS);AXAA5#,AXAH5#,MXAA52..(G,M)..(ARL,EUR,GCC,RUS,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 58903-42060C0 |
MXAA52..G..RUS;AXAA54,MXAA54..RUS;AXAH54..RHD..M..EUR;AXAH52,AXAL5#..LHD..X;AXAH54..LHD..(M,X)..EUR;MXAA52..(M,X)..(EUR,RUS);AXAH52,AXAL5#,MXAA54..M..EUR BLACK,TRIM2# |
1 | ||
| 58911B - PANEL, BOX, NO.1 | ||||
| 58911-42060C0 |
AXAH54..G..RUS;AXAL5#..LHD..G;MXAA54..CVT..(EUR,RUS);MXAA52..LHD..CVT..X..(GEN,RUS);AXAH54..LHD..(G,M)..(EUR,GCC,GEN);MXAA54..LHD..CVT..(G,M)..(GCC,GEN);AXAA5#,AXAH52,MXAA52..LHD..(ATM,CVT)..(G,M) BLACK,TRIM1#,2#,4# |
1 | ||
| 58911-42060C0 |
AXAA54,MXAA5#..(ATM,CVT)..RUS;AXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,X)..EUR BLACK,TRIM2# |
1 | ||
| 58912D - PANEL, BOX, NO.2 | ||||
| 58912-42050C0 |
AXAH54..G..RUS;AXAL5#..LHD..G;MXAA54..CVT..(EUR,RUS);MXAA52..LHD..CVT..X..(GEN,RUS);AXAH54..LHD..(G,M)..(EUR,GCC,GEN);MXAA54..LHD..CVT..(G,M)..(GCC,GEN);AXAA5#,AXAH52,MXAA52..LHD..(ATM,CVT)..(G,M) BLACK,TRIM1#,2#,4# |
1 | ||
| 58912-42050C0 |
AXAA54,MXAA5#..(ATM,CVT)..RUS;AXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,X)..EUR BLACK,TRIM2# |
1 | ||
| 58913A - PANEL, BOX, NO.3 | ||||
| 58913-42010 |
AXAA54,MXAA5#..RUS |
1 | ||
| 58913-42030 |
AXAA54,MXAA5#..(G,M)..RUS AUDIO JACK-FRONT:AUX & USB3,REAR:USB2 |
1 | ||
| 58913-42010 |
MXAA5#..X..RUS AUDIO-6SPEAKER(AUDIO LESS)&AUDIO JACK-WITHOUT |
1 | ||
| 58913-42030 |
AXAA54,MXAA5#..RUS |
1 | ||
| 58913-42010 |
MXAA52..LHD..6F;AXAH54..RHD..M..EUR;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..LHD..CVT..M..EUR;AXAH54,MXAA54..LHD..(M,X);AXAH54..RHD..G..(EUR,GEN);AXAH54..LHD..G..(GCC,GEN);MXAA54..(G,V)..(GEN,RUS,SA);AXAA52,AXAH52..LHD..(GCC,GEN);MXAA52..CVT..X..(EUR,GEN,RUS);AXAH52,AXAL5#..LHD..(M,X)..EUR;AXAH52,AXAL5#..RHD..(G,M)..EUR;MXAA52..RHD..(G,M)..(EUR,GEN,SA);MXAA52..LHD..CVT..(G,M)..(GEN,RUS) |
1 | ||
| 58913-42030 |
AXAA54,MXAA5#..(G,M)..RUS AUDIO JACK-FRONT:USB3, REAR:USB3 |
1 | ||
| 58920A - ARMREST ASSY, REAR CONSOLE | ||||
| 58920-42020C1 |
AXAA54,MXAA54..V BLACK,TRIM2#,4# |
1 | ||
| 58920-42020C1 |
AXAL5#..G..EUR;AXAL5#..(G,M)..ARL;MXAA52..CVT..X..RUS;AXAH54..M..(ARL,EUR);MXAA54..CVT..(EUR,RUS);AXAH52..(G,M)..(ARL,EUR);AXAH52,MXAA54..CVT..G..(GCC,GEN);AXAA5#,AXAH54,MXAA52..(ATM,CVT)..G;AXAA54,MXAA52..(ATM,CVT)..M..(ARL,EUR,RUS) BLACK,TRIM1#,2#,4# |
1 | ||
| 58920-42020C1 |
MXAA52..G..RUS;AXAH54..RHD..M..EUR;AXAH52,AXAL5#..LHD..X;AXAH54..LHD..(M,X)..EUR;MXAA52..CVT..(M,X)..(EUR,RUS);AXAA54,MXAA54..(ATM,CVT)..RUS;AXAH52,AXAL5#,MXAA54..CVT..M..EUR BLACK,TRIM2# |
1 | ||
| 58949A - SPRING, CONSOLE BOX MOUNTING BRACKET | ||||
| 58949-42050 |
AXAH54..M..ARL;MXAA52..6F..(M,X);MXAA54..EUR,RUS,SA;MXAA54..6F..(M,X)..GEN;AXAH54..(M,X)..(EUR,RUS);AXAA5#,AXAH54,MXAA52..G,V;AXAH52,MXAA54..(G,V)..(GCC,GEN);AXAH52,AXAL5#..(G,M)..(ARL,EUR);AXAH52,AXAL5#,MXAA52..CVT..X..(EUR,RUS);AXAA54,MXAA52..(ATM,CVT)..M..(ARL,EUR,RUS) |
1 | ||
| 58949-42050 |
AXAH54,MXAA52..G;MXAA54..EUR,RUS,SA;MXAA54..(G,V)..GEN;MXAA5#..LHD..6F..GEN;AXAH54..LHD..(M,X)..EUR;AXAA54..(G,V)..(GCC,GEN);MXAA52..CVT..M..(ARL,EUR,RUS);AXAH52,AXAL5#..(G,M)..(ARL,EUR);AXAA52,AXAH52..LHD..G..(GCC,GEN);AXAA54,AXAH54..RHD..(M,V)..(ARL,EUR);AXAA54,MXAA52..(6F,8FC)..(EUR,RUS,SA);AXAH52,AXAL5#,MXAA52..LHD..CVT..X..(EUR,RUS) |
1 | ||
| 58966B - PIN, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58966-42020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 58966-42020 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 58985 - RETAINER, CONSOLE BOX | ||||
| 58985-42060 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD..(ATM,CVT) |
1 | ||
| 58985-42060 |
MXAA54..LHD..CVT..(M,X);MXAA54..LHD..CVT..(G,V)..(EUR,GEN,RUS);AXAA5#,AXAH5#,AXAL5#,MXAA52..LHD..(ATM,CVT) |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-0R100 |
AXAA54,MXAA5#..RUS |
1 | ||
| Common parts | ||||
| 90119-08D23 | ||||
| 90119-W0037 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-07215 | ||||
| 91673-80616 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8615 | ||||
