MXAA54L-RNXMBX (2019)

Toyota Rav4 (Jpp)

Production Oct 2019 - Oct 2020
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1910- )ATM,CVT..RUS

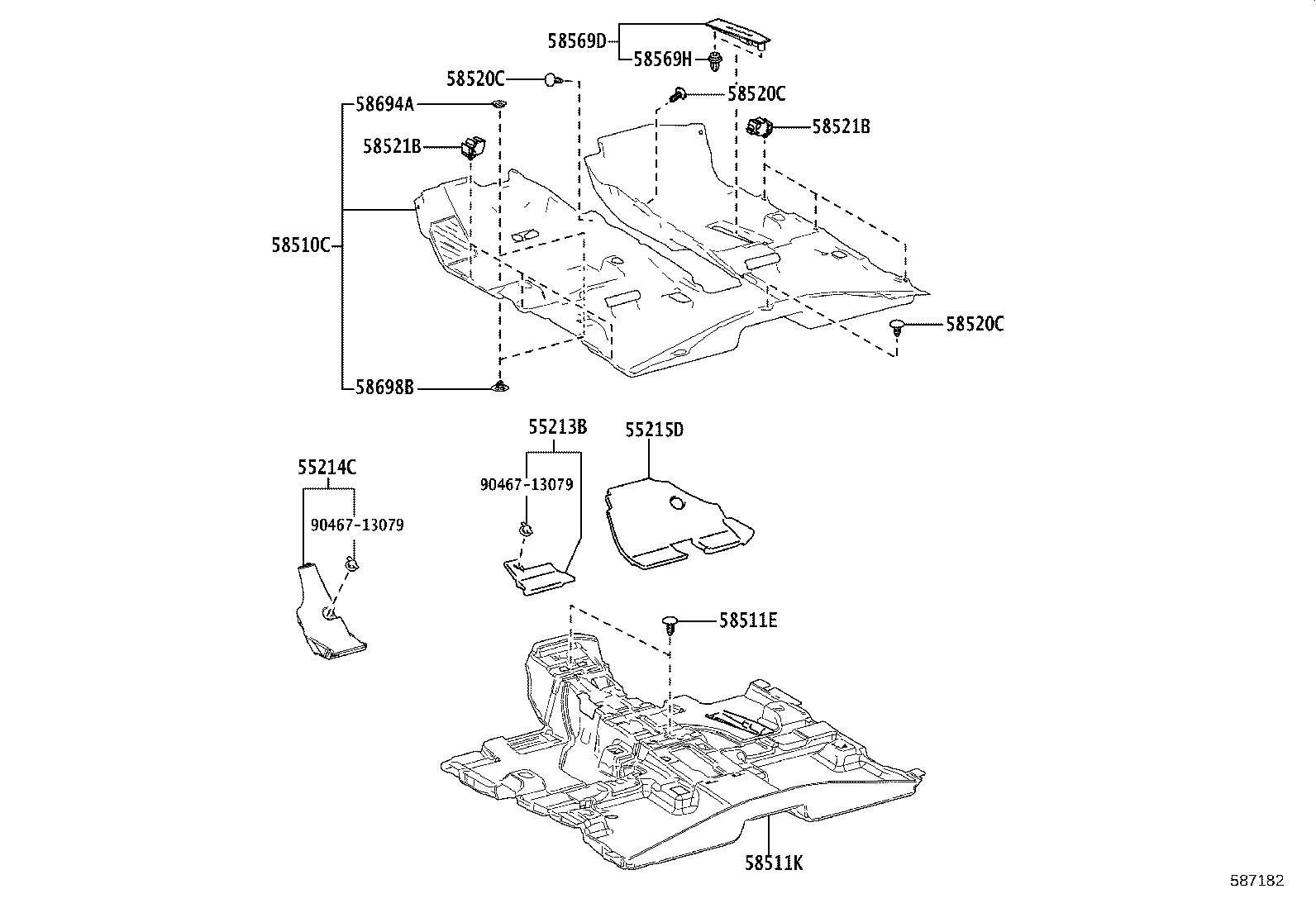

Click highlighted areas on diagram

diagram 55213B 55214C 55215D 58510C 58511E 58511K 58520C 58520C 58520C 58521B 58521B 58569D 58569H 58694A 58698B 9046713079 9046713079
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-0R040

AXAA54,MXAA5#..RUS

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-0R080

AXAA54,MXAA5#..(ATM,CVT)..RUS

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-0R040

AXAA54,MXAA5#..RUS

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-42C40C1

AXAA54,MXAA5#..(ATM,CVT)..RUS

BLACK,TRIM2#,(J)

 1
58510-0R220C0

AXAA54,MXAA5#..(ATM,CVT)..RUS

BLACK,TRIM2#,(L)

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-07042C4

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

BLACK

 2
90467-07042C4

AXAA5#,AXAH5#,AXAL5#,MXAA5#

BLACK

 2
58511K - MAT, FLOOR, NO.1
58511-0R070

AXAA54,MXAA5#..RUS

(L)

 1
58511-42020

AXAA54,MXAA5#..RUS

(J)

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-05164C7

AXAA54,MXAA5#..RUS

BLACK,TRIM2#

 3
90467-05164C7

AXAA54,MXAA5#..RUS;AXAH54..RHD..M..EUR;AXAH52,AXAL5#..LHD..X;AXAH52,AXAL5#..M..EUR;AXAH54..LHD..(M,X)..EUR

BLACK,TRIM2#

 2
90467-05164C7

AXAA54,MXAA5#..RUS

BLACK,TRIM2#

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-05164C7

AXAA54,MXAA5#..RUS

BLACK,TRIM2#

 3
90467-05164C7

AXAA54,MXAA5#..RUS;AXAH54..RHD..M..EUR;AXAH52,AXAL5#..LHD..X;AXAH52,AXAL5#..M..EUR;AXAH54..LHD..(M,X)..EUR

BLACK,TRIM2#

 2
90467-05164C7

AXAA54,MXAA5#..RUS

BLACK,TRIM2#

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-05164C7

AXAA54,MXAA5#..RUS

BLACK,TRIM2#

 3
90467-05164C7

AXAA54,MXAA5#..RUS;AXAH54..RHD..M..EUR;AXAH52,AXAL5#..LHD..X;AXAH52,AXAL5#..M..EUR;AXAH54..LHD..(M,X)..EUR

BLACK,TRIM2#

 2
90467-05164C7

AXAA54,MXAA5#..RUS

BLACK,TRIM2#

 2
58521B - HOOK, FLOOR CARPET
58521-33070

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 6
58521-33070

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 6
58521B - HOOK, FLOOR CARPET
58521-33070

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 6
58521-33070

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 6
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-42040C0

AXAA54,MXAA5#..RUS;AXAL5#..(M,X)..EUR

BLACK,TRIM2#

 1
58569-42040C0

MXAA52..G..RUS;AXAA54,MXAA54..RUS;AXAH54..RHD..M..EUR;AXAH52,AXAL5#..LHD..X;AXAH54..LHD..(M,X)..EUR;MXAA52..(M,X)..(EUR,RUS);AXAH52,AXAL5#,MXAA54..M..EUR

BLACK,TRIM2#

 1
58569H - CLIP, FRONT FLOOR CAUTION PLATE COVER, NO.1
62217-13010

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 2
62217-13010

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
58694A - PLATE, MAT SET, UPPER
58694-33010

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
58694-33010

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 2
58698B - PLATE, MAT SET, LOWER
58698-33010

AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)

 2
58698-33010

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
Common parts
90467-13079
