Toyota Rav4 (jpp) MXAA54 BACK DOOR PANEL & GLASS

Manufacturers Home
Toyota
US
RAV4 (JPP)
MXAA54L-RNFMBX (2019)
6761 - BACK DOOR PANEL & GLASS

MXAA54L-RNFMBX (2019)

Toyota Rav4 (Jpp)

Production Oct 2019 - Oct 2020

Engine M20AFKS

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1811- )

Click highlighted areas on diagram

DOOR PANEL

Part #	Description	Period	Qty
62785F - SPACER, BACK DOOR GLASS
62785-60030	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	2
62785-60030	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	2
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-42050	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	1
64818-42050	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	1
64819 - SPACER, BACK WINDOW GLASS, NO.2
64819-42050	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	1
64819-42050	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-0R380	AXAA54,MXAA5#..(M,X)..RUS	10/2019 - 09/2020	1
67005-0R370	AXAA54,MXAA5#..M..RUS KEY PLATE-SMART ENTRY(PUSH START)2	10/2019 - 09/2020	1
67372A - WEIGHT, BACK DOOR
67372-42020	AXAH54..G;MXAA52..CVT;AXAA54..GEN,SA;AXAH54..(M,X)..ARL;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..LHD..X;AXAH52,AXAL5#..X..ARL;AXAA52,AXAH52..LHD..GEN;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	1
67372-42020	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	1
67816D - SHEET, BACK DOOR PANEL SILENCER
67816-42020	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	1
67816-42020	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	1
67837L - SEAL, DOOR DUST PROOF
67837-42050	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	2
67837-42050	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	2
67837N - SEAL, BACK DOOR DUST PROOF
67837-52040	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	1
67837-52040	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	1
67881A - WEATHERSTRIP, BACK DOOR
67881-42070	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	1
67881-42070	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	1
68131 - GLASS, BACK DOOR
68105-42370	MXAA54..6F..X;MXAA52..LHD..X..GEN;AXAA5#..LHD..(M,X)..GEN ECUADOR SPEC&REAR SIDE GLASS-REINFORCED(GRAY)	11/2018 - 07/2020	1
68105-42360	MXAA54..6F..X;MXAA52..LHD..X..GEN;AXAA5#..LHD..(M,X)..GEN ECUADOR SPEC	11/2018 - 07/2020	1
68105-0R170	AXAA54,MXAA5#..RUS	10/2019 - 09/2020	1
68105-42360	MXAA54..6F..X;MXAA52..LHD..X..GEN;AXAA5#..LHD..(M,X)..GEN ECUADOR SPEC&AUDIO-6SPEAKER 7INCH T1 DVD, LATIN AMERICA	08/2020 - 12/2999	1
68105-42370	MXAA54..6F..X;MXAA52..LHD..X..GEN;AXAA5#..LHD..(M,X)..GEN ECUADOR SPEC&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-4SPEAKER(AUDIO LESS)	08/2020 - 12/2999	1
68105-42360	MXAA54..6F..X;MXAA52..LHD..X..GEN;AXAA5#..LHD..(M,X)..GEN ECUADOR SPEC&AUDIO-4SPEAKER(AUDIO LESS)	08/2020 - 12/2999	1
68105-42370	MXAA54..6F..X;MXAA52..LHD..X..GEN;AXAA5#..LHD..(M,X)..GEN ECUADOR SPEC&REAR SIDE GLASS-REINFORCED(GRAY)&AUDIO-6SPEAKER 7INCH T1 DVD, LATIN AMERICA	08/2020 - 12/2999	1
68294B - DAM, BACK DOOR GLASS ADHESIVE
68294-26030	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	4
68294B - DAM, BACK DOOR GLASS ADHESIVE
68294-26030	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	4
68294B - DAM, BACK DOOR GLASS ADHESIVE
68294-26030	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	4
68294B - DAM, BACK DOOR GLASS ADHESIVE
68294-26030	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	4
68294B - DAM, BACK DOOR GLASS ADHESIVE
68294-26030	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	4
68294B - DAM, BACK DOOR GLASS ADHESIVE
68294-26030	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	4
69478A - CUSHION, BACK DOOR LOWER STOPPER
69478-42010	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	2
75575D - MOULDING, BACK WINDOW, LOWER
75575-42040	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	1
75575-42040	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	1
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-42904	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	1
76802E - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER
76802-0R070	AXAA54,MXAA5#..RUS	10/2019 - 09/2020	1
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-0R090	AXAA54,MXAA5#..RUS	10/2019 - 09/2020	1
76822A - PROTECTOR, BACK DOOR GARNISH MOULDING, LWR
76822-0R050	AXAA54,MXAA5#..RUS	10/2019 - 09/2020	2
76822A - PROTECTOR, BACK DOOR GARNISH MOULDING, LWR
76822-0R050	AXAA54,MXAA5#..RUS	10/2019 - 09/2020	2
76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76823-42030	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	3
76823-42030	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	3
76824 - PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76824-42030	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	2
76824-42030	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	2
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-42040	MXAA54..V,X;MXAA52..X..RUS;AXAH52,AXAL5#..M,X;MXAA54..M..(EUR,GCC,GEN);AXAA5#,AXAH54,MXAA52..ARL,GCC,GEN;AXAA54,AXAH54,MXAA52..(M,X)..(EUR,SA);AXAH52,AXAL5#,MXAA54..G..(ARL,GCC,GEN)	11/2018 - 09/2020	1
76825-42040	MXAA54..X;MXAA52..LHD..6F;AXAA54..GCC,GEN;AXAH54..LHD..(M,X);AXAH54..RHD..M..EUR;AXAH54..G..(GCC,GEN);MXAA52..LHD..CVT..M..EUR;MXAA54..CVT..(G,M,V)..GEN;MXAA52..RHD..CVT..(EUR,GEN);MXAA54..LHD..6F..M..(EUR,GEN);AXAH52,AXAL5#,MXAA54..CVT..M..(EUR,GCC);AXAH52,AXAL5#,MXAA52..LHD..CVT..X..(EUR,RUS);AXAA52,AXAH52,MXAA52..LHD..(ATM,CVT)..(GCC,GEN)	08/2020 - 12/2999	1
76826A - RETAINER, BACK DOOR GARNISH, NO.1
76826-42140	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	1
76826-42140	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	1
76827A - RETAINER, BACK DOOR GARNISH, NO.2
76827-42050	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	1
76827-42050	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	1
76881B - PROTECTOR, BACK DOOR LOWER MOULDING, RH
76881-0R040	AXAA54,MXAA5#..RUS	10/2019 - 09/2020	2
76881B - PROTECTOR, BACK DOOR LOWER MOULDING, RH
76881-0R040	AXAA54,MXAA5#..RUS	10/2019 - 09/2020	2
76882B - PROTECTOR, BACK DOOR LOWER MOULDING, LH
76882-0R030	AXAA54,MXAA5#..RUS	10/2019 - 09/2020	2
Common parts
90105-06333
90105-06344
90159-60621
90179-06362
90189-06244
90467-05171
90467-09206
91673-80616
Linked diagrams
7551

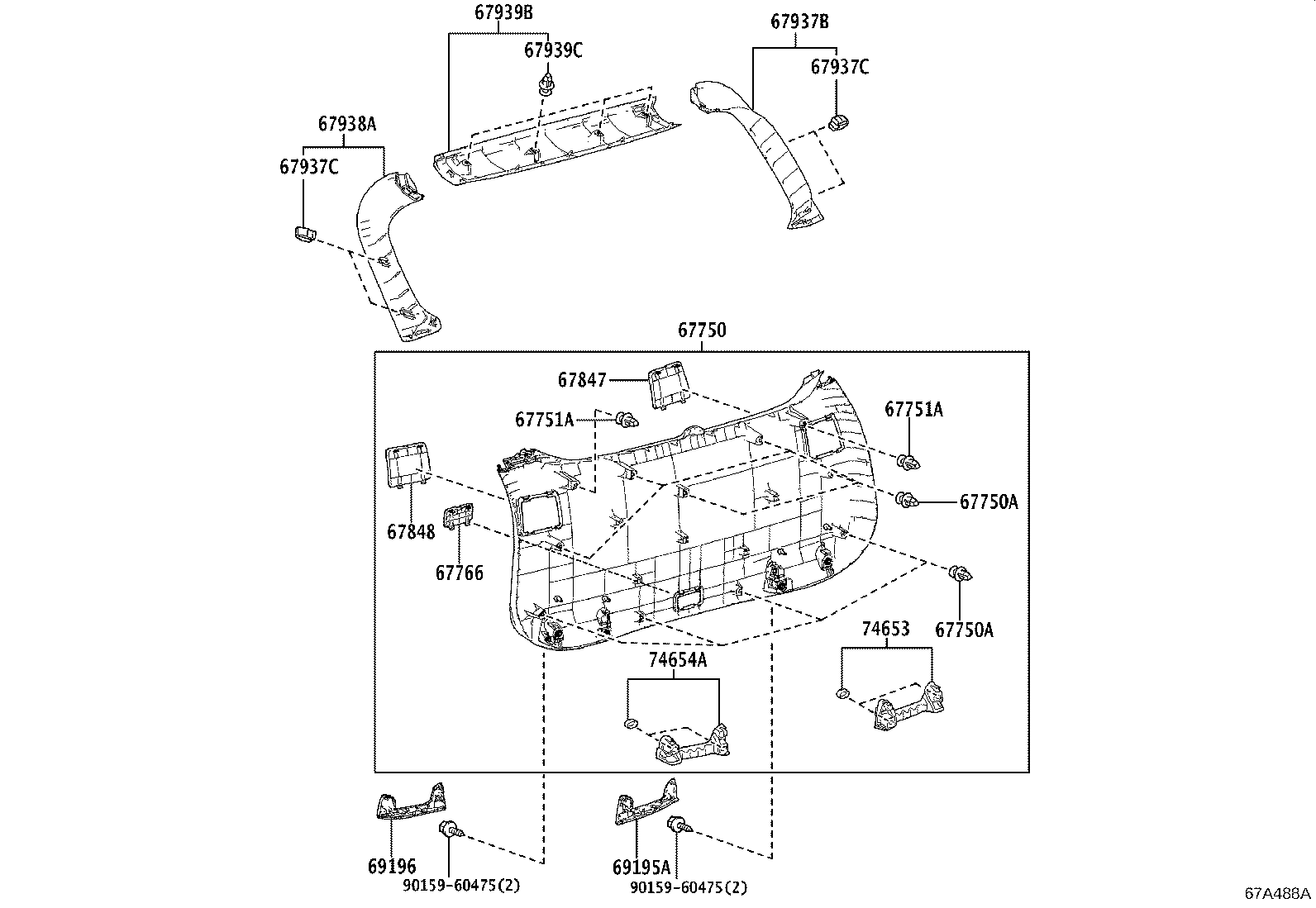

ILLUST NO. 2 OF 2(1910- )RUS

Click highlighted areas on diagram

DOOR TRIM

Part #	Description	Period	Qty
67750 - BOARD ASSY, BACK DOOR TRIM
67750-0R120C0	AXAA54,MXAA5#..RUS BLACK,TRIM1#,2#,4#	10/2019 - 09/2020	1
67750A - CLIP(FOR BACK DOOR TRIM)
90467-10161	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	9
90467-10161	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	9
67750A - CLIP(FOR BACK DOOR TRIM)
90467-10161	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	9
90467-10161	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	9
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-09232	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	2
90467-09232	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	2
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-09232	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	2
90467-09232	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	2
67766 - COVER, BACK DOOR SERVICE HOLE, NO.2
67766-42020C0	MXAA52..G..RUS;AXAA54,MXAA54..RUS;AXAH54..RHD..M..EUR;AXAH52,AXAL5#..LHD..X;AXAH54..LHD..(M,X)..EUR;MXAA52..(M,X)..(EUR,RUS);AXAH52,AXAL5#,MXAA54..M..EUR BLACK,TRIM2#	08/2020 - 12/2999	1
67766-42020C0	AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS) BLACK,TRIM1#,2#,4#	11/2018 - 09/2020	1
67847 - COVER, BACK DOOR SERVICE HOLE, RH
67847-42060C0	AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS) BLACK,TRIM1#,2#,4#	11/2018 - 09/2020	1
67847-42060C0	MXAA52..G..RUS;AXAA54,MXAA54..RUS;AXAH54..RHD..M..EUR;AXAH52,AXAL5#..LHD..X;AXAH54..LHD..(M,X)..EUR;MXAA52..(M,X)..(EUR,RUS);AXAH52,AXAL5#,MXAA54..M..EUR BLACK,TRIM2#	08/2020 - 12/2999	1
67848 - COVER, BACK DOOR SERVICE HOLE, LH
67848-42020C0	MXAA52..G..RUS;AXAA54,MXAA54..RUS;AXAH54..RHD..M..EUR;AXAH52,AXAL5#..LHD..X;AXAH54..LHD..(M,X)..EUR;MXAA52..(M,X)..(EUR,RUS);AXAH52,AXAL5#,MXAA54..M..EUR BLACK,TRIM2#	08/2020 - 12/2999	1
67848-42020C0	AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS) BLACK,TRIM1#,2#,4#	11/2018 - 09/2020	1
67937B - GARNISH, BACK DOOR SIDE, RH
67937-0R080C0	AXAA54,MXAA5#..RUS BLACK,TRIM1#,2#,4#	10/2019 - 09/2020	1
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
90467-09241	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	4
90467-09241	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	4
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
90467-09241	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	4
90467-09241	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	4
67938A - GARNISH, BACK DOOR SIDE, LH
67938-0R090C0	AXAA54,MXAA5#..RUS BLACK,TRIM1#,2#,4#	10/2019 - 09/2020	1
67939B - GARNISH, BACK DOOR, CENTER
67939-0R120C0	AXAA54,MXAA5#..RUS BLACK,TRIM2#	10/2019 - 09/2020	1
67939C - CLIP(FOR BACK DOOR CENTER GARNISH)
90467-10161	AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR)	08/2020 - 12/2999	4
90467-10161	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	4
69195A - GRIP, BACK DOOR
69195-42010C0	MXAA52..G..RUS;AXAA54,MXAA54..RUS;AXAH54..RHD..M..EUR;AXAH52,AXAL5#..LHD..X;AXAH54..LHD..(M,X)..EUR;MXAA52..(M,X)..(EUR,RUS);AXAH52,AXAL5#,MXAA54..M..EUR BLACK,TRIM2#	08/2020 - 12/2999	1
69195-42010C0	AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS) BLACK,TRIM1#,2#,4#	11/2018 - 09/2020	1
69196 - BASE, BACK DOOR GRIP
69196-42010C0	AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS) BLACK,TRIM1#,2#,4#	11/2018 - 09/2020	1
69196-42010C0	MXAA52..G..RUS;AXAA54,MXAA54..RUS;AXAH54..RHD..M..EUR;AXAH52,AXAL5#..LHD..X;AXAH54..LHD..(M,X)..EUR;MXAA52..(M,X)..(EUR,RUS);AXAH52,AXAL5#,MXAA54..M..EUR BLACK,TRIM2#	08/2020 - 12/2999	1
74653 - GRIP, BACK DOOR ASSIST, RH
74653-42010C0	MXAA52..G..RUS;AXAA54,MXAA54..RUS;AXAH54..RHD..M..EUR;AXAH52,AXAL5#..LHD..X;AXAH54..LHD..(M,X)..EUR;MXAA52..(M,X)..(EUR,RUS);AXAH52,AXAL5#,MXAA54..M..EUR BLACK,TRIM2#	08/2020 - 12/2999	1
74653-42010C0	MXAA52..G..RUS;AXAA54,MXAA54..RUS;MXAA52..(M,X)..(EUR,RUS);AXAH5#,AXAL5#,MXAA54..(M,X)..EUR BLACK,TRIM2#	11/2018 - 09/2020	1
74654A - GRIP, BACK DOOR ASSIST, LH
74654-42010C0	MXAA52..G..RUS;AXAA54,MXAA54..RUS;MXAA52..(M,X)..(EUR,RUS);AXAH5#,AXAL5#,MXAA54..(M,X)..EUR BLACK,TRIM2#	11/2018 - 09/2020	1
74654-42010C0	MXAA52..G..RUS;AXAA54,MXAA54..RUS;AXAH54..RHD..M..EUR;AXAH52,AXAL5#..LHD..X;AXAH54..LHD..(M,X)..EUR;MXAA52..(M,X)..(EUR,RUS);AXAH52,AXAL5#,MXAA54..M..EUR BLACK,TRIM2#	08/2020 - 12/2999	1
Common parts
90159-60475

MXAA54L-RNFMBX (2019)

ILLUST NO. 1 OF 2(1811- )

ILLUST NO. 2 OF 2(1910- )RUS
