MXAA54L-RNFMBX (2019)
Toyota Rav4 (Jpp)
(1910- )RUS

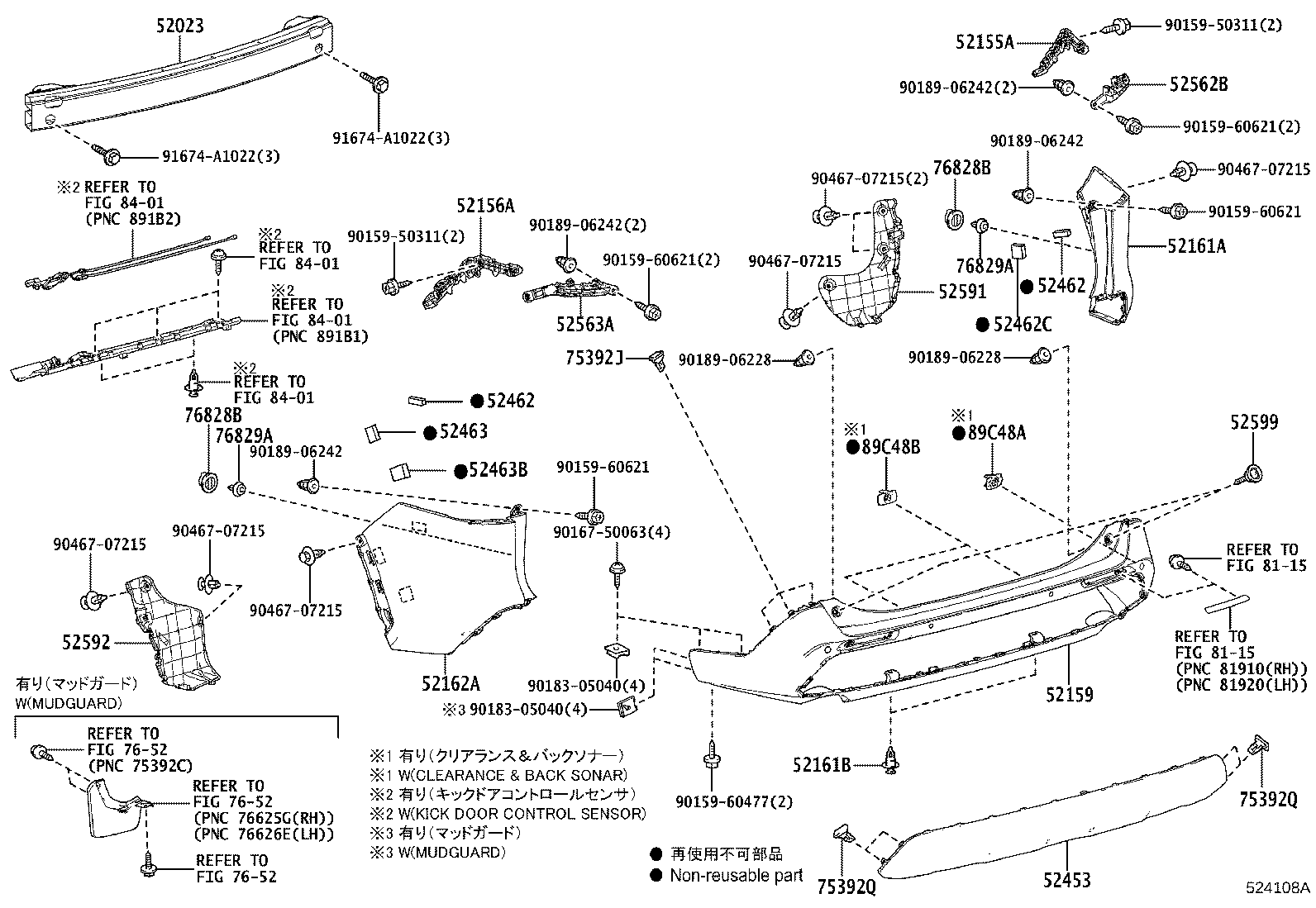

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-42070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,GCC,GEN,RUS,SA |
1 | ||
| 52023-42070 |
AXAH52,AXAL5#..ARL;AXAH54..LHD..M..GEN;AXAH54..M..(ARL,GCC);AXAA54..(M,V,X)..ARL;MXAA52..6F..(RUS,SA);MXAA52..LHD..6F..GEN;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA54..(G,V)..(GEN,RUS,SA);AXAH54..(G,X)..(ARL,GCC,GEN);AXAA52,AXAH52..LHD..(GCC,GEN);MXAA52..CVT..(ARL,GEN,RUS,SA);MXAA54..LHD..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 52155-42050 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 52156-42050 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0R290 |
AXAA54,MXAA5#..(G,M)..RUS NO PAINT REQ. |
1 | ||
| 52159-0R280 |
MXAA5#..X..RUS NO PAINT REQ. |
1 | ||
| 52161A - PIECE, REAR BUMPER, RH | ||||
| 52161-0R910 |
AXAA54,MXAA5#..RUS |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
2 | ||
| 52161-16010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 52162A - PIECE, REAR BUMPER, LH | ||||
| 52162-0R910 |
AXAA54,MXAA5#..RUS |
1 | ||
| 52453 - GUARD, REAR BUMPER, CENTER | ||||
| 52453-0R901 |
AXAA54,MXAA5#..RUS |
1 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-42020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 52462-42020 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) NO PAINT REQ. |
2 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-42020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 52462-42020 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) NO PAINT REQ. |
2 | ||
| 52462C - PAD, REAR BUMPER, RH | ||||
| 52462-42030 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 52462-42030 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52463-42010 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) NO PAINT REQ. |
1 | ||
| 52463-42010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 52463B - PAD, REAR BUMPER, LH | ||||
| 52463-42020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 52463-42020 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-42060 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 52562-42060 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-42050 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 52563-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-42100 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 52591-42100 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-42100 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
1 | ||
| 52592-42100 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 52599 - STOPPER, REAR BUMPER, UPPER | ||||
| 52599-68030 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
2 | ||
| 52599-68030 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
6 | ||
| 75392-35220 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
6 | ||
| 75392Q - RETAINER, OUTSIDE MOULDING, NO.2 | ||||
| 75392-35220 |
AXAL5#..G,M;AXAH54..M..EUR;MXAA52..X..RUS;AXAH52..(G,M)..EUR;MXAA54..EUR,RUS,SA;AXAA5#,AXAH54,MXAA52..G,V;AXAA54,MXAA52..M..(EUR,RUS);AXAH52,MXAA54..(G,V)..(ARL,GCC,GEN) |
4 | ||
| 75392-35220 |
MXAA52..X..RUS;AXAH54,MXAA52..G;MXAA54..(G,V)..GEN;AXAA54..(G,V)..(GCC,GEN);MXAA52..M..(ARL,EUR,RUS);AXAA54,MXAA54..EUR,RUS,SA;AXAH52,AXAL5#..(G,M)..(ARL,EUR);AXAA54,AXAH54..(M,V)..(ARL,EUR);AXAA52,AXAH52..LHD..G..(GCC,GEN) |
4 | ||
| 75392Q - RETAINER, OUTSIDE MOULDING, NO.2 | ||||
| 75392-35220 |
AXAL5#..G,M;AXAH54..M..EUR;MXAA52..X..RUS;AXAH52..(G,M)..EUR;MXAA54..EUR,RUS,SA;AXAA5#,AXAH54,MXAA52..G,V;AXAA54,MXAA52..M..(EUR,RUS);AXAH52,MXAA54..(G,V)..(ARL,GCC,GEN) |
4 | ||
| 75392-35220 |
MXAA52..X..RUS;AXAH54,MXAA52..G;MXAA54..(G,V)..GEN;AXAA54..(G,V)..(GCC,GEN);MXAA52..M..(ARL,EUR,RUS);AXAA54,MXAA54..EUR,RUS,SA;AXAH52,AXAL5#..(G,M)..(ARL,EUR);AXAA54,AXAH54..(M,V)..(ARL,EUR);AXAA52,AXAH52..LHD..G..(GCC,GEN) |
4 | ||
| 76828B - RETAINER, BACK DOOR GARNISH | ||||
| 76828-60030 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
2 | ||
| 76828-60030 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 76828B - RETAINER, BACK DOOR GARNISH | ||||
| 76828-60030 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
2 | ||
| 76828-60030 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 76829A - RETAINER, BACK DOOR GARNISH | ||||
| 76829-60020 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
2 | ||
| 76829-60020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 76829A - RETAINER, BACK DOOR GARNISH | ||||
| 76829-60020 |
AXAH54..G;MXAA52..CVT;AXAH54..RHD..M..EUR;MXAA52..LHD..6F..GEN;AXAH52,AXAL5#..X..ARL;AXAH52,AXAL5#..LHD..X;AXAA54..GCC,GEN,RUS,SA;MXAA54..RHD..CVT..(M,X);MXAA52..6F..(EUR,RUS,SA);AXAH54,MXAA54..LHD..(M,X);AXAA54,AXAH54..(M,V,X)..ARL;AXAA52,AXAH52..LHD..(GCC,GEN);MXAA54..(G,V)..(EUR,GEN,RUS,SA);AXAH52,AXAL5#..(G,M)..(ARL,EUR) |
2 | ||
| 76829-60020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-42190 |
AXAA54..ARL,EUR,RUS,SA;MXAA52..6F..(G,M)..EUR;MXAA52..(G,M)..(ARL,RUS,SA);AXAH5#,AXAL5#,MXAA52..X..ARL;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..(G,M)..(ARL,EUR,RUS) RH |
1 | ||
| 89348-42200 |
AXAA54..ARL,EUR,RUS,SA;MXAA52..6F..(G,M)..EUR;MXAA52..(G,M)..(ARL,RUS,SA);AXAH5#,AXAL5#,MXAA52..X..ARL;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..(G,M)..(ARL,EUR,RUS) LH |
1 | ||
| 89348-42200 |
AXAA54..(M,V,X)..ARL;MXAA52..LHD..(G,M)..EUR;MXAA52..(G,M)..(ARL,RUS,SA);AXAH5#,AXAL5#..(G,M)..(ARL,EUR);AXAH5#,AXAL5#,MXAA52..CVT..X..ARL;AXAA54,MXAA54..(G,M)..(EUR,RUS,SA) LH |
1 | ||
| 89348-42190 |
AXAA54..(M,V,X)..ARL;MXAA52..LHD..(G,M)..EUR;MXAA52..(G,M)..(ARL,RUS,SA);AXAH5#,AXAL5#..(G,M)..(ARL,EUR);AXAH5#,AXAL5#,MXAA52..CVT..X..ARL;AXAA54,MXAA54..(G,M)..(EUR,RUS,SA) RH |
1 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-33400 |
AXAA54..ARL,EUR,RUS,SA;MXAA52..6F..(G,M)..EUR;MXAA52..(G,M)..(ARL,RUS,SA);AXAH5#,AXAL5#,MXAA52..X..ARL;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..(G,M)..(ARL,EUR,RUS) |
2 | ||
| 89348-33400 |
AXAA54..(M,V,X)..ARL;MXAA52..LHD..(G,M)..EUR;MXAA52..(G,M)..(ARL,RUS,SA);AXAH5#,AXAL5#..(G,M)..(ARL,EUR);AXAH5#,AXAL5#,MXAA52..CVT..X..ARL;AXAA54,MXAA54..(G,M)..(EUR,RUS,SA) |
2 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90159-60477 | ||||
| 90159-60621 | ||||
| 90167-50063 | ||||
| 90183-05040 | ||||
| 90189-06228 | ||||
| 90189-06242 | ||||
| 90467-07215 | ||||
| 91674-A1022 | ||||
| Linked diagrams | ||||
| 7652 | ||||
| 8115 | ||||
| 8401 | ||||
