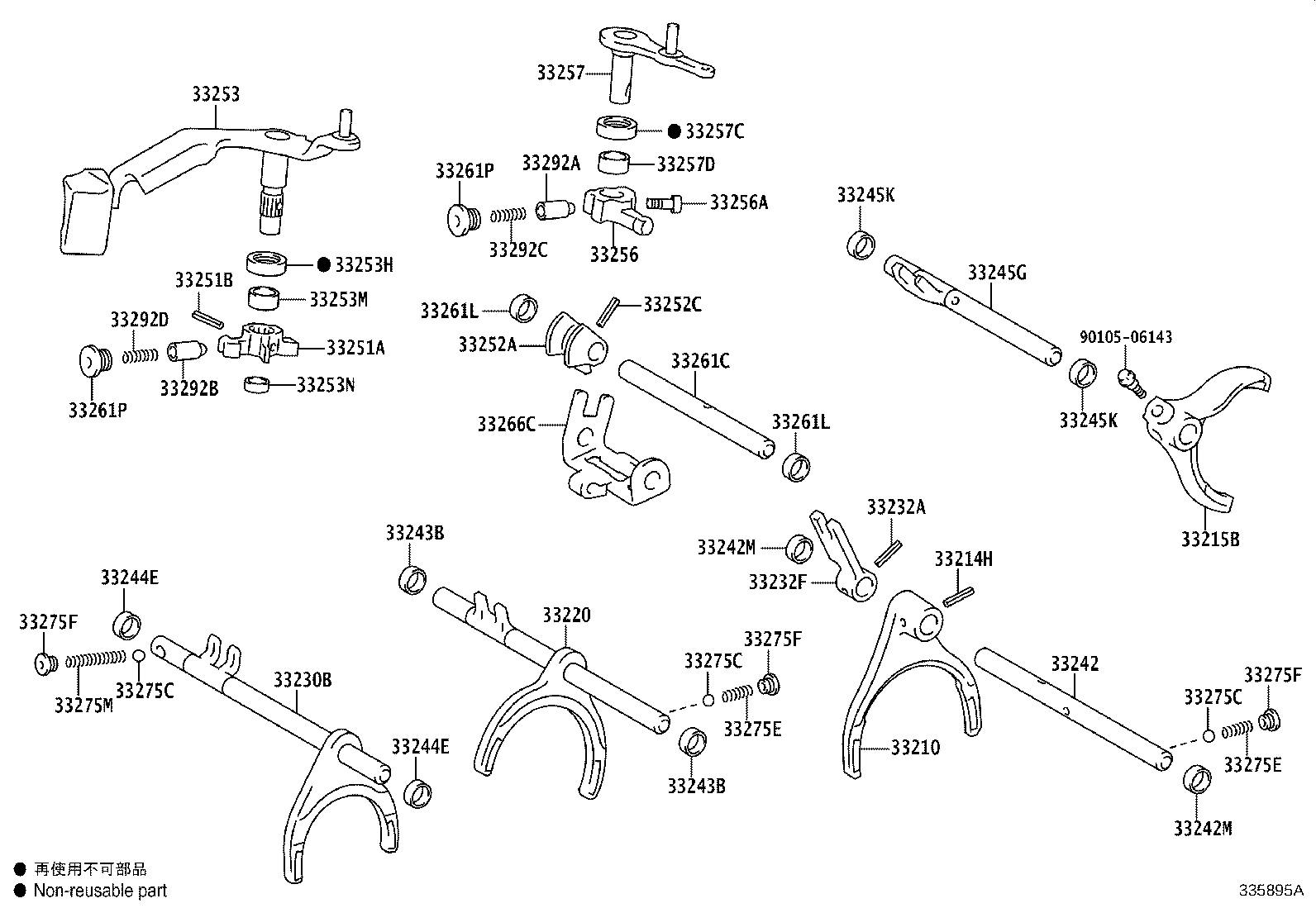

MXAA54L-RNFMBX (2019)
Toyota Rav4 (Jpp)
(1811- )6F
EG62, EG62F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33210 - FORK ASSY, GEAR SHIFT, NO.1 | ||||
| 33210-12020 |
MXAA5#..6F |
1 | ||
| 33210-12020 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33214H - PIN, SLOTTED(FOR SHIFT FORK) | ||||
| 90254-05016 |
MXAA5#..6F |
1 | ||
| 90254-05016 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33215B - FORK, GEAR SHIFT, NO.4 | ||||
| 33215-12030 |
MXAA5#..6F |
1 | ||
| 33215-12030 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33220 - FORK ASSY, GEAR SHIFT, NO.2 | ||||
| 33220-12020 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33220-12020 |
MXAA5#..6F |
1 | ||
| 33230B - FORK ASSY, GEAR SHIFT, NO.3 | ||||
| 33230-12030 |
MXAA5#..6F |
1 | ||
| 33230-12030 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05016 |
MXAA5#..6F |
1 | ||
| 90254-05016 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-12060 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33232-12060 |
MXAA5#..6F |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-12120 |
MXAA5#..6F |
1 | ||
| 33242-12120 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33242M - BUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.1) | ||||
| 90384-14008 |
MXAA5#..6F |
2 | ||
| 90384-14008 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 33242M - BUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.1) | ||||
| 90384-14008 |
MXAA5#..6F |
2 | ||
| 90384-14008 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 33243B - BUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.2) | ||||
| 90384-14008 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 90384-14008 |
MXAA5#..6F |
2 | ||
| 33243B - BUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.2) | ||||
| 90384-14008 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 90384-14008 |
MXAA5#..6F |
2 | ||
| 33244E - BUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.3) | ||||
| 90384-14008 |
MXAA5#..6F |
2 | ||
| 90384-14008 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 33244E - BUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.3) | ||||
| 90384-14008 |
MXAA5#..6F |
2 | ||
| 90384-14008 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-12060 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33245-12060 |
MXAA5#..6F |
1 | ||
| 33245K - BUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.4) | ||||
| 90384-14008 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 90384-14008 |
MXAA5#..6F |
2 | ||
| 33245K - BUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.4) | ||||
| 90384-14008 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 90384-14008 |
MXAA5#..6F |
2 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-12140 |
MXAA5#..6F |
1 | ||
| 33251-12140 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05011 |
MXAA5#..6F L=28.0 |
1 | ||
| 90254-05011 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) L=28.0 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-12060 |
MXAA5#..6F |
1 | ||
| 33252-12060 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33252C - PIN, SLOTTED SPRING(FOR SHIFT LEVER INN NO.2) | ||||
| 90254-05001 |
MXAA5#..6F |
1 | ||
| 90254-05001 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-12050 |
MXAA5#..6F |
1 | ||
| 33253-12050 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33253H - SEAL, OIL(FOR SHIFT OUTER LEVER) | ||||
| 90310-18003 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 90310-18003 |
MXAA5#..6F |
1 | ||
| 33253M - BUSH, BIMETAL FORMED(FOR SHIFT OUTER LEVER, UPPER) | ||||
| 90384-18018 |
MXAA5#..6F |
1 | ||
| 90384-18018 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33253N - BUSH, BIMETAL FORMED(FOR SHIFT OUTER LEVER, LOWER) | ||||
| 90384-14008 |
MXAA5#..6F |
1 | ||
| 90384-14008 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33256 - LEVER, SELECT INNER | ||||
| 33256-12040 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33256-12040 |
MXAA5#..6F |
1 | ||
| 33256A - BOLT, SET (FOR SELECT INNER LEVER) | ||||
| 90110-08041 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 90110-08041 |
MXAA5#..6F |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-12050 |
MXAA5#..6F |
1 | ||
| 33257-12050 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33257C - SEAL, OIL(FOR OUTER SELECT LEVER) | ||||
| 90310-18003 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 90310-18003 |
MXAA5#..6F |
1 | ||
| 33257D - BUSH, BIMETAL FORMED(FOR OUTER SELECT LEVER) | ||||
| 90384-15002 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 90384-15002 |
MXAA5#..6F |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-12200 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33261-12200 |
MXAA5#..6F |
1 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-14008 |
MXAA5#..6F |
2 | ||
| 90384-14008 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 33261L - BUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90384-14008 |
MXAA5#..6F |
2 | ||
| 90384-14008 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 33261P - PLUG, STRAIGHT SCREW W/HEAD(FOR SHIFT & SELECT LEVER SH | ||||
| 90341-16013 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 90341-16013 |
MXAA5#..6F |
2 | ||
| 33261P - PLUG, STRAIGHT SCREW W/HEAD(FOR SHIFT & SELECT LEVER SH | ||||
| 90341-16013 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 90341-16013 |
MXAA5#..6F |
2 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-12070 |
MXAA5#..6F |
1 | ||
| 33266-12070 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
MXAA5#..6F |
3 | ||
| 90360-10003 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
MXAA5#..6F |
3 | ||
| 90360-10003 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
MXAA5#..6F |
3 | ||
| 90360-10003 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13087 |
MXAA5#..6F |
2 | ||
| 90501-13087 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13087 |
MXAA5#..6F |
2 | ||
| 90501-13087 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
MXAA5#..6F |
3 | ||
| 90341-12004 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
MXAA5#..6F |
3 | ||
| 90341-12004 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
MXAA5#..6F |
3 | ||
| 90341-12004 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
3 | ||
| 33275M - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-10262 |
MXAA5#..6F |
1 | ||
| 90501-10262 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33292A - PIN, LOCK BALL | ||||
| 33292-20010 |
MXAA5#..6F |
1 | ||
| 33292-20010 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33292B - PIN, LOCK BALL NO.2 | ||||
| 33292-20010 |
MXAA5#..6F |
1 | ||
| 33292-20010 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33292C - SPRING, NO.1(FOR LOCK BALL PIN RETURN) | ||||
| 90501-13108 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 90501-13108 |
MXAA5#..6F |
1 | ||
| 33292D - SPRING, NO.2(FOR LOCK BALL PIN RETURN) | ||||
| 90501-12221 |
MXAA5#..6F |
1 | ||
| 90501-12221 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| Common parts | ||||
| 90105-06143 | ||||
