MXAA54L-RNFMBX (2019)
Toyota Rav4 (Jpp)
(1811- )6F
EG62, EG62F

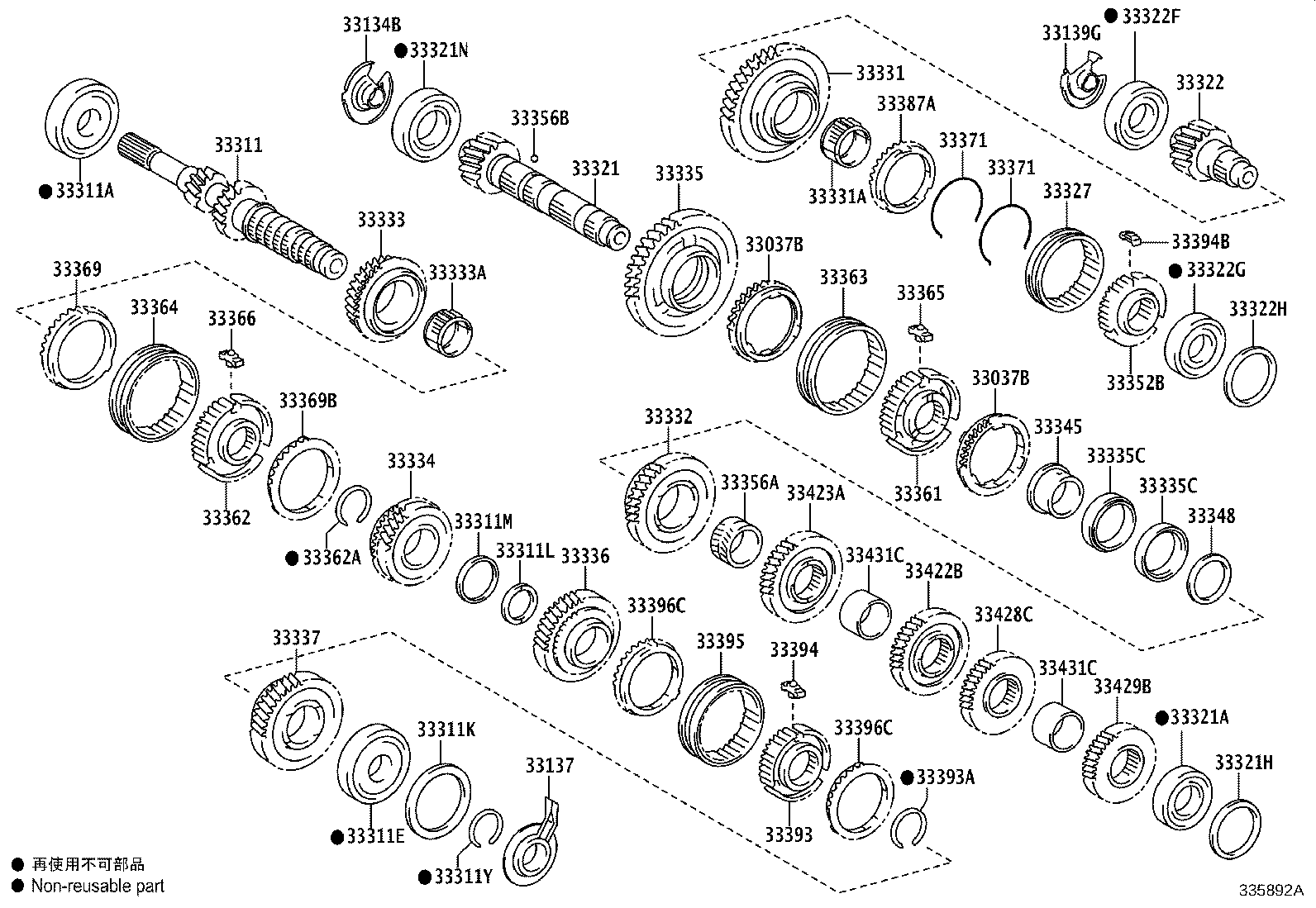

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33037B - RING SET, SYNCHRONIZER, NO.1 | ||||
| 33037-12100 |
MXAA5#..6F |
2 | ||
| 33037-12100 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 33037B - RING SET, SYNCHRONIZER, NO.1 | ||||
| 33037-12100 |
MXAA5#..6F |
2 | ||
| 33037-12100 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 33134B - COVER, OUTPUT SHAFT(MTM) | ||||
| 33134-12040 |
MXAA5#..6F |
1 | ||
| 33134-12040 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33137 - COVER, INPUT SHAFT(MTM) | ||||
| 33137-12030 |
MXAA5#..6F |
1 | ||
| 33137-12030 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33139G - COVER, REVERSE GEAR SHAFT | ||||
| 33139-12020 |
MXAA5#..6F |
1 | ||
| 33139-12020 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-12330 |
MXAA5#..6F |
1 | ||
| 33311-12330 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-25094 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 90363-25094 |
MXAA5#..6F |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-33015 |
MXAA5#..6F |
1 | ||
| 90363-33015 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 90363-33014 |
MXAA5#..6F |
1 | ||
| 33311K - SHIM (FOR INPUT SHAFT REAR BEARING) | ||||
| 90564-61117 |
MXAA5#..6F T=1.35,MARK E |
1 | ||
| 90564-61116 |
MXAA5#..6F T=1.30,MARK D |
1 | ||
| 90564-61162 |
MXAA5#..6F T=1.85,MARK Q |
1 | ||
| 90564-61126 |
MXAA5#..6F T=1.80,MARK P |
1 | ||
| 90564-61119 |
MXAA5#..6F T=1.45,MARK G |
1 | ||
| 90564-61120 |
MXAA5#..6F T=1.50,MARK H |
1 | ||
| 90564-61124 |
MXAA5#..6F T=1.70,MARK M |
1 | ||
| 90564-61118 |
MXAA5#..6F T=1.40,MARK F |
1 | ||
| 90564-61122 |
MXAA5#..6F T=1.60,MARK K |
1 | ||
| 90564-61125 |
MXAA5#..6F T=1.75,MARK N |
1 | ||
| 90564-61115 |
MXAA5#..6F T=1.25,MARK C |
1 | ||
| 90564-61123 |
MXAA5#..6F T=1.65,MARK L |
1 | ||
| 90564-61114 |
MXAA5#..6F T=1.20,MARK B |
1 | ||
| 90564-61121 |
MXAA5#..6F T=1.55,MARK J |
1 | ||
| 90564-61120 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.50,MARK H |
1 | ||
| 90564-61115 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.25,MARK C |
1 | ||
| 90564-61122 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.60,MARK K |
1 | ||
| 90564-61116 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.30,MARK D |
1 | ||
| 90564-61114 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.20,MARK B |
1 | ||
| 90564-61124 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.70,MARK M |
1 | ||
| 90564-61123 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.65,MARK L |
1 | ||
| 90564-61118 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.40,MARK F |
1 | ||
| 90564-61125 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.75,MARK N |
1 | ||
| 90564-61119 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.45,MARK G |
1 | ||
| 90564-61117 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.35,MARK E |
1 | ||
| 90564-61121 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.55,MARK J |
1 | ||
| 33311L - SPACER(FOR INPUT SHAFT INNER) | ||||
| 35469-12030 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 35469-12030 |
MXAA5#..6F |
1 | ||
| 33311M - SPACER(FOR INPUT SHAFT OUTER) | ||||
| 35469-12040 |
MXAA5#..6F |
1 | ||
| 35469-12040 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33311Y - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-31069 |
MXAA5#..6F T=2.25,MARK 5 |
1 | ||
| 90520-31066 |
MXAA5#..6F T=2.07,MARK 2 |
1 | ||
| 90520-31068 |
MXAA5#..6F T=2.19,MARK 4 |
1 | ||
| 90520-31065 |
MXAA5#..6F T=2.01,MARK 1 |
1 | ||
| 90520-31067 |
MXAA5#..6F T=2.13,MARK 3 |
1 | ||
| 90520-31066 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.07,MARK 2 |
1 | ||
| 90520-31070 |
MXAA5#..6F T=1.83,MARK 6 |
1 | ||
| 90520-31071 |
MXAA5#..6F T=1.89,MARK 7 |
1 | ||
| 90520-31070 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.83,MARK 6 |
1 | ||
| 90520-31067 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.13,MARK 3 |
1 | ||
| 90520-31064 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.95,MARK 0 |
1 | ||
| 90520-31064 |
MXAA5#..6F T=1.95,MARK 0 |
1 | ||
| 90520-31071 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.89,MARK 7 |
1 | ||
| 90520-31065 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.01,MARK 1 |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-12410 |
MXAA5#..6F |
1 | ||
| 33321-12410 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-32037 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 90366-32037 |
MXAA5#..6F |
1 | ||
| 33321H - SHIM (FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90564-50294 |
MXAA5#..6F T=1.600,MARK A |
1 | ||
| 90564-50297 |
MXAA5#..6F T=1.675,MARK D |
1 | ||
| 90564-50301 |
MXAA5#..6F T=1.775,MARK H |
1 | ||
| 90564-50298 |
MXAA5#..6F T=1.700,MARK E |
1 | ||
| 90564-50302 |
MXAA5#..6F T=1.800,MARK J |
1 | ||
| 90564-50296 |
MXAA5#..6F T=1.650,MARK C |
1 | ||
| 90564-50300 |
MXAA5#..6F T=1.750,MARK G |
1 | ||
| 90564-50306 |
MXAA5#..6F T=1.900,MARK N |
1 | ||
| 90564-50295 |
MXAA5#..6F T=1.625,MARK B |
1 | ||
| 90564-50308 |
MXAA5#..6F T=1.950,MARK Q |
1 | ||
| 90564-50303 |
MXAA5#..6F T=1.825,MARK K |
1 | ||
| 90564-50310 |
MXAA5#..6F T=2.000,MARK S |
1 | ||
| 90564-50299 |
MXAA5#..6F T=1.725,MARK F |
1 | ||
| 90564-50313 |
MXAA5#..6F T=2.075,MARK V |
1 | ||
| 90564-50307 |
MXAA5#..6F T=1.925,MARK P |
1 | ||
| 90564-50304 |
MXAA5#..6F T=1.850,MARK L |
1 | ||
| 90564-50315 |
MXAA5#..6F T=2.125,MARK X |
1 | ||
| 90564-50311 |
MXAA5#..6F T=2.025,MARK T |
1 | ||
| 90564-50321 |
MXAA5#..6F T=2.275,MARK 4 |
1 | ||
| 90564-50319 |
MXAA5#..6F T=2.225,MARK 2 |
1 | ||
| 90564-50305 |
MXAA5#..6F T=1.875,MARK M |
1 | ||
| 90564-50317 |
MXAA5#..6F T=2.175,MARK Z |
1 | ||
| 90564-50314 |
MXAA5#..6F T=2.100,MARK W |
1 | ||
| 90564-50316 |
MXAA5#..6F T=2.150,MARK Y |
1 | ||
| 90564-50323 |
MXAA5#..6F T=2.325,MARK 6 |
1 | ||
| 90564-50309 |
MXAA5#..6F T=1.975,MARK R |
1 | ||
| 90564-50328 |
MXAA5#..6F T=2.450,MARK 11 |
1 | ||
| 90564-50312 |
MXAA5#..6F T=2.050,MARK U |
1 | ||
| 90564-50326 |
MXAA5#..6F T=2.400,MARK 9 |
1 | ||
| 90564-50318 |
MXAA5#..6F T=2.200,MARK 1 |
1 | ||
| 90564-50324 |
MXAA5#..6F T=2.350,MARK 7 |
1 | ||
| 90564-50320 |
MXAA5#..6F T=2.250,MARK 3 |
1 | ||
| 90564-50330 |
MXAA5#..6F T=2.500,MARK 13 |
1 | ||
| 90564-50329 |
MXAA5#..6F T=2.475,MARK 12 |
1 | ||
| 90564-50325 |
MXAA5#..6F T=2.375,MARK 8 |
1 | ||
| 90564-50322 |
MXAA5#..6F T=2.300,MARK 5 |
1 | ||
| 90564-50327 |
MXAA5#..6F T=2.425,MARK 10 |
1 | ||
| 90564-50294 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.600,MARK A |
1 | ||
| 90564-50300 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.750,MARK G |
1 | ||
| 90564-50296 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.650,MARK C |
1 | ||
| 90564-50298 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.700,MARK E |
1 | ||
| 90564-50299 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.725,MARK F |
1 | ||
| 90564-50304 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.850,MARK L |
1 | ||
| 90564-50305 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.875,MARK M |
1 | ||
| 90564-50302 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.800,MARK J |
1 | ||
| 90564-50306 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.900,MARK N |
1 | ||
| 90564-50309 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.975,MARK R |
1 | ||
| 90564-50297 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.675,MARK D |
1 | ||
| 90564-50295 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.625,MARK B |
1 | ||
| 90564-50301 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.775,MARK H |
1 | ||
| 90564-50303 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.825,MARK K |
1 | ||
| 90564-50307 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.925,MARK P |
1 | ||
| 90564-50310 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.000,MARK S |
1 | ||
| 90564-50313 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.075,MARK V |
1 | ||
| 90564-50312 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.050,MARK U |
1 | ||
| 90564-50317 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.175,MARK Z |
1 | ||
| 90564-50308 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.950,MARK Q |
1 | ||
| 90564-50316 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.150,MARK Y |
1 | ||
| 90564-50314 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.100,MARK W |
1 | ||
| 90564-50323 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.325,MARK 6 |
1 | ||
| 90564-50318 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.200,MARK 1 |
1 | ||
| 90564-50322 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.300,MARK 5 |
1 | ||
| 90564-50320 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.250,MARK 3 |
1 | ||
| 90564-50311 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.025,MARK T |
1 | ||
| 90564-50324 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.350,MARK 7 |
1 | ||
| 90564-50328 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.450,MARK 11 |
1 | ||
| 90564-50315 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.125,MARK X |
1 | ||
| 90564-50327 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.425,MARK 10 |
1 | ||
| 90564-50329 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.475,MARK 12 |
1 | ||
| 90564-50319 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.225,MARK 2 |
1 | ||
| 90564-50321 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.275,MARK 4 |
1 | ||
| 90564-50330 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.500,MARK 13 |
1 | ||
| 90564-50325 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.375,MARK 8 |
1 | ||
| 90564-50326 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.400,MARK 9 |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-36016 |
MXAA5#..6F |
1 | ||
| 90366-36016 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33322 - SHAFT, OUTPUT, NO.2 | ||||
| 33322-12060 |
MXAA5#..6F |
1 | ||
| 33322-12060 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33322F - BEARING(FOR REVERSE GEAR SHAFT FRONT) | ||||
| 90363-28018 |
MXAA5#..6F |
1 | ||
| 90363-28018 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33322G - BEARING(FOR REVERSE GEAR SHAFT REAR) | ||||
| 90363-26002 |
MXAA5#..6F |
1 | ||
| 90363-26002 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33322H - SHIM(FOR REVERSE GEAR SHAFT REAR BEARING) | ||||
| 90564-52079 |
MXAA5#..6F T=1.95,MARK P |
1 | ||
| 90564-52083 |
MXAA5#..6F T=2.15,MARK T |
1 | ||
| 90564-52084 |
MXAA5#..6F T=2.20,MARK U |
1 | ||
| 90564-52087 |
MXAA5#..6F T=2.35,MARK X |
1 | ||
| 90564-52082 |
MXAA5#..6F T=2.10,MARK S |
1 | ||
| 90564-52088 |
MXAA5#..6F T=2.40,MARK Y |
1 | ||
| 90564-52090 |
MXAA5#..6F T=2.50,MARK 1 |
1 | ||
| 90564-52089 |
MXAA5#..6F T=2.45,MARK Z |
1 | ||
| 90564-52080 |
MXAA5#..6F T=2.00,MARK Q |
1 | ||
| 90564-52085 |
MXAA5#..6F T=2.25,MARK V |
1 | ||
| 90564-52078 |
MXAA5#..6F T=1.90,MARK N |
1 | ||
| 90564-52081 |
MXAA5#..6F T=2.05,MARK R |
1 | ||
| 90564-52086 |
MXAA5#..6F T=2.30,MARK W |
1 | ||
| 90564-52079 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.95,MARK P |
1 | ||
| 90564-52083 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.15,MARK T |
1 | ||
| 90564-52080 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.00,MARK Q |
1 | ||
| 90564-52086 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.30,MARK W |
1 | ||
| 90564-52084 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.20,MARK U |
1 | ||
| 90564-52081 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.05,MARK R |
1 | ||
| 90564-52082 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.10,MARK S |
1 | ||
| 90564-52087 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.35,MARK X |
1 | ||
| 90564-52085 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.25,MARK V |
1 | ||
| 90564-52088 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.40,MARK Y |
1 | ||
| 90564-52078 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=1.90,MARK N |
1 | ||
| 90564-52089 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.45,MARK Z |
1 | ||
| 90564-52090 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.50,MARK 1 |
1 | ||
| 33327 - SLEEVE, TRANSMISSION HUB, NO.4 | ||||
| 33327-12020 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33327-12020 |
MXAA5#..6F |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-12110 |
MXAA5#..6F |
1 | ||
| 33331-12110 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-33018 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 90364-33018 |
MXAA5#..6F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-12210 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33332-12210 |
MXAA5#..6F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-12250 |
MXAA5#..6F |
1 | ||
| 33034-12250 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-41004 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 90364-41004 |
MXAA5#..6F |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-12240 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33035-12240 |
MXAA5#..6F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-12270 |
MXAA5#..6F |
1 | ||
| 33335-12270 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90365-48002 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 90365-48002 |
MXAA5#..6F |
2 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90365-48002 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 90365-48002 |
MXAA5#..6F |
2 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-12240 |
MXAA5#..6F |
1 | ||
| 33336-12240 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33337 - GEAR SUB-ASSY, 6TH | ||||
| 33337-12090 |
MXAA5#..6F |
1 | ||
| 33337-12090 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33345 - BUSH, 1ST GEAR | ||||
| 33345-12050 |
MXAA5#..6F |
1 | ||
| 33345-12050 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-12020 |
MXAA5#..6F |
1 | ||
| 33348-12020 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33352B - HUB, TRANSMISSION CLUTCH, NO.4 | ||||
| 33352-12020 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33352-12020 |
MXAA5#..6F |
1 | ||
| 33356A - RACE, 2ND GEAR BEARING INNER | ||||
| 33356-12020 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33356-12020 |
MXAA5#..6F |
1 | ||
| 33356B - BALL, 2ND GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
MXAA5#..6F |
1 | ||
| 90360-06004 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-12120 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33361-12120 |
MXAA5#..6F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-12090 |
MXAA5#..6F |
1 | ||
| 33362-12090 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-38023 |
MXAA5#..6F T=2.30,MARK A |
1 | ||
| 90520-38026 |
MXAA5#..6F T=2.48,MARK D |
1 | ||
| 90520-38025 |
MXAA5#..6F T=2.42,MARK C |
1 | ||
| 90520-38028 |
MXAA5#..6F T=2.60,MARK F |
1 | ||
| 90520-38024 |
MXAA5#..6F T=2.36,MARK B |
1 | ||
| 90520-38027 |
MXAA5#..6F T=2.54,MARK E |
1 | ||
| 90520-38024 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.36,MARK B |
1 | ||
| 90520-38023 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.30,MARK A |
1 | ||
| 90520-38026 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.48,MARK D |
1 | ||
| 90520-38028 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.60,MARK F |
1 | ||
| 90520-38025 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.42,MARK C |
1 | ||
| 90520-38027 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.54,MARK E |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-12030 |
MXAA5#..6F |
1 | ||
| 33363-12030 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-12070 |
MXAA5#..6F |
1 | ||
| 33364-12070 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-20080 |
MXAA5#..6F |
3 | ||
| 33365-20080 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33365-20080 |
MXAA5#..6F |
3 | ||
| 33365-20080 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
3 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-12060 |
MXAA5#..6F |
1 | ||
| 33369-12060 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33369B - RING, SYNCHRONIZER, NO.4 | ||||
| 33381-12020 |
MXAA5#..6F |
1 | ||
| 33381-12020 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-52010 |
MXAA5#..6F |
2 | ||
| 33371-52010 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-52010 |
MXAA5#..6F |
2 | ||
| 33371-52010 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 33387A - RING, REVERSE SYNCHRONIZER | ||||
| 33387-12010 |
MXAA5#..6F |
1 | ||
| 33387-12010 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-12100 |
MXAA5#..6F |
1 | ||
| 33393-12100 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-34047 |
MXAA5#..6F T=2.42,MARK 2 |
1 | ||
| 90520-34045 |
MXAA5#..6F T=2.30,MARK 0 |
1 | ||
| 90520-34049 |
MXAA5#..6F T=2.54,MARK 4 |
1 | ||
| 90520-34048 |
MXAA5#..6F T=2.48,MARK 3 |
1 | ||
| 90520-34050 |
MXAA5#..6F T=2.60,MARK 5 |
1 | ||
| 90520-34046 |
MXAA5#..6F T=2.36,MARK 1 |
1 | ||
| 90520-34046 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.36,MARK 1 |
1 | ||
| 90520-34050 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.60,MARK 5 |
1 | ||
| 90520-34049 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.54,MARK 4 |
1 | ||
| 90520-34045 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.30,MARK 0 |
1 | ||
| 90520-34048 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.48,MARK 3 |
1 | ||
| 90520-34047 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) T=2.42,MARK 2 |
1 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33365-20080 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
3 | ||
| 33365-20080 |
MXAA5#..6F |
3 | ||
| 33394B - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-52010 |
MXAA5#..6F |
3 | ||
| 33394-52010 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-12060 |
MXAA5#..6F |
1 | ||
| 33396C - RING, SYNCHRONIZER, NO.5(MTM) | ||||
| 33396-12040 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 33396-12040 |
MXAA5#..6F |
2 | ||
| 33396C - RING, SYNCHRONIZER, NO.5(MTM) | ||||
| 33396-12040 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 33396-12040 |
MXAA5#..6F |
2 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-12160 |
MXAA5#..6F |
1 | ||
| 33422-12160 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| 33423-12120 |
MXAA5#..6F |
1 | ||
| 33423-12120 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| 33428-12220 |
MXAA5#..6F |
1 | ||
| 33428-12220 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33429B - GEAR, 6TH DRIVEN | ||||
| 33429-12080 |
MXAA5#..6F |
1 | ||
| 33429-12080 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-12060 |
MXAA5#..6F |
2 | ||
| 33431-12060 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-12060 |
MXAA5#..6F |
2 | ||
| 33431-12060 |
MXAA54..LHD..6F;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS,SA) |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
