MXAA54L-RNFMBX (2019)

Toyota Rav4 (Jpp)

Production Oct 2019 - Oct 2020
Engine M20AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1811- )M20AFKS

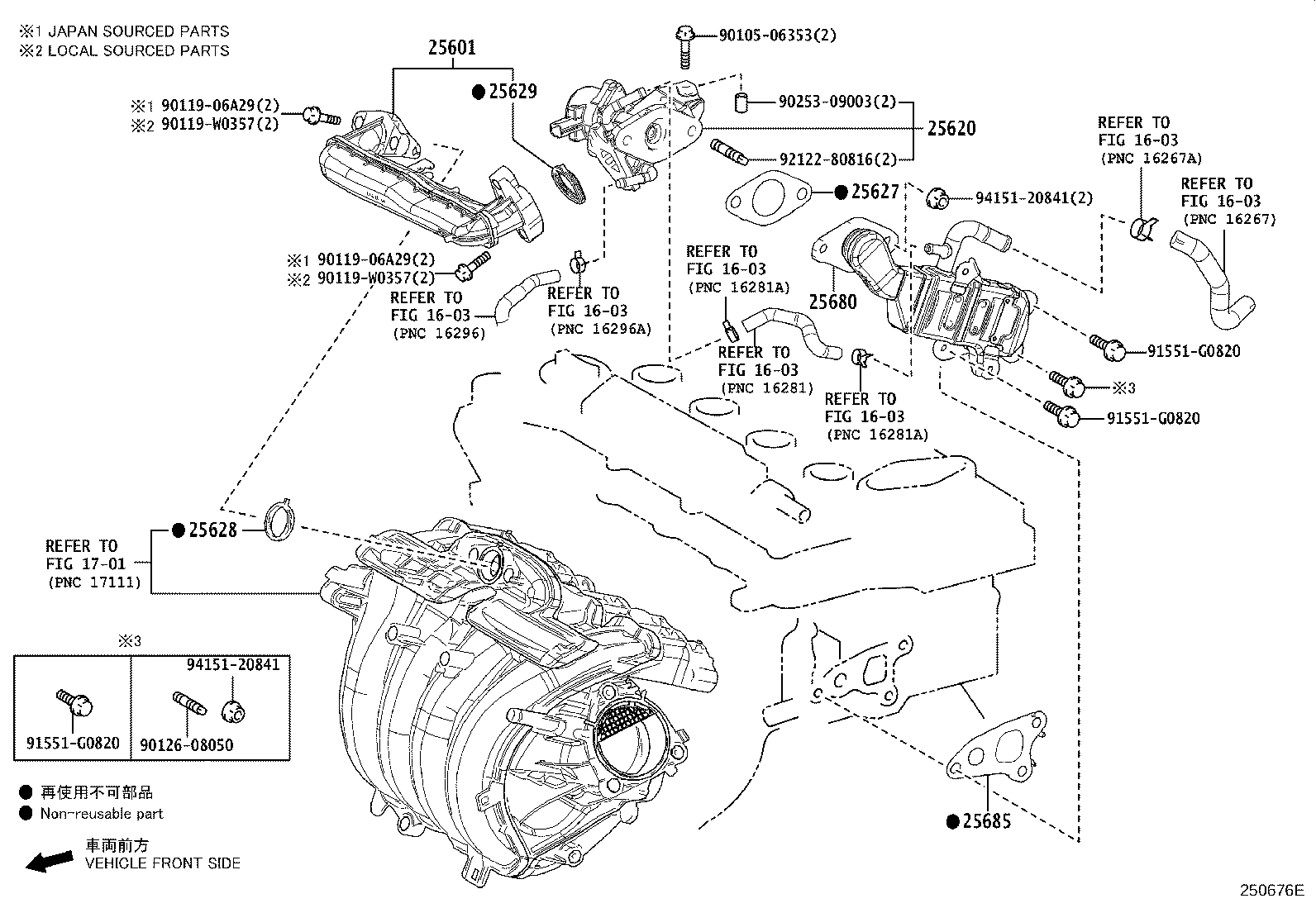

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1603 1701 25601 25620 25627 25628 25629 25680 25685 9010506353 9011906A29 9011906A29 90119W0357 90119W0357 9012608050 9025309003 91551G0820 91551G0820 91551G0820 9212280816 9415120841 9415120841
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-F2020

M20AFKS..MXAA5#..RUS

 1
25620 - VALVE ASSY, EGR
25620-F2020

M20AFKS..MXAA5#..RUS

 1
25627 - GASKET, EGR VALVE
25627-F2040

M20AFKS..MXAA5#..RUS

 1
25628 - GASKET, EGR INLET
25628-F2040

M20AFKS..MXAA5#..RUS

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-25010

M20AFKS..MXAA5#

 1
25629-25010

M20AFKS..MXAA52..CVT;M20AFKS..MXAA54..LHD..(M,X);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..RHD..CVT..(M,X);M20AFKS..MXAA52..6F..(EUR,RUS,SA);M20AFKS..MXAA54..(G,V)..(EUR,GEN,RUS,SA)

 1
25680 - COOLER ASSY, EGR
25680-24010

M20AFKS..MXAA5#..RUS

 1
25680-24010

M20AFKS..MXAA5#..RUS;M20AFKS..MXAA52..RHD..EUR

 1
25685 - GASKET, EGR COOLER, NO.1
25685-25011

M20AFKS..MXAA52..CVT;M20AFKS..MXAA54..LHD..(M,X);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..RHD..CVT..(M,X);M20AFKS..MXAA52..6F..(EUR,RUS,SA);M20AFKS..MXAA54..(G,V)..(EUR,GEN,RUS,SA)

 1
25685-25011

M20AFKS..MXAA5#

 1
Common parts
90105-06353
90119-06A29
90119-W0357
90126-08050
90253-09003
91551-G0820
92122-80816
94151-20841
Linked diagrams
1603
1701
