MXAA54L-RNFMBX (2019)

Toyota Rav4 (Jpp)

Production Oct 2019 - Oct 2020
Engine M20AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

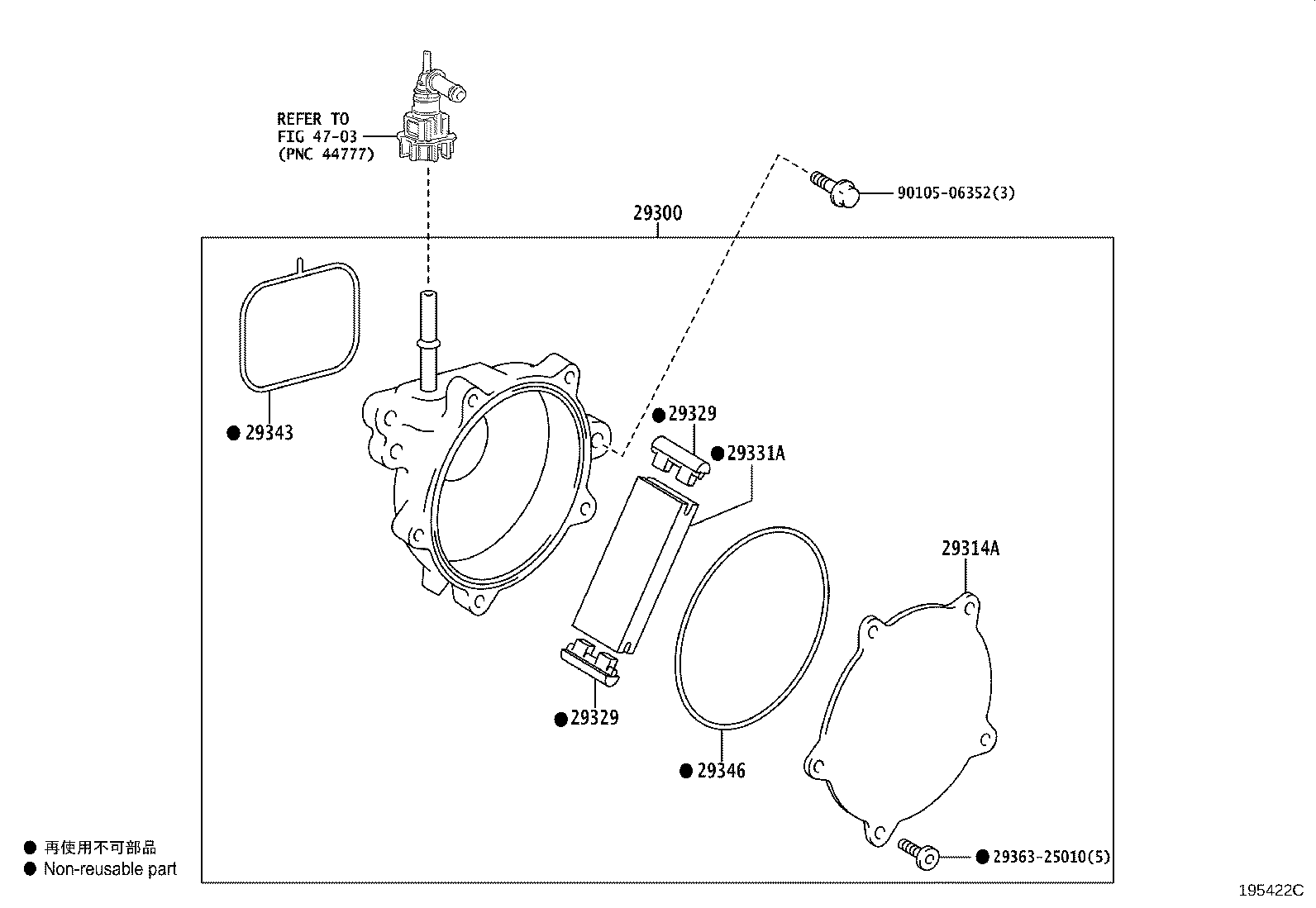

(1811- )M20AFKS

Click highlighted areas on diagram

diagram 29300 29314A 29329 29329 29331A 29343 29346 2936325010 4703 9010506352
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-F2030

M20AFKS..MXAA5#..RUS

 1
29343 - RING, O VACUUM PUMP, NO.1
29343-F2030

M20AFKS..MXAA5#..RUS

 1
Common parts
29363-25010
90105-06352
Linked diagrams
4703

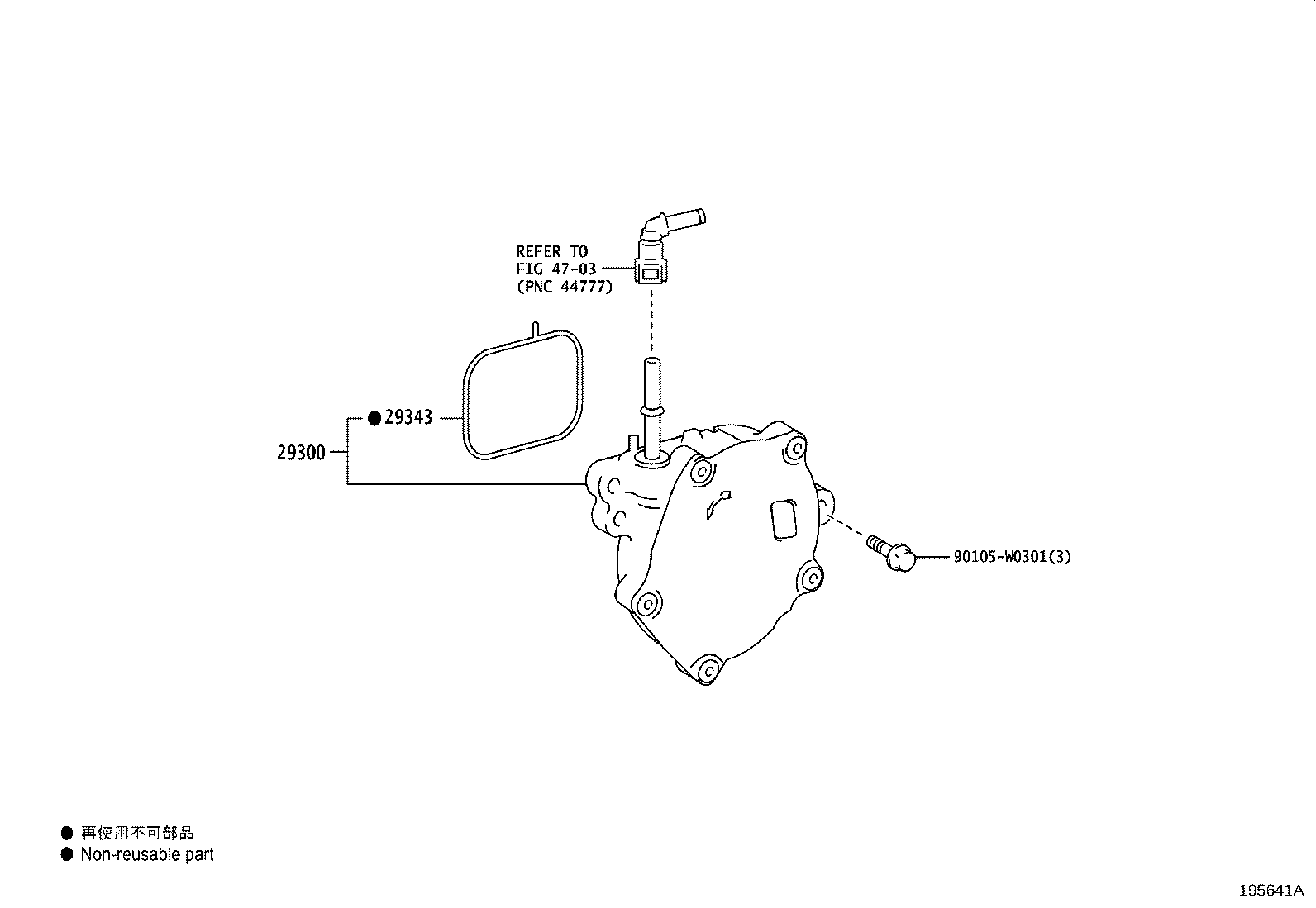

(1910- )M20AFKS..RUS

Click highlighted areas on diagram

diagram 29300 29343 4703 90105W0301
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-F2030

M20AFKS..MXAA5#..RUS

 1
29343 - RING, O VACUUM PUMP, NO.1
29343-F2030

M20AFKS..MXAA5#..RUS

 1
Common parts
90105-W0301
Linked diagrams
4703
