MXAA54L-RNFMBX (2019)
Toyota Rav4 (Jpp)
(1811- )M20AFKS

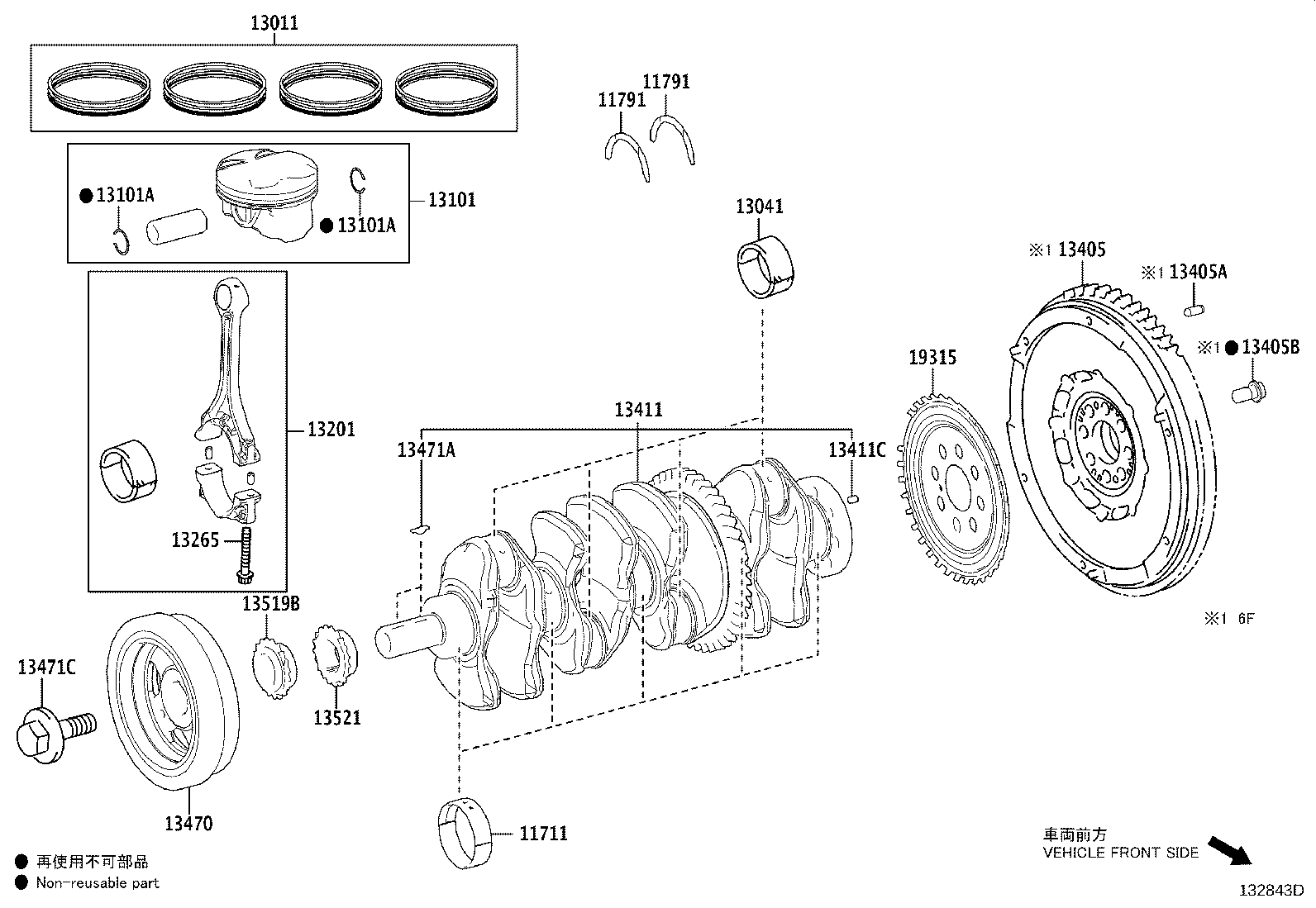

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2401002 |
M20AFKS..MXAA5# MARK 2,*132:REFER R/M |
5 | ||
| 11701-2401003 |
M20AFKS..MXAA5# MARK 3,*132:REFER R/M |
5 | ||
| 11701-2401001 |
M20AFKS..MXAA5# MARK 1,*132:REFER R/M |
5 | ||
| 11701-2401006 |
M20AFKS..MXAA5# MARK 6,*132:REFER R/M |
5 | ||
| 11701-2401005 |
M20AFKS..MXAA5# MARK 5,*132:REFER R/M |
5 | ||
| 11701-F203003 |
M20AFKS..MXAA5#..RUS MARK 3,*613:REFER R/M |
5 | ||
| 11701-F203004 |
M20AFKS..MXAA5#..RUS MARK 4,*613:REFER R/M |
5 | ||
| 11701-F203005 |
M20AFKS..MXAA5#..RUS MARK 5,*613:REFER R/M |
5 | ||
| 11701-F203002 |
M20AFKS..MXAA5#..RUS MARK 2,*613:REFER R/M |
5 | ||
| 11701-F203006 |
M20AFKS..MXAA5#..RUS MARK 6,*613:REFER R/M |
5 | ||
| 11701-F203001 |
M20AFKS..MXAA5#..RUS MARK 1,*613:REFER R/M |
5 | ||
| 11701-2401004 |
M20AFKS..MXAA5# MARK 4,*132:REFER R/M |
5 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-F2040 |
M20AFKS..MXAA5#..RUS STD |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-F2040 |
M20AFKS..MXAA5#..RUS STD |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-F2020 |
M20AFKS..MXAA5#..RUS STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-F201001 |
M20AFKS..MXAA5#..RUS MARK 1,*613 |
4 | ||
| 13041-2402003 |
M20AFKS..MXAA5# MARK 3,*132 |
4 | ||
| 13041-2402002 |
M20AFKS..MXAA5# MARK 2,*132 |
4 | ||
| 13041-F201003 |
M20AFKS..MXAA5#..RUS MARK 3,*613 |
4 | ||
| 13041-2402001 |
M20AFKS..MXAA5# MARK 1,*132 |
4 | ||
| 13041-F201002 |
M20AFKS..MXAA5#..RUS MARK 2,*613 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-24040 |
M20AFKS..MXAA5# STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-19019 |
M20AFKS..MXAA5# |
8 | ||
| 90520-19019 |
M20AFKS..MXAA52..CVT;M20AFKS..MXAA54..LHD..(M,X);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..RHD..CVT..(M,X);M20AFKS..MXAA52..6F..(EUR,RUS,SA);M20AFKS..MXAA54..(G,V)..(EUR,GEN,RUS,SA) |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-19019 |
M20AFKS..MXAA5# |
8 | ||
| 90520-19019 |
M20AFKS..MXAA52..CVT;M20AFKS..MXAA54..LHD..(M,X);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..RHD..CVT..(M,X);M20AFKS..MXAA52..6F..(EUR,RUS,SA);M20AFKS..MXAA54..(G,V)..(EUR,GEN,RUS,SA) |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-F9010C0 |
M20AFKS..MXAA5#..RUS MARK C,REFER REPAIR MANUAL |
4 | ||
| 13201-F9010A0 |
M20AFKS..MXAA5#..RUS MARK A,REFER REPAIR MANUAL |
4 | ||
| 13201-F9010B0 |
M20AFKS..MXAA5#..RUS MARK B,REFER REPAIR MANUAL |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-25020 |
M20AFKS..MXAA52..CVT;M20AFKS..MXAA54..LHD..(M,X);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..RHD..CVT..(M,X);M20AFKS..MXAA52..6F..(EUR,RUS,SA);M20AFKS..MXAA54..(G,V)..(EUR,GEN,RUS,SA) |
8 | ||
| 13265-25020 |
M20AFKS..MXAA5# |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-24040 |
M20AFKS..MXAA5#..6F |
1 | ||
| 13405-24040 |
M20AFKS..MXAA54..LHD..6F;M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA52..6F..(EUR,RUS,SA) |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08120 |
M20AFKS..MXAA5#..6F L=18,OD=8 |
3 | ||
| 90250-08120 |
M20AFKS..MXAA54..LHD..6F;M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA52..6F..(EUR,RUS,SA) L=18,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-12322 |
M20AFKS..MXAA54..LHD..6F;M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA52..6F..(EUR,RUS,SA) |
8 | ||
| 90105-12322 |
M20AFKS..MXAA5#..6F |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-F2040 |
M20AFKS..MXAA5#..RUS |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90250-06035 |
M20AFKS..MXAA5# |
1 | ||
| 90250-06035 |
M20AFKS..MXAA52..CVT;M20AFKS..MXAA54..LHD..(M,X);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..RHD..CVT..(M,X);M20AFKS..MXAA52..6F..(EUR,RUS,SA);M20AFKS..MXAA54..(G,V)..(EUR,GEN,RUS,SA) |
1 | ||
| 13470 - PULLEY ASSY, CRANKSHAFT | ||||
| 13470-24030 |
M20AFKS..MXAA5#..RUS |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-04001 |
M20AFKS..MXAA52..CVT;M20AFKS..MXAA54..LHD..(M,X);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..RHD..CVT..(M,X);M20AFKS..MXAA52..6F..(EUR,RUS,SA);M20AFKS..MXAA54..(G,V)..(EUR,GEN,RUS,SA) |
2 | ||
| 90280-04001 |
M20AFKS..MXAA5# |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-16020 |
M20AFKS..MXAA52..CVT;M20AFKS..MXAA54..LHD..(M,X);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..RHD..CVT..(M,X);M20AFKS..MXAA52..6F..(EUR,RUS,SA);M20AFKS..MXAA54..(G,V)..(EUR,GEN,RUS,SA) |
1 | ||
| 90119-16020 |
M20AFKS..MXAA5# |
1 | ||
| 13519B - SPROCKET, OIL PUMP DRIVE | ||||
| 13519-24010 |
M20AFKS..MXAA5# |
1 | ||
| 13519-24010 |
M20AFKS..MXAA52..CVT;M20AFKS..MXAA54..LHD..(M,X);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..RHD..CVT..(M,X);M20AFKS..MXAA52..6F..(EUR,RUS,SA);M20AFKS..MXAA54..(G,V)..(EUR,GEN,RUS,SA) |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-24010 |
M20AFKS..MXAA52..CVT;M20AFKS..MXAA54..LHD..(M,X);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..RHD..CVT..(M,X);M20AFKS..MXAA52..6F..(EUR,RUS,SA);M20AFKS..MXAA54..(G,V)..(EUR,GEN,RUS,SA) |
1 | ||
| 13521-24010 |
M20AFKS..MXAA5# |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-24010 |
M20AFKS..MXAA52..CVT;M20AFKS..MXAA54..LHD..(M,X);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..RHD..CVT..(M,X);M20AFKS..MXAA52..6F..(EUR,RUS,SA);M20AFKS..MXAA54..(G,V)..(EUR,GEN,RUS,SA) |
1 | ||
| 19315-24010 |
M20AFKS..MXAA5# |
1 | ||
