MXAA54L-ANXVBV (2018)
Toyota Rav4 (Jpp)

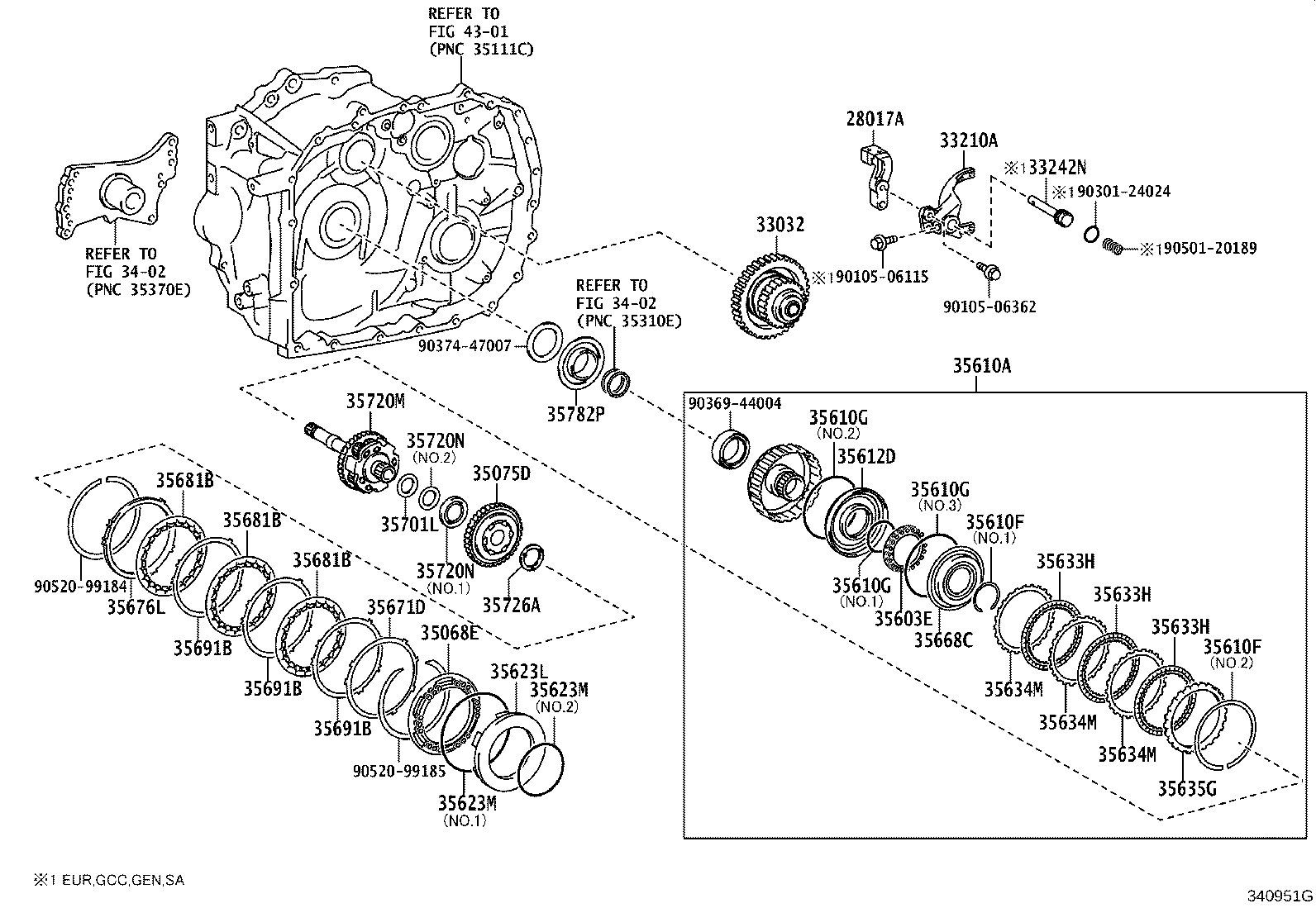

ILLUST NO. 3 OF 5(1811- )MXAA5#..CVT
K120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28017A - STAY(FOR GEAR SHIFT FORK) | ||||
| 28017-24110 |
M20AFKS..MXAA5#..CVT |
1 | ||
| 33032 - GEAR SUB-ASSY, 1ST | ||||
| 33032-12110 |
MXAA5#..CVT |
1 | ||
| 33210A - FORK ASSY, GEAR SHIFT, NO.1 | ||||
| 33210-12040 |
MXAA5#..CVT |
1 | ||
| 33242N - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-12130 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 35068E - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-12040 |
MXAA5#..CVT |
1 | ||
| 35075D - GEAR SUB-ASSY, FRONT PLANETARY RING | ||||
| 35075-12050 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 35603E - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-12050 |
MXAA5#..CVT |
1 | ||
| 35610A - CLUTCH ASSY, FORWARD MULTIPLE DISC | ||||
| 35610-12290 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 35610F - RING, SNAP (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90520-44041 |
MXAA5#..CVT NO.1 |
1 | ||
| 90520-99187 |
MXAA5#..CVT NO.2 |
1 | ||
| 35610F - RING, SNAP (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90520-44041 |
MXAA5#..CVT NO.1 |
1 | ||
| 90520-99187 |
MXAA5#..CVT NO.2 |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90302-99006 |
MXAA5#..CVT NO.2 |
1 | ||
| 90301-52007 |
MXAA5#..CVT NO.1 |
1 | ||
| 90302-99007 |
MXAA5#..CVT NO.3 |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90302-99006 |
MXAA5#..CVT NO.2 |
1 | ||
| 90301-52007 |
MXAA5#..CVT NO.1 |
1 | ||
| 90302-99007 |
MXAA5#..CVT NO.3 |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90302-99006 |
MXAA5#..CVT NO.2 |
1 | ||
| 90301-52007 |
MXAA5#..CVT NO.1 |
1 | ||
| 90302-99007 |
MXAA5#..CVT NO.3 |
1 | ||
| 35612D - PISTON, FORWARD CLUTCH | ||||
| 35612-12090 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 35623L - PISTON, REVERSE BRAKE | ||||
| 35623-12100 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 35623M - RING, O (FOR REVERSE BRAKE PISTON) | ||||
| 90301-95004 |
MXAA5#..CVT NO.1 |
1 | ||
| 90301-99238 |
MXAA5#..CVT NO.2 |
1 | ||
| 35623M - RING, O (FOR REVERSE BRAKE PISTON) | ||||
| 90301-95004 |
MXAA5#..CVT NO.1 |
1 | ||
| 90301-99238 |
MXAA5#..CVT NO.2 |
1 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12150 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
3 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12150 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
3 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12150 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
3 | ||
| 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12100 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
3 | ||
| 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12100 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
3 | ||
| 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12100 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
3 | ||
| 35635G - FLANGE, FORWARD CLUTCH | ||||
| 35635-12290 |
MXAA5#..CVT T=3.40 |
1 | ||
| 35635-12300 |
MXAA5#..CVT T=3.50 |
1 | ||
| 35635-12310 |
MXAA5#..CVT T=3.60 |
1 | ||
| 35635-12280 |
MXAA5#..CVT T=3.30 |
1 | ||
| 35635-12320 |
MXAA5#..CVT T=3.70 |
1 | ||
| 35635-12330 |
MXAA5#..CVT T=3.80 |
1 | ||
| 35668C - BALANCER, CLUTCH, NO.1 | ||||
| 35668-12050 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 35671D - PLATE, BRAKE CUSHION | ||||
| 35671-12050 |
MXAA5#..CVT |
1 | ||
| 35676L - FLANGE, BRAKE | ||||
| 35676-12120 |
MXAA5#..CVT |
1 | ||
| 35681B - DISC, BRAKE, NO.1 | ||||
| 35681-12040 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
3 | ||
| 35681B - DISC, BRAKE, NO.1 | ||||
| 35681-12040 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
3 | ||
| 35681B - DISC, BRAKE, NO.1 | ||||
| 35681-12040 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
3 | ||
| 35691B - PLATE, BRAKE, NO.1 | ||||
| 35691-12050 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
3 | ||
| 35691B - PLATE, BRAKE, NO.1 | ||||
| 35691-12050 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
3 | ||
| 35691B - PLATE, BRAKE, NO.1 | ||||
| 35691-12050 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
3 | ||
| 35701L - RACE, THRUST BEARING (FOR INPUT SHAFT) | ||||
| 35789-12110 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 35720M - GEAR ASSY, PLANETARY | ||||
| 35720-12090 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 35720N - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY GEAR) | ||||
| 90374-24008 |
MXAA5#..CVT NO.1 |
1 | ||
| 90374-29012 |
MXAA5#..CVT NO.2 |
1 | ||
| 35720N - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY GEAR) | ||||
| 90374-24008 |
MXAA5#..CVT NO.1 |
1 | ||
| 90374-29012 |
MXAA5#..CVT NO.2 |
1 | ||
| 35726A - WASHER, PLANETARY RING GEAR THRUST | ||||
| 35726-12020 |
MXAA5#..CVT |
1 | ||
| 35782P - SPROCKET, DRIVE | ||||
| 35782-12070 |
MXAA5#..CVT |
1 | ||
| Common parts | ||||
| 90105-06115 | ||||
| 90105-06362 | ||||
| 90301-24024 | ||||
| 90369-44004 | ||||
| 90374-47007 | ||||
| 90501-20189 | ||||
| 90520-99184 | ||||
| 90520-99185 | ||||
| Linked diagrams | ||||
| 3402 | ||||
| 4301 | ||||
ILLUST NO. 5 OF 5(1811- )MXAA5#..CVT
K120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

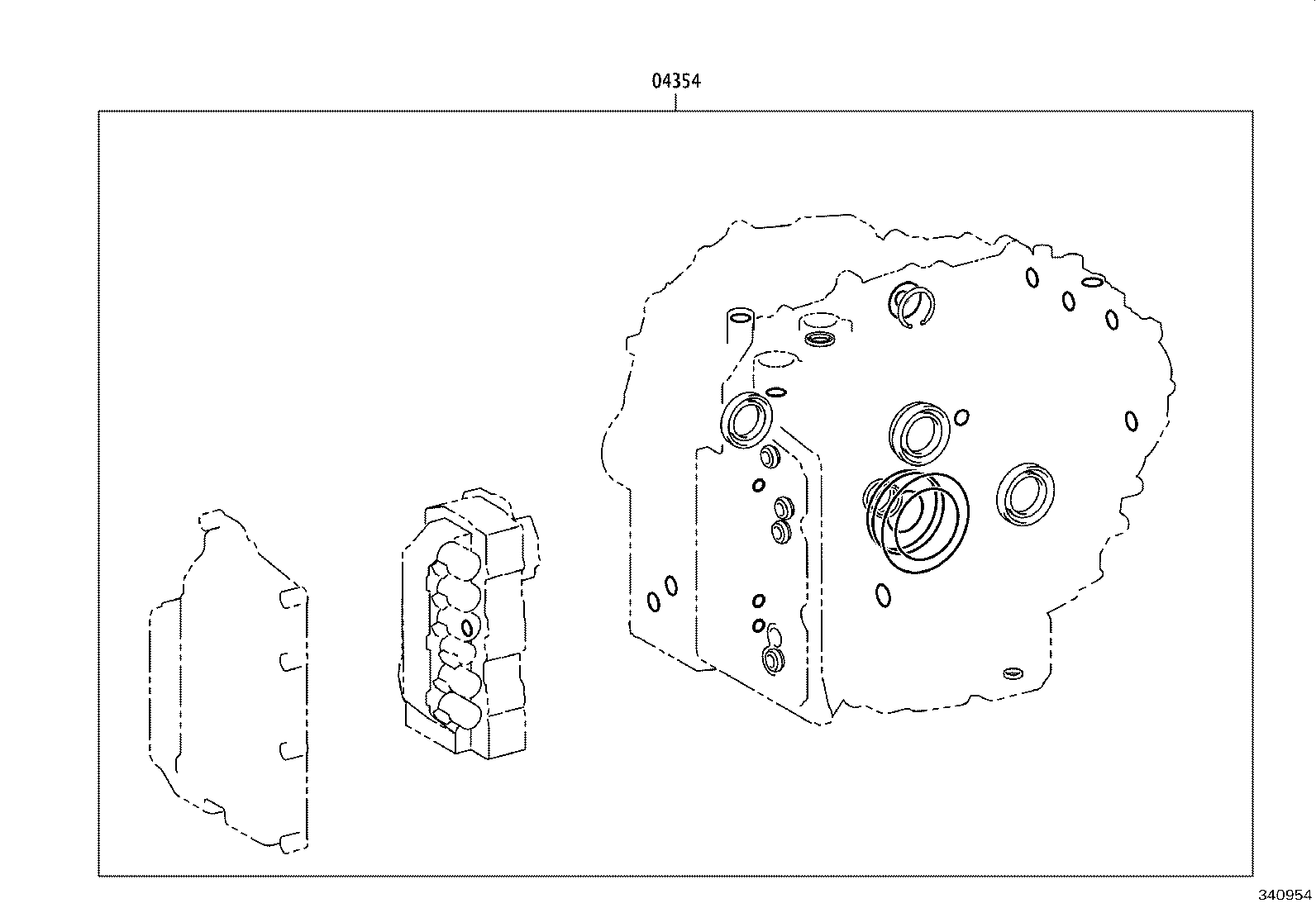

| 04354 - OVERHAUL KIT, TRANSAXLE(CVT) | ||||
| 04354-42020 |
MXAA54..CVT |
1 | ||

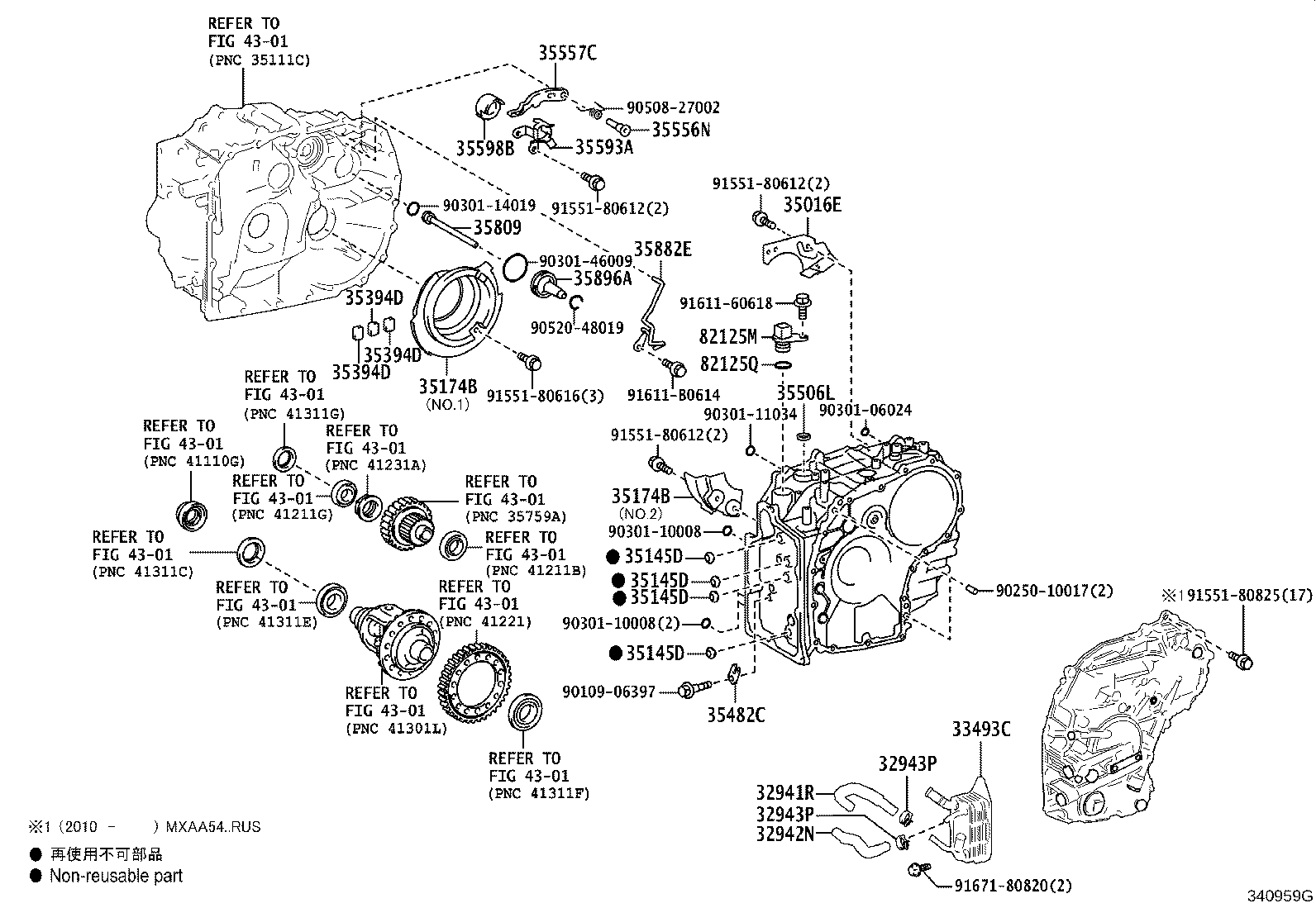

ILLUST NO. 2 OF 5(1811- )MXAA5#..CVT
K120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32941R - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-42160 |
MXAA5#..CVT |
1 | ||
| 32942N - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-42130 |
MXAA5#..CVT |
1 | ||
| 32943P - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
MXAA5#..CVT |
4 | ||
| 32943P - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
MXAA5#..CVT |
4 | ||
| 33493C - COOLER, TRANSMISSION OIL | ||||
| 33493-42110 |
MXAA5#..CVT |
1 | ||
| 35016E - PLATE SUB-ASSY, TRANSMISSION CASE | ||||
| 35016-12010 |
MXAA5#..CVT |
1 | ||
| 35145D - GASKET, TRANSAXLE CASE | ||||
| 35145-33010 |
MXAA5#..CVT |
4 | ||
| 35145D - GASKET, TRANSAXLE CASE | ||||
| 35145-33010 |
MXAA5#..CVT |
4 | ||
| 35145D - GASKET, TRANSAXLE CASE | ||||
| 35145-33010 |
MXAA5#..CVT |
4 | ||
| 35145D - GASKET, TRANSAXLE CASE | ||||
| 35145-33010 |
MXAA5#..CVT |
4 | ||
| 35174B - PLATE, OIL RESERVOIR LOCK | ||||
| 35174-12030 |
MXAA5#..CVT NO.1 |
1 | ||
| 35174-12040 |
MXAA5#..CVT NO.2 |
1 | ||
| 35174B - PLATE, OIL RESERVOIR LOCK | ||||
| 35174-12030 |
MXAA5#..CVT NO.1 |
1 | ||
| 35174-12040 |
MXAA5#..CVT NO.2 |
1 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-48010 |
MXAA5#..CVT |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-48010 |
MXAA5#..CVT |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-48010 |
MXAA5#..CVT |
3 | ||
| 35482C - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-73010 |
MXAA5#..CVT |
1 | ||
| 35506L - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
MXAA5#..CVT |
1 | ||
| 35556N - SHAFT, PARKING LOCK PAWL | ||||
| 35556-12040 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 35557C - PAWL, PARKING LOCK | ||||
| 35557-12061 |
MXAA5#..CVT |
1 | ||
| 35593A - SLEEVE, CAM GUIDE | ||||
| 35593-12040 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 35598B - SLEEVE, PARKING LOCK | ||||
| 35598-12040 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 35809 - TUBE SUB-ASSY, C-2 CLUTCH PRESSURE APPLY | ||||
| 35809-12010 |
MXAA5#..CVT |
1 | ||
| 35882E - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-12060 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 35896A - TUBE, SECONDARY SHAFT LUBE APPLY | ||||
| 35896-12010 |
MXAA5#..CVT |
1 | ||
| 82125M - WIRE, TRANSMISSION | ||||
| 82125-12670 |
MXAA5#..CVT |
1 | ||
| 82125Q - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-06004 |
MXAA5#..CVT |
1 | ||
| Common parts | ||||
| 90109-06397 | ||||
| 90250-10017 | ||||
| 90301-06024 | ||||
| 90301-10008 | ||||
| 90301-11034 | ||||
| 90301-14019 | ||||
| 90301-46009 | ||||
| 90508-27002 | ||||
| 90520-48019 | ||||
| 91551-80612 | ||||
| 91551-80616 | ||||
| 91551-80825 | ||||
| 91611-60618 | ||||
| 91611-B0614 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 4301 | ||||

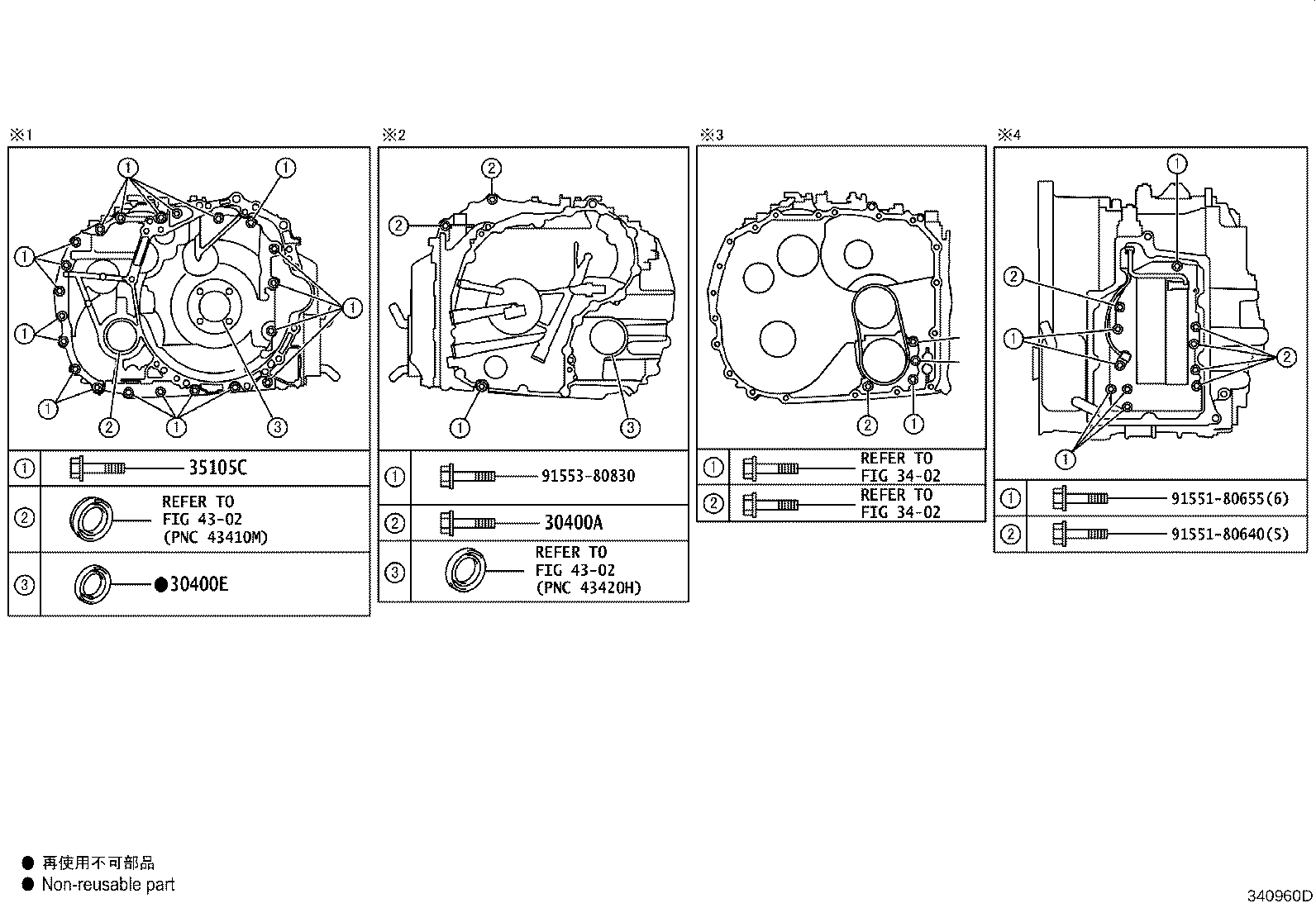

ILLUST NO. 4 OF 5(1811- )MXAA5#..CVT
K120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91552-81250 |
MXAA5#..CVT |
2 | ||
| 30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP) | ||||
| 90311-41019 |
MXAA5#..CVT |
1 | ||
| 35105C - BOLT(FOR TRANSAXLE HOUSING & CASE SET) | ||||
| 91551-10830 |
MXAA5#..CVT |
21 | ||
| Common parts | ||||
| 91551-80640 | ||||
| 91551-80655 | ||||
| 91553-80830 | ||||
| Linked diagrams | ||||
| 3402 | ||||
| 4302 | ||||

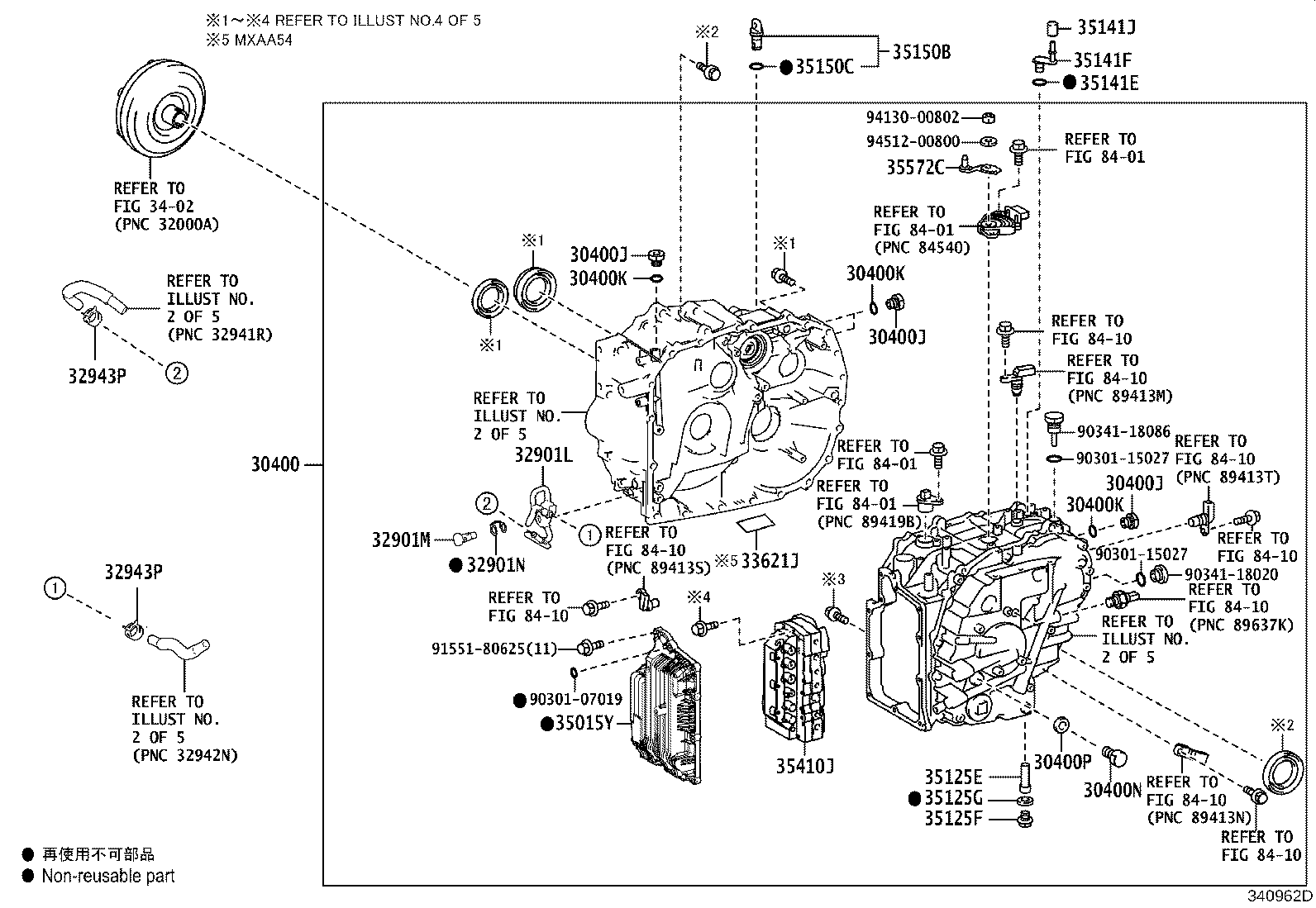

ILLUST NO. 1 OF 5(1811- )MXAA5#..CVT
K120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE | ||||
| 30400-42130 |
MXAA54..CVT..(EUR,GCC,GEN,SA) K120 |
1 | ||
| 30400J - PLUG, TRANSAXLE HOLE | ||||
| 90341-08001 |
MXAA5#..CVT |
4 | ||
| 30400J - PLUG, TRANSAXLE HOLE | ||||
| 90341-08001 |
MXAA5#..CVT |
4 | ||
| 30400J - PLUG, TRANSAXLE HOLE | ||||
| 90341-08001 |
MXAA5#..CVT |
4 | ||
| 30400K - GASKET, TRANSAXLE HOLE PLUG | ||||
| 90301-06196 |
MXAA5#..CVT |
4 | ||
| 30400K - GASKET, TRANSAXLE HOLE PLUG | ||||
| 90301-06196 |
MXAA5#..CVT |
4 | ||
| 30400K - GASKET, TRANSAXLE HOLE PLUG | ||||
| 90301-06196 |
MXAA5#..CVT |
4 | ||
| 30400N - PLUG, REFILL(CVT) | ||||
| 90341-18077 |
MXAA5#..CVT |
1 | ||
| 30400P - GASKET, REFILL PLUG(CVT) | ||||
| 90430-18008 |
MXAA5#..CVT |
1 | ||
| 32901L - ELBOW SUB-ASSY, OIL COOLER | ||||
| 32901-42010 |
MXAA5#..CVT |
1 | ||
| 32901M - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-14019 |
MXAA5#..CVT |
2 | ||
| 32901N - GASKET(FOR OIL COOLER UNION) | ||||
| 90430-14017 |
MXAA5#..CVT |
2 | ||
| 32943P - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
MXAA5#..CVT |
4 | ||
| 32943P - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
MXAA5#..CVT |
4 | ||
| 33621J - LABEL, TRANSAXLE OIL INFORMATION | ||||
| 33621-28021 |
MXAA54..CVT |
1 | ||
| 35015Y - COVER SUB-ASSY, TRANSAXLE SIDE | ||||
| 35015-42010 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 35125E - TUBE, OVERFLOW(CVT) | ||||
| 35125-12500 |
MXAA5#..CVT |
1 | ||
| 35125F - PLUG, OVERFLOW(CVT) | ||||
| 90341-18016 |
MXAA5#..CVT |
1 | ||
| 35125G - GASKET, OVERFLOW PLUG(CVT) | ||||
| 90430-18008 |
MXAA5#..CVT |
1 | ||
| 35141E - RING, O(FOR BREATHER PLUG) | ||||
| 90301-09173 |
MXAA5#..CVT |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03240 |
MXAA5#..CVT |
1 | ||
| 35141J - PLUG, BREATHER, NO.2(CVT) | ||||
| 90930-03243 |
MXAA5#..CVT |
1 | ||
| 35150B - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-48010 |
MXAA5#..CVT |
1 | ||
| 35150C - RING, O (FOR TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
MXAA5#..CVT |
1 | ||
| 35410J - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-12880 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 35410-12881 |
MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 35572C - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-12190 |
MXAA5#..CVT |
1 | ||
| Common parts | ||||
| 90301-07019 | ||||
| 90301-15027 | ||||
| 90341-18020 | ||||
| 90341-18086 | ||||
| 91551-80625 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 3402 | ||||
| 8401 | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
