MXAA52R-ANXGBW (2018)
Toyota Rav4 (Jpp)
ILLUST NO. 1 OF 9(1811- )MXAA5#..RHD

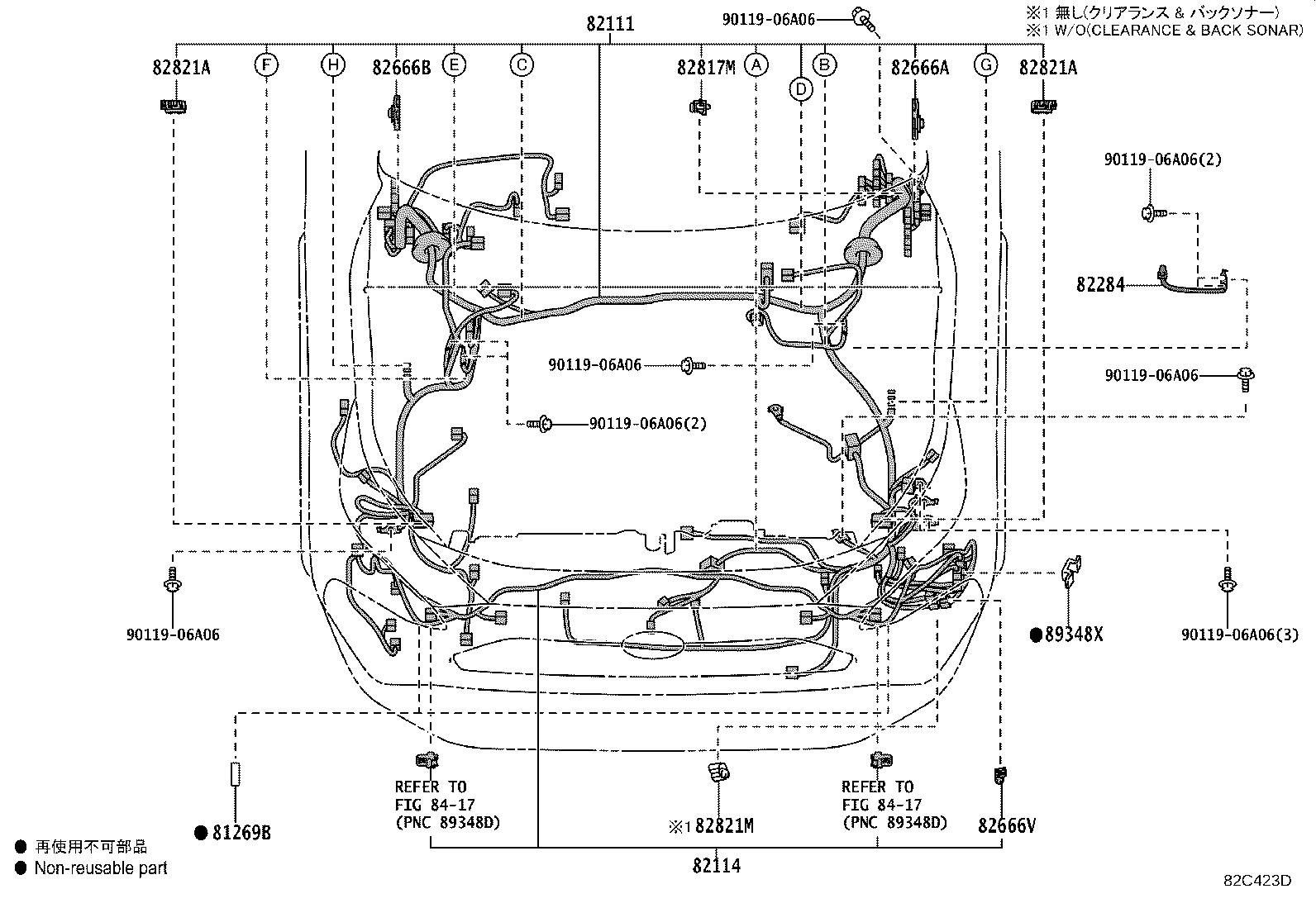

ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81269B - SEAL, FOG LAMP | ||||
| 81269-42010 |
MXAA54..X..(GCC,GEN);MXAA52..LHD..6F..X..(EUR,GEN);AXAA5#,AXAH5#,AXAL5#,MXAA52..(ATM,CVT)..X..(EUR,GCC,GEN) ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
1 | ||
| 81269-42010 |
MXAA52..RHD..G..EUR ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CLEARANCE & BACK SONAR-WITHOUT&BACK MONITOR-WITHOUT |
2 | ||
| 81269-42010 |
AXAA54,AXAH54,MXAA54..X..(EUR,GEN);AXAA52,AXAH52,AXAL5#,MXAA52..X..(EUR,GCC,GEN) FRONT FOG & DRIVING LAMP-WITH |
2 | ||
| 81269-42010 |
MXAA52..RHD..G..EUR CLEARANCE & BACK SONAR-WITHOUT&BACK MONITOR-WITHOUT |
2 | ||
| 81269-42010 |
MXAA54..X..GEN;MXAA52..LHD..6F..X..(EUR,GEN);AXAA5#,AXAH5#,AXAL5#,MXAA52..(ATM,CVT)..X..(EUR,GEN) ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&FRONT FOG & DRIVING LAMP-WITH |
2 | ||
| 81269-42010 |
MXAA52..RHD..G..EUR CLEARANCE & BACK SONAR-WITHOUT&BACK MONITOR-WITHOUT |
2 | ||
| 81269-42010 |
MXAA52..LHD..M..(EUR,RUS);AXAH52,MXAA54..G..(GCC,GEN);MXAA52..RHD..(M,X)..(EUR,SA);AXAA54,AXAH54,AXAL5#..M..(EUR,RUS);AXAH52,MXAA54..M..(EUR,GCC,GEN,RUS);AXAA5#,AXAH54,MXAA52..(G,M)..(GCC,GEN) |
2 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-42140 |
MXAA52..RHD..CVT..EUR |
1 | ||
| 82115-42141 |
MXAA52..RHD..G..EUR EXHAUST EMISSION CONTROL-EURO6 UNDER,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 82115-42430 |
MXAA52..RHD..CVT..EUR |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-42170 |
MXAA52..RHD..G..EUR CLEARANCE & BACK SONAR-WITHOUT&BACK MONITOR-WITHOUT |
1 | ||
| 82114-42070 |
MXAA52..RHD..G..EUR CLEARANCE & BACK SONAR-WITHOUT&BACK MONITOR-WITHOUT |
1 | ||
| 82114-42070 |
MXAA52..RHD..G..EUR |
1 | ||
| 82114-42080 |
MXAA52..RHD..CVT..M..EUR CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 82114-42070 |
MXAA52..RHD..CVT..M..EUR CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 82114-42080 |
MXAA52..RHD..G..EUR BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 82114-42110 |
MXAA52..RHD..G..EUR ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 82114-42090 |
MXAA52..RHD..G..EUR ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CLEARANCE & BACK SONAR-WITHOUT&BACK MONITOR-WITHOUT |
1 | ||
| 82114-42170 |
MXAA52..RHD..G..EUR CLEARANCE & BACK SONAR-WITHOUT&BACK MONITOR-WITHOUT |
1 | ||
| 82114-42100 |
MXAA52..RHD..G..EUR ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
1 | ||
| 82114-42200 |
MXAA52..RHD..CVT..EUR CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 82114-42220 |
MXAA52..RHD..CVT..EUR CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 82114-42260 |
MXAA52..RHD..G..EUR ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CLEARANCE & BACK SONAR-WITH(INTELLIGENTCLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 82114-42240 |
MXAA52..RHD..G..EUR ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CLEARANCE & BACK SONAR-WITH(INTELLIGENTCLEARANCE SONAR) |
1 | ||
| 82114-42090 |
MXAA54..X..GEN;MXAA52..LHD..6F..X..(EUR,GEN);AXAA5#,AXAH5#,AXAL5#,MXAA52..(ATM,CVT)..X..(EUR,GEN) ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 82114-42170 |
AXAA54,AXAH54,MXAA54..X..(EUR,GEN);AXAA52,AXAH52,AXAL5#,MXAA52..X..(EUR,GCC,GEN) FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 82114-42190 |
MXAA54..X..(GCC,GEN);MXAA52..LHD..6F..X..(EUR,GEN);AXAA5#,AXAH5#,AXAL5#,MXAA52..(ATM,CVT)..X..(EUR,GCC,GEN) ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
1 | ||
| 82114-42100 |
MXAA52..RHD..G..EUR ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 82114-42090 |
MXAA52..RHD..CVT..EUR ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
1 | ||
| 82114-42170 |
MXAA52..LHD..M..(EUR,RUS);AXAH52,MXAA54..G..(GCC,GEN);MXAA52..RHD..(M,X)..(EUR,SA);AXAA54,AXAH54,AXAL5#..M..(EUR,RUS);AXAH52,MXAA54..M..(EUR,GCC,GEN,RUS);AXAA5#,AXAH54,MXAA52..(G,M)..(GCC,GEN) |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-42070 |
AXAA54..EUR,RUS;MXAA54..EUR,RUS,SA;AXAA5#,MXAA54..G..GCC;MXAA52..(M,X)..(EUR,RUS);MXAA52..LHD..G..(EUR,RUS);AXAA5#,MXAA5#..RHD..(G,V)..(ARL,EUR,GEN) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60310 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60220 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-42720 |
MXAA54..X..(GCC,GEN);MXAA52..LHD..6F..X..(EUR,GEN);AXAA5#,AXAH5#,AXAL5#,MXAA52..(ATM,CVT)..X..(EUR,GCC,GEN) ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
1 | ||
| 82666-42720 |
AXAA54,AXAH54,MXAA54..X..(EUR,GEN);AXAA52,AXAH52,AXAL5#,MXAA52..X..(EUR,GCC,GEN) FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 82666-42720 |
MXAA54..X..GEN;MXAA52..LHD..6F..X..(EUR,GEN);AXAA5#,AXAH5#,AXAL5#,MXAA52..(ATM,CVT)..X..(EUR,GEN) ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&FRONT FOG & DRIVING LAMP-WITH |
1 | ||
| 82666-42720 |
MXAA52..RHD..G..EUR CLEARANCE & BACK SONAR-WITHOUT&BACK MONITOR-WITHOUT |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-42N70 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-50780 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-50780 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-42220 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..X..(EUR,GCC,GEN) |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 1 OF 9(1811- )MXAA5#..RHD

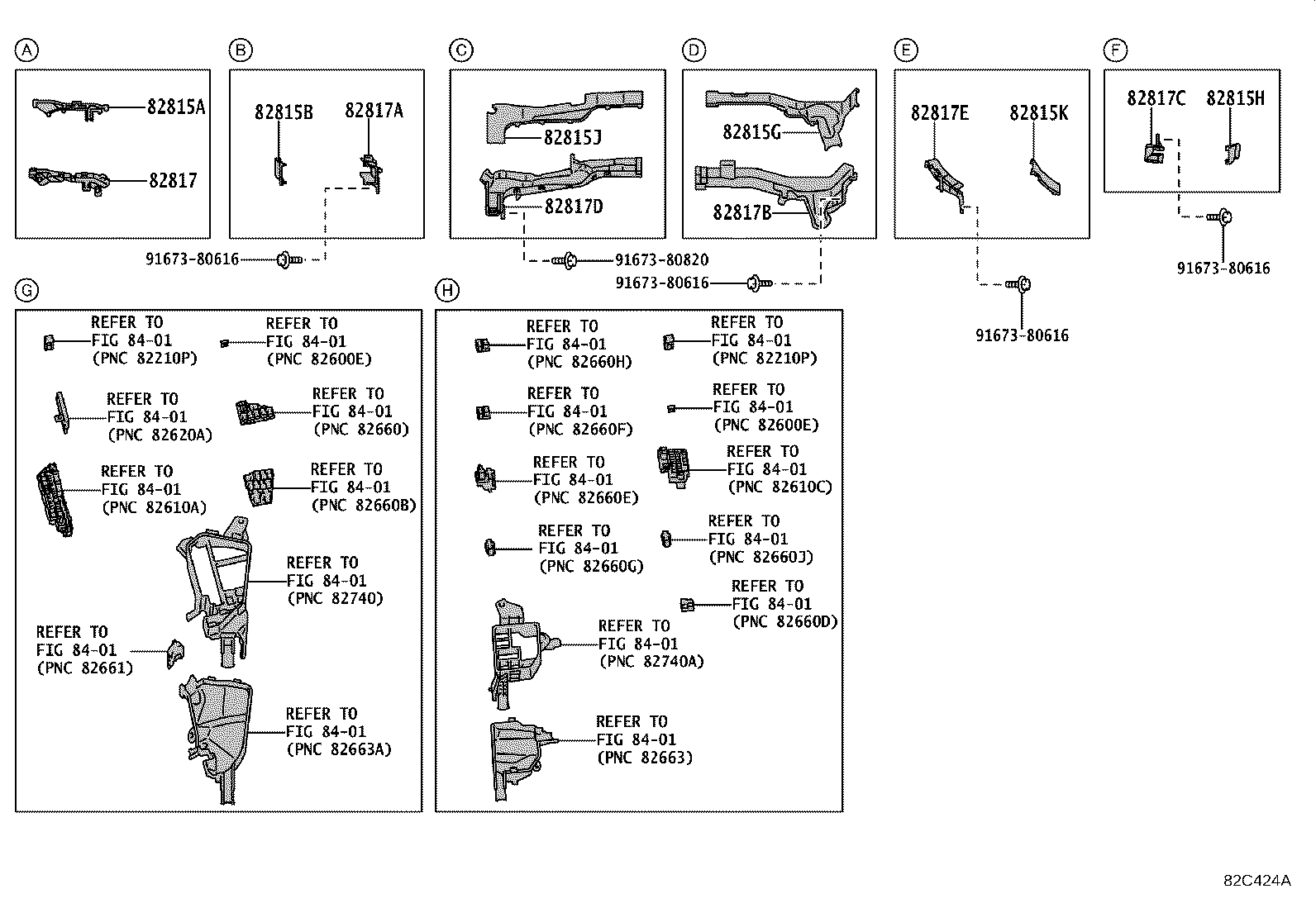

ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-42180 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-42190 |
AXAA5#,MXAA5# |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-42220 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-42570 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-42250 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-42260 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-42B60 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-42B70 |
AXAA5#,MXAA5# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-42C00 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-42F90 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-42C30 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-42C40 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| Common parts | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 9(1811- )MXAA5#..RHD..CVT

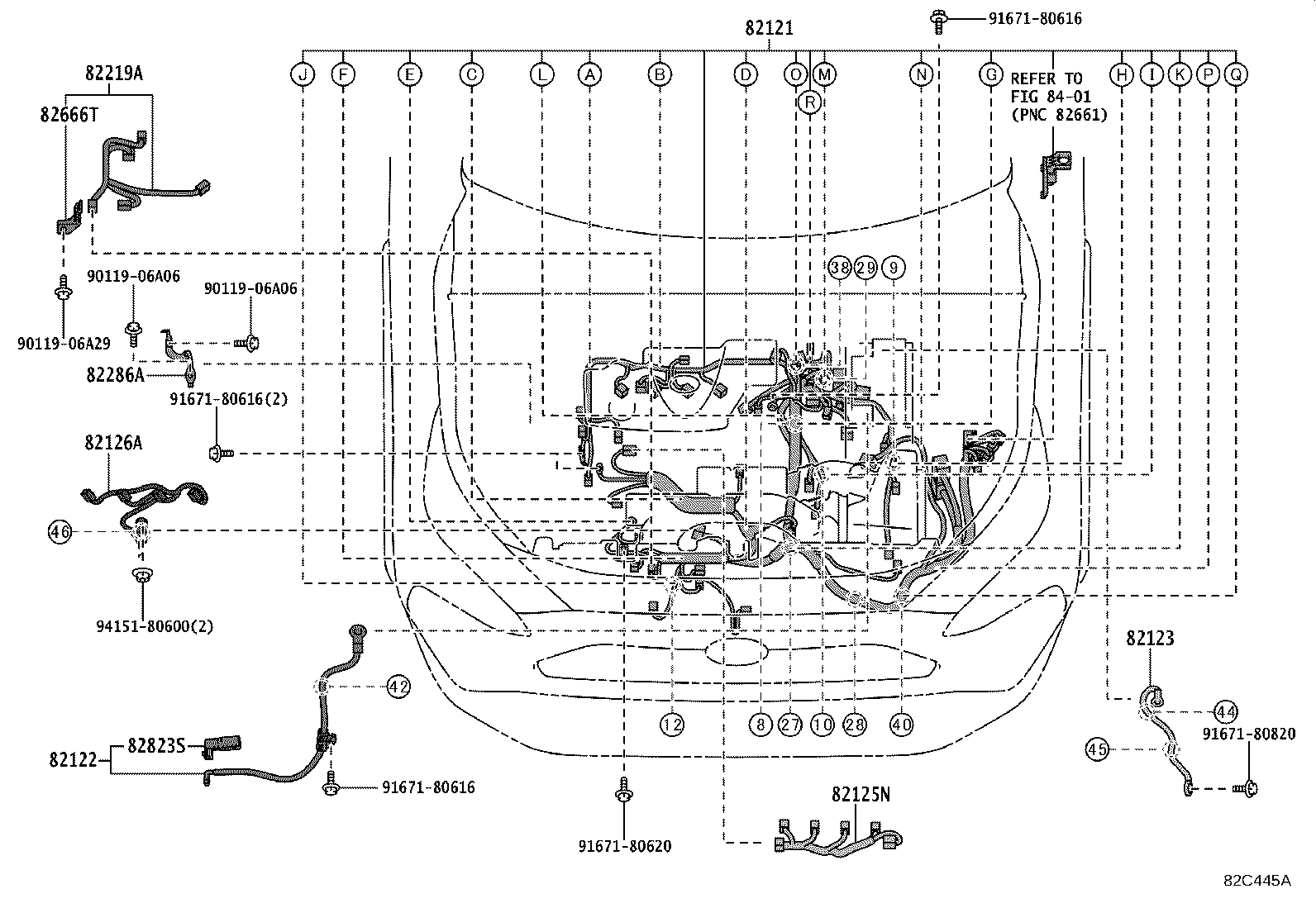

ENGINE 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-42M10 |
MXAA52..RHD..CVT..EUR |
1 | ||
| 82121-42M10 |
MXAA52..RHD..G..EUR SINGAPOLE SPEC |
1 | ||
| 82121-42T80 |
MXAA52..RHD..CVT..EUR |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-42210 |
MXAA52..RHD..CVT..EUR |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-42380 |
MXAA52..RHD..CVT..EUR |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-12660 |
MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-12010 |
MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-12140 |
MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-12490 |
MXAA5# |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-06A29 | ||||
| 91671-80616 | ||||
| 91671-80620 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 9(1811- )MXAA5#..RHD..CVT

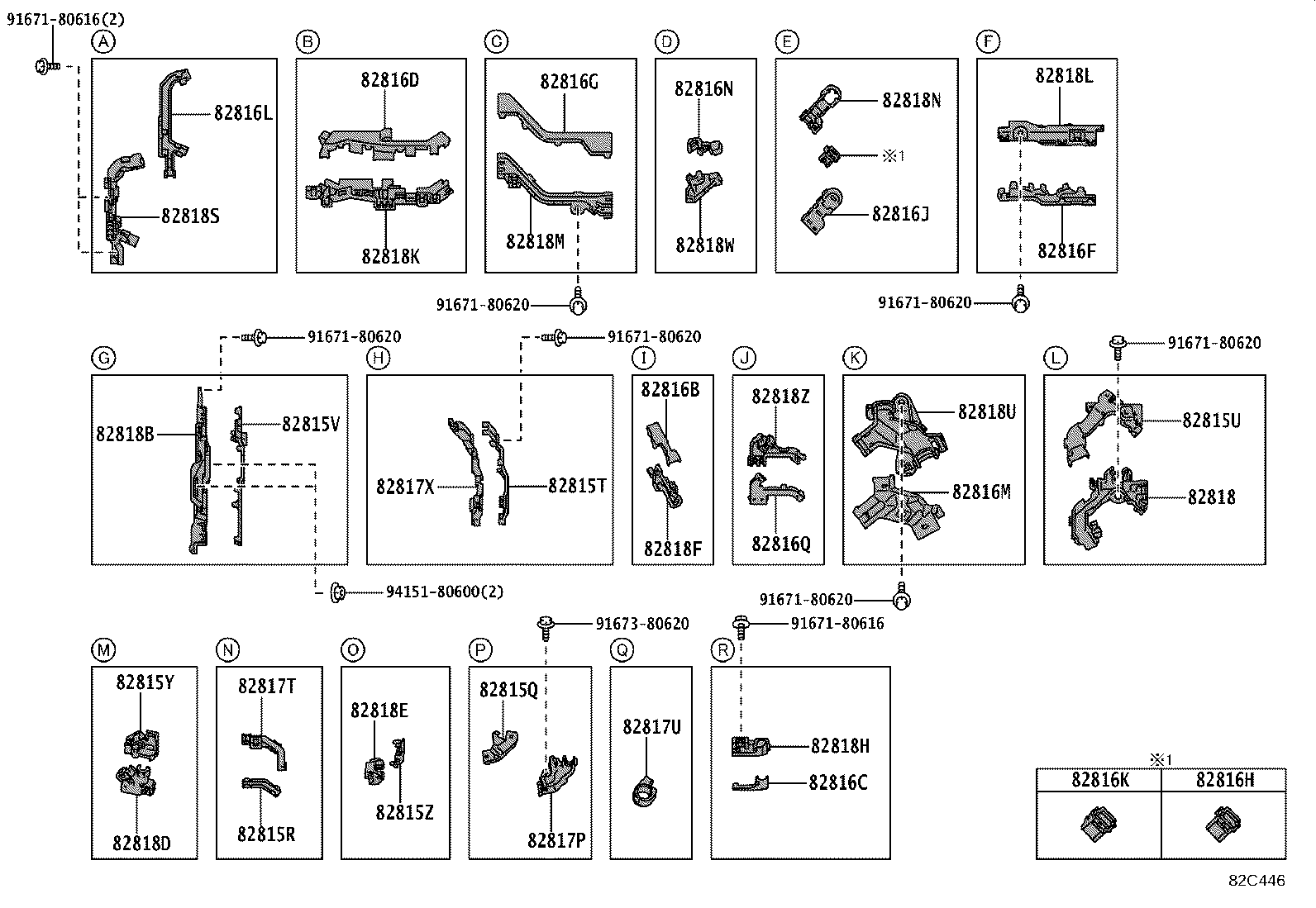

ENGINE 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-42810 |
MXAA5# |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-33N00 |
AXAA5#,MXAA5# |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-12E50 |
MXAA5#..CVT |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-42C70 |
MXAA52..CVT;MXAA54..CVT..(M,X)..(GCC,GEN,RUS) |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-42760 |
MXAA5# |
1 | ||
| 82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-42790 |
MXAA5#..CVT |
1 | ||
| 82815Z - COVER, WIRING HARNESS PROTECTOR, NO.18 | ||||
| 82815-42540 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..ATM,CVT |
1 | ||
| 82816B - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-12E60 |
MXAA5#..CVT |
1 | ||
| 82816C - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-42700 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 82816D - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-12D60 |
MXAA5# |
1 | ||
| 82816F - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-42740 |
MXAA5# |
1 | ||
| 82816G - COVER, WIRING HARNESS PROTECTOR, NO.5 | ||||
| 82815-12D80 |
MXAA5# |
1 | ||
| 82816H - COVER, WIRING HARNESS PROTECTOR, NO.6 | ||||
| 82815-33L00 |
AXAA5#,MXAA5# |
1 | ||
| 82816J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-33J10 |
AXAA5#,MXAA5# |
1 | ||
| 82816K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-33K90 |
AXAA5#,MXAA5# |
1 | ||
| 82816L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-12B00 |
MXAA5# |
1 | ||
| 82816M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-42770 |
MXAA5#..CVT |
1 | ||
| 82816N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-12E80 |
MXAA5# |
1 | ||
| 82816Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-42750 |
MXAA5#..CVT |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-42J80 |
MXAA5# |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-3T250 |
AXAA5#,MXAA5# |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-42J70 |
MXAA5#..CVT |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-12S50 |
MXAA5#..CVT |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-42J50 |
MXAA5#..CVT |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-42J30 |
MXAA5# |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-42J60 |
MXAA5#..CVT |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-42F60 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..ATM,CVT |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-12S60 |
MXAA5#..CVT |
1 | ||
| 82818H - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-42G90 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 82818K - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-12R60 |
MXAA5# |
1 | ||
| 82818L - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-42J10 |
MXAA5# |
1 | ||
| 82818M - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-12R80 |
MXAA5# |
1 | ||
| 82818N - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-33S70 |
AXAA5#,MXAA5# |
1 | ||
| 82818S - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-12V00 |
MXAA5# |
1 | ||
| 82818U - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-42J40 |
MXAA5#..CVT |
1 | ||
| 82818W - PROTECTOR, WIRING HARNESS, NO.19 | ||||
| 82817-12S80 |
MXAA5# |
1 | ||
| 82818Z - PROTECTOR, WIRING HARNESS, NO.22 | ||||
| 82817-42J20 |
MXAA5#..CVT |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
| 91671-80620 | ||||
| 91673-80620 | ||||
| 94151-80600 | ||||
ILLUST NO. 3 OF 9(1811- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-4BD20 |
MXAA52..RHD..CVT..M..EUR AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 82141-4BD30 |
MXAA52..RHD..CVT..EUR BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 82141-4BD20 |
MXAA52..RHD..CVT..M..EUR AUDIO-4SPEAKER CD *BT, GENERAL |
1 | ||
| 82141-4BD20 |
MXAA52..RHD..G..EUR AUDIO-4SPEAKER CD *BT, GENERAL&BACK MONITOR-WITHOUT |
1 | ||
| 82141-4BD20 |
MXAA52..RHD..G..EUR AUDIO-4SPEAKER(AUDIO LESS)&BACK MONITOR-WITHOUT |
1 | ||
| 82141-4BG70 |
AXAA5#,MXAA5#..(ATM,CVT)..X..(EUR,GCC) |
1 | ||
| 82141-4BN30 |
MXAA52..RHD..CVT..EUR |
1 | ||
| 82141-4BK60 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&GERMANY SPEC |
1 | ||
| 82141-4BK60 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&OTHER WVTA COUNTRY, WITHOUT RSA |
1 | ||
| 82141-4BK60 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&SPAIN,JIB SPEC |
1 | ||
| 82141-4BK60 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&TURKEY SPEC |
1 | ||
| 82141-4BK60 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&FRANCE SPEC |
1 | ||
| 82141-4BK60 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&ISRAEL SPEC |
1 | ||
| 82141-4BD21 |
MXAA52..RHD..CVT..M..EUR AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 82141-4BK60 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&OTHER WVTA COUNTRY, WITH RSA |
1 | ||
| 82141-4BK60 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&NORWAY,SWEDEN,FINLAND,DENMARK SPEC |
1 | ||
| 82141-4BD21 |
MXAA52..RHD..G..EUR AUDIO-4SPEAKER(AUDIO LESS)&BACK MONITOR-WITHOUT |
1 | ||
| 82141-4BK60 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&ITALY SPEC |
1 | ||
| 82141-4BD21 |
MXAA52..RHD..G..EUR AUDIO-4SPEAKER CD *BT, GENERAL&BACK MONITOR-WITHOUT |
1 | ||
| 82141-4BD21 |
MXAA52..RHD..CVT..M..EUR AUDIO-4SPEAKER CD *BT, GENERAL |
1 | ||
| 82141-4BD21 |
MXAA52..RHD..CVT..EUR |
1 | ||
| 82141-4BG72 |
AXAA5#,MXAA5#..(ATM,CVT)..X..(EUR,GCC) |
1 | ||
| 82141-4BK61 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&ISRAEL SPEC |
1 | ||
| 82141-4BK61 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&NORWAY,SWEDEN,FINLAND,DENMARK SPEC |
1 | ||
| 82141-4BK61 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&TURKEY SPEC |
1 | ||
| 82141-4BK61 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&FRANCE SPEC&AUDIO-6SPEAKER 8INCH T1 DAB, EUROPE |
1 | ||
| 82141-4BK61 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&OTHER WVTA COUNTRY, WITH RSA |
1 | ||
| 82141-4BK61 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&GERMANY SPEC |
1 | ||
| 82141-4BK61 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&ITALY SPEC&AUDIO-6SPEAKER 8INCH T1 DAB, EUROPE |
1 | ||
| 82141-4BK61 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&OTHER WVTA COUNTRY, WITHOUT RSA |
1 | ||
| 82141-4BK61 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&SPAIN,JIB SPEC |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-42070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-42090 |
AXAA54,AXAH5#,AXAL5#,MXAA5#..RHD..(M,V,X) |
1 | ||
| 82143-42130 |
AXAA5#,AXAH5#,AXAL5#,MXAA52..RHD..G |
1 | ||
| 82144 - WIRE, INSTRUMENT PANEL, NO.4 | ||||
| 82144-42080 |
MXAA52..RHD..CVT..EUR CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 82144-42060 |
MXAA52..RHD..CVT..EUR |
1 | ||
| 82144-42060 |
MXAA52..RHD..CVT..EUR CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 82144-42060 |
MXAA52..RHD..G..EUR CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 82149 - WIRE, PILLAR, NO.3 | ||||
| 82149-42010 |
MXAA52..RHD..CVT..EUR AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 82149-42010 |
MXAA52..RHD..CVT..EUR AUDIO-4SPEAKER CD *BT, GENERAL |
1 | ||
| 82149-42070 |
MXAA52..RHD..CVT..EUR |
1 | ||
| 82149-42010 |
MXAA52..CVT..X..EUR;AXAH52,AXAL52..LHD..M..EUR;AXAA54,AXAH54,AXAL54..LHD..G..EUR AUDIO-6SPEAKER 8INCH T1, AUSTRALIA |
1 | ||
| 82149-42010 |
MXAA52..RHD..CVT..EUR |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-42010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..G,V |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-42490 |
MXAA52..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&FRANCE SPEC |
1 | ||
| 82666-42490 |
MXAA52..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&NORWAY,SWEDEN,FINLAND,DENMARK SPEC |
1 | ||
| 82666-42490 |
MXAA52..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&GERMANY SPEC |
1 | ||
| 82666-42490 |
MXAA52..6F..EUR;MXAA54..RHD..6F;MXAA54..EUR,GCC,SA;AXAA54,MXAA5#..RHD..(ATM,CVT)..X..GEN;AXAA5#,AXAH5#,MXAA52..(ATM,CVT)..(ARL,EUR,GCC,SA);AXAA5#,AXAH5#,MXAA5#..LHD..(ATM,CVT)..(G,M,V)..GEN |
1 | ||
| 82666-42490 |
MXAA52..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&ITALY SPEC |
1 | ||
| 82666-42490 |
MXAA52..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&SPAIN,JIB SPEC |
1 | ||
| 82666-42490 |
MXAA52..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&OTHER WVTA COUNTRY, WITHOUT RSA |
1 | ||
| 82666-42490 |
MXAA52..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&TURKEY SPEC |
1 | ||
| 82666-42490 |
MXAA52..RHD..G..EUR AUDIO-4SPEAKER(AUDIO LESS)&BACK MONITOR-WITHOUT |
1 | ||
| 82666-42490 |
MXAA52..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&OTHER WVTA COUNTRY, WITH RSA |
1 | ||
| 82666-42490 |
AXAA5#..X..GCC;MXAA52..RHD..CVT..M..EUR AUDIO-4SPEAKER CD *BT, GENERAL |
1 | ||
| 82666-42490 |
MXAA52..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&ISRAEL SPEC |
1 | ||
| 82666-42490 |
AXAA5#,MXAA54..X..GCC;MXAA52..RHD..CVT..M..EUR AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 82666-42490 |
MXAA52..RHD..G..EUR AUDIO-4SPEAKER CD *BT, GENERAL&BACK MONITOR-WITHOUT |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-42470 |
MXAA5#..RHD..6F..M;AXAA54,MXAA5#..RHD..(ATM,CVT)..X..GEN;AXAA54,AXAH5#,MXAA5#..RHD..(ATM,CVT)..(ARL,EUR,SA) |
1 | ||
| 82666-42470 |
MXAA52..RHD..G..EUR AUDIO-4SPEAKER(AUDIO LESS)&BACK MONITOR-WITHOUT |
1 | ||
| 82666-42470 |
MXAA52..RHD..CVT..M..EUR AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 82666-42470 |
MXAA52..RHD..G..EUR AUDIO-4SPEAKER CD *BT, GENERAL&BACK MONITOR-WITHOUT |
1 | ||
| 82666-42470 |
MXAA52..RHD..CVT..M..EUR AUDIO-4SPEAKER CD *BT, GENERAL |
1 | ||
| 82666-42470 |
MXAA5#..RHD..6F..M;AXAA54,MXAA5#..RHD..(ATM,CVT)..X..GEN;AXAA54,AXAH5#,MXAA5#..RHD..(ATM,CVT)..(ARL,EUR,SA) |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-42650 |
MXAA52..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&GERMANY SPEC |
1 | ||
| 82666-42650 |
MXAA52..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&ITALY SPEC |
1 | ||
| 82666-42660 |
MXAA5#..RHD..6F..M;AXAA54,MXAA5#..RHD..(ATM,CVT)..X..GEN;AXAA54,AXAH5#,MXAA5#..RHD..(ATM,CVT)..(ARL,EUR,SA) |
1 | ||
| 82666-42650 |
MXAA52..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&FRANCE SPEC |
1 | ||
| 82666-42650 |
MXAA52..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&NORWAY,SWEDEN,FINLAND,DENMARK SPEC |
1 | ||
| 82666-42650 |
MXAA52..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&ISRAEL SPEC |
1 | ||
| 82666-42650 |
MXAA52..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&SPAIN,JIB SPEC |
1 | ||
| 82666-42650 |
MXAA52..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&TURKEY SPEC |
1 | ||
| 82666-42650 |
MXAA52..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&OTHER WVTA COUNTRY, WITHOUT RSA |
1 | ||
| 82666-42650 |
MXAA52..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&OTHER WVTA COUNTRY, WITH RSA |
1 | ||
| 82666-42660 |
MXAA52..RHD..CVT..M..EUR AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 82666-42660 |
MXAA52..RHD..CVT..M..EUR AUDIO-4SPEAKER CD *BT, GENERAL |
1 | ||
| 82666-42660 |
MXAA52..RHD..G..EUR AUDIO-4SPEAKER(AUDIO LESS)&BACK MONITOR-WITHOUT |
1 | ||
| 82666-42660 |
MXAA52..RHD..G..EUR AUDIO-4SPEAKER CD *BT, GENERAL&BACK MONITOR-WITHOUT |
1 | ||
| 82666-42660 |
MXAA5#..RHD..6F..M;AXAA54,MXAA5#..RHD..(ATM,CVT)..X..GEN;AXAA54,AXAH5#,MXAA5#..RHD..(ATM,CVT)..(ARL,EUR,SA) |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-42500 |
MXAA5#..RHD..6F..M;AXAA54,MXAA5#..RHD..(ATM,CVT)..X..GEN;AXAA5#,AXAH5#,MXAA5#..(ATM,CVT)..(ARL,EUR,GCC,SA);AXAA5#,AXAH5#,MXAA5#..LHD..(ATM,CVT)..(G,M,V)..GEN |
1 | ||
| 82666-42500 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&FRANCE SPEC |
1 | ||
| 82666-42500 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&GERMANY SPEC |
1 | ||
| 82666-42500 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&NORWAY,SWEDEN,FINLAND,DENMARK SPEC |
1 | ||
| 82666-42500 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&OTHER WVTA COUNTRY, WITHOUT RSA |
1 | ||
| 82666-42500 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&ITALY SPEC |
1 | ||
| 82666-42500 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&ISRAEL SPEC |
1 | ||
| 82666-42500 |
MXAA52..RHD..G..EUR AUDIO-4SPEAKER(AUDIO LESS)&BACK MONITOR-WITHOUT |
1 | ||
| 82666-42500 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&TURKEY SPEC |
1 | ||
| 82666-42500 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&SPAIN,JIB SPEC |
1 | ||
| 82666-42500 |
MXAA52..CVT..X..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)&OTHER WVTA COUNTRY, WITH RSA |
1 | ||
| 82666-42500 |
AXAA5#..X..GCC;MXAA52..RHD..CVT..M..EUR AUDIO-4SPEAKER CD *BT, GENERAL |
1 | ||
| 82666-42500 |
MXAA52..RHD..G..EUR AUDIO-4SPEAKER CD *BT, GENERAL&BACK MONITOR-WITHOUT |
1 | ||
| 82666-42500 |
AXAA5#,MXAA54..X..GCC;MXAA52..RHD..CVT..M..EUR AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-52300 |
MXAA52..RHD..G..EUR AUDIO-6SPEAKER(AUDIO LESS) |
2 | ||
| 82824-52300 |
MXAA52..RHD..CVT..EUR |
2 | ||
| 82824-52300 |
MXAA52..RHD..CVT..EUR AUDIO-4SPEAKER CD *BT, GENERAL |
2 | ||
| 82824-52300 |
MXAA52..RHD..CVT..EUR AUDIO-4SPEAKER(AUDIO LESS) |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-52300 |
MXAA52..RHD..G..EUR AUDIO-6SPEAKER(AUDIO LESS) |
2 | ||
| 82824-52300 |
MXAA52..RHD..CVT..EUR |
2 | ||
| 82824-52300 |
MXAA52..RHD..CVT..EUR AUDIO-4SPEAKER CD *BT, GENERAL |
2 | ||
| 82824-52300 |
MXAA52..RHD..CVT..EUR AUDIO-4SPEAKER(AUDIO LESS) |
2 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
ILLUST NO. 4 OF 9(1811- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-42G30 |
MXAA52..RHD..CVT..M..EUR BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB |
1 | ||
| 82151-42G30 |
MXAA52..RHD..CVT..M..EUR BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB |
1 | ||
| 82151-42G30 |
MXAA52..RHD..CVT..M..EUR BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 82151-42G30 |
MXAA52..RHD..CVT..M..EUR LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) |
1 | ||
| 82151-42G70 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 82151-42G70 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB |
1 | ||
| 82151-42G60 |
MXAA52..RHD..G..EUR LANE CHANGE ASSIST-WITHOUT |
1 | ||
| 82151-42G70 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) |
1 | ||
| 82151-42G70 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB |
1 | ||
| 82151-42G70 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) |
1 | ||
| 82151-42G70 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 82151-42G30 |
MXAA52..RHD..CVT..M..EUR BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 82151-42G80 |
MXAA52..RHD..G..EUR |
1 | ||
| 82151-42G70 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 82151-42G70 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 82151-42G70 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB |
1 | ||
| 82151-42G70 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB |
1 | ||
| 82151-42G10 |
AXAH5#,AXAL5#,MXAA52..RHD..(M,X)..EUR |
1 | ||
| 82151-42G50 |
AXAH5#,AXAL5#,MXAA52..RHD..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK |
1 | ||
| 82151-42G50 |
AXAH5#,AXAL5#,MXAA52..RHD..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK) |
1 | ||
| 82151-42G60 |
MXAA52..RHD..G..EUR |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-42F70 |
MXAA52..RHD..G..EUR LANE CHANGE ASSIST-WITHOUT |
1 | ||
| 82152-42F60 |
MXAA52..RHD..CVT..M..EUR LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) |
1 | ||
| 82152-42F80 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB |
1 | ||
| 82152-42F80 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) |
1 | ||
| 82152-42F60 |
MXAA52..RHD..CVT..M..EUR BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB |
1 | ||
| 82152-42F60 |
MXAA52..RHD..CVT..M..EUR BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 82152-42F60 |
MXAA52..RHD..CVT..M..EUR BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB |
1 | ||
| 82152-42F60 |
MXAA52..RHD..CVT..M..EUR BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 82152-42F80 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) |
1 | ||
| 82152-42F80 |
MXAA52..RHD..G..EUR |
1 | ||
| 82152-42F80 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB |
1 | ||
| 82152-42F80 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 82152-42F80 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB |
1 | ||
| 82152-42F80 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 82152-42F80 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB |
1 | ||
| 82152-42F80 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 82152-42F80 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 82152-42F70 |
AXAH5#,AXAL5#,MXAA52..RHD..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK) |
1 | ||
| 82152-42F50 |
AXAH5#,AXAL5#,MXAA52..RHD..(M,X)..EUR |
1 | ||
| 82152-42F70 |
AXAH5#,AXAL5#,MXAA52..RHD..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK |
1 | ||
| 82152-42F70 |
MXAA52..RHD..G..EUR |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-42200 |
MXAA52..M..GEN;MXAA52..LHD..M..EUR;AXAH5#..(M,X)..(GCC,GEN);MXAA52..X..(ARL,EUR,GEN,SA);AXAA54,AXAH5#,AXAL5#..X..ARL;AXAH5#,AXAL5#..LHD..(M,X)..EUR;AXAA5#,MXAA54..(M,V,X)..(EUR,GCC,GEN) |
1 | ||
| 82153-42270 |
AXAH54..G..RUS;MXAA52..RHD..G..(ARL,EUR);AXAA54,AXAH5#,AXAL5#..RHD..G..(ARL,EUR,SA) |
1 | ||
| 82153-42240 |
MXAA52..(M,X)..RUS;AXAH54..RHD..(M,X)..EUR;MXAA54..(M,V,X)..(RUS,SA);AXAH52,AXAL5#..RHD..X..EUR;AXAA54,AXAH54..(M,V)..(ARL,RUS);AXAH52,AXAL5#,MXAA52..RHD..M..(ARL,EUR) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-42080 |
MXAA52..M..GEN;MXAA52..LHD..M..EUR;AXAH5#..(M,X)..(GCC,GEN);MXAA52..X..(ARL,EUR,GEN,SA);AXAA54,AXAH5#,AXAL5#..X..ARL;AXAH5#,AXAL5#..LHD..(M,X)..EUR;AXAA5#,MXAA54..(M,V,X)..(EUR,GCC,GEN) |
1 | ||
| 82154-42120 |
MXAA52..(M,X)..RUS;AXAH54..RHD..(M,X)..EUR;MXAA54..(M,V,X)..(RUS,SA);AXAH52,AXAL5#..RHD..X..EUR;AXAA54,AXAH54..(M,V)..(ARL,RUS);AXAH52,AXAL5#,MXAA52..RHD..M..(ARL,EUR) |
1 | ||
| 82154-42150 |
AXAH54..G..RUS;MXAA52..RHD..G..(ARL,EUR);AXAA54,AXAH5#,AXAL5#..RHD..G..(ARL,EUR,SA) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-42A70 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 82184-42B30 |
MXAA52..RHD..G..EUR INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 82184-42A90 |
MXAA52..RHD..G..EUR INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITHOUT |
1 | ||
| 82184-42B50 |
MXAA52..RHD..CVT..M..EUR BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 82184-42A10 |
MXAA52..RHD..G..EUR BACK MONITOR-WITHOUT |
1 | ||
| 82184-42A70 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&BACK MONITOR-WITH(BACK GUIDE MONITOR) |
1 | ||
| 82184-42A70 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 82184-42A70 |
MXAA52..RHD..G..EUR |
1 | ||
| 82184-42A70 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&BACK MONITOR-WITH(BACK GUIDE MONITOR) |
1 | ||
| 82184-42770 |
AXAH52,MXAA54..G..(GCC,GEN);AXAA5#,AXAH54,MXAA52..GCC,GEN;AXAH52,MXAA54..(M,V,X)..(ARL,EUR,GCC,GEN,SA);AXAA54,AXAH54,AXAL5#,MXAA52..(M,X)..(ARL,EUR,SA) |
1 | ||
| 82184-42A10 |
AXAH52,MXAA54..G..(GCC,GEN);AXAH52,MXAA54..(M,V)..(ARL,EUR,GCC,GEN);AXAA5#,AXAH54,MXAA52..(G,M,V)..(GCC,GEN);AXAA54,AXAH54,AXAL5#,MXAA52..M..(ARL,EUR) POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK |
1 | ||
| 82184-42790 |
MXAA54..SA;MXAA5#..RHD..M..GEN;AXAA54..LHD..X..GEN;AXAA54..X..(ARL,GCC);AXAA54,AXAH5#..RHD..(M,X)..GEN;AXAA52,AXAH5#,AXAL5#,MXAA5#..X..(ARL,EUR,GCC,GEN) BACK MONITOR-WITH(BACK MONITOR) |
1 | ||
| 82184-42B50 |
MXAA52..RHD..CVT..M..EUR BACK MONITOR-WITH(BACK GUIDE MONITOR) |
1 | ||
| 82184-42A10 |
AXAA5#,AXAH5#,MXAA5#..(G,V)..GEN;AXAA54,AXAH5#,AXAL5#,MXAA5#..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK) |
1 | ||
| 82184-42A10 |
MXAA52..RHD..G..EUR |
1 | ||
ILLUST NO. 5 OF 9(1811- )AXAA5#,MXAA5#
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-42V90 |
MXAA52..RHD..M..EUR |
1 | ||
| 82161-42W00 |
MXAA52..RHD..G..EUR |
1 | ||
| 82161-42V91 |
MXAA52..RHD..M..EUR |
1 | ||
| 82161-42W01 |
MXAA52..RHD..M..EUR LEATHER PACKAGE&FRONT SEAT-DRIVER SEAT:POWER SEAT |
1 | ||
| 82161-42W01 |
MXAA52..RHD..G..EUR |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-42M00 |
MXAA52..RHD..M..EUR;MXAA52..RHD..G..(ARL,EUR) BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 82162-42M01 |
MXAA52..RHD..CVT..EUR BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 82162-42L90 |
AXAA54..(M,X)..ARL;MXAA52..RHD..(ARL,EUR) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-42170 |
AXAA52,AXAH52,AXAL52,MXAA52 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-42E30 |
AXAA5#,AXAH5#,MXAA5#..RHD..(G,M,V) |
1 | ||
| 82171-42D70 |
AXAA54,AXAH5#,MXAA52..RHD..X..(ARL,EUR) |
1 | ||
| 82171-42D50 |
MXAA52..X..(EUR,GEN,SA);AXAA5#,AXAH54,MXAA54..X..(GCC,GEN) |
1 | ||
| 82171-42F40 |
MXAA52..RHD..6F..EUR;MXAA52..RHD..G..(EUR,SA);AXAA54,AXAH5#..RHD..(G,M)..(EUR,SA) ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
1 | ||
| 82171-42F80 |
MXAA52..RHD..G..EUR;MXAA52..RHD..6F..EUR;AXAH5#..RHD..(G,M)..EUR ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 82171-42K50 |
MXAA52..RHD..6F..EUR;MXAA52..RHD..G..(EUR,SA);AXAA54,AXAH5#..RHD..(G,M)..(EUR,SA) ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 82171-42J90 |
AXAH52..RHD..G..GEN;AXAH52..RHD..(G,M)..EUR;AXAA5#,MXAA5#..RHD..(G,V);AXAH54..RHD..G..(EUR,GEN);AXAH54,MXAA52..RHD..M..EUR MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 82171-42L10 |
MXAA52..RHD..G..EUR;MXAA52..RHD..6F..EUR;AXAH5#..RHD..(G,M)..EUR ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&MOON ROOF-WITH(PANORAMA ROOF)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 82171-42D71 |
AXAA54,AXAH5#,MXAA52..RHD..X..(ARL,EUR) |
1 | ||
| 82171-42D51 |
MXAA52..X..(EUR,GEN,SA);AXAA5#,AXAH54,MXAA54..X..(GCC,GEN) |
1 | ||
| 82171-42E31 |
AXAA5#,AXAH5#,MXAA5#..RHD..(G,M,V) |
1 | ||
| 82171-42F41 |
AXAA54,AXAH5#,MXAA52..RHD..(G,M)..(EUR,SA) ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
1 | ||
| 82171-42K51 |
AXAA54,AXAH5#,MXAA52..RHD..(G,M)..(EUR,SA) ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 82171-42J91 |
AXAH52..RHD..G..GEN;AXAH52..RHD..(G,M)..EUR;AXAA5#,MXAA5#..RHD..(G,V);AXAH54..RHD..G..(EUR,GEN);AXAH54,MXAA52..RHD..M..EUR MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 82171-42D52 |
MXAA52..X..(EUR,GEN,SA);AXAA5#,AXAH54,MXAA54..X..(GCC,GEN) |
1 | ||
| 82171-42D72 |
AXAL5#..RHD..X..EUR;AXAA54,AXAH5#,MXAA52..RHD..X..(ARL,EUR) |
1 | ||
| 82171-42E32 |
AXAL5#..RHD..(G,M)..EUR;AXAA5#,AXAH5#,MXAA5#..RHD..(G,M,V) |
1 | ||
| 82171-42F42 |
AXAA54,AXAH5#,AXAL5#,MXAA52..RHD..(G,M)..(EUR,SA) ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
1 | ||
| 82171-42J92 |
AXAH52..RHD..G..GEN;AXAA5#,MXAA5#..RHD..(G,V);AXAH54..RHD..G..(EUR,GEN);AXAH54,MXAA52..RHD..M..EUR;AXAH52,AXAL5#..RHD..(G,M)..EUR MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 82171-42K52 |
AXAA54,AXAH5#,AXAL5#,MXAA52..RHD..(G,M)..(EUR,SA) ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-42020 |
AXAH52..G..GEN;AXAH54..G..(EUR,GCC,GEN);AXAH52,AXAL5#..(G,M)..EUR;AXAA54,AXAH54,MXAA5#..M..EUR;AXAA5#,MXAA5#..(G,V)..(ARL,EUR,GCC,GEN,SA) ROOF RAIL-WITH(FLAT TYPE)&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-42160 |
MXAA52..RHD..CVT..M..EUR |
1 | ||
| 82181-42170 |
MXAA52..RHD..CVT..M..EUR CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB |
1 | ||
| 82181-42170 |
MXAA52..RHD..CVT..M..EUR LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) |
1 | ||
| 82181-42200 |
MXAA52..RHD..G..EUR CLEARANCE & BACK SONAR-WITHOUT&LANE CHANGE ASSIST-WITHOUT |
1 | ||
| 82181-42210 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK |
1 | ||
| 82181-42250 |
MXAA52..RHD..G..EUR |
1 | ||
| 82181-42200 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 82181-42170 |
MXAA52..RHD..CVT..M..EUR LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 82181-42210 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 82181-42250 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 82181-42250 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 82181-42210 |
MXAA52..RHD..G..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&CLEARANCE & BACK SONAR-WITHOUT&LANECHANGE ASSIST-WITHOUT |
1 | ||
| 82181-42250 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB |
1 | ||
| 82181-42210 |
MXAA52..RHD..G..EUR LANE CHANGE ASSIST-WITHOUT |
1 | ||
| 82181-42250 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) |
1 | ||
| 82181-42250 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) |
1 | ||
| 82181-42210 |
AXAA5#,AXAH5#,MXAA5#..(G,V)..GEN;AXAA54,AXAH5#,AXAL5#,MXAA5#..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK) |
1 | ||
| 82181-42250 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB |
1 | ||
| 82181-42210 |
MXAA52..RHD..G..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK) |
1 | ||
| 82181-42200 |
MXAA52..RHD..G..EUR |
1 | ||
| 82181-42210 |
MXAA52..RHD..G..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 82181-42210 |
MXAA52..RHD..G..EUR CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 82181-42200 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-42140 |
MXAA52..RHD..CVT..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 82182-42150 |
MXAA52..RHD..CVT..EUR |
1 | ||
| 82182-42150 |
MXAA52..RHD..CVT..EUR CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 82182-42170 |
MXAA52..RHD..CVT..EUR CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 82182-42180 |
MXAA52..RHD..CVT..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 82182-42160 |
MXAA52..RHD..CVT..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK) |
1 | ||
| 82182-42150 |
MXAA52..RHD..G..EUR CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 82182-42140 |
MXAA52..RHD..CVT..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK) |
1 | ||
| 82182-42160 |
MXAA52..RHD..G..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&CLEARANCE & BACK SONAR-WITH(FRONT&REAR) |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-42130 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 82183-42130 |
MXAA52..RHD..G..EUR |
1 | ||
| 82183-42130 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) |
1 | ||
| 82183-42130 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB |
1 | ||
| 82183-42130 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 82183-42130 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB |
1 | ||
| 82183-42170 |
MXAA52..RHD..CVT..M..EUR LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA |
1 | ||
| 82183-42130 |
MXAA52..RHD..CVT..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) |
1 | ||
| 82183-42170 |
MXAA52..RHD..CVT..M..EUR LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB |
1 | ||
| 82183-42120 |
AXAA54,MXAA5#..M..EUR POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(KICK) |
1 | ||
| 82183-42170 |
MXAA52..RHD..CVT..M..EUR LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) |
1 | ||
| 82183-42120 |
MXAA52..RHD..G..EUR LANE CHANGE ASSIST-WITHOUT |
1 | ||
| 82183-42120 |
MXAA52..RHD..G..EUR |
1 | ||
| 82183-42120 |
AXAA54,MXAA5#..M..(EUR,RUS) POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-42550 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-42520 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-42610 |
MXAA54..RHD..6F;AXAH54,MXAA52..RHD;AXAH54..LHD..(EUR,RUS);MXAA52..LHD..CVT..(GEN,RUS);MXAA52..LHD..CVT..(M,X)..EUR;AXAH54..LHD..(M,X)..(GCC,GEN);AXAA5#,AXAH52,AXAL5#,MXAA54..ATM,CVT |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-42610 |
MXAA54..RHD..6F;AXAH54,MXAA52..RHD;AXAH54..LHD..(EUR,RUS);MXAA52..LHD..CVT..(GEN,RUS);MXAA52..LHD..CVT..(M,X)..EUR;AXAH54..LHD..(M,X)..(GCC,GEN);AXAA5#,AXAH52,AXAL5#,MXAA54..ATM,CVT |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-42600 |
AXAH54,MXAA52..RHD;MXAA52..LHD..6F..EUR;MXAA52..LHD..(GEN,RUS);AXAH54..LHD..(EUR,RUS);AXAA5#,AXAH52,AXAL5#,MXAA54;MXAA52..LHD..CVT..(M,X)..EUR;AXAH54..LHD..(M,X)..(GCC,GEN) |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-42570 |
MXAA52..LHD..6F;MXAA52..CVT..RUS;AXAH54..LHD..(EUR,RUS);AXAA52,AXAH54,MXAA52..RHD;AXAA54,AXAH52,AXAL5#,MXAA54;MXAA52..LHD..CVT..(M,X)..(EUR,GEN);AXAA52,AXAH54..LHD..(M,X)..(GCC,GEN) |
1 | ||
| 82666Z - HOLDER, CONNECTOR NO.19 | ||||
| 82666-60310 |
AXAH54..RUS;MXAA52..RHD;AXAA5#,MXAA54;AXAH52..RHD..G..GEN;MXAA52..LHD..6F..EUR;MXAA52..LHD..(GEN,RUS);MXAA52..LHD..CVT..(M,X)..EUR |
1 | ||
| 82819H - PROTECTOR, WIRING HARNESS, NO.24 | ||||
| 82817-42P00 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 82819J - PROTECTOR, WIRING HARNESS, NO.25 | ||||
| 82817-42P10 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-42010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-42020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-W0037 | ||||
| 91673-80616 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 7 OF 9(1811- )RHD
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191A - WIRE, FRONT SEAT, RH | ||||
| 82191-42200 |
AXAA54,AXAH5#,AXAL5#,MXAA52..RHD..G..(ARL,EUR,SA) |
1 | ||
| 82191-42160 |
MXAA52..RHD..M..EUR LEATHER PACKAGE&FRONT SEAT-DRIVER SEAT:POWER SEAT |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-42010 |
AXAA54,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,SA |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-42010 |
AXAA54,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,SA |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-33300 |
AXAA54,AXAH5#,AXAL5#,MXAA52..RHD..G..(ARL,EUR,SA) |
1 | ||
| 8219A-33160 |
MXAA52..RHD..M..EUR LEATHER PACKAGE&FRONT SEAT-DRIVER SEAT:POWER SEAT |
1 | ||
ILLUST NO. 8 OF 9(1811- )
CLAMP & BRACKET 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-02W90 | ||||
| 82715-12T40 | ||||
| 82715-12U50 | ||||
| 82715-12U90 | ||||
| 82715-33K40 | ||||
| 82715-33L00 | ||||
| 82715-33L30 | ||||
| 82715-33L60 | ||||
| 82715-33L80 | ||||
| 82715-33L90 | ||||
| 82715-33M20 | ||||
| 82715-33N00 | ||||
| 82715-33N10 | ||||
| 82715-33P30 | ||||
| 82715-33P70 | ||||
| 82715-33P80 | ||||
| 82715-33Q40 | ||||
| 82715-33Q90 | ||||
| 82715-33R00 | ||||
| 82715-33R20 | ||||
| 82715-33S80 | ||||
| 82715-33U70 | ||||
| 82715-42J50 | ||||
| 82715-42J70 | ||||
| 82715-42K80 | ||||
| 82715-42K90 | ||||
| 82715-42L00 | ||||
| 82715-42L10 | ||||
| 82715-42L20 | ||||
| 82715-42L30 | ||||
| 82715-42L40 | ||||
| 82715-42L60 | ||||
| 82715-42L70 | ||||
| 82715-42M40 | ||||
| 82715-42N20 | ||||
| 90119-06A12 | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90119-W0356 | ||||
| 90179-06274 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| 91673-A0616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1703 | ||||
ILLUST NO. 8 OF 9(1811- )
CLAMP & BRACKET 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-44150 | ||||
| 82715-33K50 | ||||
| 82715-33L40 | ||||
| 82715-33Q70 | ||||
| 82715-33T40 | ||||
| 82715-42J90 | ||||
| 82715-42K00 | ||||
| 82715-42L50 | ||||
| 82715-42L80 | ||||
| 82715-42L90 | ||||
| 82715-42M10 | ||||
| 82715-42M60 | ||||
| 82715-42M70 | ||||
| 82715-42M80 | ||||
| 82715-42Q40 | ||||
| 90119-06A12 | ||||
| 90119-W0030 | ||||
| 90119-W0356 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| 91673-A0616 | ||||
ILLUST NO. 9 OF 9(1811- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 82824-78020 | ||||
| 90980-10794 | ||||
| 90980-10795 | ||||
| 90980-10859 | ||||
| 90980-10905 | ||||
| 90980-10988 | ||||
| 90980-11016 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11292 | ||||
| 90980-12382 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
| 90980-12A92 | ||||
| 90980-12C54 | ||||
| 90980-12C55 | ||||
| 90980-12C56 | ||||
ILLUST NO. 9 OF 9(1811- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12368 | ||||
| 90980-12380 | ||||
| 90980-12410 | ||||
| 90980-12520 | ||||
| 90980-12555 | ||||
| 90980-12728 | ||||
| 90980-12790 | ||||
| 90980-12828 | ||||
| 90980-12A59 | ||||
| 90980-12C39 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
