MXAA52R-ANFXBN (2019)

Toyota Rav4 (Jpp)

Production Jan 2019 - Jul 2020
Engine M20AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1901- )MXAA52..RHD..GEN,SA

Click highlighted areas on diagram

UNDER COVER

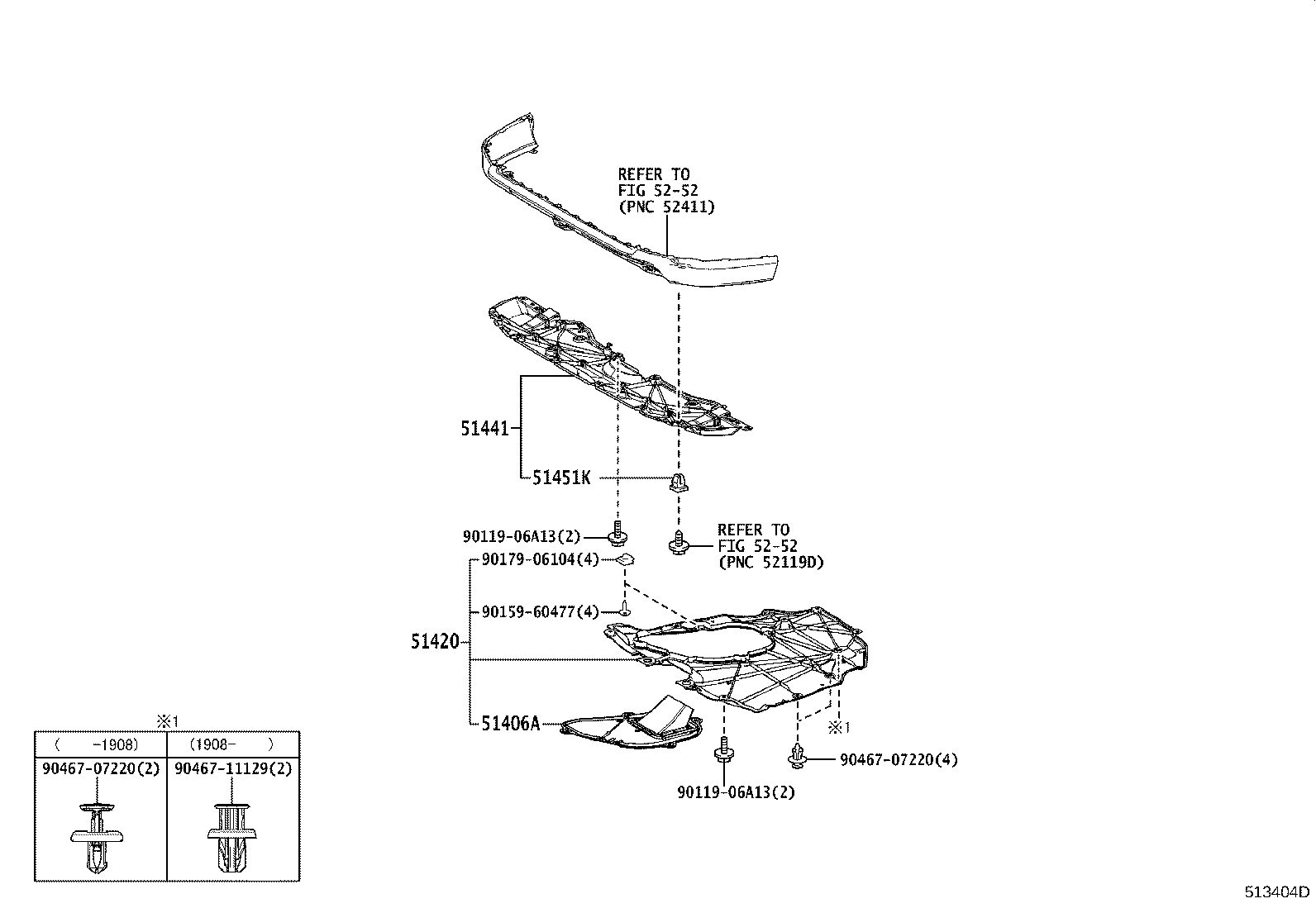

diagram 51406A 51420 51441 51451K 5252 5252 9011906A13 9011906A13 9015960477 9017906104 9046707220 9046707220 9046711129
Part # Description Qty Price
51406A - COVER SUB-ASSY, ENGINE UNDER, NO.2
51406-42010

MXAA52;AXAA54,MXAA54..GCC

 1
51420 - COVER ASSY, ENGINE UNDER, NO.2
51420-42010

MXAA52;AXAA54..GCC

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-42200

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
51451K - GROMMET, SCREW, NO.1
90189-06237

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 6
Common parts
90119-06A13
90159-60477
90179-06104
90467-07220
90467-11129
Linked diagrams
5252
