MXAA52L-ANXMBW (2018)

Toyota Rav4 (Jpp)

Production Nov 2018 - Jul 2020
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1811- )MXAA5#..CVT

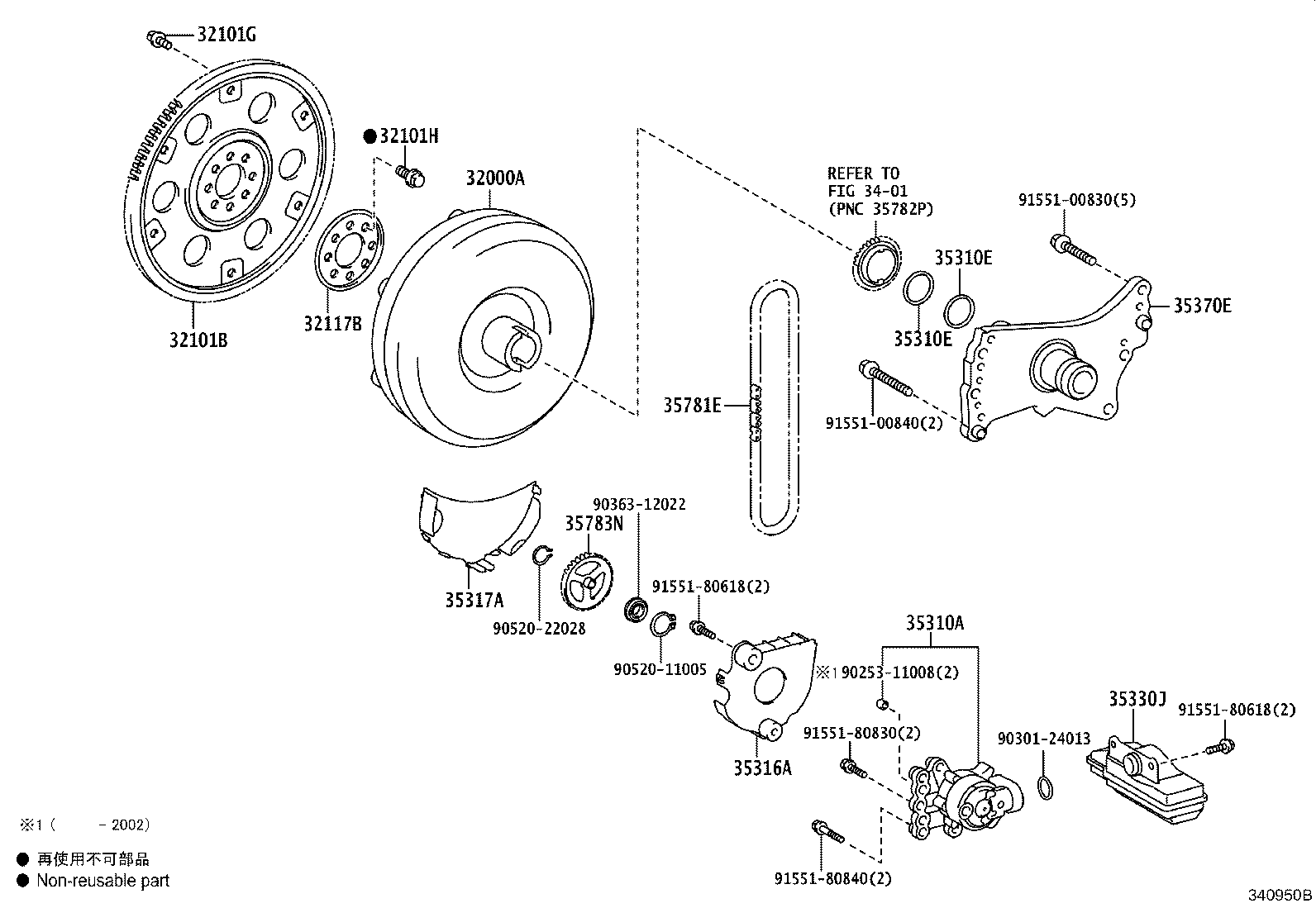

Click highlighted areas on diagram

diagram 32000A 32101B 32101G 32101H 32117B 3401 35310A 35310E 35310E 35316A 35317A 35330J 35370E 35781E 35783N 9025311008 9030124013 9036312022 9052011005 9052022028 9155100830 9155100840 9155180618 9155180618 9155180830 9155180840
Part # Description Qty Price
32000A - CONVERTER ASSY, TORQUE
32000-12520

MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA)

 1
32101B - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-12120

MXAA5#..CVT

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-09001

MXAA5#..CVT

*9-1.25PX12.4-7.3,BLACK

 1
90119-09025

MXAA5#..CVT

*9-1.25PX12.4-8.4,SILVER WHITE

 5
32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-12404

MXAA5#..CVT

 8
32117B - SPACER, DRIVE PLATE, REAR
32117-33010

MXAA5#..CVT

 1
35310A - PUMP ASSY, FRONT OIL
35310-12200

MXAA5#..CVT

 1
35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP)
35617-12060

MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA)

 2
35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP)
35617-12060

MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA)

 2
35316A - PLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1
35316-12010

MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA)

 1
35317A - PLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2
35317-12010

MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA)

 1
35330J - STRAINER ASSY, OIL
35330-12080

MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA)

 1
35370E - SHAFT ASSY, STATOR (CVT)
35370-12120

MXAA5#..CVT..(ARL,EUR,GCC,GEN,SA)

 1
35781E - CHAIN, TRANSMISSION DRIVE
35781-12010

MXAA5#..CVT

 1
35783N - SPROCKET, DRIVEN
35783-12060

MXAA5#..CVT

 1
Common parts
90253-11008
90301-24013
90363-12022
90520-11005
90520-22028
91551-00830
91551-00840
91551-80618
91551-80830
91551-80840
Linked diagrams
3401
