MXAA52L-ANFMBW (2018)

Toyota Rav4 (Jpp)

Production Nov 2018 - Jul 2020
Engine M20AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1811- )M20AFKS

Click highlighted areas on diagram

W(GPF)

diagram 25715 25733A 25760 8401 8401 9017906274 9017906274 9046610003 9046712056
Part # Description Qty Price
25715 - BRACKET, EMISSION CONTROL VALVE
25715-25010

M20AFKS..MXAA5#..LHD..EUR

REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)

 1
25733A - PIPE, VACUUM, NO.1
25733-24040

M20AFKS..MXAA5#..LHD..EUR

REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-24020

M20AFKS..MXAA5#..LHD..EUR

REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)

 1
Common parts
90179-06274
90466-10003
90467-12056
Linked diagrams
8401

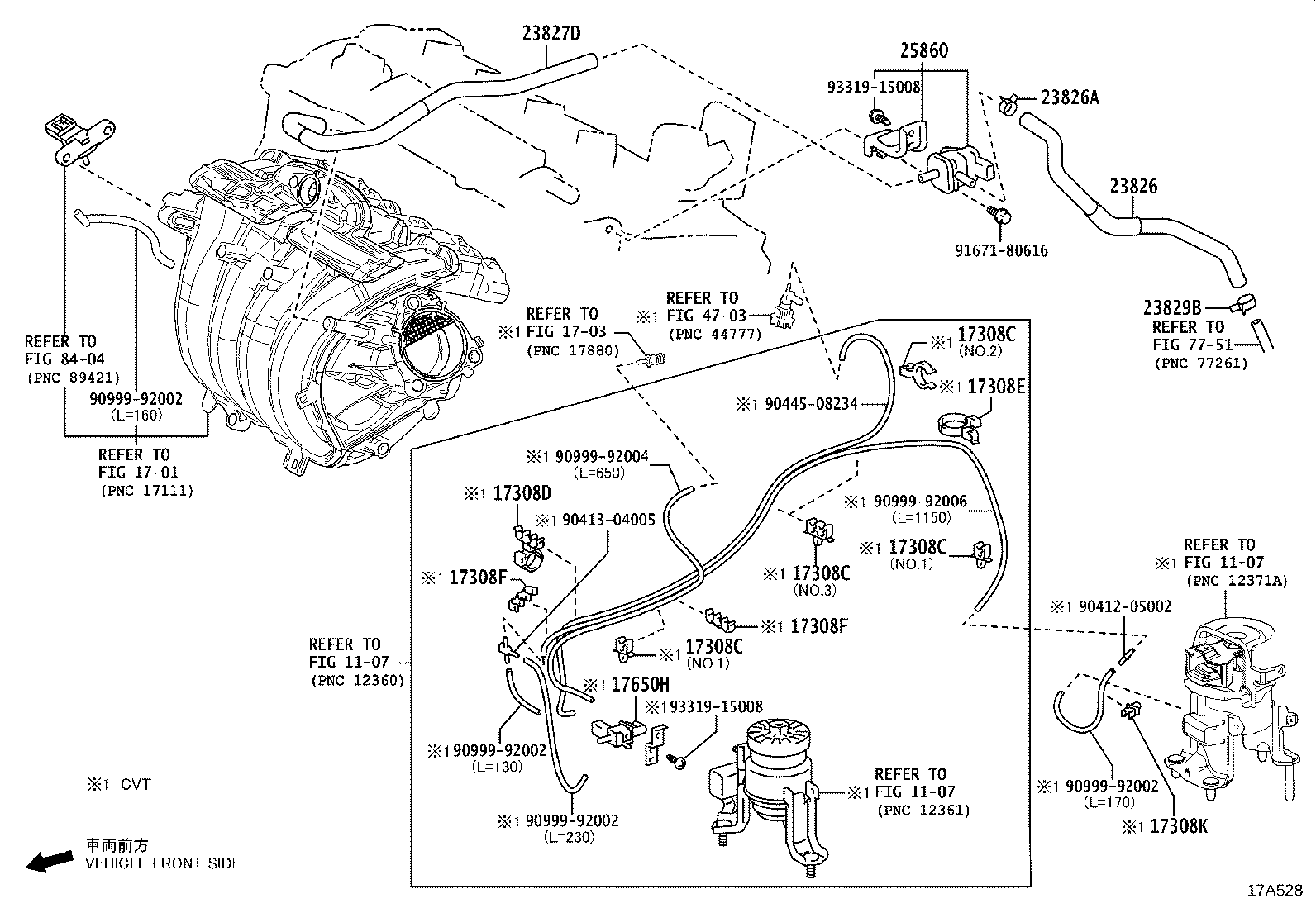

ILLUST NO. 1 OF 2(1811- )M20AFKS..MXAA52

Click highlighted areas on diagram

diagram 1107 1107 1107 1701 1703 17308C 17308C 17308C 17308C 17308D 17308E 17308F 17308F 17308K 17650H 23826 23826A 23827D 23829B 25860 4703 7751 8404 9041205002 9041304005 9044508234 9099992002 9099992002 9099992002 9099992002 9099992004 9099992006 9167180616 9331915008 9331915008
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-24040

M20AFKS..MXAA5#

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-13005

M20AFKS..MXAA5#

 1
23827D - HOSE, FUEL VAPOR FEED, NO.2
23826-24020

M20AFKS..MXAA5#

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90466-15004

M20AFKS..MXAA5#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-24020

M20AFKS..MXAA5#

 1
Common parts
90412-05002
90413-04005
90445-08234
90999-92002
90999-92004
90999-92006
91671-80616
93319-15008
Linked diagrams
1107
1701
1703
4703
7751
8404
