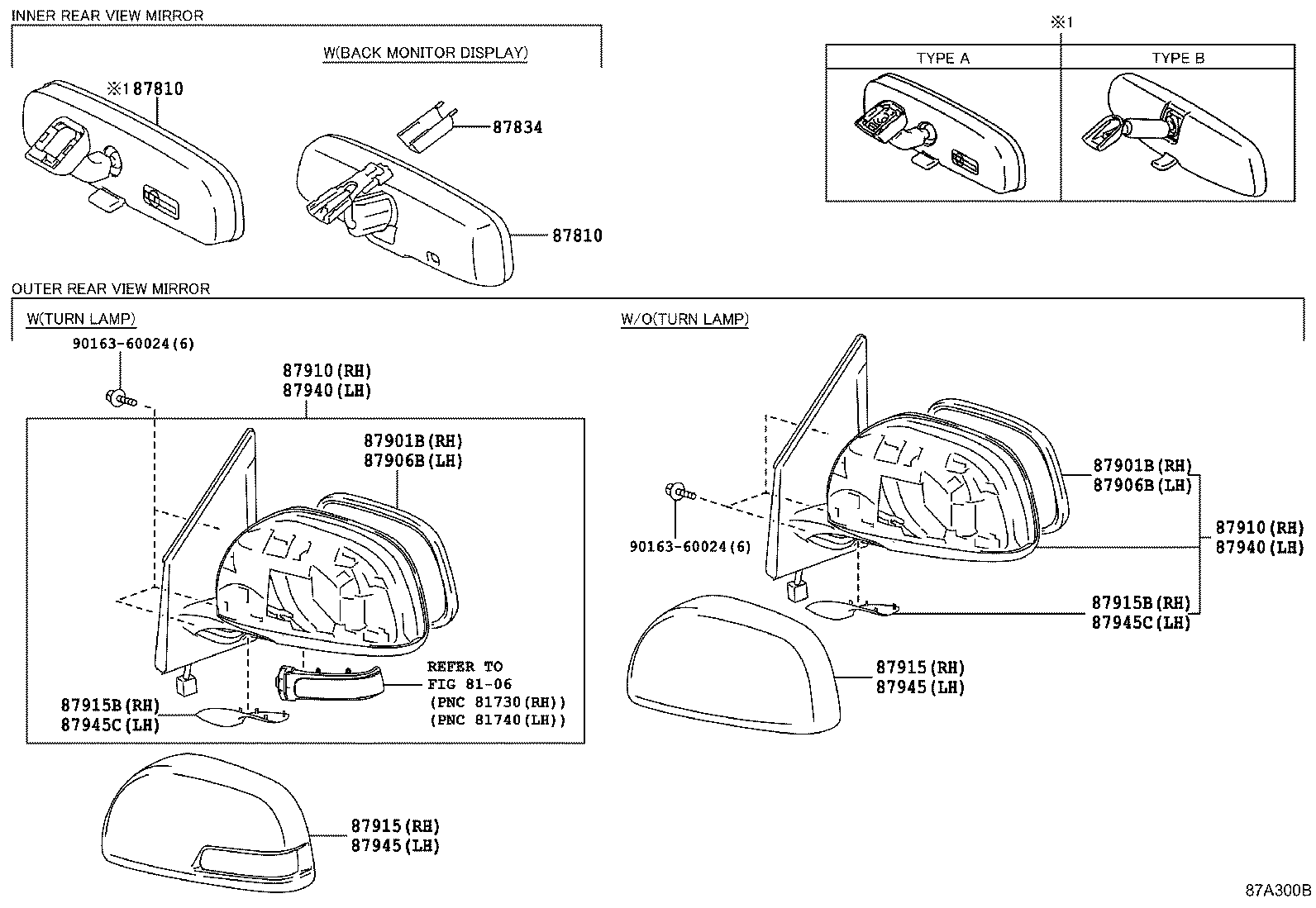

GSA38L-ANAGKA (2008)
Toyota Rav4 (Jpp)
(0808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52040 |
ACA3#,GSA3#..JPP |
1 | ||
| 87810-52041 |
ASA3#,GSA3#..JPP TYPE A |
1 | ||
| 87810-04030 |
ASA3#,GSA3#..JPP..(LIMD,SPO) BACK MONITOR (REAR TELEVISION CAMERA)-W/DISPLY MIRROR,SPARE TIRE,W/O(GUIDE) |
1 | ||
| 87810-AA011 |
ASA3#,GSA3#..JPP TYPE B |
1 | ||
| 87810-0W700 |
ASA3#,GSA3#..JPP BACK MONITOR (REAR TELEVISION CAMERA)-W/DISPLY MIRROR,SPARE TIRE,W/O(GUIDE) |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52040 |
ACA3#,GSA3#..JPP |
1 | ||
| 87810-52041 |
ASA3#,GSA3#..JPP TYPE A |
1 | ||
| 87810-04030 |
ASA3#,GSA3#..JPP..(LIMD,SPO) BACK MONITOR (REAR TELEVISION CAMERA)-W/DISPLY MIRROR,SPARE TIRE,W/O(GUIDE) |
1 | ||
| 87810-AA011 |
ASA3#,GSA3#..JPP TYPE B |
1 | ||
| 87810-0W700 |
ASA3#,GSA3#..JPP BACK MONITOR (REAR TELEVISION CAMERA)-W/DISPLY MIRROR,SPARE TIRE,W/O(GUIDE) |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-42020 |
ASA3#,GSA3#..JPP..(LIMD,SPO) BACK MONITOR (REAR TELEVISION CAMERA)-W/DISPLY MIRROR,SPARE TIRE,W/O(GUIDE) |
1 | ||
| 87818-04010 |
ASA3#,GSA3#..JPP..(LIMD,SPO) BACK MONITOR (REAR TELEVISION CAMERA)-W/DISPLY MIRROR,SPARE TIRE,W/O(GUIDE) |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-42B00 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA |
1 | ||
| 87931-42880 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-42B00 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA |
1 | ||
| 87931-42880 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-42820 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA |
1 | ||
| 87961-42820 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-42820 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA |
1 | ||
| 87961-42820 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-42880 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA NO PAINT REQ. |
1 | ||
| 87910-42B00 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA NO PAINT REQ. |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-42880 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA NO PAINT REQ. |
1 | ||
| 87910-42B00 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA NO PAINT REQ. |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-42031B1 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA SILVER ME.,1F7 |
1 | ||
| 87915-42031J1 |
ACA3#,GSA3#..JPP..LIMD..USA;ACA33,GSA33..JPP..(LIMD,X)..CND DK.BLUE MC.,8S6 |
1 | ||
| 87915-42031D0 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA RED M.M.,3R3 |
1 | ||
| 87915-42031J0 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA GRAYISH BLUE ME.,8R3 |
1 | ||
| 87915-42031E0 |
ACA3#,GSA3#..JPP..LIMD..USA;ACA33,GSA33..JPP..(LIMD,X)..CND BEIGE ME.,4R4 |
1 | ||
| 87915-42031A1 |
ACA3#,GSA3#..JPP..LIMD WHITE PEARL CS.,070 |
1 | ||
| 87915-42060A1 |
ASA3#,GSA3#..JPP..LIMD..USA;ASA33,GSA33..JPP..(LIMD,X)..CND WHITE PEARL CS.,070 |
1 | ||
| 87915-42031C0 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA BLACK,202 |
1 | ||
| 87915-42060D0 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA RED M.M.,3R3 |
1 | ||
| 87915-42060G0 |
ASA33,GSA33..JPP..SPO..CND;ASA3#,GSA3#..JPP..LIMD..USA DK.GREEN MC.,6T3 |
1 | ||
| 87915-42060B0 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA SILVER ME.,1F7 |
1 | ||
| 87915-42060E1 |
ASA3#,GSA3#..JPP..LIMD..USA;ASA33,GSA33..JPP..(LIMD,X)..CND BEIGE ME.,4T8 |
1 | ||
| 87915-42060J0 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA GRAYISH BLUE ME.,8R3 |
1 | ||
| 87915-42060C0 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA BLACK,202 |
1 | ||
| 87915-42060E0 |
ASA3#,GSA3#..JPP..LIMD..USA;ASA33,GSA33..JPP..(LIMD,X)..CND BRONZE M.M.,4T3 |
1 | ||
| 87915-42031G1 |
ACA3#,GSA3#..JPP..LIMD..USA;ACA33,GSA33..JPP..(LIMD,X)..CND LT.GREEN ME.,6T6 |
1 | ||
| 87915-42060B2 |
ASA33,GSA33..JPP..SPO..CND;ASA3#,GSA3#..JPP..LIMD..USA DK. STEEL MC.,1H2 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-42031B1 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA SILVER ME.,1F7 |
1 | ||
| 87915-42031J1 |
ACA3#,GSA3#..JPP..LIMD..USA;ACA33,GSA33..JPP..(LIMD,X)..CND DK.BLUE MC.,8S6 |
1 | ||
| 87915-42031D0 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA RED M.M.,3R3 |
1 | ||
| 87915-42031J0 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA GRAYISH BLUE ME.,8R3 |
1 | ||
| 87915-42031E0 |
ACA3#,GSA3#..JPP..LIMD..USA;ACA33,GSA33..JPP..(LIMD,X)..CND BEIGE ME.,4R4 |
1 | ||
| 87915-42031A1 |
ACA3#,GSA3#..JPP..LIMD WHITE PEARL CS.,070 |
1 | ||
| 87915-42060A1 |
ASA3#,GSA3#..JPP..LIMD..USA;ASA33,GSA33..JPP..(LIMD,X)..CND WHITE PEARL CS.,070 |
1 | ||
| 87915-42031C0 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA BLACK,202 |
1 | ||
| 87915-42060D0 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA RED M.M.,3R3 |
1 | ||
| 87915-42060G0 |
ASA33,GSA33..JPP..SPO..CND;ASA3#,GSA3#..JPP..LIMD..USA DK.GREEN MC.,6T3 |
1 | ||
| 87915-42060B0 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA SILVER ME.,1F7 |
1 | ||
| 87915-42060E1 |
ASA3#,GSA3#..JPP..LIMD..USA;ASA33,GSA33..JPP..(LIMD,X)..CND BEIGE ME.,4T8 |
1 | ||
| 87915-42060J0 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA GRAYISH BLUE ME.,8R3 |
1 | ||
| 87915-42060C0 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA BLACK,202 |
1 | ||
| 87915-42060E0 |
ASA3#,GSA3#..JPP..LIMD..USA;ASA33,GSA33..JPP..(LIMD,X)..CND BRONZE M.M.,4T3 |
1 | ||
| 87915-42031G1 |
ACA3#,GSA3#..JPP..LIMD..USA;ACA33,GSA33..JPP..(LIMD,X)..CND LT.GREEN ME.,6T6 |
1 | ||
| 87915-42060B2 |
ASA33,GSA33..JPP..SPO..CND;ASA3#,GSA3#..JPP..LIMD..USA DK. STEEL MC.,1H2 |
1 | ||
| 87915B - COVER, OUTER MIRROR, LOWER RH | ||||
| 87915-42090 |
ASA3#,GSA3#..JPP |
1 | ||
| 87915-42090 |
ACA3#,GSA3#..JPP |
1 | ||
| 87915B - COVER, OUTER MIRROR, LOWER RH | ||||
| 87915-42090 |
ASA3#,GSA3#..JPP |
1 | ||
| 87915-42090 |
ACA3#,GSA3#..JPP |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-42820 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA NO PAINT REQ. |
1 | ||
| 87940-42A70 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA NO PAINT REQ. |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-42820 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA NO PAINT REQ. |
1 | ||
| 87940-42A70 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA NO PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-42031J1 |
ACA3#,GSA3#..JPP..LIMD..USA;ACA33,GSA33..JPP..(LIMD,X)..CND DK.BLUE MC.,8S6 |
1 | ||
| 87945-42031A1 |
ACA3#,GSA3#..JPP..LIMD WHITE PEARL CS.,070 |
1 | ||
| 87945-42031B1 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA SILVER ME.,1F7 |
1 | ||
| 87945-42031E0 |
ACA3#,GSA3#..JPP..LIMD..USA;ACA33,GSA33..JPP..(LIMD,X)..CND BEIGE ME.,4R4 |
1 | ||
| 87945-42031C0 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA BLACK,202 |
1 | ||
| 87945-42031J0 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA GRAYISH BLUE ME.,8R3 |
1 | ||
| 87945-42031G1 |
ACA3#,GSA3#..JPP..LIMD..USA;ACA33,GSA33..JPP..(LIMD,X)..CND LT.GREEN ME.,6T6 |
1 | ||
| 87945-42060A1 |
ASA3#,GSA3#..JPP..LIMD..USA;ASA33,GSA33..JPP..(LIMD,X)..CND WHITE PEARL CS.,070 |
1 | ||
| 87945-42031D0 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA RED M.M.,3R3 |
1 | ||
| 87945-42060D0 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA RED M.M.,3R3 |
1 | ||
| 87945-42060G0 |
ASA33,GSA33..JPP..SPO..CND;ASA3#,GSA3#..JPP..LIMD..USA DK.GREEN MC.,6T3 |
1 | ||
| 87945-42060C0 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA BLACK,202 |
1 | ||
| 87945-42060J0 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA GRAYISH BLUE ME.,8R3 |
1 | ||
| 87945-42060E1 |
ASA3#,GSA3#..JPP..LIMD..USA;ASA33,GSA33..JPP..(LIMD,X)..CND BEIGE ME.,4T8 |
1 | ||
| 87945-42060E0 |
ASA3#,GSA3#..JPP..LIMD..USA;ASA33,GSA33..JPP..(LIMD,X)..CND BRONZE M.M.,4T3 |
1 | ||
| 87945-42060B0 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA SILVER ME.,1F7 |
1 | ||
| 87945-42060B2 |
ASA33,GSA33..JPP..SPO..CND;ASA3#,GSA3#..JPP..LIMD..USA DK. STEEL MC.,1H2 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-42031J1 |
ACA3#,GSA3#..JPP..LIMD..USA;ACA33,GSA33..JPP..(LIMD,X)..CND DK.BLUE MC.,8S6 |
1 | ||
| 87945-42031A1 |
ACA3#,GSA3#..JPP..LIMD WHITE PEARL CS.,070 |
1 | ||
| 87945-42031B1 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA SILVER ME.,1F7 |
1 | ||
| 87945-42031E0 |
ACA3#,GSA3#..JPP..LIMD..USA;ACA33,GSA33..JPP..(LIMD,X)..CND BEIGE ME.,4R4 |
1 | ||
| 87945-42031C0 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA BLACK,202 |
1 | ||
| 87945-42031J0 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA GRAYISH BLUE ME.,8R3 |
1 | ||
| 87945-42031G1 |
ACA3#,GSA3#..JPP..LIMD..USA;ACA33,GSA33..JPP..(LIMD,X)..CND LT.GREEN ME.,6T6 |
1 | ||
| 87945-42060A1 |
ASA3#,GSA3#..JPP..LIMD..USA;ASA33,GSA33..JPP..(LIMD,X)..CND WHITE PEARL CS.,070 |
1 | ||
| 87945-42031D0 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..(LIMD,SPO)..USA RED M.M.,3R3 |
1 | ||
| 87945-42060D0 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA RED M.M.,3R3 |
1 | ||
| 87945-42060G0 |
ASA33,GSA33..JPP..SPO..CND;ASA3#,GSA3#..JPP..LIMD..USA DK.GREEN MC.,6T3 |
1 | ||
| 87945-42060C0 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA BLACK,202 |
1 | ||
| 87945-42060J0 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA GRAYISH BLUE ME.,8R3 |
1 | ||
| 87945-42060E1 |
ASA3#,GSA3#..JPP..LIMD..USA;ASA33,GSA33..JPP..(LIMD,X)..CND BEIGE ME.,4T8 |
1 | ||
| 87945-42060E0 |
ASA3#,GSA3#..JPP..LIMD..USA;ASA33,GSA33..JPP..(LIMD,X)..CND BRONZE M.M.,4T3 |
1 | ||
| 87945-42060B0 |
ASA33,GSA33..JPP..CND;ASA3#,GSA3#..JPP..LIMD..USA SILVER ME.,1F7 |
1 | ||
| 87945-42060B2 |
ASA33,GSA33..JPP..SPO..CND;ASA3#,GSA3#..JPP..LIMD..USA DK. STEEL MC.,1H2 |
1 | ||
| 87945C - COVER, OUTER MIRROR, LOWER LH | ||||
| 87945-42090 |
ASA3#,GSA3#..JPP |
1 | ||
| 87945-42090 |
ACA3#,GSA3#..JPP |
1 | ||
| 87945C - COVER, OUTER MIRROR, LOWER LH | ||||
| 87945-42090 |
ASA3#,GSA3#..JPP |
1 | ||
| 87945-42090 |
ACA3#,GSA3#..JPP |
1 | ||
| Common parts | ||||
| 90163-60024 | ||||
| Linked diagrams | ||||
| 8106 | ||||
