GSA38L-ANAGKA (2008)

Toyota Rav4 (Jpp)

Production Aug 2008 - Dec 2012
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )LIMD,SPO

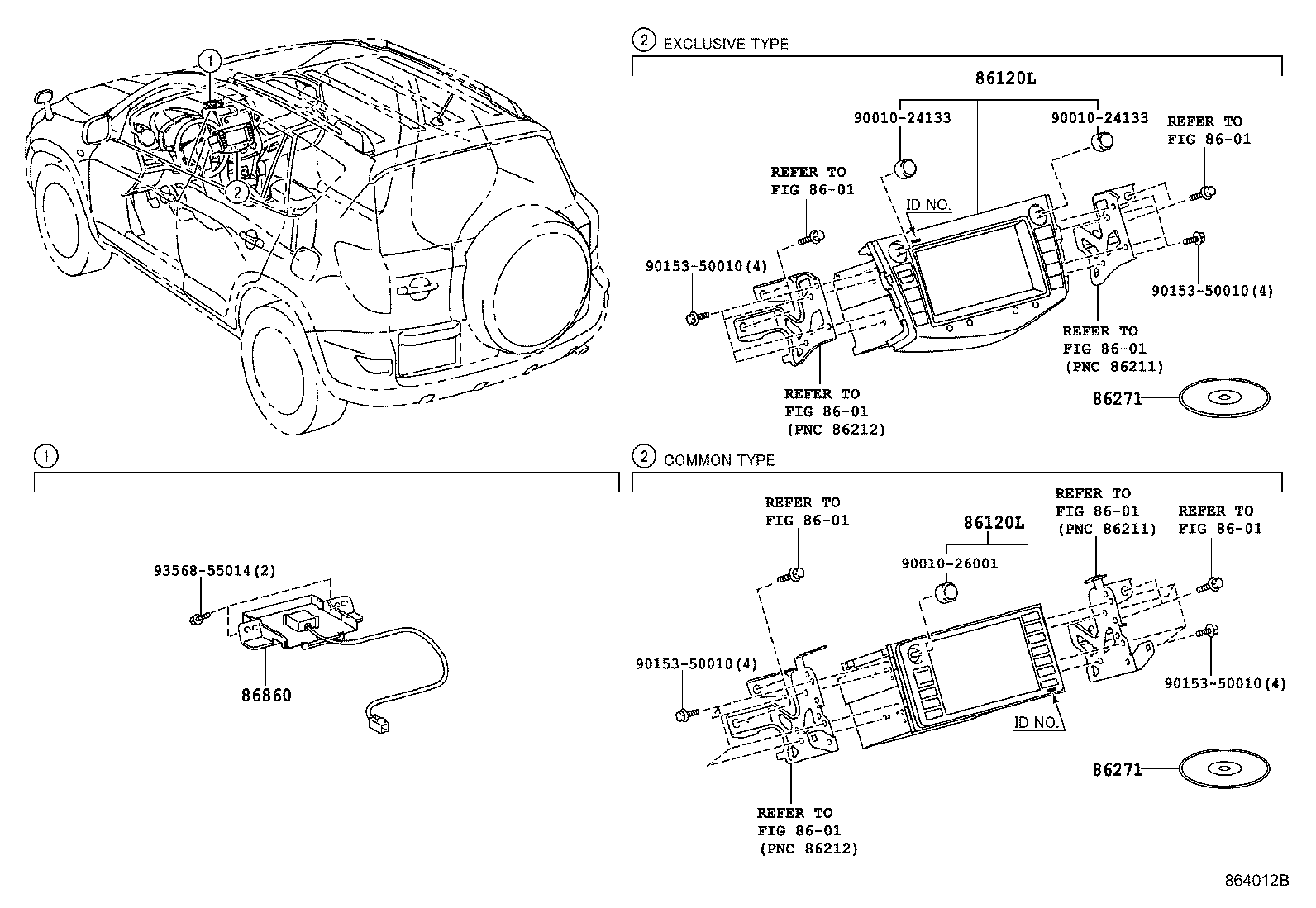

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 8601 8601 8601 8601 86120L 86120L 86271 86271 86860 9001024133 9001024133 9001026001 9015350010 9015350010 9015350010 9015350010 9356855014
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86120-12C00

ASA3#,GSA3#..JPP..(LIMD,SPO)

DENSO,ID=E7019,AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

 1
86120L - RECEIVER ASSY, NAVIGATION
86120-12C00

ASA3#,GSA3#..JPP..(LIMD,SPO)

DENSO,ID=E7019,AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

 1
86271 - DISC, DISC PLAYER
86271-12083

ASA3#,GSA3#..JPP..(LIMD,SPO)

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

 1
86271-12081

ASA3#,GSA3#..JPP..(LIMD,SPO)

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

 1
86271-12082

ASA3#,GSA3#..JPP..(LIMD,SPO)

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

 1
86271-12084

ASA3#,GSA3#..JPP..(LIMD,SPO)

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

 1
86271-12080

ASA3#,GSA3#..JPP..(LIMD,SPO)

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

 1
86271 - DISC, DISC PLAYER
86271-12083

ASA3#,GSA3#..JPP..(LIMD,SPO)

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

 1
86271-12081

ASA3#,GSA3#..JPP..(LIMD,SPO)

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

 1
86271-12082

ASA3#,GSA3#..JPP..(LIMD,SPO)

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

 1
86271-12084

ASA3#,GSA3#..JPP..(LIMD,SPO)

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

 1
86271-12080

ASA3#,GSA3#..JPP..(LIMD,SPO)

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-42030

ASA3#,GSA3#..JPP..(LIMD,SPO)

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

 1
Common parts
90010-24133
90010-26001
90153-50010
93568-55014
Linked diagrams
8601
