GSA38L-ANAGKA (2008)

Toyota Rav4 (Jpp)

Production Aug 2008 - Dec 2012
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )USA ; (0808- )GSA33..SPO..CND

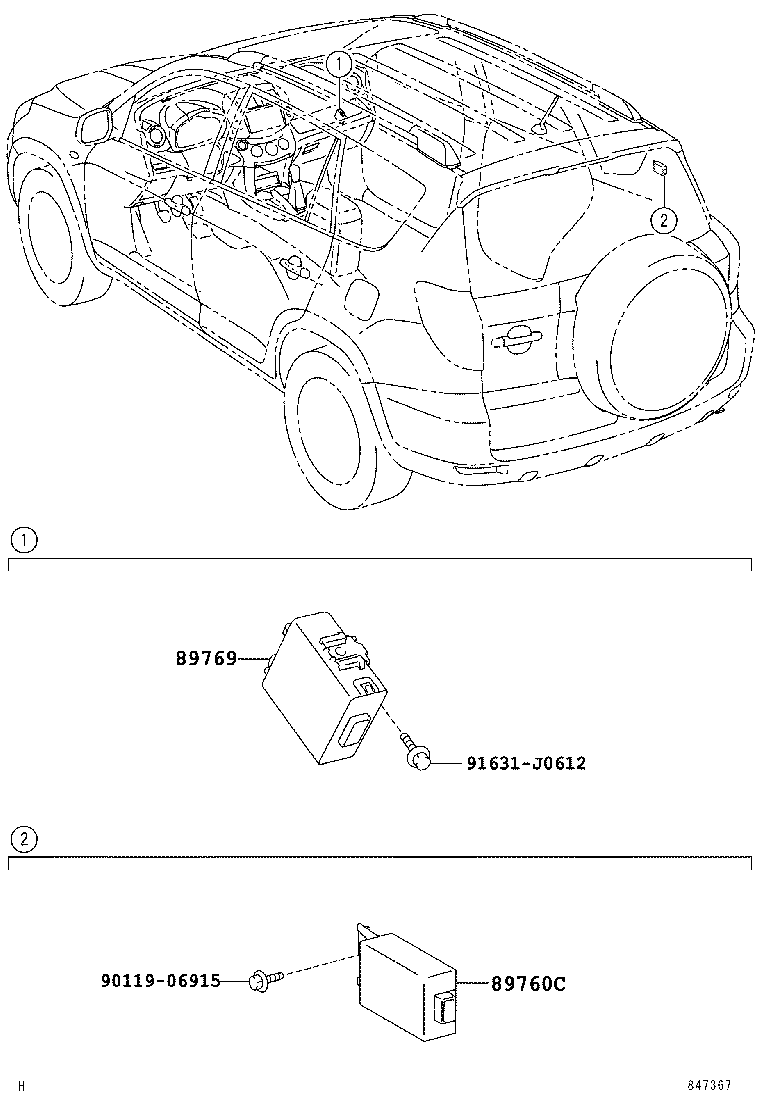

Click highlighted areas on diagram

diagram 89760C 89769 9011906915 91631J0612
Part # Description Qty Price
89760C - RECEIVER ASSY, TIRE PRESSURE MONITOR
89760-42020

ACA3#,GSA3#..JPP..USA

 1
89760-42020

ASA3#,GSA3#..JPP..USA

 1
89760-42020

ASA3#..JPP..LIMD..USA;GSA3#..JPP..(LIMD,X)..USA

MEXICO SPEC

 1
89760-42021

ASA3#..JPP..LIMD..USA;GSA3#..JPP..(LIMD,X)..USA

MEXICO SPEC

 1
89760-42021

ASA3#,GSA3#..JPP..USA

 1
89760-42022

ASA3#..JPP..LIMD..USA;GSA3#..JPP..(LIMD,X)..USA

MEXICO SPEC

 1
89760-42022

ASA3#,GSA3#..JPP..USA

 1
89769 - COMPUTER, TIRE PRESSURE MONITOR
89769-42010

ACA3#,GSA3#..JPP..USA

 1
89769-42030

GSA3#..JPP..(LIMD,X)..USA

MEXICO SPEC

 1
89769-42030

GSA3#..JPP..USA

 1
Common parts
90119-06915
91631-J0612
