GSA38L-ANAGKA (2008)

Toyota Rav4 (Jpp)

Production Aug 2008 - Dec 2012
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )ACA38,ASA38,GSA38

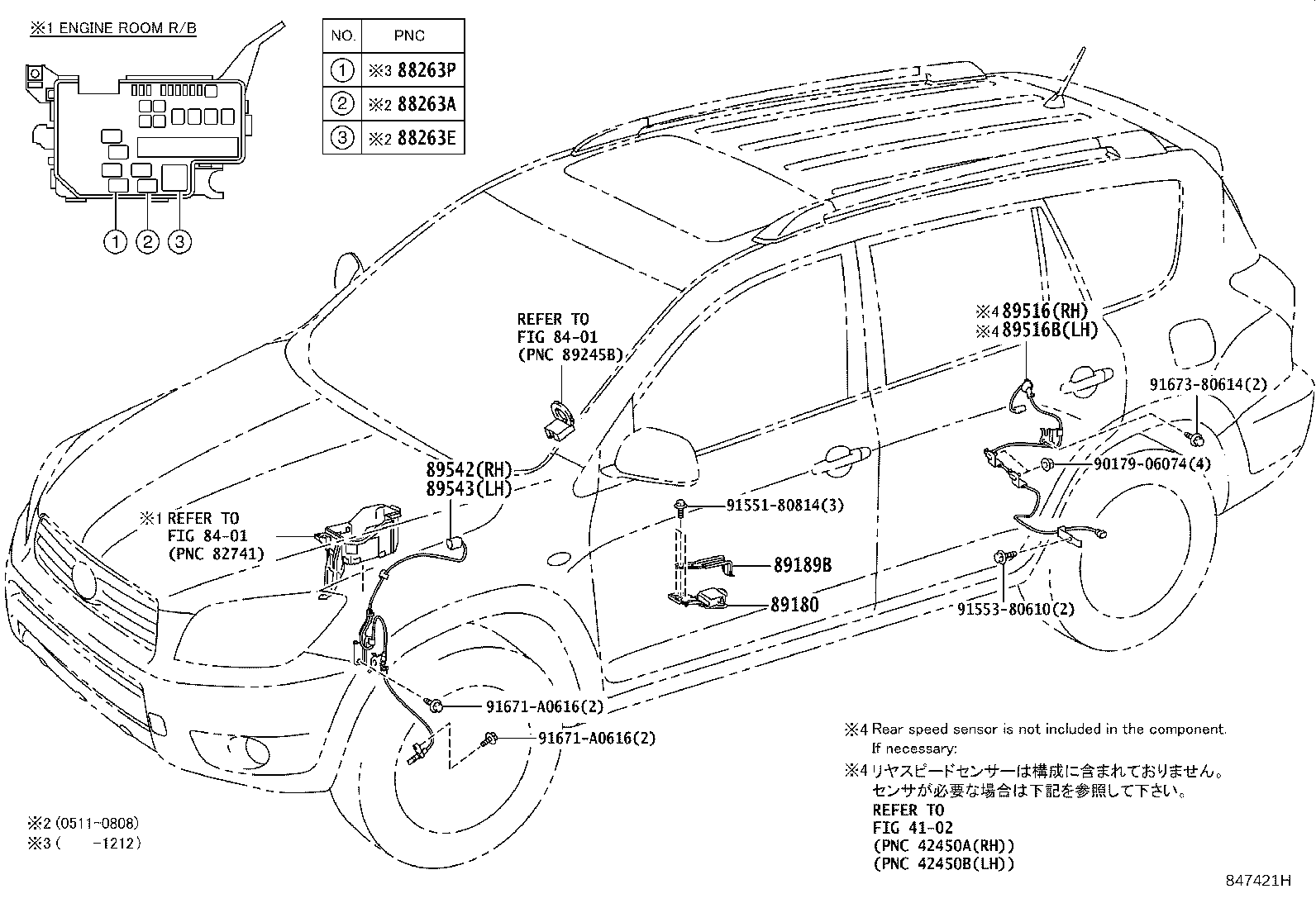

Click highlighted areas on diagram

diagram 4102 8401 8401 88263A 88263E 88263P 89180 89189B 89516 89516B 89542 89543 9017906074 9155180814 9155380610 91671A0616 91671A0616 9167380614
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-32070

ACA3#,GSA3#..JPP

 1
88263E - RELAY, SKID CONTROL NO.2
88263-21010

ACA3#,GSA3#..JPP

 1
88263P - RELAY, STOP LAMP CONTROL
90987-04004

ACA3#,GSA3#..JPP

 1
90987-04004

ASA3#,GSA3#..JPP

 1
89180 - SENSOR ASSY, YAWRATE
89180-42020

ACA3#,GSA3#..JPP

 1
89180-42040

ASA3#,GSA3#..JPP

 1
89180-42030

ASA3#,GSA3#..JPP

 1
89189B - BRACKET, YAWRATE SENSOR
89189-42010

ACA3#,GSA3#..JPP

 1
89189-42010

ASA3#,GSA3#..JPP

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-42050

ACA38,GSA38..JPP

 1
89516-42050

ASA38,GSA38..JPP

 1
89516B - WIRE, SKID CONTROL SENSOR
89516-42060

ASA38,GSA38..JPP

 1
89516-42060

ACA38,GSA38..JPP

 1
89542 - SENSOR, SPEED, FRONT RH
89542-42050

ACA3#,GSA3#..JPP

 1
89542-42050

ASA3#,GSA3#..JPP

 1
89543 - SENSOR, SPEED, FRONT LH
89543-42050

ACA3#,GSA3#..JPP

 1
89543-42050

ASA3#,GSA3#..JPP

 1
Common parts
90179-06074
91551-80814
91553-80610
91671-A0616
91673-80614
Linked diagrams
4102
8401
