GSA38L-ANAGKA (2008)

Toyota Rav4 (Jpp)

Production Aug 2008 - Dec 2012
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

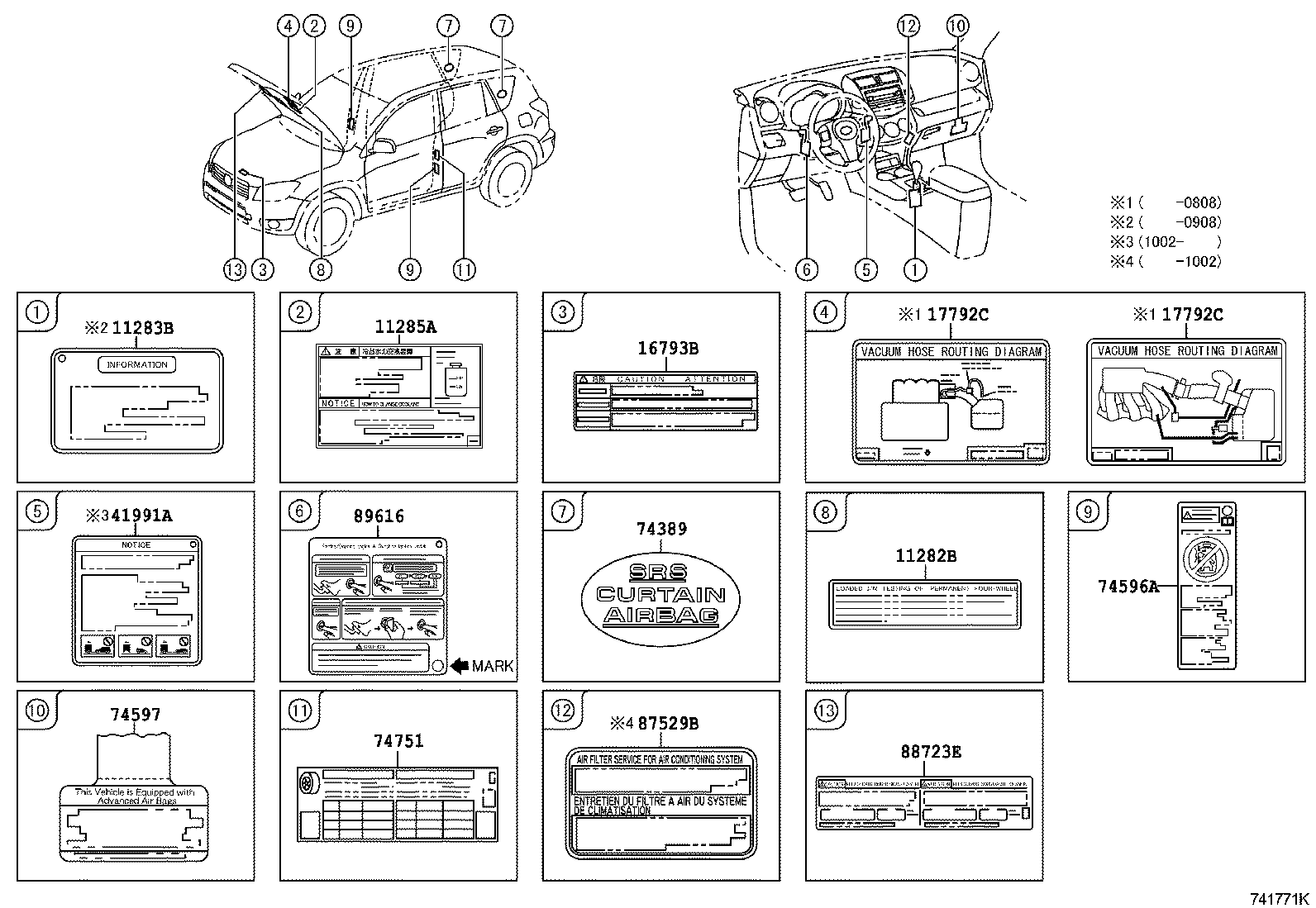

ILLUST NO. 1 OF 2(0511- )

Click highlighted areas on diagram

diagram 11282B 11283B 11285A 16793B 17792C 17792C 41991A 74389 74596A 74597 74751 87529B 88723E 89616
Part # Description Qty Price
11282B - LABEL, LOADED TESTING CAUTION
11282-74010

2AZFE,2GRFE..ACA3#,GSA3#..JPP

 1
11282-74010

2ARFE,2GRFE..ASA3#,GSA3#..JPP

 1
11283B - LABEL, LEAK DETECTION PUMP INFORMATION
11294-28010

2AZFE,2GRFE..ACA3#,GSA3#..JPP

 1
11294-28010

2ARFE,2GRFE..ASA3#,GSA3#..JPP

 1
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-28010

2AZFE,2GRFE..ACA3#,GSA3#..JPP

 1
11285-28050

2ARFE,2GRFE..ASA3#,GSA3#..JPP

 1
16793B - LABEL, COOLING FAN INFORMATION
16793-28020

2ARFE,2GRFE..ASA3#,GSA3#..JPP

 1
16793-28020

2AZFE,2GRFE..ACA3#,GSA3#..JPP

 1
74389 - LABEL, AIR BAG CAUTION
74389-42010B0

ACA3#,GSA3#..JPP..(LIMD,X)

THIRD SEAT-WITH(2PERSONS)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 2
74389-42010A0

ACA3#,GSA3#..JPP..(LIMD,X)

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,IVORY,TRIM4#

 2
74389-42010B0

ACA3#,GSA3#..JPP

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#

 2
74389-42010B0

ASA3#,GSA3#..JPP..USA

GRAY,TRIM1#

 2
74389-42010E0

ASA3#,GSA3#..JPP..(LIMD,X)..USA

SAND BEIGE,TRIM4#

 2
74389-42010A0

ACA3#,GSA3#..JPP..(LIMD,X)

THIRD SEAT-WITH(2PERSONS)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,IVORY,TRIM4#

 2
74596A - LABEL, SIDE AIR BAG CAUTION
74596-30030

ASA3#,GSA3#..JPP..USA

MEXICO SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 2
74596-30030

ACA3#,GSA3#..JPP

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 2
74596-53011

ASA3#,GSA3#..JPP

 2
74596-53010

ASA3#,GSA3#..JPP..USA

 2
74596-30030

ASA3#,GSA3#..JPP..USA

 2
74596-53011

ASA3#,GSA3#..JPP..USA

MEXICO SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 2
74596-53010

ASA3#,GSA3#..JPP..USA

MEXICO SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER)

 2
74597 - LABEL, DRIVER & PASSENGER AIR BAG CAUTION
74599-48020

ACA3#,GSA3#..JPP..USA

 1
74599-48020

ASA3#,GSA3#..JPP..USA

 1
74599-48020

ASA3#,GSA3#..JPP..USA

MEXICO SPEC

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-42340

ACA3#..JPP..LIMD;GSA3#..JPP..(LIMD,X)

 1
42661-42340

ASA3#..JPP..LIMD;GSA3#..JPP..(LIMD,X)

 1
42661-42390

ACA3#..JPP..LIMD;GSA3#..JPP..(LIMD,X)

THIRD SEAT-WITH(2PERSONS)

 1
42661-42390

ASA3#..JPP..LIMD;GSA3#..JPP..(LIMD,X)

THIRD SEAT-WITH(2PERSONS)

 1
42661-42391

ASA3#..JPP..LIMD;GSA3#..JPP..(LIMD,X)

THIRD SEAT-WITH(2PERSONS)

 1
42661-42341

ASA3#..JPP..LIMD;GSA3#..JPP..(LIMD,X)

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50010

ACA3#,GSA3#..JPP

 1
87529-50010

ASA3#,GSA3#..JPP

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-12160

ACA3#,GSA3#..JPP

 1
88723-12160

ASA3#,GSA3#..JPP

 1
89616 - LABEL, PUSH START INFORMATION
89616-30031

ASA3#,GSA3#..JPP..LIMD..USA

OWNER'S MANUAL-WITHOUT&MEXICO SPEC,MARK B

 1
89616-30031

ASA3#,GSA3#..JPP..LIMD..USA

OWNER'S MANUAL-SPANISH&MEXICO SPEC,MARK B

 1
89616-30031

ASA3#,GSA3#..JPP..LIMD

MARK B

 1
89616-60010

ASA3#,GSA3#..JPP..LIMD..USA

OWNER'S MANUAL-SPANISH,MARK L

 1

ILLUST NO. 2 OF 2(0511- )

Click highlighted areas on diagram

diagram 11296D 11298B 41992 69339A 69339A 69339A 74541C 74559A 84639A
Part # Description Qty Price
11296D - LABEL, ENGINE SERVICE INFORMATION
11296-27020

2AZFE,2GRFE..ACA3#,GSA3#..JPP

 1
69339A - PLATE, CHILD PROTECTOR LOCK CAUTION
69339-48010

ASA3#,GSA3#..JPP

 2
69339-33040

ASA3#,GSA3#..JPP

 2
69339-12010

ACA3#,GSA3#..JPP

 2
69339A - PLATE, CHILD PROTECTOR LOCK CAUTION
69339-48010

ASA3#,GSA3#..JPP

 2
69339-33040

ASA3#,GSA3#..JPP

 2
69339-12010

ACA3#,GSA3#..JPP

 2
69339A - PLATE, CHILD PROTECTOR LOCK CAUTION
69339-48010

ASA3#,GSA3#..JPP

 2
69339-33040

ASA3#,GSA3#..JPP

 2
69339-12010

ACA3#,GSA3#..JPP

 2
84639A - LABEL, CRUISE CONTROL SWITCH INFOMATION
84639-64010

ASA3#,GSA3#..JPP

 1
