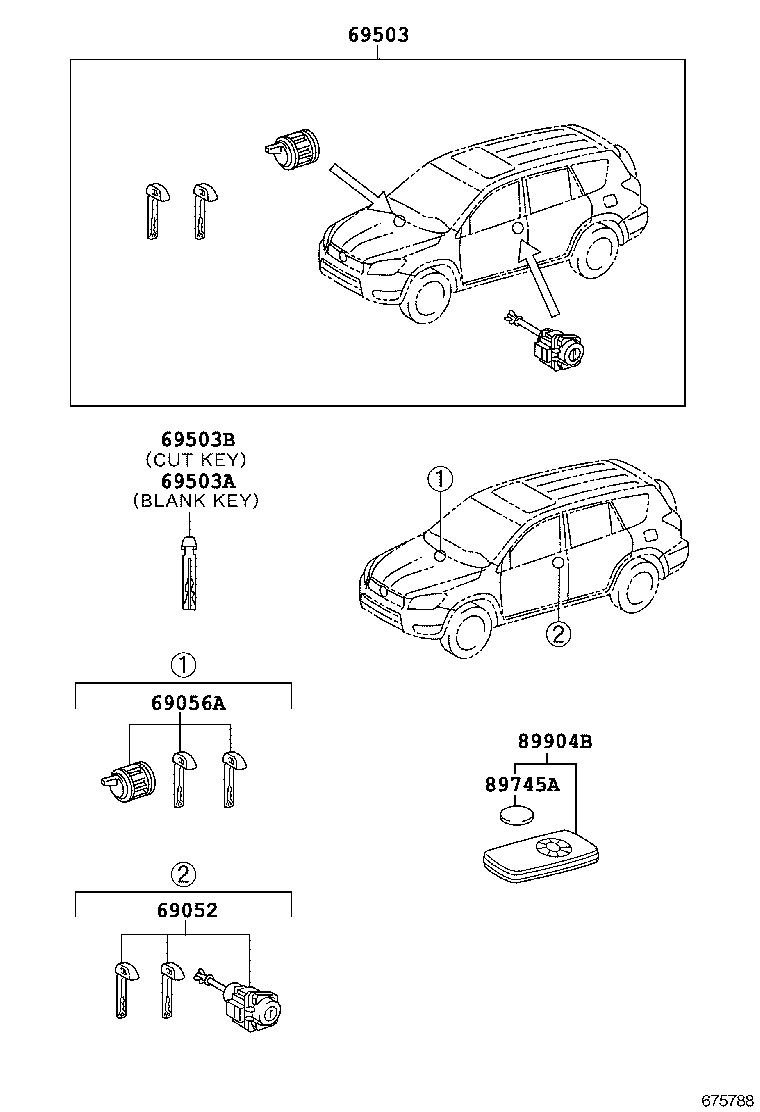

GSA38L-ANAGKA (2008)
Toyota Rav4 (Jpp)
(0511- )
W/O(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-42140 |
ACA3#,GSA3#..JPP |
1 | ||
| 69052-42160 |
ASA3#,GSA3#..JPP..LIMD |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-42100 |
ACA3#,GSA3#..JPP |
1 | ||
| 69056-33200 |
ASA3#,GSA3#..JPP..LIMD |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-42220 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..LIMD..USA |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-42440 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..LIMD..USA |
1 | ||
| 69005-42550 |
ASA3#,GSA3#..JPP..LIMD |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-52120 |
ASA3#,GSA3#..JPP..LIMD MASTER KEY,W(*68) |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-42540 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..LIMD..USA |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-42070 |
ACA3#,GSA3#..JPP |
2 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-42240 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..LIMD..USA |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-52020 |
ASA3#,GSA3#..JPP..LIMD |
1 | ||
| 89745-48030 |
ACA3#,GSA3#..JPP |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-42020 |
ACA3#,GSA3#..JPP |
2 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-60170 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..LIMD..USA BLANK KEY |
1 | ||
(0808- )
W(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-42140 |
ACA3#,GSA3#..JPP |
1 | ||
| 69052-42160 |
ASA3#,GSA3#..JPP..LIMD |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-42100 |
ACA3#,GSA3#..JPP |
1 | ||
| 69056-33200 |
ASA3#,GSA3#..JPP..LIMD |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-42440 |
ACA33,GSA33..JPP..CND;ACA3#,GSA3#..JPP..LIMD..USA |
1 | ||
| 69005-42550 |
ASA3#,GSA3#..JPP..LIMD |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-52120 |
ASA3#,GSA3#..JPP..LIMD MASTER KEY,W(*68) |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-52110 |
ASA3#,GSA3#..JPP..LIMD MASTER KEY,W(*68) |
2 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-52020 |
ASA3#,GSA3#..JPP..LIMD |
1 | ||
| 89745-48030 |
ACA3#,GSA3#..JPP |
1 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-42140 |
ASA3#,GSA3#..JPP..LIMD |
2 | ||
| 89904-48100 |
ASA3#,GSA3#..JPP..LIMD |
1 | ||
