GSA38L-ANAGKA (2008)
Toyota Rav4 (Jpp)
Production
Aug 2008
-
Dec 2012
Engine
2GRFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0511- )

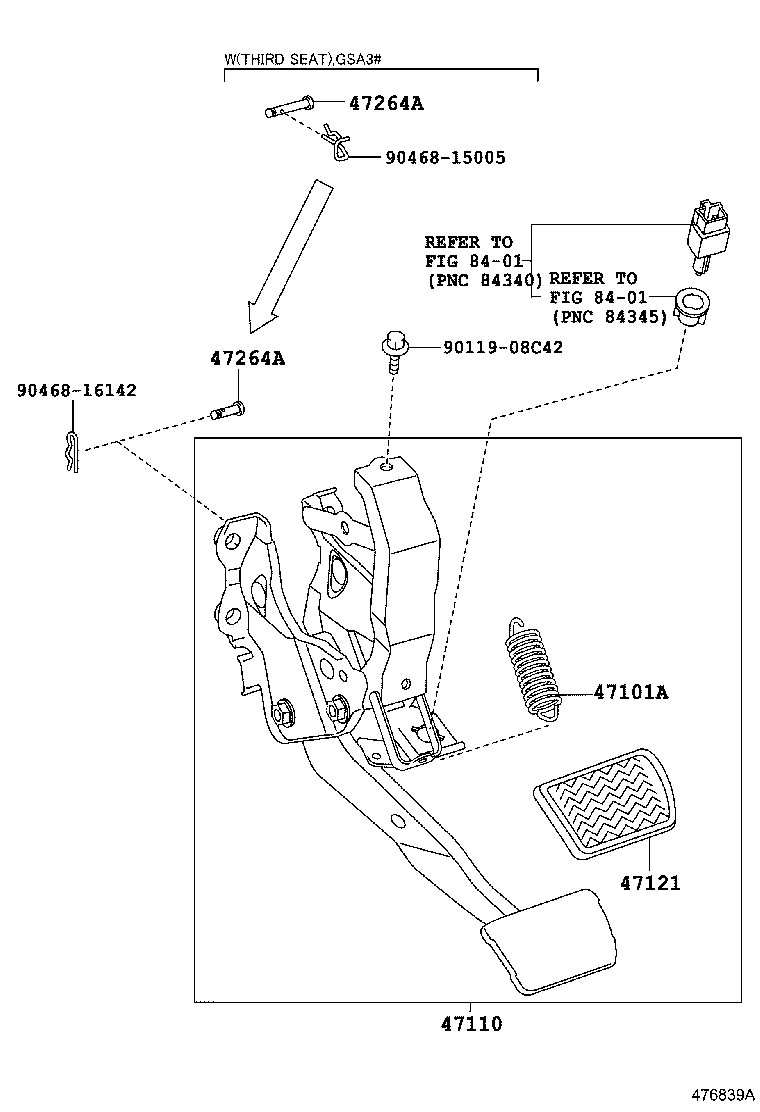

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 47146-42020 |
ASA3#,GSA3#..JPP |
1 | ||
| 47146-42020 |
ACA3#,GSA3#..JPP |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-42200 |
GSA3#..JPP |
1 | ||
| 47110-42201 |
GSA3#..JPP |
1 | ||
| 47110-42202 |
GSA3#..JPP |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-42010 |
ACA3#,GSA3#..JPP |
1 | ||
| 47121-42010 |
ASA3#,GSA3#..JPP |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-06180 |
GSA3#..JPP |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-06180 |
GSA3#..JPP |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90468-15005 | ||||
| 90468-16142 | ||||
| Linked diagrams | ||||
| 8401 | ||||
