GSA38L-ANAGKA (2008)
Toyota Rav4 (Jpp)
(0511- )
U140F,U241E,U151E,U151F

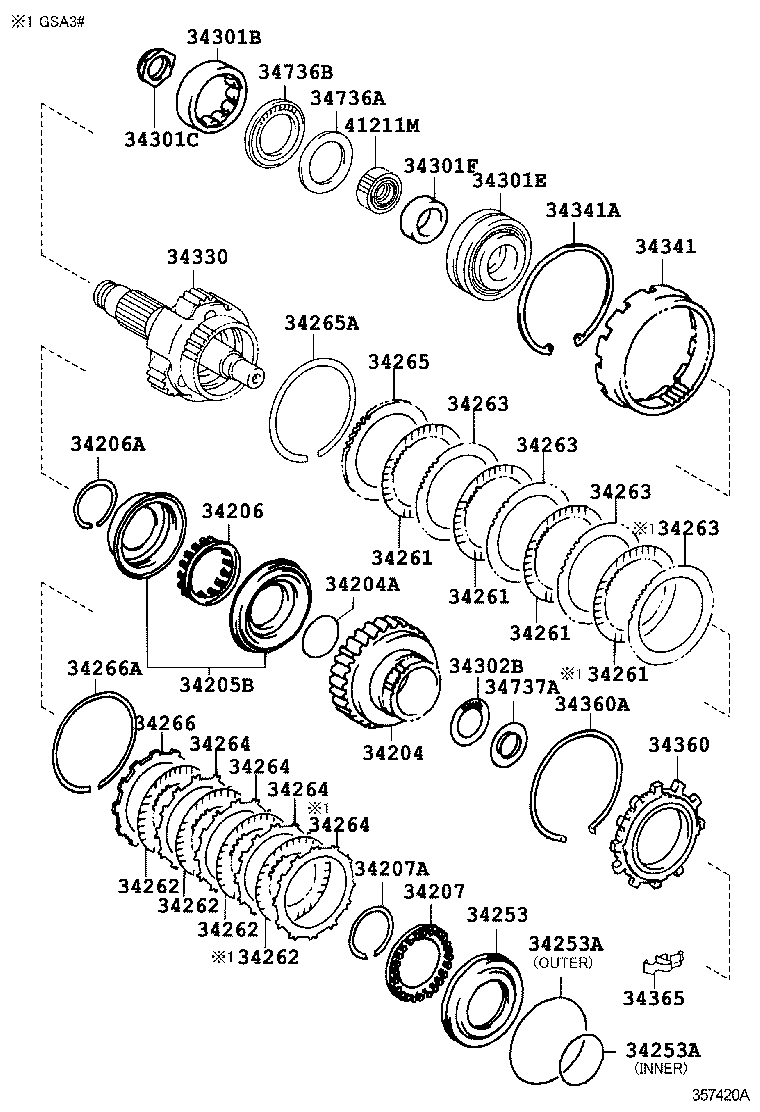

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34204 - DRUM SUB-ASSY, UNDERDRIVE CLUTCH | ||||
| 34204-28011 |
GSA3#..JPP |
1 | ||
| 34204A - RING, O (FOR UNDERDRIVE CLUTCH DRUM) | ||||
| 90301-49007 |
ACA33,GSA3#..JPP |
1 | ||
| 90301-49007 |
ASA33,GSA3#..JPP |
1 | ||
| 34205B - PISTON SET, UNDERDRIVE CLUTCH | ||||
| 34205-28010 |
ACA33,GSA3#..JPP |
1 | ||
| 34205-28010 |
ASA33,GSA3#..JPP |
1 | ||
| 34206 - SPRING SUB-ASSY, UNDERDRIVE CLUTCH RETURN | ||||
| 34206-21010 |
ACA33,GSA3#..JPP |
1 | ||
| 34206-21010 |
ASA33,GSA3#..JPP |
1 | ||
| 34206A - RING, SHAFT SNAP (FOR UNDERDRIVE RETURN SPRING) | ||||
| 90520-50009 |
ACA33,GSA3#..JPP |
1 | ||
| 90520-50009 |
ASA33,GSA3#..JPP |
1 | ||
| 34207 - SPRING SUB-ASSY, UNDERDRIVE BRAKE RETURN | ||||
| 34207-21010 |
ACA3#,GSA3#..JPP |
1 | ||
| 34207-21010 |
ASA3#,GSA3#..JPP |
1 | ||
| 34207A - RING, SNAP (FOR UNDERDRIVE BRAKE RETURN SPRING) | ||||
| 90520-59004 |
ASA3#,GSA3#..JPP |
1 | ||
| 90520-59004 |
ACA3#,GSA3#..JPP |
1 | ||
| 34253 - PISTON, UNDERDRIVE BRAKE | ||||
| 34253-28010 |
ASA38,GSA3#..JPP |
1 | ||
| 34253-28010 |
ACA38,GSA3#..JPP |
1 | ||
| 34253A - RING, O (FOR UNDERDRIVE BRAKE PISTON) | ||||
| 90301-62007 |
ASA3#,GSA3#..JPP INNER |
1 | ||
| 90301-99084 |
ACA3#,GSA3#..JPP OUTER |
1 | ||
| 90301-62007 |
ACA3#,GSA3#..JPP INNER |
1 | ||
| 90301-99084 |
ASA3#,GSA3#..JPP OUTER |
1 | ||
| 34253A - RING, O (FOR UNDERDRIVE BRAKE PISTON) | ||||
| 90301-62007 |
ASA3#,GSA3#..JPP INNER |
1 | ||
| 90301-99084 |
ACA3#,GSA3#..JPP OUTER |
1 | ||
| 90301-62007 |
ACA3#,GSA3#..JPP INNER |
1 | ||
| 90301-99084 |
ASA3#,GSA3#..JPP OUTER |
1 | ||
| 34261 - DISC, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34261-28030 |
GSA3#..JPP |
4 | ||
| 34261 - DISC, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34261-28030 |
GSA3#..JPP |
4 | ||
| 34261 - DISC, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34261-28030 |
GSA3#..JPP |
4 | ||
| 34261 - DISC, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34261-28030 |
GSA3#..JPP |
4 | ||
| 34262 - DISC, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34262-33010 |
GSA3#..JPP |
4 | ||
| 34262 - DISC, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34262-33010 |
GSA3#..JPP |
4 | ||
| 34262 - DISC, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34262-33010 |
GSA3#..JPP |
4 | ||
| 34262 - DISC, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34262-33010 |
GSA3#..JPP |
4 | ||
| 34263 - PLATE, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34263-28010 |
GSA3#..JPP |
4 | ||
| 34263 - PLATE, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34263-28010 |
GSA3#..JPP |
4 | ||
| 34263 - PLATE, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34263-28010 |
GSA3#..JPP |
4 | ||
| 34263 - PLATE, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34263-28010 |
GSA3#..JPP |
4 | ||
| 34264 - PLATE, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34264-28010 |
GSA3#..JPP |
4 | ||
| 34264 - PLATE, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34264-28010 |
GSA3#..JPP |
4 | ||
| 34264 - PLATE, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34264-28010 |
GSA3#..JPP |
4 | ||
| 34264 - PLATE, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34264-28010 |
GSA3#..JPP |
4 | ||
| 34265 - FLANGE, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34265-21030 |
ACA33,GSA3#..JPP T=3.2 MARK 2 |
1 | ||
| 34265-21020 |
ACA33,GSA3#..JPP T=3.0 MARK 1 |
1 | ||
| 34265-33010 |
ACA33,GSA3#..JPP T=3.1 MARK 4 |
1 | ||
| 34265-21050 |
ASA33,GSA3#..JPP T=3.6 MARK 6 |
1 | ||
| 34265-33020 |
ACA33,GSA3#..JPP T=3.3 MARK 5 |
1 | ||
| 34265-21060 |
GSA3#..JPP T=2.8 MARK 0 |
1 | ||
| 34265-21040 |
ACA33,GSA3#..JPP T=3.4 MARK 3 |
1 | ||
| 34265-28070 |
ASA33,GSA3#..JPP T=2.9 MARK 7 |
1 | ||
| 34265-28080 |
ASA33,GSA3#..JPP T=3.5 MARK 8 |
1 | ||
| 34265-21030 |
ASA33,GSA3#..JPP T=3.2 MARK 2 |
1 | ||
| 34265-21040 |
ASA33,GSA3#..JPP T=3.4 MARK 3 |
1 | ||
| 34265-33020 |
ASA33,GSA3#..JPP T=3.3 MARK 5 |
1 | ||
| 34265-33010 |
ASA33,GSA3#..JPP T=3.1 MARK 4 |
1 | ||
| 34265-21020 |
ASA33,GSA3#..JPP T=3.0 MARK 1 |
1 | ||
| 34265A - RING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.1) | ||||
| 90520-99029 |
ASA33,GSA3#..JPP |
1 | ||
| 90520-99029 |
ACA33,GSA3#..JPP |
1 | ||
| 34266 - FLANGE, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34266-21020 |
ACA33,GSA3#..JPP T=3.2 |
1 | ||
| 34266-21030 |
ACA33,GSA3#..JPP T=3.4 |
1 | ||
| 34266-21010 |
ACA33,GSA3#..JPP T=3.0 |
1 | ||
| 34266-21010 |
ASA33,GSA3#..JPP T=3.0 |
1 | ||
| 34266-21030 |
ASA33,GSA3#..JPP T=3.4 |
1 | ||
| 34266-21020 |
ASA33,GSA3#..JPP T=3.2 |
1 | ||
| 34266A - RING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.2) | ||||
| 90520-99032 |
ACA33,GSA3#..JPP |
1 | ||
| 90520-99032 |
ASA33,GSA3#..JPP |
1 | ||
| 34301B - BEARING, CYLINDRICAL ROLLER, NO.1 (FOR UNDERDRIVE) | ||||
| 90365-53001 |
ASA33,GSA3#..JPP |
1 | ||
| 90365-53001 |
ACA33,GSA3#..JPP |
1 | ||
| 34301C - NUT (FOR UNDERDRIVE INPUT SHAFT) | ||||
| 90179-32002 |
ACA3#,GSA3#..JPP |
1 | ||
| 90179-32002 |
ASA3#,GSA3#..JPP |
1 | ||
| 34301E - BEARING, TAPERED ROLLER (FOR UNDERDRIVE) | ||||
| 90369-43015 |
GSA3#..JPP |
1 | ||
| 34301F - RACE, CYLINDRICAL ROLLER BEARING, INNER | ||||
| 34733-21010 |
ACA33,GSA3#..JPP |
1 | ||
| 34733-21010 |
ASA33,GSA3#..JPP |
1 | ||
| 34302B - BEARING, NEEDLE ROLLER(FOR UNDERDRIVE PLANETARY SUN GEA | ||||
| 90374-40003 |
ASA3#,GSA3#..JPP |
1 | ||
| 90374-40003 |
ACA3#,GSA3#..JPP |
1 | ||
| 34330 - GEAR ASSY, UNDERDRIVE PLANETARY | ||||
| 34330-33020 |
GSA3#..JPP |
1 | ||
| 34341 - GEAR, UNDERDRIVE PLANETARY RING | ||||
| 34341-33020 |
GSA3#..JPP |
1 | ||
| 34341A - RING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING) | ||||
| 90521-99120 |
ACA33,GSA3#..JPP |
1 | ||
| 90521-99120 |
ASA33,GSA3#..JPP |
1 | ||
| 34360 - CLUTCH ASSY, UNDERDRIVE 1 WAY | ||||
| 34360-28010 |
ACA33,GSA3#..JPP |
1 | ||
| 34360-28010 |
ASA33,GSA3#..JPP |
1 | ||
| 34360A - RING, SHAFT SNAP (FOR UNDERDRIVE 1 WAY CLUTCH) | ||||
| 90520-99031 |
ACA33,GSA3#..JPP |
1 | ||
| 90520-99031 |
ASA33,GSA3#..JPP |
1 | ||
| 34365 - RETAINER, OUTER RACE | ||||
| 34365-48011 |
ACA33,GSA3#..JPP |
1 | ||
| 34365-48011 |
ASA33,GSA3#..JPP |
1 | ||
| 34736A - RACE, THRUST BEARING UNDERDRIVE, NO.2 | ||||
| 34736-21010 |
ACA33,GSA3#..JPP T=3.5 |
1 | ||
| 34736-21010 |
ASA33,GSA3#..JPP T=3.5 |
1 | ||
| 34736-21020 |
ASA33,GSA3#..JPP T=3.8 |
1 | ||
| 34736-21020 |
ACA33,GSA3#..JPP T=3.8 |
1 | ||
| 34736B - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-67001 |
ACA33,GSA3#..JPP |
1 | ||
| 90374-67001 |
ASA33,GSA3#..JPP |
1 | ||
| 34737A - RACE, THRUST BEARING UNDERDRIVE, NO.3 | ||||
| 34737-21010 |
ASA3#,GSA3#..JPP |
1 | ||
| 34737-21010 |
ACA3#,GSA3#..JPP |
1 | ||
| 41211M - PINION, DIFFERENTIAL DRIVE | ||||
| 41211-42010 |
GSA3#..JPP |
1 | ||
