GSA33L-ANASKA (2006)

Toyota Rav4 (Jpp)

Production Jan 2006 - Aug 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )2GRFE

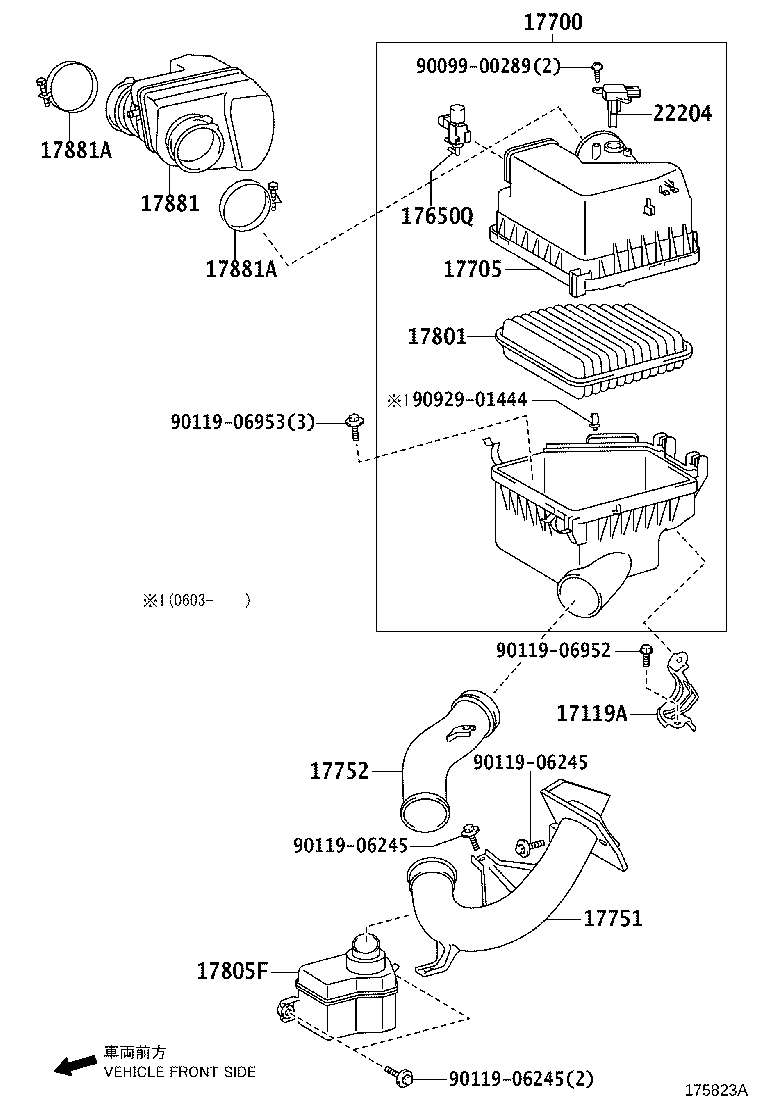

Click highlighted areas on diagram

diagram 17119A 17650Q 17700 17705 17751 17752 17801 17805F 17881 17881A 17881A 22204 9009900289 9011906245 9011906245 9011906245 9011906952 9011906953 9092901444
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-28070

2GRFE..GSA3#..JPP

 1
17650Q - VALVE, VACUUM SWITCHING
90910-12088

2GRFE..GSA3#..JPP

 1
17700 - CLEANER ASSY, AIR
17700-31620

2GRFE..GSA3#..JPP

 1
17700-31622

2GRFE..GSA3#..JPP

 1
17700-31621

2GRFE..GSA3#..JPP

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-31170

2GRFE..GSA3#..JPP

 1
17705-31171

2GRFE..GSA3#..JPP

 1
17751 - INLET, AIR CLEANER, NO.1
17751-31210

2GRFE..GSA3#..JPP

 1
17751-31140

2GRFE..GSA3#..JPP

 1
17752 - INLET, AIR CLEANER, NO.2
17752-31030

2GRFE..GSA3#..JPP

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-31120

2GRFE..GSA3#..JPP

 1
17805F - RESONATOR SUB-ASSY, INTAKE AIR
17894-31030

2GRFE..GSA3#..JPP

 1
17894-31010

2GRFE..GSA3#..JPP

 1
17881 - HOSE, AIR CLEANER, NO.1
17880-31090

2GRFE..GSA3#..JPP

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

2GRFE..GSA3#..JPP

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

2GRFE..GSA3#..JPP

 2
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-31020

2GRFE..GSA3#..JPP

 1
22204-31010

2GRFE..GSA3#..JPP

 1
Common parts
90099-00289
90119-06245
90119-06952
90119-06953
90929-01444
