GSA33L-ANAGKA (2006)

Toyota Rav4 (Jpp)

Production Jan 2006 - Aug 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

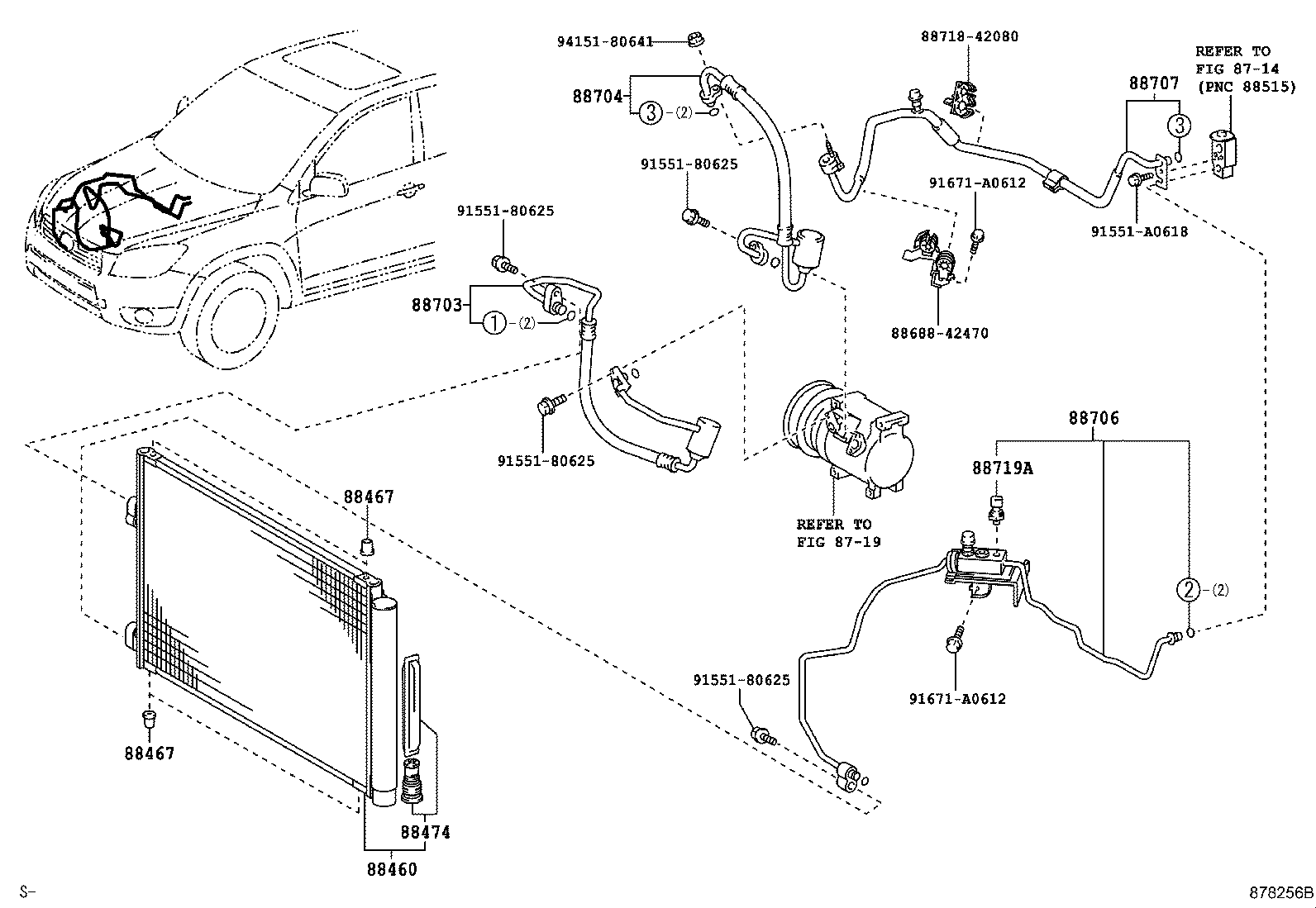

ILLUST NO. 1 OF 2(0601-0808)GSA3#

Click highlighted areas on diagram

diagram 8714 8719 88460 88467 88467 88474 8868842470 88703 88704 88706 88707 8871842080 88719A 9155180625 9155180625 9155180625 9155180625 91551A0618 91671A0612 91671A0612 9415180641
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-42100

ACA3#,GSA3#..JPP

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ACA3#,GSA3#..JPP

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ACA3#,GSA3#..JPP

 4
88474 - DRYER, COOLER
88474-17010

ACA3#,GSA3#..JPP

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-42110

GSA3#..JPP

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-42201

GSA3#..JPP

 1
88706 - PIPE SUB-ASSY, LIQUID
88706-42390

GSA3#..JPP

WITH(TOWING PACKAGE)

 1
88706-42370

GSA3#..JPP

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-42090

GSA3#..JPP

WITH(TOWING PACKAGE)

 1
88707-42090

GSA3#..JPP

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

GSA3#..JPP

 1
88719-40020

GSA3#..JPP

 1
Common parts
88688-42470
88718-42080
91551-80625
91551-A0618
91671-A0612
94151-80641
Linked diagrams
8714
8719
