GSA33L-ANAGKA (2006)

Toyota Rav4 (Jpp)

Production Jan 2006 - Aug 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-0808)GSA3#

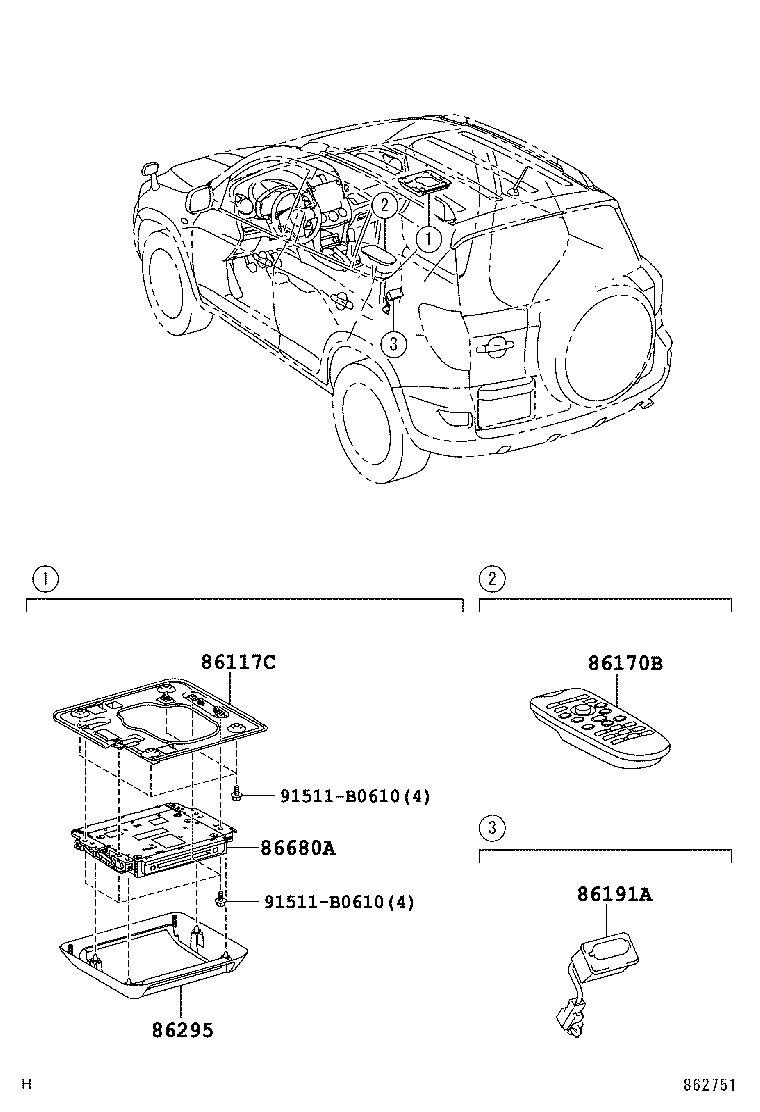

Click highlighted areas on diagram

diagram 86117C 86170B 86191A 86295 86680A 91511B0610 91511B0610
Part # Description Qty Price
86117C - BRACKET, MULTI-DISPLAY CONTROLLER, NO.2
86117-42020

GSA3#..JPP..LIMD

TELEVISION & VTR-REAR MONITOR(RSE)

 1
86117-42010

GSA3#..JPP..LIMD

MOON ROOF-WITH&TELEVISION & VTR-REAR MONITOR(RSE)

 1
86170B - SWITCH & VOLUME ASSY, TELEVISION
86170-45020

GSA3#..JPP..LIMD

TELEVISION & VTR-REAR MONITOR(RSE)

 1
86191A - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-45010E0

GSA3#..JPP..LIMD

TELEVISION & VTR-REAR MONITOR(RSE),FAWN,TRIM4#

 1
86191-45010B4

GSA3#..JPP..LIMD

TELEVISION & VTR-REAR MONITOR(RSE),GRAY,TRIM1#

 1
86295 - BASE, TELEVISION
86295-42020B0

GSA3#..JPP..LIMD

TELEVISION & VTR-REAR MONITOR(RSE),GRAY,TRIM1#

 1
86295-42010B0

GSA3#..JPP..LIMD

MOON ROOF-WITH&TELEVISION & VTR-REAR MONITOR(RSE),GRAY,TRIM1#

 1
86295-42010A0

GSA3#..JPP..LIMD

MOON ROOF-WITH&TELEVISION & VTR-REAR MONITOR(RSE),IVORY,TRIM4#

 1
86295-42020A0

GSA3#..JPP..LIMD

TELEVISION & VTR-REAR MONITOR(RSE),IVORY,TRIM4#

 1
86680A - DISPLAY ASSY, TELEVISION
86680-42010A0

GSA3#..JPP..LIMD

MATSUSITA,TELEVISION & VTR-REAR MONITOR(RSE),IVORY,TRIM4#

 1
86680-42010A0

GSA3#..JPP..LIMD

MATSUSITA,MOON ROOF-WITH&TELEVISION & VTR-REAR MONITOR(RSE),IVORY,TRIM4#

 1
86680-42010B0

GSA3#..JPP..LIMD

MATSUSITA,MOON ROOF-WITH&TELEVISION & VTR-REAR MONITOR(RSE),GRAY,TRIM1#

 1
86680-42010B0

GSA3#..JPP..LIMD

MATSUSITA,TELEVISION & VTR-REAR MONITOR(RSE),GRAY,TRIM1#

 1
Common parts
91511-B0610
