GSA33L-ANAGKA (2006)

Toyota Rav4 (Jpp)

Production Jan 2006 - Aug 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )GSA3#

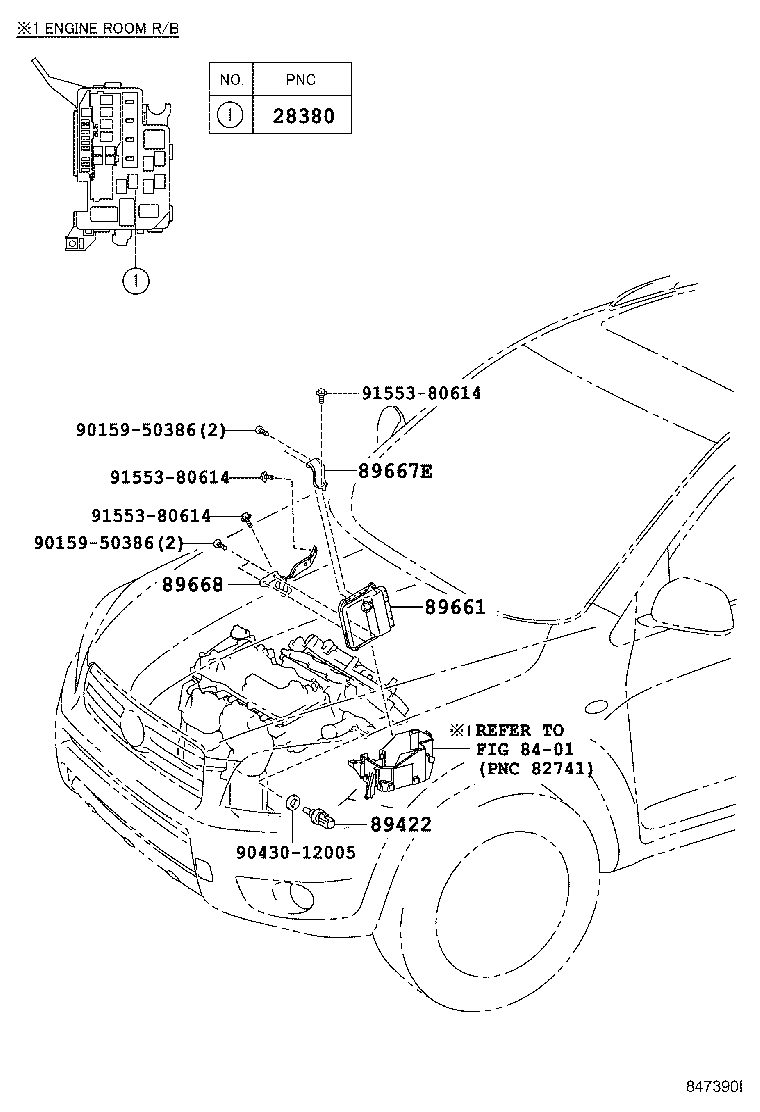

Click highlighted areas on diagram

diagram 28380 8401 89422 89661 89667E 89668 9015950386 9015950386 9043012005 9155380614 9155380614 9155380614
Part # Description Qty Price
28380 - RELAY ASSY, FUEL PUMP
90987-04004

2GRFE..GSA3#..JPP

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

ACA3#,GSA3#..JPP

 1
89661 - COMPUTER, ENGINE CONTROL
89661-42D80

GSA33..JPP

 1
89661-42D81

GSA33..JPP

 1
89661-42E90

GSA33..JPP

 1
89661-42G00

GSA33..JPP

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-42050

ACA3#,GSA3#..JPP

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-42050

ACA3#,GSA3#..JPP

 1
Common parts
90159-50386
90430-12005
91553-80614
Linked diagrams
8401
