GSA33L-ANAGKA (2006)
Toyota Rav4 (Jpp)
ILLUST NO. 5 OF 8(0511-0808)
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-42020 |
ACA3#,GSA3#..JPP |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-42020 |
ACA3#,GSA3#..JPP |
1 | ||
| 84480 - SWITCH ASSY, MAIN | ||||
| 84480-42010 |
GSA3#..JPP..LIMD TELEVISION & VTR-REAR MONITOR(RSE) |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-42020 |
ACA33,GSA33..JPP |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-42040 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
ACA3#,GSA3#..JPP |
1 | ||
| 84988H - SWITCH, DOWNHILL ASSIST CONTROL | ||||
| 84988-42020 |
GSA3#..JPP |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ACA3#,GSA3#..JPP |
1 | ||
| 85530C - SOCKET ASSY, POWER OUTLET, CENTER | ||||
| 85530-42010 |
ACA3#,GSA3#..JPP |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-AE020E0 |
GSA3#..JPP..LIMD TELEVISION & VTR-REAR MONITOR(RSE),FAWN,TRIM4# |
1 | ||
| 85530-AE020B2 |
GSA3#..JPP..LIMD TELEVISION & VTR-REAR MONITOR(RSE),GRAY,TRIM1# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-35080B0 |
ACA3#,GSA3#..JPP..(LIMD,X) DK.GRAY,TRIM1#,4# |
1 | ||
| 85535D - COVER, POWER OUTLET SOCKET, CENTER | ||||
| 85535-42040 |
ACA3#,GSA3#..JPP |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
ACA3#,GSA3#..JPP |
1 | ||

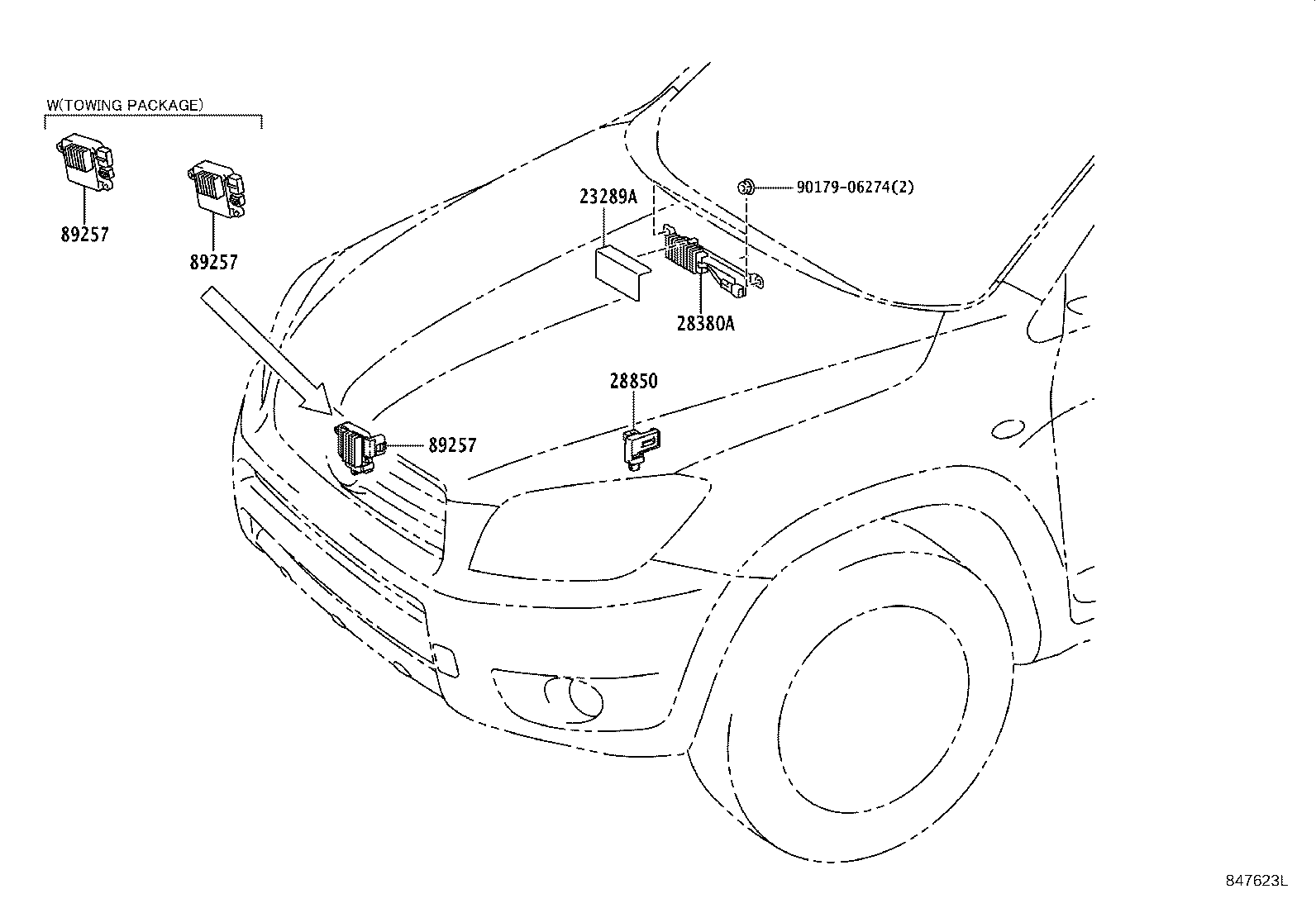

ILLUST NO. 2 OF 8(0601- )GSA3#
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23289A - COVER, FUEL PUMP RESISTOR | ||||
| 23289-50020 |
2GRFE..GSA3#..JPP |
1 | ||
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-31050 |
2GRFE..GSA3#..JPP |
1 | ||
| 23080-31051 |
2GRFE..GSA3#..JPP |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-28040 |
2AZFE,2GRFE..ACA3#,GSA3#..JPP |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-26020 |
GSA3#..JPP WITH(TOWING PACKAGE) |
2 | ||
| 89257-30080 |
GSA3#..JPP |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-26020 |
GSA3#..JPP WITH(TOWING PACKAGE) |
2 | ||
| 89257-30080 |
GSA3#..JPP |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-26020 |
GSA3#..JPP WITH(TOWING PACKAGE) |
2 | ||
| 89257-30080 |
GSA3#..JPP |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||

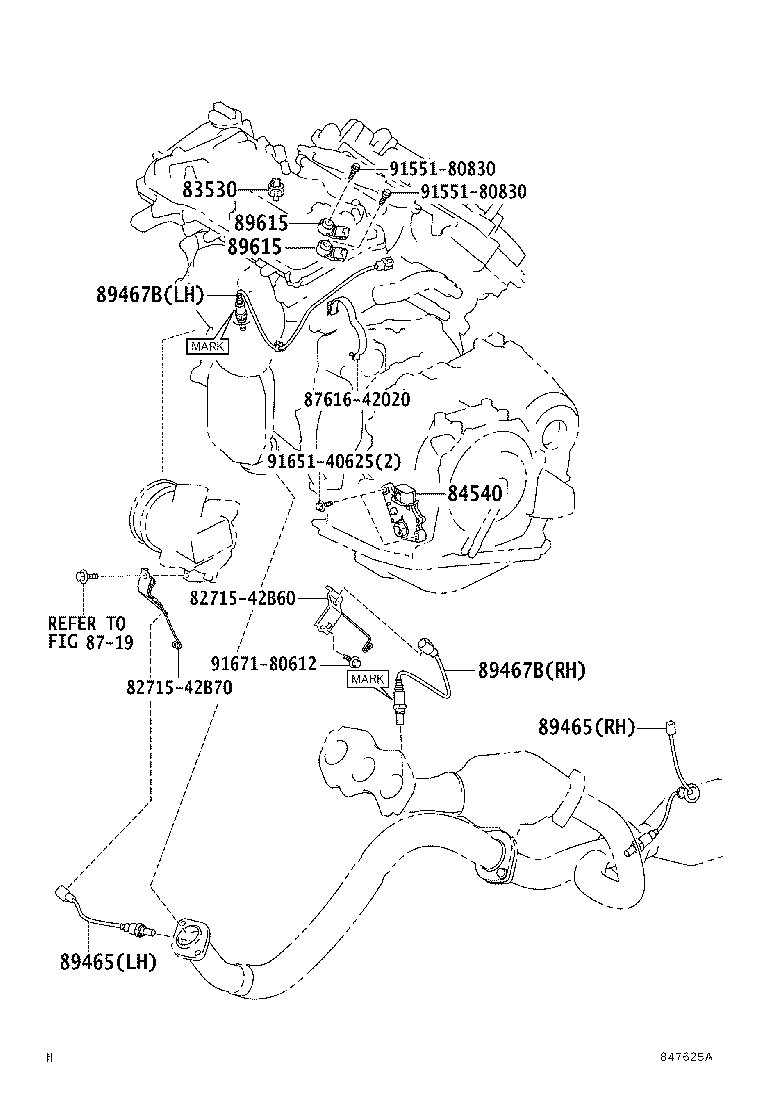

ILLUST NO. 1 OF 8(0601- )GSA3#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ACA3#,GSA3#..JPP |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-42010 |
ACA3#,GSA3#..JPP |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-42150 |
GSA3#..JPP RR LH |
1 | ||
| 89465-42160 |
GSA3#..JPP RR RH |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-42150 |
GSA3#..JPP RR LH |
1 | ||
| 89465-42160 |
GSA3#..JPP RR RH |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-42080 |
GSA3#..JPP LH, MARK=89467-42080 |
1 | ||
| 89467-42090 |
GSA3#..JPP RH, MARK=89467-42090 |
1 | ||
| 89467-42060 |
GSA3#..JPP RH, MARK=89467-42060 |
1 | ||
| 89467-42050 |
GSA3#..JPP LH, MARK=89467-42050 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-42080 |
GSA3#..JPP LH, MARK=89467-42080 |
1 | ||
| 89467-42090 |
GSA3#..JPP RH, MARK=89467-42090 |
1 | ||
| 89467-42060 |
GSA3#..JPP RH, MARK=89467-42060 |
1 | ||
| 89467-42050 |
GSA3#..JPP LH, MARK=89467-42050 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSA3#..JPP |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSA3#..JPP |
2 | ||
| Common parts | ||||
| 82715-42B60 | ||||
| 82715-42B70 | ||||
| 87616-42020 | ||||
| 91551-80830 | ||||
| 91651-40625 | ||||
| 91671-80612 | ||||
| Linked diagrams | ||||
| 8719 | ||||

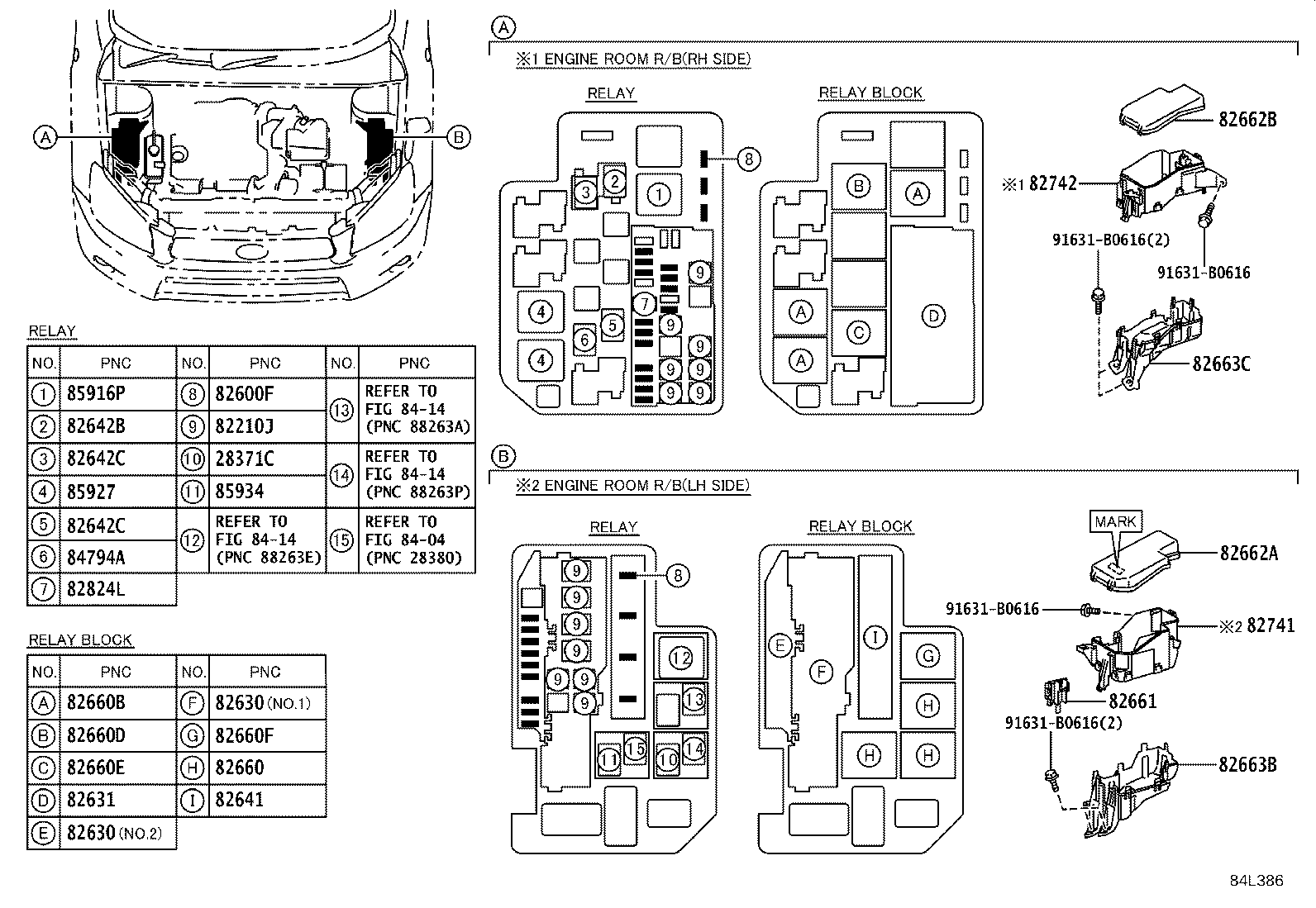

ILLUST NO. 3 OF 8(0601- )GSA3#
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2AZFE,2GRFE..ACA3#,GSA3#..JPP |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08274 |
ACA3#,GSA3#..JPP 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08286 |
GSA3#..JPP 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08202 |
ACA3#,GSA3#..JPP 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08296 |
ACA3#,GSA3#..JPP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08203 |
ACA3#,GSA3#..JPP 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08295 |
ACA3#,GSA3#..JPP 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
ACA3#,GSA3#..JPP 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
ACA3#,GSA3#..JPP 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ACA3#,GSA3#..JPP 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACA3#,GSA3#..JPP 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
ACA3#,GSA3#..JPP 25A,MINI FUSE |
1 | ||
| 90982-09021 |
ACA3#,GSA3#..JPP 10A,MINI FUSE,RED |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-42010 |
ACA3#,GSA3#..JPP NO.1 |
1 | ||
| 82631-42020 |
ACA3#,GSA3#..JPP NO.2 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-42010 |
ACA3#,GSA3#..JPP NO.1 |
1 | ||
| 82631-42020 |
ACA3#,GSA3#..JPP NO.2 |
1 | ||
| 82631 - HOLDER, FUSE | ||||
| 82631-42030 |
ACA3#,GSA3#..JPP |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
ACA3#,GSA3#..JPP |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90987-04004 |
ACA3#,GSA3#..JPP |
1 | ||
| 82642C - RELAY, DAY TIME RUNNING LIGHT, NO.2 | ||||
| 90987-02027 |
ACA3#,GSA3#..JPP |
2 | ||
| 82642C - RELAY, DAY TIME RUNNING LIGHT, NO.2 | ||||
| 90987-02027 |
ACA3#,GSA3#..JPP |
2 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-42030 |
GSA3#..JPP |
3 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
GSA3#..JPP WITH(TOWING PACKAGE) |
3 | ||
| 82660-0H070 |
GSA3#..JPP |
2 | ||
| 82660-0H070 |
GSA3#..JPP..LIMD WITH(TOWING PACKAGE)&TELEVISION & VTR-REAR MONITOR(RSE) |
3 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-42030 |
GSA3#..JPP |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
GSA3#..JPP |
2 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
ACA3#,GSA3#..JPP |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-42030 |
ACA3#,GSA3#..JPP |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-42170 |
ACA3#,GSA3#..JPP MARK 82662-42170 |
1 | ||
| 82662-42180 |
GSA3#..JPP..LIMD TELEVISION & VTR-REAR MONITOR(RSE) |
1 | ||
| 82662-42180 |
GSA3#..JPP..LIMD WITH(TOWING PACKAGE)&TELEVISION & VTR-REAR MONITOR(RSE) |
1 | ||
| 82662-42171 |
ACA3#,GSA3#..JPP MARK 82662-42171 |
1 | ||
| 82662-42180 |
GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-42210 |
GSA3#..JPP |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-42080 |
ACA3#,GSA3#..JPP |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-42090 |
ACA3#,GSA3#..JPP |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-42010 |
ACA3#,GSA3#..JPP |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-42030 |
ACA3#,GSA3#..JPP |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ACA3#,GSA3#..JPP |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ACA3#,GSA3#..JPP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
GSA3#..JPP WITH(TOWING PACKAGE) |
2 | ||
| 90987-02025 |
GSA3#..JPP |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
GSA3#..JPP |
1 | ||
| Common parts | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8414 | ||||
