GSA33L-ANAGKA (2006)
Toyota Rav4 (Jpp)
ILLUST NO. 3 OF 7(0511-0808)
PASSENGER SEAT:W(SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-42440E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71071-42440E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71071-42440B2 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71071-42390B1 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71071-42390E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71071-42441E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71071-42440B2 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71071-42441B2 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-42370E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71073-42470E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71073-42380E0 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71073-42450E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71073-42370B1 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71073-42470B1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-42450B0 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-42380B1 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71073-42380B1 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71073-42470E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71073-42380E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71073-42470B1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-42F00E2 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71100-42D90B3 |
ACA3#,GSA3#..JPP..LIMD DK.GRAY,TRIM1# |
1 | ||
| 71100-42D90B3 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71100-42F00E2 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71100-42D90B5 |
ACA3#,GSA3#..JPP..LIMD DK.GRAY,TRIM1# |
1 | ||
| 71100-42D90E1 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71100-42F00B2 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71100-42D90E2 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71100-42D90E1 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71100-42D90E3 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71100-42F00B2 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71100-42F00B3 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71100-42F00E4 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71100-42F00B4 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71100-42F00E3 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71100-42D90B7 |
ACA3#,GSA3#..JPP..LIMD DK.GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-42060 |
ACA3#,GSA3#..JPP..(LIMD,SPO) SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42060 |
ACA3#,GSA3#..JPP..(LIMD,SPO) |
1 | ||
| 71110-42060 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42050 |
ACA3#,GSA3#..JPP..(LIMD,SPO) |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-42090 |
ACA3#,GSA3#..JPP..(LIMD,SPO) |
1 | ||
| 71051-42050 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71051-42050 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-42080 |
ACA3#,GSA3#..JPP..(LIMD,SPO) |
1 | ||
| 71551-42100 |
ACA3#,GSA3#..JPP..(LIMD,SPO) |
1 | ||
| 71551-42100 |
ACA3#,GSA3#..JPP..(LIMD,SPO) SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42100 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71771-42010B3 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71771-42010E5 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71771-42010E6 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71771-42010E1 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71771-42010E6 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71771-42010E5 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71771-42010B9 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71771-42010P0 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42080B1 |
ACA3#,GSA3#..JPP..(LIMD,X) GRAY,TRIM1# |
1 | ||
| 71811-42080E0 |
ACA3#,GSA3#..JPP..(LIMD,X) FAWN,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-42070B1 |
ACA3#,GSA3#..JPP..(LIMD,X) GRAY,TRIM1# |
1 | ||
| 71861-42070E0 |
ACA3#,GSA3#..JPP..(LIMD,X) FAWN,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42030 |
ACA3#,GSA3#..JPP |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
ACA3#,GSA3#..JPP |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-42050B1 |
ACA3#,GSA3#..JPP..(LIMD,X) GRAY,TRIM1# |
1 | ||
| 71875-42050E0 |
ACA3#,GSA3#..JPP..(LIMD,X) FAWN,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACA3#,GSA3#..JPP |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-42050B1 |
ACA3#,GSA3#..JPP..(LIMD,X) GRAY,TRIM1# |
1 | ||
| 71876-42050E0 |
ACA3#,GSA3#..JPP..(LIMD,X) FAWN,TRIM4# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACA3#,GSA3#..JPP |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42130E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
2 | ||
| 71910-42130B1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
2 | ||
| 71910-42120E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
2 | ||
| 71910-42130B1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
2 | ||
| 71910-42120B1 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
2 | ||
| 71910-42130E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B7 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-52030E3 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-52030B1 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B7 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-52030E3 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-52030B1 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-42010E0 |
ACA3#,GSA3#..JPP..(LIMD,X) FAWN,TRIM4# |
1 | ||
| 72525-42010B1 |
ACA3#,GSA3#..JPP..(LIMD,X) GRAY,TRIM1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42030 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 73910-42030 |
ACA3#,GSA3#..JPP |
1 | ||
| 73910-42030 |
ACA3#,GSA3#..JPP SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-42160 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510-42160 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-42120 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510-42120 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 93568-55016 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8421 | ||||

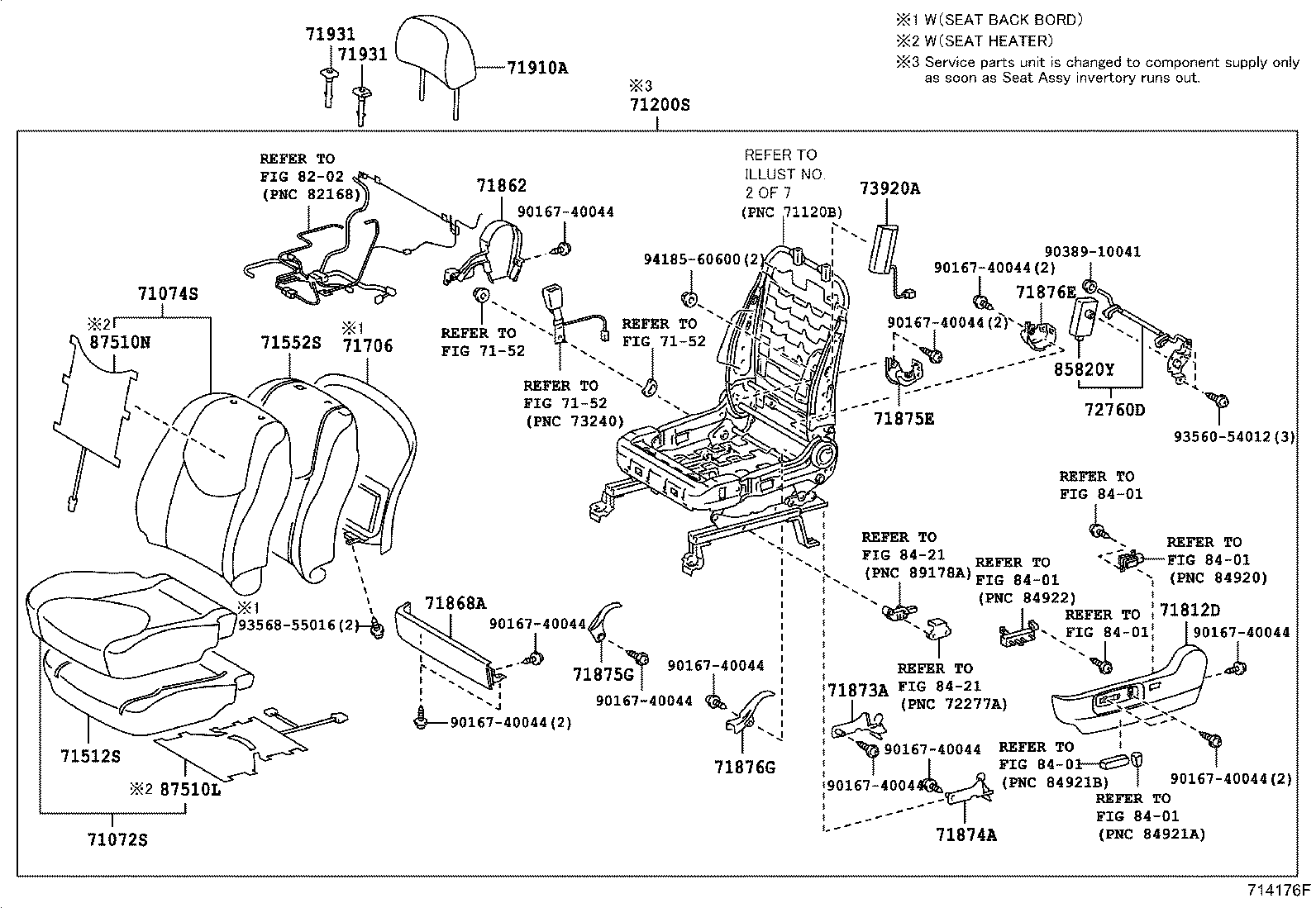

ILLUST NO. 1 OF 7(0511-0808)LIMD
DRIVER SEAT:W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-42300E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71072-42301B2 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-42300B2 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-42300B2 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71072-42300E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71072-42230E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71072-42301E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71072-42230B0 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-42450B0 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-42370B1 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71073-42450E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71074-42090E0 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71074-42130B1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71074-42130E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71074-42130B1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-42370E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71074-42090B1 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71074-42090E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71074-42130E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71074-42090B1 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-42070 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71052-42070 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71512-42050 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-42120 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 71552-42050 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71552-42050 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71552-42050 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71771-42010E6 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71771-42010E1 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71771-42010E6 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71771-42010B9 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71771-42010E5 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71771-42010P0 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71771-42010B3 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71771-42010E5 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42110E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71812-42110B1 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60100B5 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71862-60100E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-60020B3 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71868-60020E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-30070 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-30020 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60140 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-60150B5 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71876-60150E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60140 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60170B6 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71876-60170E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42130E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
2 | ||
| 71910-42130B1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
2 | ||
| 71910-42120E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
2 | ||
| 71910-42130B1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
2 | ||
| 71910-42120B1 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
2 | ||
| 71910-42130E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B7 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-52030E3 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-52030B1 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B7 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-52030E3 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-52030B1 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-33060 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85820-60130 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-42160 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510-42160 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-42120 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510-42120 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90389-10041 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
ILLUST NO. 1 OF 7(0511-0808)LIMD
DRIVER:W(POWER SEAT & SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-42300E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71072-42301B2 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-42300B2 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-42300B2 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71072-42300E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71072-42230E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71072-42301E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71072-42230B0 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-42450B0 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-42370B1 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71073-42450E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71074-42090E0 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71074-42130B1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71074-42130E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71074-42130B1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-42370E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71074-42090B1 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71074-42090E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71074-42090B1 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71074-42130E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-42D90B2 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71200-42E60E3 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71200-42E60B3 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71200-42E60E3 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71200-42D90E2 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71200-42D90B2 |
ACA3#,GSA3#..JPP..LIMD DK.GRAY,TRIM1# |
1 | ||
| 71200-42D90E3 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71200-42E60E4 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71200-42D90B3 |
ACA3#,GSA3#..JPP..LIMD DK.GRAY,TRIM1# |
1 | ||
| 71200-42E60B3 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71200-42D90E2 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71200-42D90E4 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71200-42D90B4 |
ACA3#,GSA3#..JPP..LIMD DK.GRAY,TRIM1# |
1 | ||
| 71200-42E60B5 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71200-42E60B4 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71200-42E60E7 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-42070 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71052-42070 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71512-42050 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-42120 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 71552-42050 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71552-42050 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71552-42050 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71771-42010E6 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71771-42010E1 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71771-42010E6 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71771-42010B9 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71771-42010E5 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71771-42010P0 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71771-42010B3 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71771-42010E5 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42110E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71812-42110B1 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60100B5 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71862-60100E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-60020B3 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71868-60020E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-30070 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-30020 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60140 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-60150B5 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71876-60150E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60140 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60170B6 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71876-60170E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42130E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
2 | ||
| 71910-42130B1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
2 | ||
| 71910-42120E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
2 | ||
| 71910-42130B1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
2 | ||
| 71910-42120B1 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
2 | ||
| 71910-42130E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B7 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-52030E3 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-52030B1 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B7 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-52030E3 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-52030B1 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-33060 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-42030 |
ACA3#,GSA3#..JPP SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 73920-42030 |
ACA3#,GSA3#..JPP |
1 | ||
| 73920-42030 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85820-60130 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-42160 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510-42160 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-42120 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510-42120 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90389-10041 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
ILLUST NO. 3 OF 7(0511-0808)
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-42440E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71071-42440E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71071-42440B2 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71071-42390B1 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71071-42390E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71071-42441E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71071-42440B2 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71071-42441B2 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-42370E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71073-42470E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71073-42380E0 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71073-42450E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71073-42370B1 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71073-42470B1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-42450B0 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-42380B1 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71073-42380B1 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71073-42470E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71073-42380E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71073-42470B1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-42060 |
ACA3#,GSA3#..JPP..(LIMD,SPO) SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42060 |
ACA3#,GSA3#..JPP..(LIMD,SPO) |
1 | ||
| 71110-42060 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42050 |
ACA3#,GSA3#..JPP..(LIMD,SPO) |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-42090 |
ACA3#,GSA3#..JPP..(LIMD,SPO) |
1 | ||
| 71051-42050 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71051-42050 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-42080 |
ACA3#,GSA3#..JPP..(LIMD,SPO) |
1 | ||
| 71551-42100 |
ACA3#,GSA3#..JPP..(LIMD,SPO) |
1 | ||
| 71551-42100 |
ACA3#,GSA3#..JPP..(LIMD,SPO) SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42100 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71771-42010B3 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71771-42010E5 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71771-42010E6 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
1 | ||
| 71771-42010E1 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71771-42010E6 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
1 | ||
| 71771-42010E5 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
1 | ||
| 71771-42010B9 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
1 | ||
| 71771-42010P0 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42080B1 |
ACA3#,GSA3#..JPP..(LIMD,X) GRAY,TRIM1# |
1 | ||
| 71811-42080E0 |
ACA3#,GSA3#..JPP..(LIMD,X) FAWN,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-42070B1 |
ACA3#,GSA3#..JPP..(LIMD,X) GRAY,TRIM1# |
1 | ||
| 71861-42070E0 |
ACA3#,GSA3#..JPP..(LIMD,X) FAWN,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42030 |
ACA3#,GSA3#..JPP |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
ACA3#,GSA3#..JPP |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-42050B1 |
ACA3#,GSA3#..JPP..(LIMD,X) GRAY,TRIM1# |
1 | ||
| 71875-42050E0 |
ACA3#,GSA3#..JPP..(LIMD,X) FAWN,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACA3#,GSA3#..JPP |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-42050B1 |
ACA3#,GSA3#..JPP..(LIMD,X) GRAY,TRIM1# |
1 | ||
| 71876-42050E0 |
ACA3#,GSA3#..JPP..(LIMD,X) FAWN,TRIM4# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACA3#,GSA3#..JPP |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42130E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4# |
2 | ||
| 71910-42130B1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1# |
2 | ||
| 71910-42120E0 |
ACA3#,GSA3#..JPP..LIMD FAWN,TRIM4# |
2 | ||
| 71910-42130B1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1# |
2 | ||
| 71910-42120B1 |
ACA3#,GSA3#..JPP..LIMD GRAY,TRIM1# |
2 | ||
| 71910-42130E1 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B7 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-52030E3 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-52030B1 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B7 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E0 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W/O(BUTTON),FAWN,TRIM4# |
2 | ||
| 71931-42020B7 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71930-42020E0 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-52030E3 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),FAWN,TRIM4# |
2 | ||
| 71930-52030B1 |
ACA3#,GSA3#..JPP..(LIMD,X) W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-42010E0 |
ACA3#,GSA3#..JPP..(LIMD,X) FAWN,TRIM4# |
1 | ||
| 72525-42010B1 |
ACA3#,GSA3#..JPP..(LIMD,X) GRAY,TRIM1# |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-42160 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510-42160 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-42120 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510-42120 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8421 | ||||

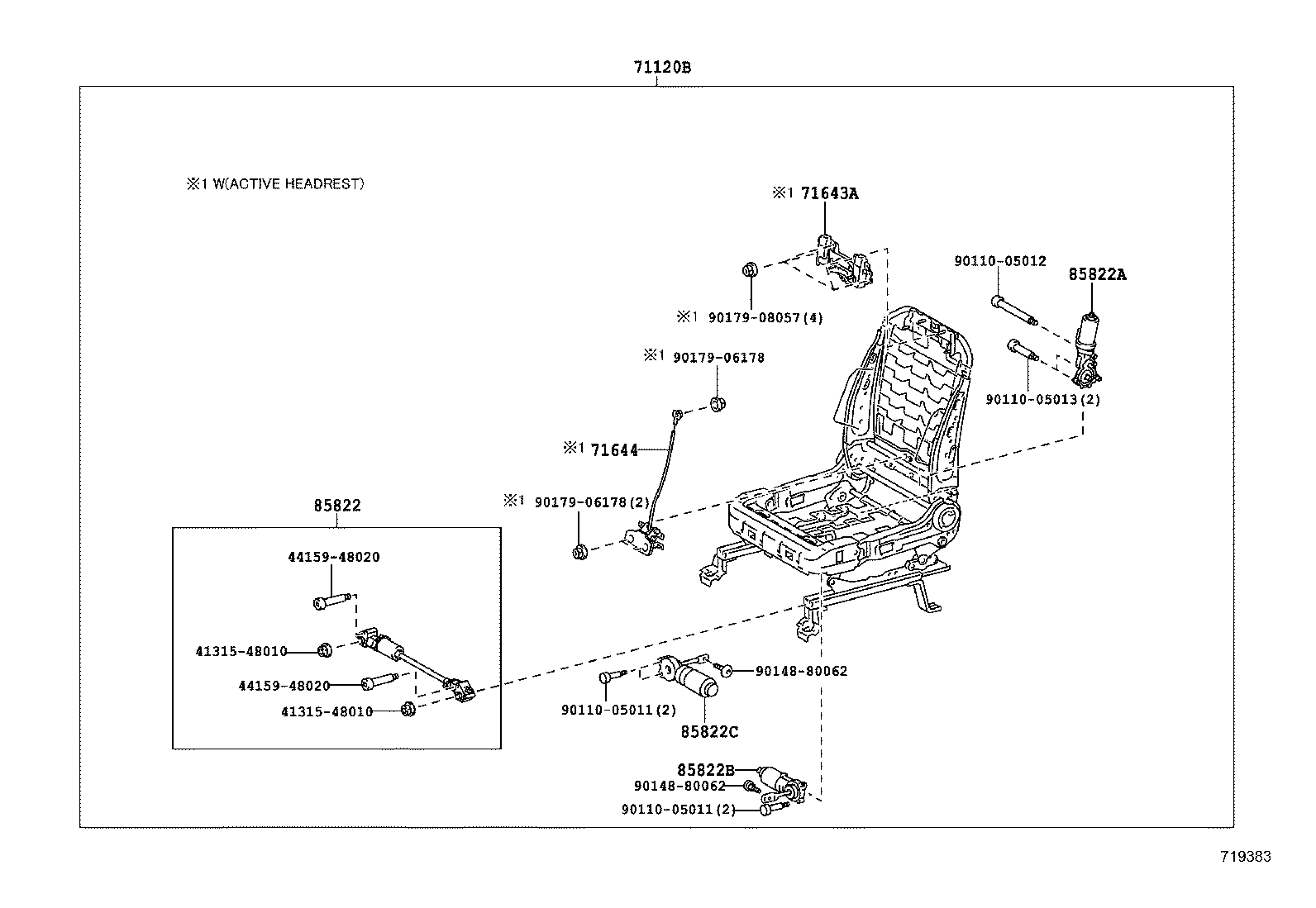

ILLUST NO. 2 OF 7(0511-0808)LIMD ; (0808- )LIMD,SPO
DRIVER, POWER SEAT FRAME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-42110 |
ACA3#,GSA3#..JPP..LIMD SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42100 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 71120-42110 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 71120-42110 |
ACA3#,GSA3#..JPP..LIMD SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 85822 - MOTOR ASSY, POWER SEAT SLIDE, LH | ||||
| 85801-42020 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 85822A - MOTOR ASSY, POWER SEAT RECLINING, LH | ||||
| 85801-60020 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 85822B - MOTOR ASSY, POWER SEAT TILT, LH | ||||
| 85801-60040 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| 85822C - MOTOR ASSY, POWER SEAT LIFTER, LH | ||||
| 85801-60030 |
ACA3#,GSA3#..JPP..LIMD |
1 | ||
| Common parts | ||||
| 41315-48010 | ||||
| 44159-48020 | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90148-80062 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
