GSA33L-ANAGKA (2006)

Toyota Rav4 (Jpp)

Production Jan 2006 - Aug 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )GSA3#

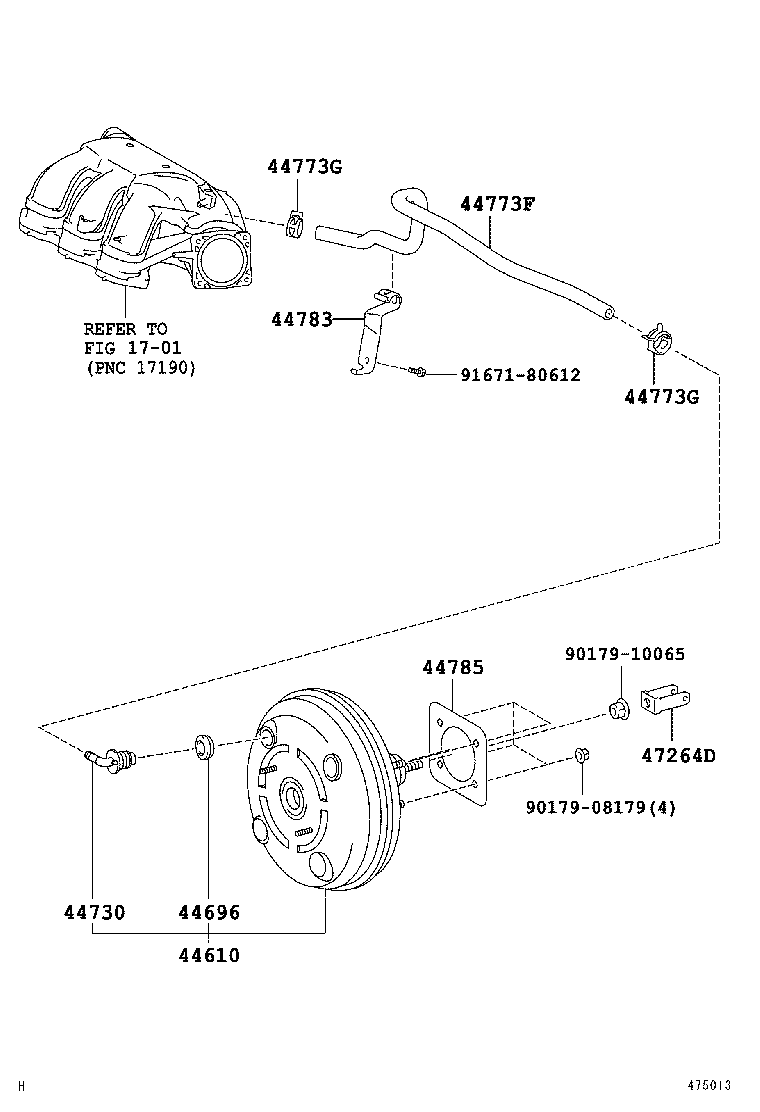

Click highlighted areas on diagram

diagram 1701 44610 44696 44730 44773F 44773G 44773G 44783 44785 47264D 9017908179 9017910065 9167180612
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-42320

GSA3#..JPP

 1
44610-42321

GSA3#..JPP

 1
44696 - GROMMET, CHECK VALVE
90480-24439

ACA3#,GSA3#..JPP

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-12070

ACA3#,GSA3#..JPP

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-42160

GSA3#..JPP

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
96133-41500

GSA3#..JPP

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
96133-41500

GSA3#..JPP

 2
44783 - CLAMP, VACUUM HOSE
44783-42020

GSA3#..JPP

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

ACA3#,GSA3#..JPP

 1
44785-42010

ACA3#,GSA3#..JPP

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-30060

GSA3#..JPP

 1
Common parts
90179-08179
90179-10065
91671-80612
Linked diagrams
1701
