GSA33L-ANAGKA (2006)

Toyota Rav4 (Jpp)

Production Jan 2006 - Aug 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

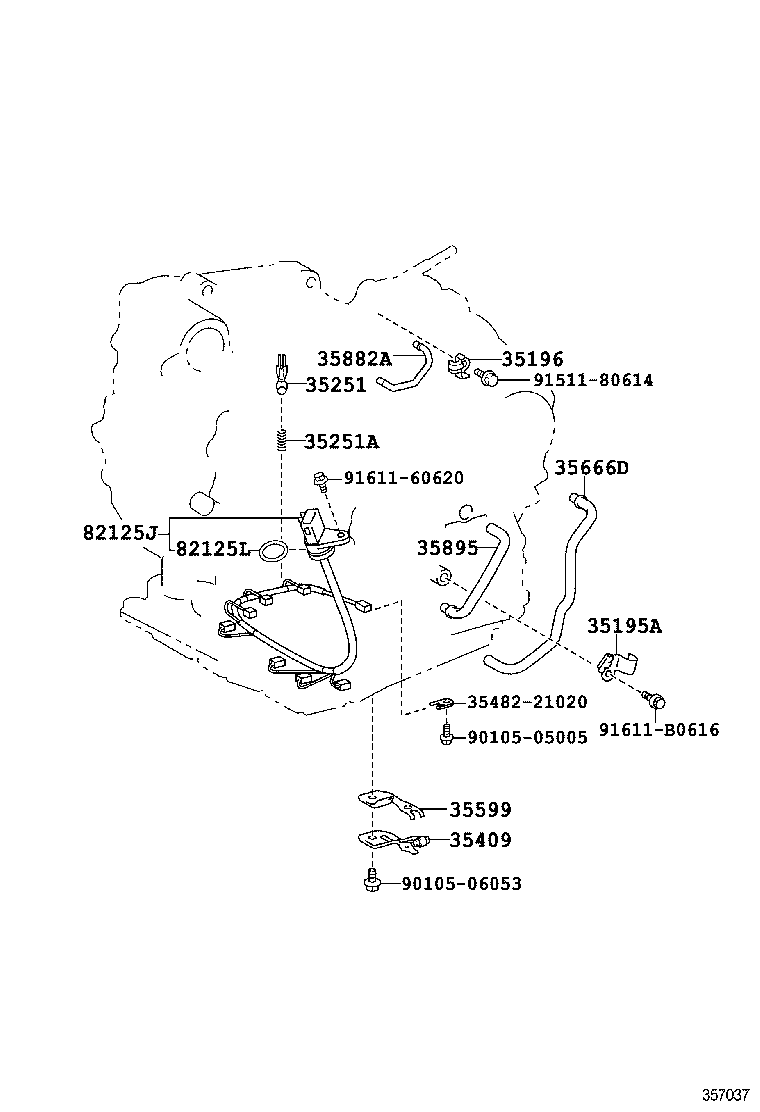

ILLUST NO. 2 OF 2(0601- )GSA3#

Click highlighted areas on diagram

U151E,U151F

diagram 35195A 35196 35251 35251A 35409 3548221020 35599 35666D 35882A 35895 82125J 82125L 9010505005 9010506053 9151180614 9161160620 91611B0616
Part # Description Qty Price
35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1
35195-21010

ACA3#,GSA3#..JPP

 1
35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2
35196-21010

ACA3#,GSA3#..JPP

 1
35251 - BODY, CHECK BALL
35251-30020

ACA3#,GSA3#..JPP

 1
35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY)
90501-03005

ACA3#,GSA3#..JPP

 1
35409 - SPRING SUB-ASSY, MANUAL DETENT
35409-21010

ACA3#,GSA3#..JPP

 1
35599 - COVER, MANUAL DETENT SPRING
35599-21010

ACA3#,GSA3#..JPP

 1
35666D - TUBE, BRAKE APPLY
35666-33010

GSA3#..JPP

 1
35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY
35882-28010

ACA33,GSA3#..JPP

 1
35895 - TUBE, FRONT CLUTCH APPLY
35895-28010

ACA3#,GSA3#..JPP

 1
82125J - WIRE, TRANSMISSION
82125-33060

GSA3#..JPP

 1
82125-48010

GSA3#..JPP

 1
82125L - RING, O(FOR TRANSMISSION WIRE)
90301-21009

ACA3#,GSA3#..JPP

 1
Common parts
35482-21020
90105-05005
90105-06053
91511-80614
91611-60620
91611-B0616

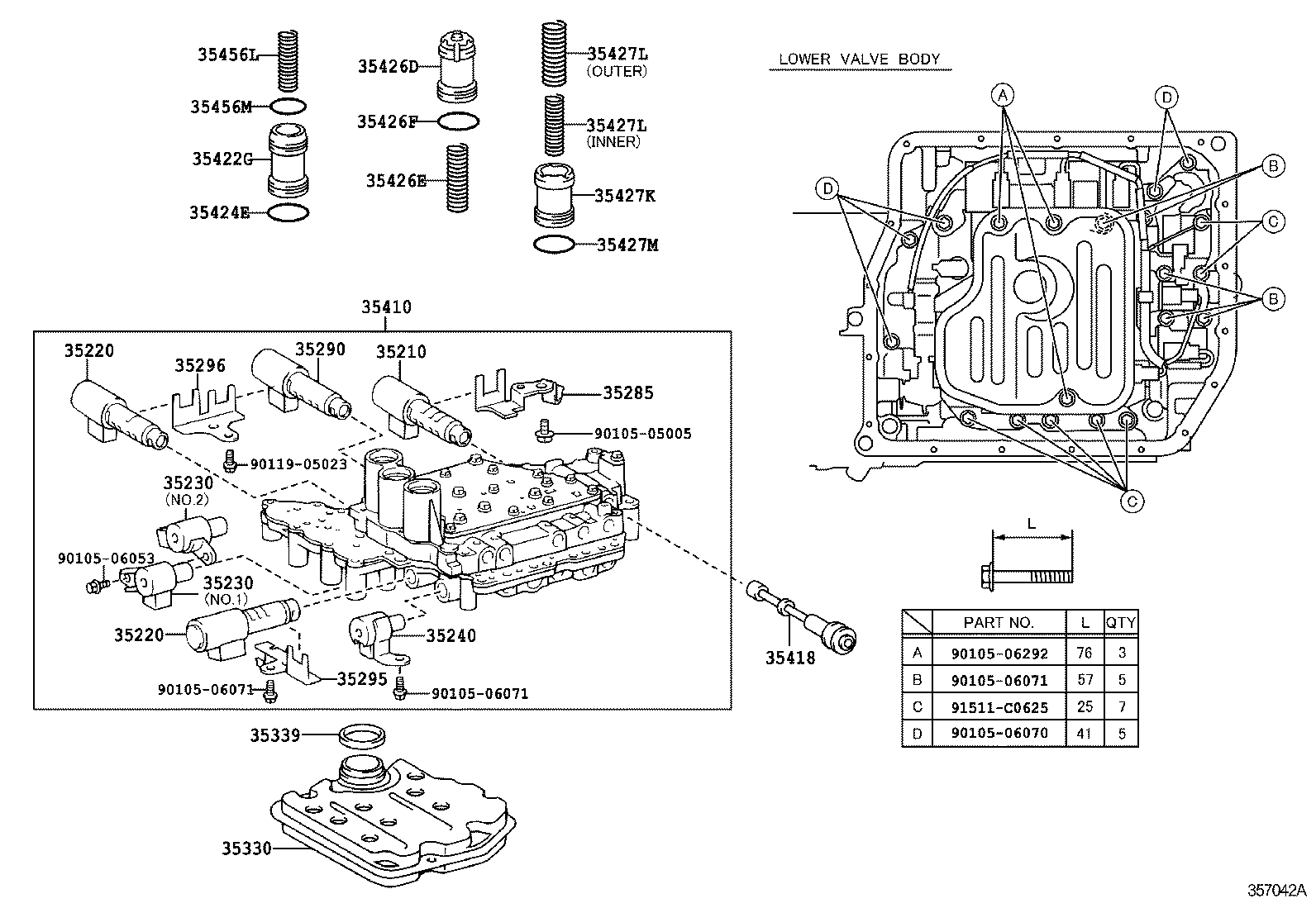

ILLUST NO. 1 OF 2(0601- )GSA3#

Click highlighted areas on diagram

U151E,U151F

diagram 35210 35220 35220 35230 35230 35240 35285 35290 35295 35296 35330 35339 35410 35418 35422G 35424E 35426D 35426E 35426F 35427K 35427L 35427L 35427M 35456L 35456M 9010505005 9010506053 9010506070 9010506071 9010506071 9010506071 9010506292 9011905023 91511C0625
Part # Description Qty Price
35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1
35210-33020

GSA3#..JPP

 1
35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2
35220-33020

GSA3#..JPP

 2
35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2
35220-33020

GSA3#..JPP

 2
35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2
35230-33010

GSA3#..JPP

NO.1

 1
35230-33020

GSA3#..JPP

NO.2

 1
35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2
35230-33010

GSA3#..JPP

NO.1

 1
35230-33020

GSA3#..JPP

NO.2

 1
35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35240-33030

GSA3#..JPP

 1
35285 - PLATE, SOLENOID LOCK
35285-33030

GSA3#..JPP

 1
35290 - SOLENOID ASSY, LINE PRESSURE CONTROL
35290-33020

GSA3#..JPP

 1
35295 - PLATE, SOLENOID LOCK, NO.2
35295-33010

GSA3#..JPP

 1
35296 - PLATE, SOLENOID LOCK, NO.3
35296-33010

GSA3#..JPP

 1
35330 - STRAINER ASSY, VALVE BODY OIL
35330-08010

GSA3#..JPP

 1
35339 - GASKET, OIL STRAINER
90301-32012

GSA3#..JPP

 1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-33131

GSA33..JPP

 1
35410-33130

GSA33..JPP

 1
35418 - VALVE, MANUAL
35418-33010

GSA3#..JPP

 1
35422G - PISTON, REVERSE CLUTCH ACCUMULATOR
35422-33040

GSA33..JPP

 1
35422-33040

GSA33..JPP

 1
35424E - RING, O (FOR C-1 ACCUMULATOR PISTON)
90301-30007

GSA3#..JPP

 1
35426D - PISTON, C-3 ACCUMULATOR
35406-21010

ACA3#,GSA3#..JPP

 1
35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
90501-22056

GSA3#..JPP

 1
35426F - RING, O (FOR C-3 ACCUMULATOR PISTON)
90301-30007

ACA3#,GSA3#..JPP

 1
35427K - PISTON, B-3 ACCUMULATOR
35427-28010

ACA3#,GSA3#..JPP

 1
35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)
90501-26096

GSA3#..JPP

OUTER

 1
90501-19037

GSA3#..JPP

INNER

 1
35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)
90501-26096

GSA3#..JPP

OUTER

 1
90501-19037

GSA3#..JPP

INNER

 1
35427M - RING, O (FOR B-3 ACCUMULATOR PISTON)
90301-28008

ACA3#,GSA3#..JPP

 1
35456L - SPRING, COMPRESSION (FOR C-2 CONTROL VALVE)
90501-19038

GSA3#..JPP

 1
35456M - RING, O (FOR C-2 CONTROL)
90301-19016

GSA33..JPP

 1
90301-19016

GSA33..JPP

 1
Common parts
90105-05005
90105-06053
90105-06070
90105-06071
90105-06292
90119-05023
91511-C0625
