GSA33L-ANAGKA (2006)
Toyota Rav4 (Jpp)
(0601- )GSA3#
U151E,U151F

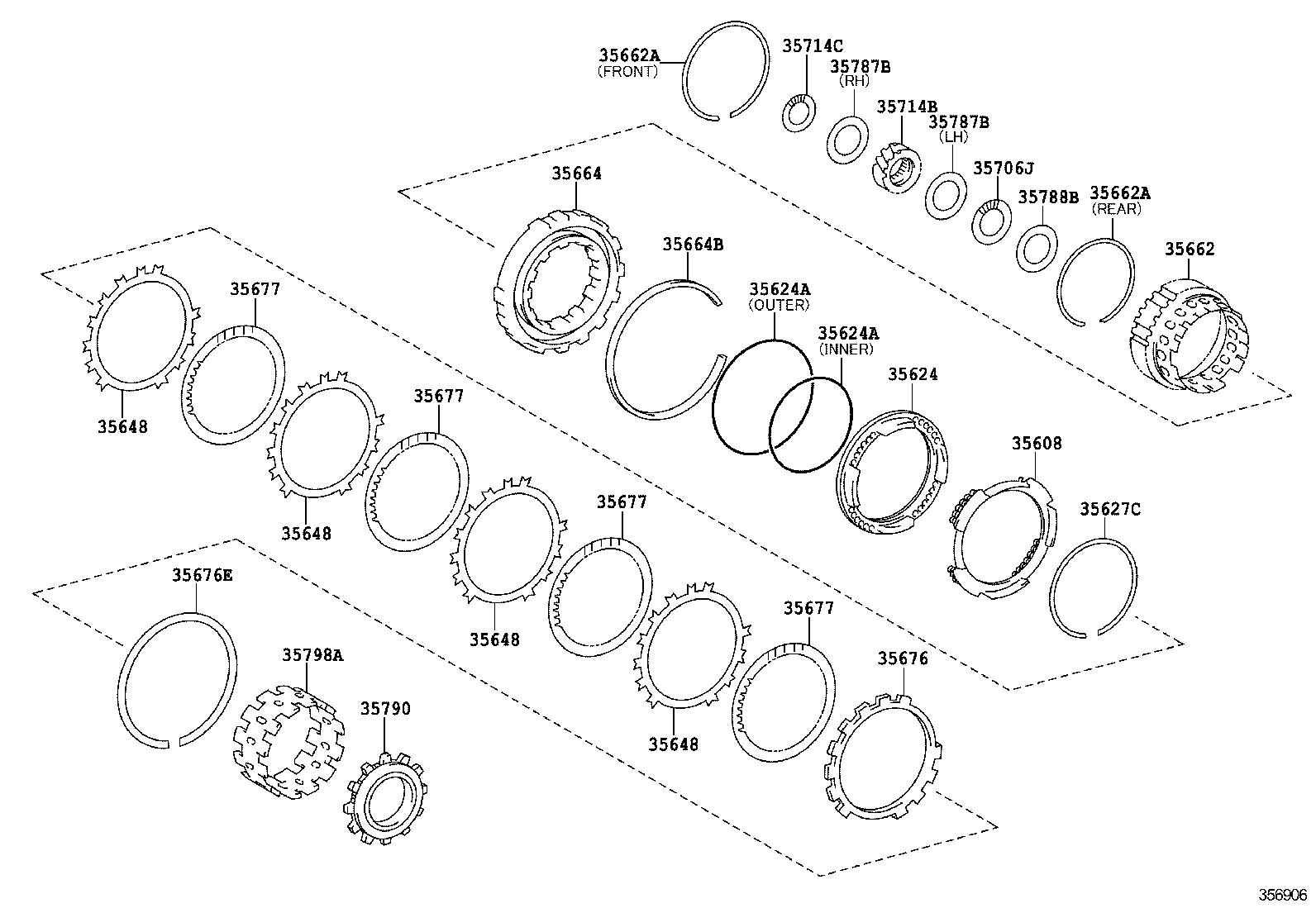

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-21010 |
ACA3#,GSA3#..JPP |
1 | ||
| 35624 - PISTON, 2ND BRAKE | ||||
| 35624-33020 |
GSA3#..JPP |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90301-99093 |
ACA3#,GSA3#..JPP OUTER |
1 | ||
| 90301-99095 |
ACA3#,GSA3#..JPP INNER |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90301-99093 |
ACA3#,GSA3#..JPP OUTER |
1 | ||
| 90301-99095 |
ACA3#,GSA3#..JPP INNER |
1 | ||
| 35627C - RING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEA | ||||
| 90520-99036 |
ACA3#,GSA3#..JPP |
1 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35691-28010 |
GSA3#..JPP T=2.0 |
4 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35691-28010 |
GSA3#..JPP T=2.0 |
4 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35691-28010 |
GSA3#..JPP T=2.0 |
4 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35691-28010 |
GSA3#..JPP T=2.0 |
4 | ||
| 35662 - HUB, BRAKE | ||||
| 35662-28010 |
ACA3#,GSA3#..JPP |
1 | ||
| 35662A - RING, SNAP (FOR BRAKE HUB) | ||||
| 90520-99033 |
ACA3#,GSA3#..JPP FRONT |
1 | ||
| 90520-99024 |
ACA3#,GSA3#..JPP REAR |
1 | ||
| 35662A - RING, SNAP (FOR BRAKE HUB) | ||||
| 90520-99033 |
ACA3#,GSA3#..JPP FRONT |
1 | ||
| 90520-99024 |
ACA3#,GSA3#..JPP REAR |
1 | ||
| 35664 - CYLINDER, 2ND BRAKE | ||||
| 35664-33010 |
ACA3#,GSA3#..JPP |
1 | ||
| 35664B - RING, HOLE SNAP (FOR 2ND BRAKE CYLINDER) | ||||
| 90520-99027 |
ACA3#,GSA3#..JPP |
1 | ||
| 35676 - FLANGE, BRAKE (FOR 2ND BRAKE) | ||||
| 35676-21070 |
ACA3#,GSA3#..JPP T=3.0,MARK 1 |
1 | ||
| 35676-21100 |
ACA3#,GSA3#..JPP T=3.3,MARK 4 |
1 | ||
| 35676-21080 |
ACA3#,GSA3#..JPP T=3.1,MARK 2 |
1 | ||
| 35676-21120 |
ACA3#,GSA3#..JPP T=3.5,MARK 6 |
1 | ||
| 35676-21130 |
ACA3#,GSA3#..JPP T=3.6,MARK 7 |
1 | ||
| 35676-21110 |
ACA3#,GSA3#..JPP T=3.4,MARK 5 |
1 | ||
| 35676-21090 |
ACA3#,GSA3#..JPP T=3.2,MARK 3 |
1 | ||
| 35676E - RING, HOLE SNAP (FOR 2ND BRAKE) | ||||
| 90520-99026 |
ACA3#,GSA3#..JPP |
1 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35681-33010 |
GSA3#..JPP |
4 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35681-33010 |
GSA3#..JPP |
4 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35681-33010 |
GSA3#..JPP |
4 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35681-33010 |
GSA3#..JPP |
4 | ||
| 35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR) | ||||
| 90374-40004 |
GSA3#..JPP |
1 | ||
| 35714B - GEAR, INPUT SUN | ||||
| 35714-33010 |
GSA3#..JPP |
1 | ||
| 35714C - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SUN GEAR) | ||||
| 90374-32011 |
GSA3#..JPP |
1 | ||
| 35787B - RACE, THRUST BEARING, NO.2 | ||||
| 34739-33010 |
GSA3#..JPP RH |
1 | ||
| 35787-21010 |
GSA3#..JPP LH |
1 | ||
| 35787B - RACE, THRUST BEARING, NO.2 | ||||
| 34739-33010 |
GSA3#..JPP RH |
1 | ||
| 35787-21010 |
GSA3#..JPP LH |
1 | ||
| 35788B - RACE, THRUST BEARING, NO.3 | ||||
| 35788-20011 |
GSA3#..JPP |
1 | ||
| 35788-20010 |
GSA3#..JPP |
1 | ||
| 35790 - CLUTCH ASSY, 1 WAY | ||||
| 35790-28020 |
GSA3#..JPP |
1 | ||
| 35798A - SLEEVE, 1WAY CLUTCH, OUTER | ||||
| 35798-28010 |
ACA3#,GSA3#..JPP |
1 | ||
