GSA33L-ANAGKA (2006)

Toyota Rav4 (Jpp)

Production Jan 2006 - Aug 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

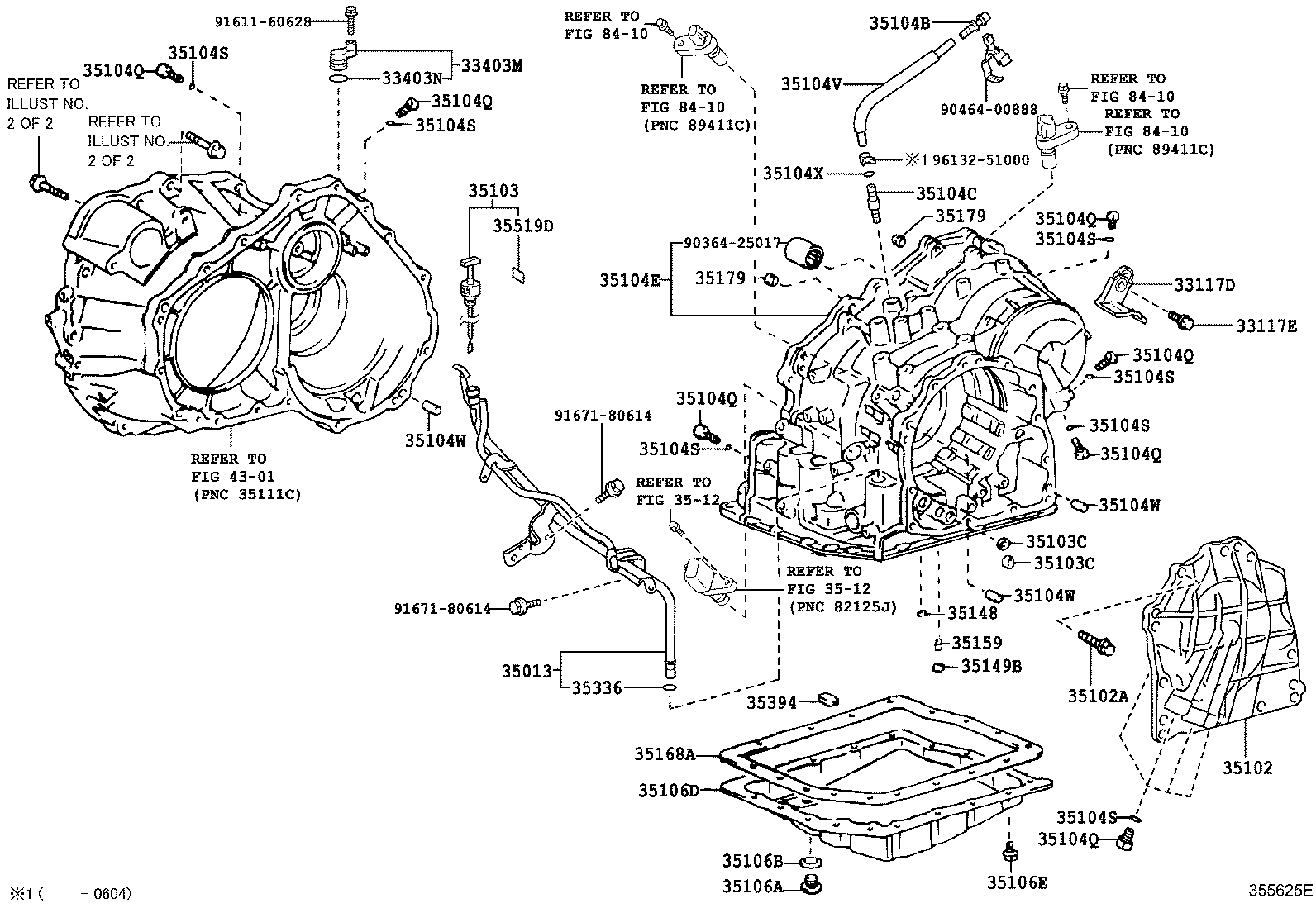

ILLUST NO. 1 OF 2(0601- )GSA3#

Click highlighted areas on diagram

U151E,U151F

diagram 33117D 33117E 33403M 33403N 35013 35102 35102A 35103 35103C 35103C 35104B 35104C 35104E 35104Q 35104Q 35104Q 35104Q 35104Q 35104Q 35104Q 35104S 35104S 35104S 35104S 35104S 35104S 35104S 35104V 35104W 35104W 35104W 35104X 35106A 35106B 35106D 35106E 3512 3512 35148 35149B 35159 35168A 35179 35179 35336 35394 35519D 4301 8410 8410 8410 8410 9036425017 9046400888 9161160628 9167180614 9167180614 9613251000
Part # Description Qty Price
33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE
33117-21010

ACA33,GSA3#..JPP

 1
33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)
91641-H0820

ACA3#,GSA3#..JPP

 2
33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403-21020

ACA33,GSA3#..JPP

 1
33403N - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
96711-24020

ACA33,GSA3#..JPP

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-42110

GSA3#..JPP

 1
35102 - COVER SUB-ASSY, TRANSAXLE REAR
35102-20060

GSA3#..JPP

 1
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-08071

ACA3#,GSA3#..JPP

*8-1.25PX30-25

 11
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-42100

GSA3#..JPP

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03149

ACA3#,GSA3#..JPP

 1
35104C - PLUG, BREATHER, NO.2 (ATM)
90930-03183

GSA3#..JPP

 1
35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104-33041

GSA3#..JPP

 1
35104-33042

GSA3#..JPP

 1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

GSA3#..JPP

 10
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

GSA3#..JPP

 10
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

GSA3#..JPP

 10
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

GSA3#..JPP

 10
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

GSA3#..JPP

 10
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

GSA3#..JPP

 10
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

GSA3#..JPP

 10
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

GSA3#..JPP

 10
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

GSA3#..JPP

 10
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

GSA3#..JPP

 10
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

GSA3#..JPP

 10
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

GSA3#..JPP

 10
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

GSA3#..JPP

 10
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

GSA3#..JPP

 10
35104V - HOSE (FOR BREATHER PLUG)
35121-21020

ACA3#,GSA3#..JPP

 1
35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE)
90250-10034

ACA3#,GSA3#..JPP

 4
35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE)
90250-10034

ACA3#,GSA3#..JPP

 4
35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE)
90250-10034

ACA3#,GSA3#..JPP

 4
35104X - RING, O (FOR BREATHER PLUG)
90301-06005

ACA3#,GSA3#..JPP

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18016

ACA3#,GSA3#..JPP

 1
35106B - GASKET, DRAIN PLUG (ATM)
90430-18008

ACA3#,GSA3#..JPP

 1
35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106-33040

GSA3#..JPP

 1
35106E - BOLT (FOR TRANSAXLE OIL PAN)
90119-06173

ACA3#,GSA3#..JPP

 18
35148 - GASKET, GOVERNOR APPLY, NO.1
35145-21010

GSA3#..JPP

 4
35149B - GASKET, TRANSAXLE CASE 2ND BRAKE
35149-21010

ACA3#,GSA3#..JPP

 1
35159 - GASKET, BRAKE DRUM
35159-21010

ACA3#,GSA3#..JPP

 1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-21011

ACA3#,GSA3#..JPP

 1
35168-21010

ACA3#,GSA3#..JPP

 1
35179 - GASKET, OVERDRIVE BRAKE
35179-32010

ACA3#,GSA3#..JPP

 2
35179 - GASKET, OVERDRIVE BRAKE
35179-32010

ACA3#,GSA3#..JPP

 2
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

ACA3#,GSA3#..JPP

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-48010

GSA3#..JPP

 2
35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION
35519-41010

ACA3#,GSA3#..JPP

 1
Common parts
90364-25017
90464-00888
91611-60628
91671-80614
96132-51000
