GSA33L-ANAGKA (2006)

Toyota Rav4 (Jpp)

Production Jan 2006 - Aug 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

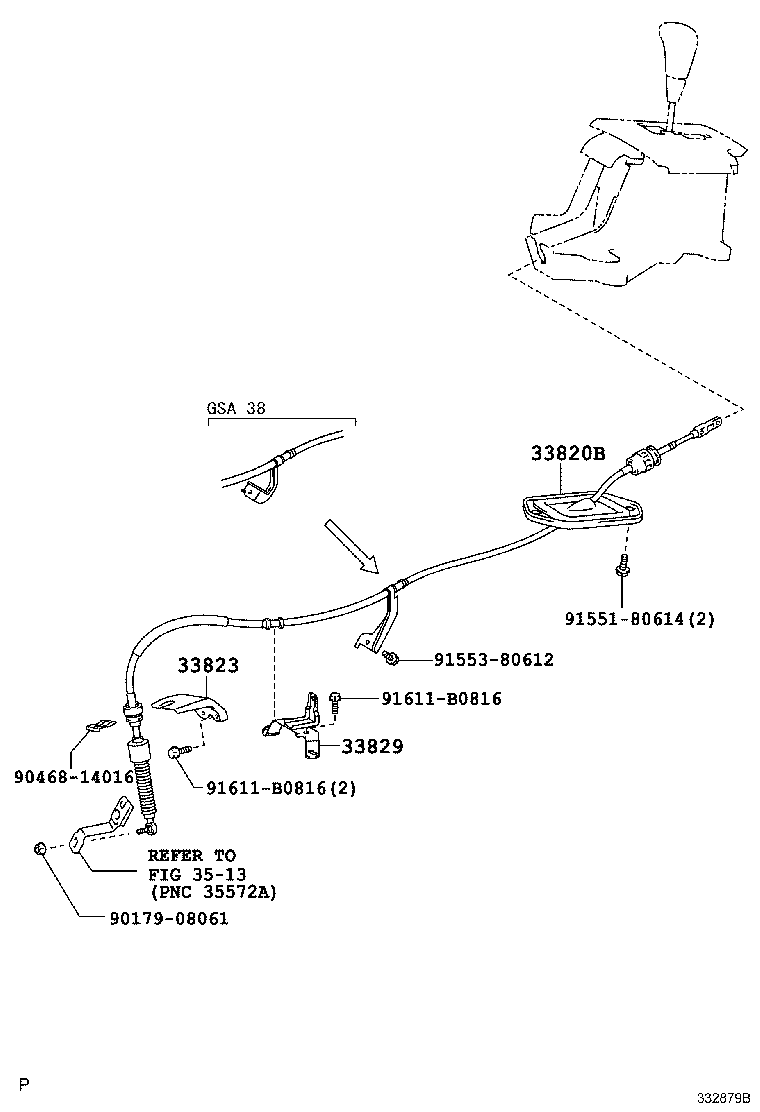

ILLUST NO. 2 OF 2(0601- )GSA3#

Click highlighted areas on diagram

diagram 33820B 33823 33829 3513 9017908061 9046814016 9155180614 9155380612 91611B0816 91611B0816
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-42270

GSA33..JPP

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-42020

GSA3#..JPP

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-42040

GSA3#..JPP

 1
Common parts
90179-08061
90468-14016
91551-80614
91553-80612
91611-B0816
Linked diagrams
3513
