GSA33L-ANAGKA (2006)
Toyota Rav4 (Jpp)
(0601- )2GRFE
12V 100A,150A

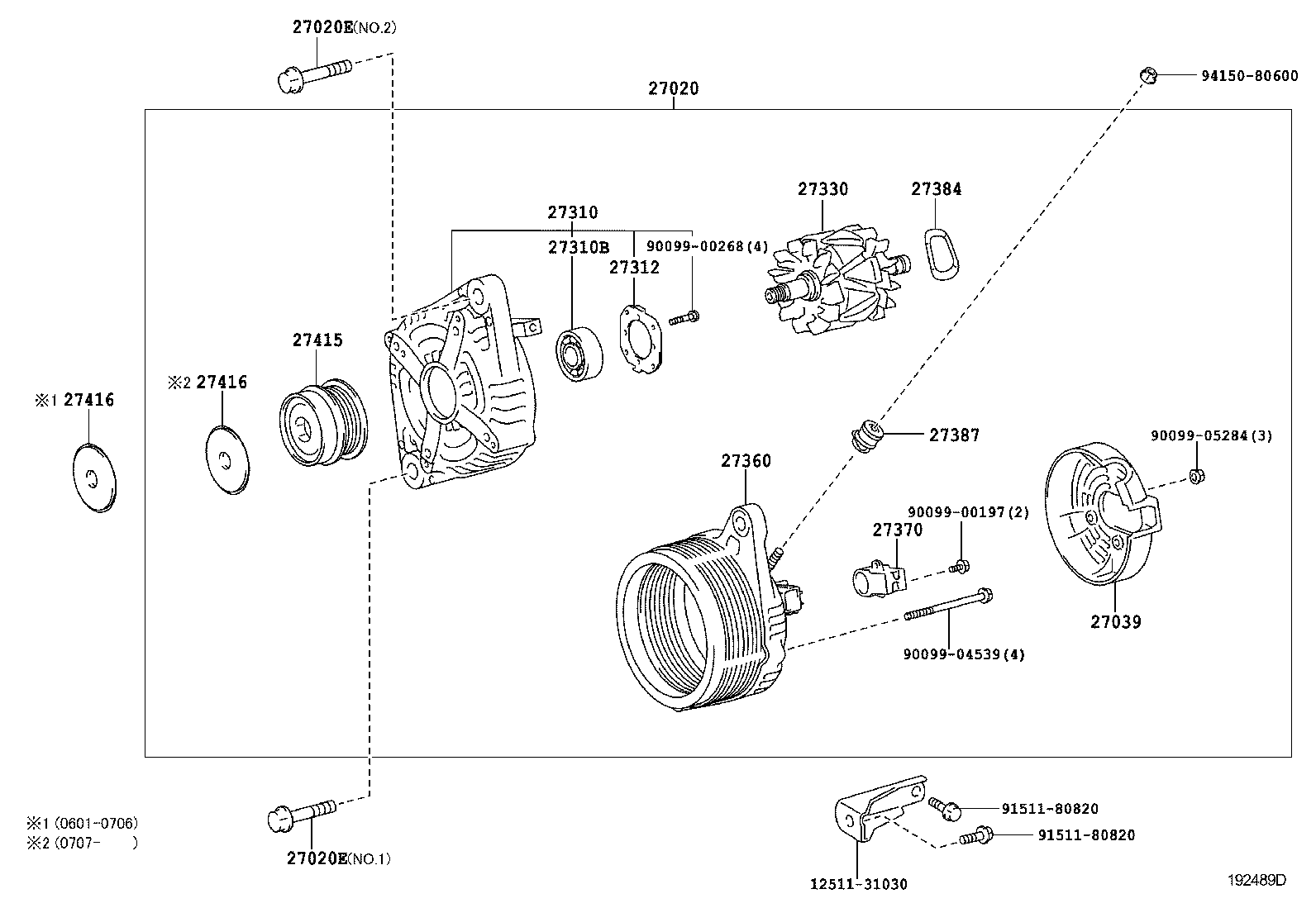

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-31090 |
2GRFE..GSA3#..JPP 12V 100A |
1 | ||
| 27060-31100 |
2GRFE..GSA3#..JPP..LIMD 12V 150A,TELEVISION & VTR-REAR MONITOR(RSE) |
1 | ||
| 27060-31100 |
2GRFE..GSA3#..JPP..LIMD 12V 150A,WITH(TOWING PACKAGE)&TELEVISION & VTR-REAR MONITOR(RSE) |
1 | ||
| 27060-31091 |
2GRFE..GSA3#..JPP 12V 100A |
1 | ||
| 27060-31101 |
2GRFE..GSA3#..JPP..LIMD 12V 150A,TELEVISION & VTR-REAR MONITOR(RSE) |
1 | ||
| 27060-31101 |
2GRFE..GSA3#..JPP 12V 150A,WITH(TOWING PACKAGE) |
1 | ||
| 27060-31101 |
2GRFE..GSA3#..JPP..LIMD 12V 150A,WITH(TOWING PACKAGE)&TELEVISION & VTR-REAR MONITOR(RSE) |
1 | ||
| 27060-31100 |
2GRFE..GSA3#..JPP 12V 150A,WITH(TOWING PACKAGE) |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91552-81040 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 91552-81070 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91552-81040 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 91552-81070 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-27060 |
2AZFE,2GRFE..ACA3#,GSA3#..JPP |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-31290 |
2GRFE..GSA3#..JPP |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
2GRFE..GSA3#..JPP..LIMD WITH(TOWING PACKAGE)&TELEVISION & VTR-REAR MONITOR(RSE) |
1 | ||
| 90099-10223 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 90099-10223 |
2AZFE,2GRFE..ACA3#,GSA3#..JPP |
1 | ||
| 90099-10142 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 90099-10142 |
2GRFE..GSA3#..JPP..LIMD TELEVISION & VTR-REAR MONITOR(RSE) |
1 | ||
| 90099-10142 |
2AZFE,2GRFE..ACA3#,GSA3#..JPP |
1 | ||
| 90099-10223 |
2GRFE..GSA3#..JPP..LIMD TELEVISION & VTR-REAR MONITOR(RSE) |
1 | ||
| 90099-10142 |
2GRFE..GSA3#..JPP..LIMD WITH(TOWING PACKAGE)&TELEVISION & VTR-REAR MONITOR(RSE) |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
2AZFE,2GRFE..ACA3#,GSA3#..JPP |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-58460 |
2GRFE..GSA3#..JPP..LIMD WITH(TOWING PACKAGE)&TELEVISION & VTR-REAR MONITOR(RSE) |
1 | ||
| 27330-58460 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 27330-30070 |
2AZFE,2GRFE..ACA3#,GSA3#..JPP |
1 | ||
| 27330-58460 |
2GRFE..GSA3#..JPP..LIMD TELEVISION & VTR-REAR MONITOR(RSE) |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-31300 |
2GRFE..GSA3#..JPP..LIMD WITH(TOWING PACKAGE)&TELEVISION & VTR-REAR MONITOR(RSE) |
1 | ||
| 27360-31300 |
2GRFE..GSA3#..JPP..LIMD TELEVISION & VTR-REAR MONITOR(RSE) |
1 | ||
| 27360-31300 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 27360-31290 |
2GRFE..GSA3#..JPP |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
2GRFE..GSA3#..JPP |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
2AZFE,2GRFE..ACA3#,GSA3#..JPP |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
2AZFE,2GRFE..ACA3#,GSA3#..JPP |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W010 |
2GRFE..GSA3#..JPP |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W010 |
2GRFE..GSA3#..JPP |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W010 |
2GRFE..GSA3#..JPP |
1 | ||
| Common parts | ||||
| 12511-31030 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05284 | ||||
| 91511-80820 | ||||
| 94150-80600 | ||||
