GSA33L-ANAGKA (2006)

Toyota Rav4 (Jpp)

Production Jan 2006 - Aug 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )2GRFE

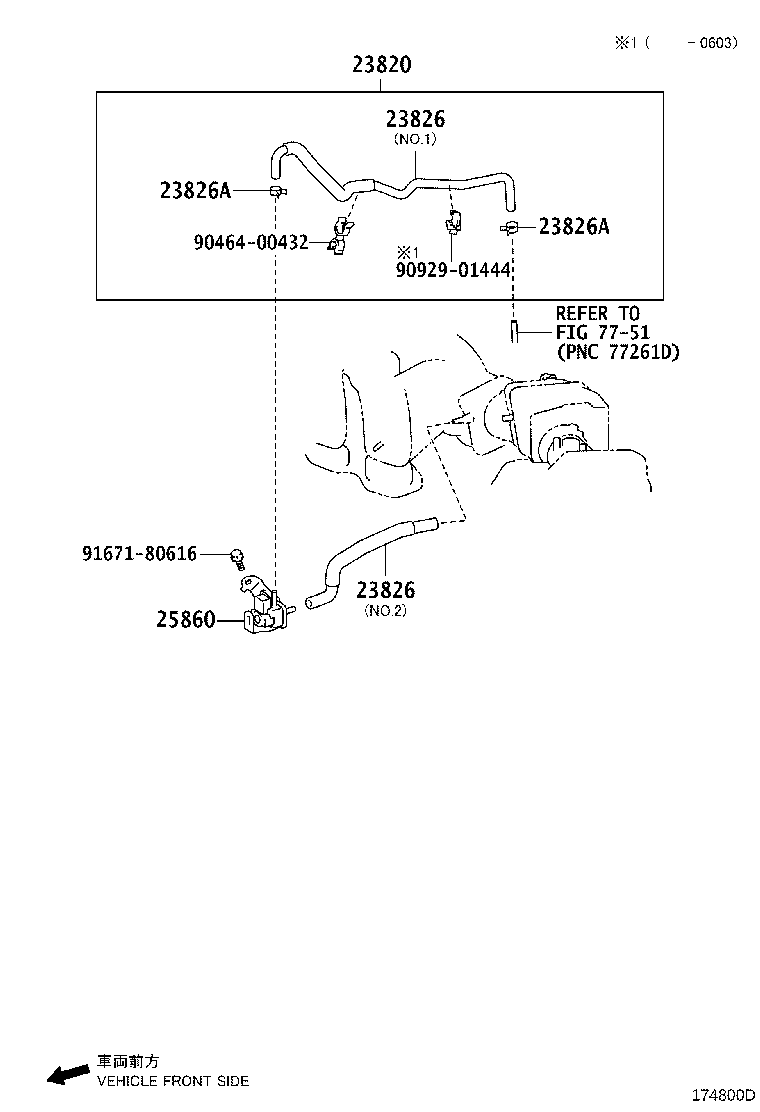

Click highlighted areas on diagram

diagram 23820 23826 23826 23826A 23826A 25860 7751 9046400432 9092901444 9167180616
Part # Description Qty Price
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-31061

2GRFE..GSA3#..JPP

 1
23820-31060

2GRFE..GSA3#..JPP

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-31090

2GRFE..GSA3#..JPP

NO.1

 1
23826-31091

2GRFE..GSA3#..JPP

NO.1

 1
23826-31110

2GRFE..GSA3#..JPP

NO.2

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-31090

2GRFE..GSA3#..JPP

NO.1

 1
23826-31091

2GRFE..GSA3#..JPP

NO.1

 1
23826-31110

2GRFE..GSA3#..JPP

NO.2

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-11003

2GRFE..GSA3#..JPP

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-11003

2GRFE..GSA3#..JPP

 2
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31070

2GRFE..GSA3#..JPP

 1
Common parts
90464-00432
90929-01444
91671-80616
Linked diagrams
7751
