GSA33L-ANAGKA (2006)
Toyota Rav4 (Jpp)

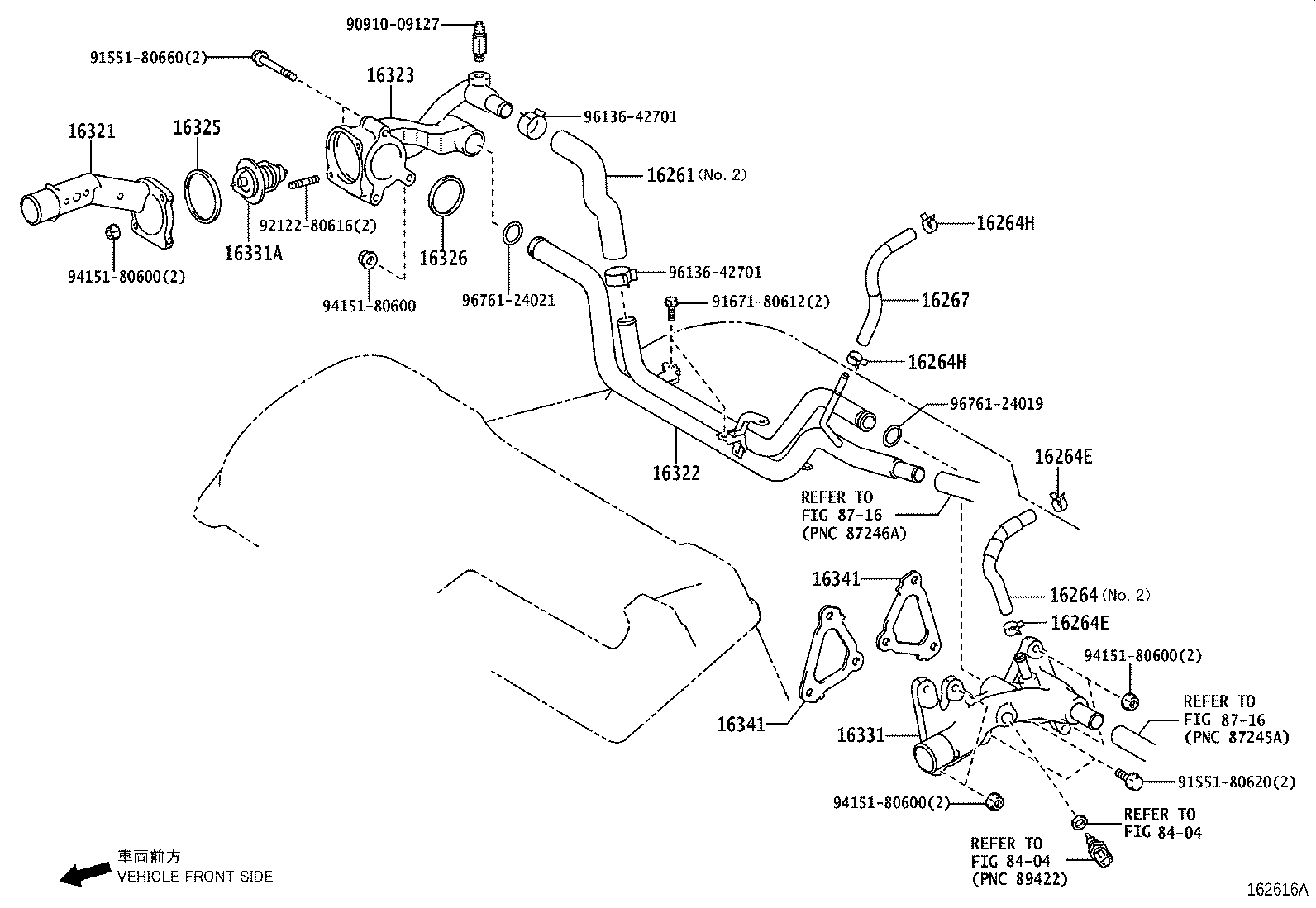

ILLUST NO. 2 OF 2(0601- )2GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-31050 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 16261-28070 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31081 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 16264-28090 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2GRFE..GSA3#..JPP |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2GRFE..GSA3#..JPP |
2 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
2GRFE..GSA3#..JPP |
2 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
2GRFE..GSA3#..JPP |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-31040 |
2GRFE..GSA3#..JPP |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-31011 |
2GRFE..GSA3#..JPP |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-31010 |
2GRFE..GSA3#..JPP |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-0W011 |
2GRFE..GSA3#..JPP |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2GRFE..GSA3#..JPP |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-31010 |
2GRFE..GSA3#..JPP |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-31140 |
2GRFE..GSA3#..JPP |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03140 |
2GRFE..GSA3#..JPP *WAX 82-95 |
1 | ||
| 90916-03133 |
2GRFE..GSA3#..JPP *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GRFE..GSA3#..JPP |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GRFE..GSA3#..JPP |
2 | ||
| Common parts | ||||
| 90910-09127 | ||||
| 91551-80620 | ||||
| 91551-80660 | ||||
| 91671-80612 | ||||
| 92122-80616 | ||||
| 94151-80600 | ||||
| 96136-42701 | ||||
| 96761-24019 | ||||
| 96761-24021 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8716 | ||||

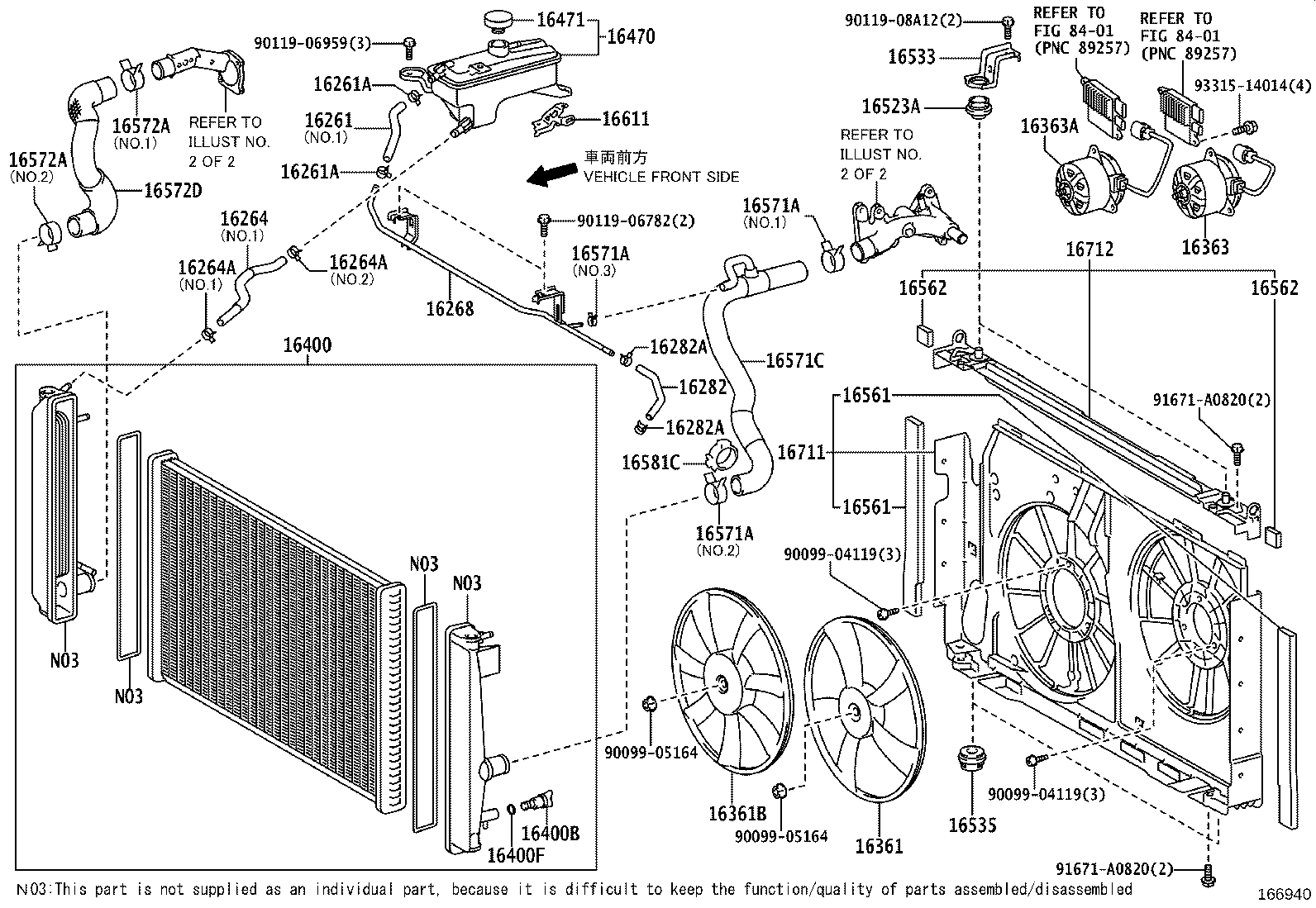

ILLUST NO. 1 OF 2(0601- )2GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-31050 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 16261-28070 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2GRFE..GSA3#..JPP |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2GRFE..GSA3#..JPP |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31081 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 16264-28090 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 96134-51700 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 96134-51700 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-31021 |
2GRFE..GSA3#..JPP |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-28120 |
2GRFE..GSA3#..JPP |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
2GRFE..GSA3#..JPP |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
2GRFE..GSA3#..JPP |
2 | ||
| 16361 - FAN | ||||
| 16361-31160 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 16361-28220 |
2GRFE..GSA3#..JPP |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-31170 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 16361-28240 |
2GRFE..GSA3#..JPP |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-31100 |
2GRFE..GSA3#..JPP |
1 | ||
| 16363-31120 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-31110 |
2GRFE..GSA3#..JPP |
1 | ||
| 16363-31130 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-31420 |
2GRFE..GSA3#..JPP |
1 | ||
| 16400-31430 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
2GRFE..GSA3#..JPP |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
2GRFE..GSA3#..JPP |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-28110 |
2GRFE..GSA3#..JPP |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16401-75120 |
2GRFE..GSA3#..JPP |
1 | ||
| 16475-51010 |
2GRFE..GSA3#..JPP |
1 | ||
| 16475-28120 |
2GRFE..GSA3#..JPP |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-28030 |
2GRFE..GSA3#..JPP |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-28030 |
2GRFE..GSA3#..JPP |
2 | ||
| 16533-31010 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-20030 |
2GRFE..GSA3#..JPP |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-28080 |
2GRFE..GSA3#..JPP |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-28080 |
2GRFE..GSA3#..JPP |
2 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16561-31070 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
2 | ||
| 16561-28090 |
2GRFE..GSA3#..JPP |
2 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16561-31070 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
2 | ||
| 16561-28090 |
2GRFE..GSA3#..JPP |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 90467-13073 |
2GRFE..GSA3#..JPP NO.3 |
1 | ||
| 90466-41005 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 90467-13073 |
2GRFE..GSA3#..JPP NO.3 |
1 | ||
| 90466-41005 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 90467-13073 |
2GRFE..GSA3#..JPP NO.3 |
1 | ||
| 90466-41005 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-31190 |
2GRFE..GSA3#..JPP |
1 | ||
| 16571-31191 |
2GRFE..GSA3#..JPP |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41005 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 90466-35001 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41005 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 90466-35001 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-31210 |
2GRFE..GSA3#..JPP |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-28030 |
2GRFE..GSA3#..JPP |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-31260 |
2GRFE..GSA3#..JPP |
1 | ||
| 16711-31270 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-31071 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 16712-31070 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 16712-28050 |
2GRFE..GSA3#..JPP |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06782 | ||||
| 90119-06959 | ||||
| 90119-08A12 | ||||
| 91671-A0820 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0601- )2GRFE
TOWING PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-31050 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 16261-28070 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2GRFE..GSA3#..JPP |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2GRFE..GSA3#..JPP |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31081 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 16264-28090 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 96134-51700 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 96134-51700 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-31021 |
2GRFE..GSA3#..JPP |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-28120 |
2GRFE..GSA3#..JPP |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
2GRFE..GSA3#..JPP |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
2GRFE..GSA3#..JPP |
2 | ||
| 16361 - FAN | ||||
| 16361-31160 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 16361-28220 |
2GRFE..GSA3#..JPP |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-31170 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 16361-28240 |
2GRFE..GSA3#..JPP |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-31100 |
2GRFE..GSA3#..JPP |
1 | ||
| 16363-31120 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-31110 |
2GRFE..GSA3#..JPP |
1 | ||
| 16363-31130 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-31420 |
2GRFE..GSA3#..JPP |
1 | ||
| 16400-31430 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
2GRFE..GSA3#..JPP |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
2GRFE..GSA3#..JPP |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-28110 |
2GRFE..GSA3#..JPP |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16401-75120 |
2GRFE..GSA3#..JPP |
1 | ||
| 16475-51010 |
2GRFE..GSA3#..JPP |
1 | ||
| 16475-28120 |
2GRFE..GSA3#..JPP |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-28030 |
2GRFE..GSA3#..JPP |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-28030 |
2GRFE..GSA3#..JPP |
2 | ||
| 16533-31010 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-20030 |
2GRFE..GSA3#..JPP |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-28080 |
2GRFE..GSA3#..JPP |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-28080 |
2GRFE..GSA3#..JPP |
2 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16561-31070 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
2 | ||
| 16561-28090 |
2GRFE..GSA3#..JPP |
2 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16561-31070 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
2 | ||
| 16561-28090 |
2GRFE..GSA3#..JPP |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 90467-13073 |
2GRFE..GSA3#..JPP NO.3 |
1 | ||
| 90466-41005 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 90467-13073 |
2GRFE..GSA3#..JPP NO.3 |
1 | ||
| 90466-41005 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 90467-13073 |
2GRFE..GSA3#..JPP NO.3 |
1 | ||
| 90466-41005 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-31190 |
2GRFE..GSA3#..JPP |
1 | ||
| 16571-31191 |
2GRFE..GSA3#..JPP |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41005 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 90466-35001 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41005 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 90466-35001 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-31210 |
2GRFE..GSA3#..JPP |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-28030 |
2GRFE..GSA3#..JPP |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-31260 |
2GRFE..GSA3#..JPP |
1 | ||
| 16711-31270 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-31071 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 16712-31070 |
2GRFE..GSA3#..JPP WITH(TOWING PACKAGE) |
1 | ||
| 16712-28050 |
2GRFE..GSA3#..JPP |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06782 | ||||
| 90119-06959 | ||||
| 90119-08A12 | ||||
| 91671-A0820 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
