GSA33L-ANAGKA (2006)

Toyota Rav4 (Jpp)

Production Jan 2006 - Aug 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )2GRFE

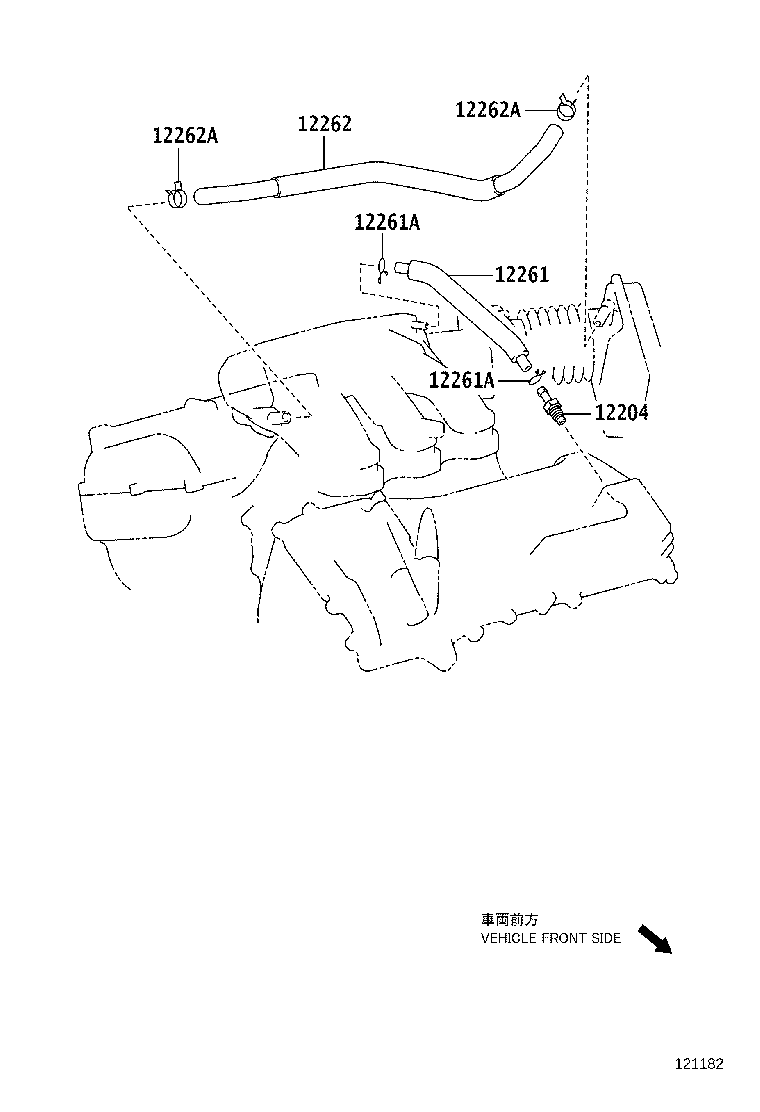

Click highlighted areas on diagram

diagram 12204 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-31040

2GRFE..GSA3#..JPP

 1
12261 - HOSE, VENTILATION
12261-31050

2GRFE..GSA3#..JPP

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

2GRFE..GSA3#..JPP

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

2GRFE..GSA3#..JPP

 2
12262 - HOSE, VENTILATION, NO.2
12262-31090

2GRFE..GSA3#..JPP

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

2GRFE..GSA3#..JPP

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

2GRFE..GSA3#..JPP

 2
