GSA33L-ANAGKA (2006)
Toyota Rav4 (Jpp)
Production
Jan 2006
-
Aug 2008
Engine
2GRFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0601- )2GRFE

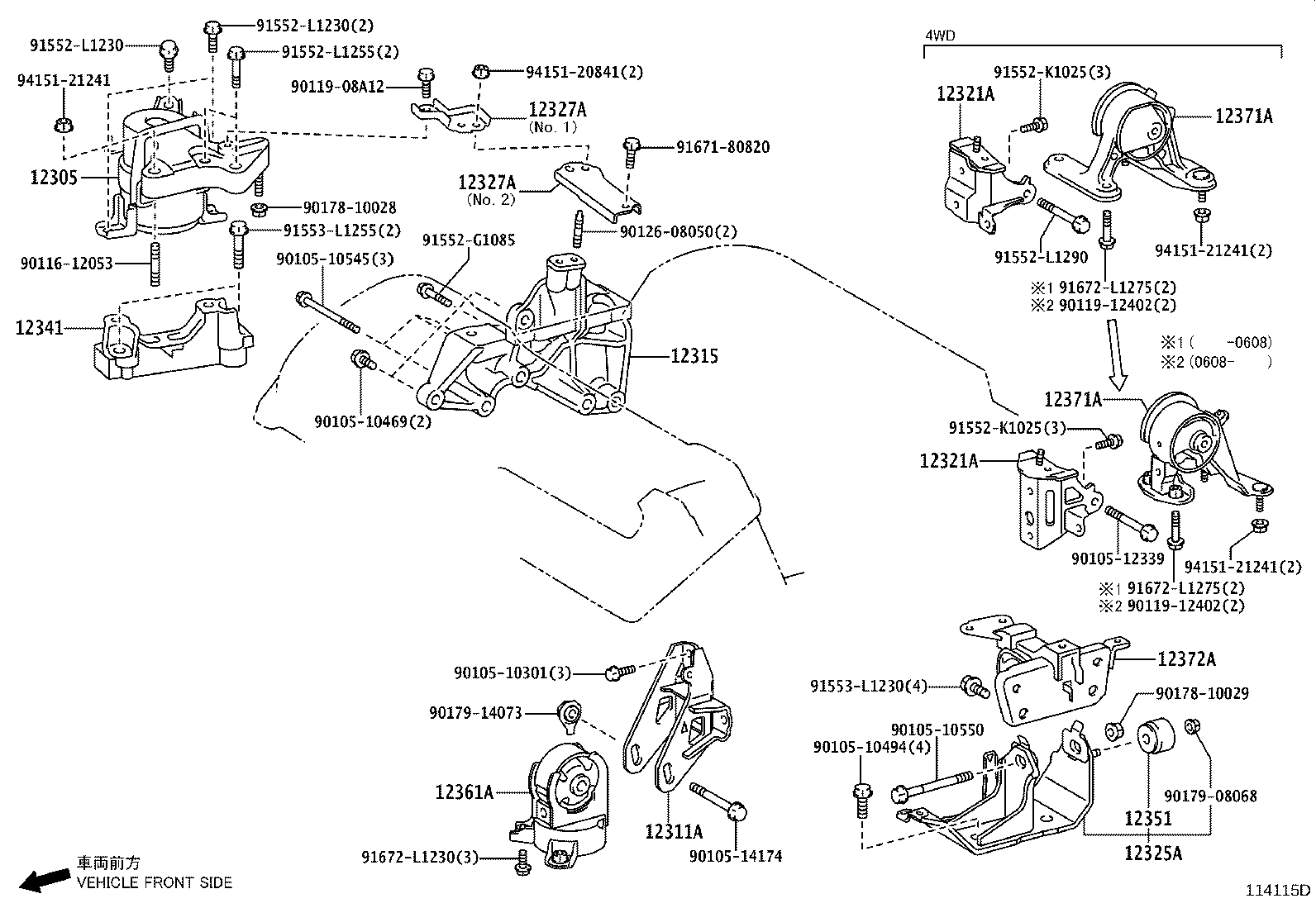

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-31020 |
2GRFE..GSA3#..JPP |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-31070 |
2GRFE..GSA3#..JPP |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-31110 |
2GRFE..GSA3#..JPP |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-31060 |
2GRFE..GSA33..JPP |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-31060 |
2GRFE..GSA33..JPP |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12304-31010 |
2GRFE..GSA3#..JPP |
1 | ||
| 12327A - STAY, ENGINE MOUNTING, NO.2 RH | ||||
| 12327-31040 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 12327-31010 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 12327A - STAY, ENGINE MOUNTING, NO.2 RH | ||||
| 12327-31040 |
2GRFE..GSA3#..JPP NO.1 |
1 | ||
| 12327-31010 |
2GRFE..GSA3#..JPP NO.2 |
1 | ||
| 12341 - SPACER, ENGINE MOUNTING | ||||
| 12341-26011 |
2GRFE..GSA3#..JPP |
1 | ||
| 12341-26010 |
2GRFE..GSA3#..JPP |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-23010 |
2GRFE..GSA3#..JPP |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-31160 |
2GRFE..GSA3#..JPP |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-31110 |
2GRFE..GSA33..JPP |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-31110 |
2GRFE..GSA33..JPP |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-31020 |
2GRFE..GSA3#..JPP |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10469 | ||||
| 90105-10494 | ||||
| 90105-10545 | ||||
| 90105-10550 | ||||
| 90105-12339 | ||||
| 90105-14174 | ||||
| 90116-12053 | ||||
| 90119-08A12 | ||||
| 90119-12402 | ||||
| 90126-08050 | ||||
| 90178-10028 | ||||
| 90178-10029 | ||||
| 90179-08068 | ||||
| 90179-14073 | ||||
| 91552-G1085 | ||||
| 91552-K1025 | ||||
| 91552-L1230 | ||||
| 91552-L1255 | ||||
| 91552-L1290 | ||||
| 91553-L1230 | ||||
| 91553-L1255 | ||||
| 91671-80820 | ||||
| 91672-L1230 | ||||
| 91672-L1275 | ||||
| 94151-20841 | ||||
| 94151-21241 | ||||
