GSA33L-ANAGKA (2006)

Toyota Rav4 (Jpp)

Production Jan 2006 - Aug 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )2GRFE

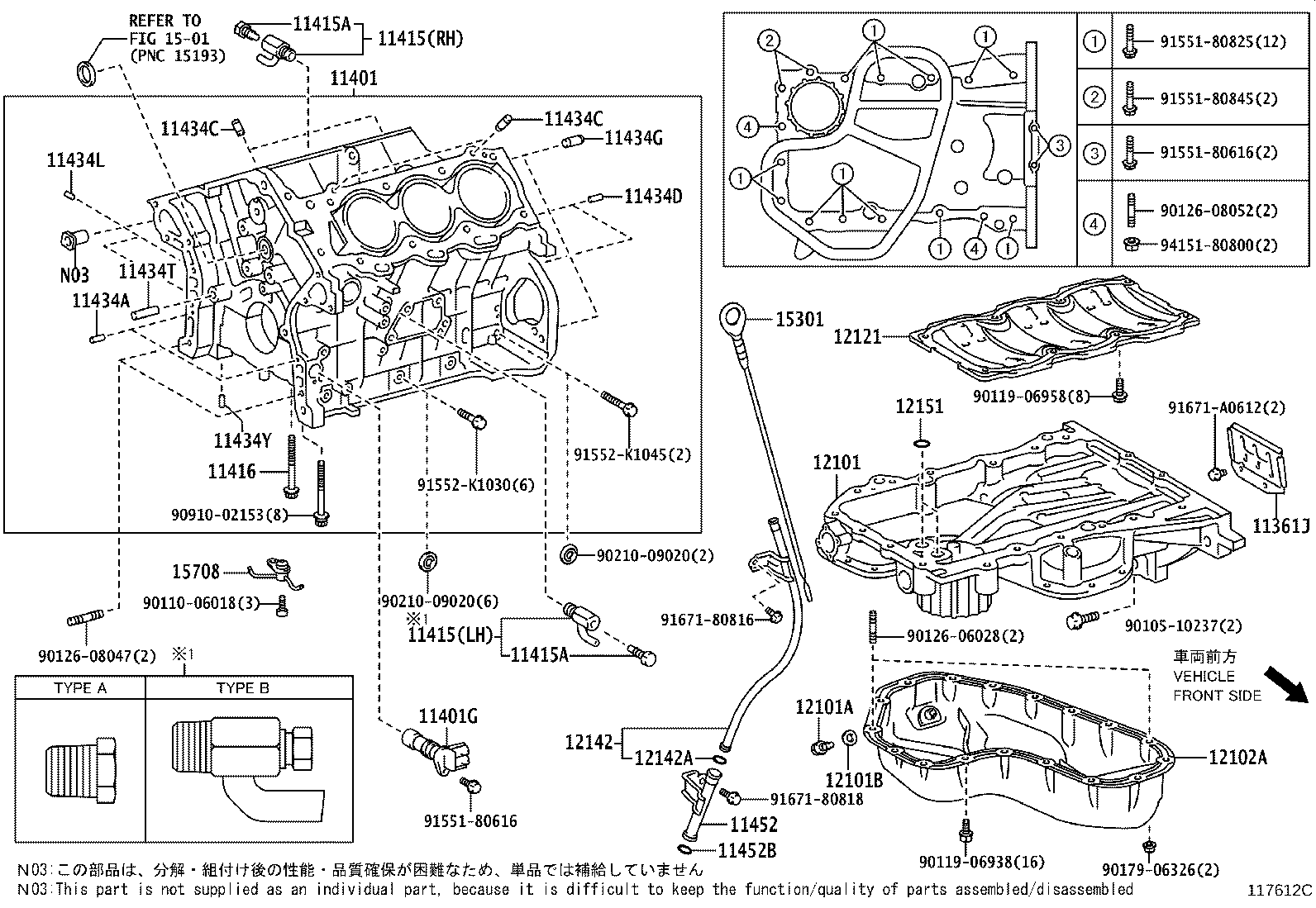

Click highlighted areas on diagram

diagram 11361J 11401 11401G 11415 11415 11415A 11415A 11416 11434A 11434C 11434C 11434D 11434G 11434L 11434T 11434Y 11452 11452B 12101 12101A 12101B 12102A 12121 12142 12142A 12151 1501 15301 15708 9010510237 9011006018 9011906938 9011906958 9012606028 9012608047 9012608052 9017906326 9021009020 9021009020 9091002153 9155180616 9155180616 9155180825 9155180845 91552K1030 91552K1045 9167180816 9167180818 91671A0612 9415180800
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-31060

2GRFE..GSA3#..JPP

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80718

2GRFE..GSA3#..JPP

 1
11401-80774

2GRFE..GSA3#..JPP

 1
11401G - SENSOR, CRANK POSITION
90919-05057

2GRFE..GSA3#..JPP

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

2GRFE..GSA3#..JPP

 2
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

2GRFE..GSA3#..JPP

 2
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

2GRFE..GSA3#..JPP

 2
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

2GRFE..GSA3#..JPP

 2
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02154

2GRFE..GSA3#..JPP

 8
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097

2GRFE..GSA3#..JPP

L=12,OD=4.0

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

2GRFE..GSA3#..JPP

L=18,OD=8

 4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

2GRFE..GSA3#..JPP

L=18,OD=8

 4
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-04097

2GRFE..GSA3#..JPP

L=12,OD=4.0

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10113

2GRFE..GSA3#..JPP

 2
11434L - PIN, STRAIGHT(FOR ENGINE MOUNTING)
90250-04097

2GRFE..GSA3#..JPP

 2
11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET)
90250-10030

2GRFE..GSA3#..JPP

 1
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-04097

2GRFE..GSA3#..JPP

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-31060

2GRFE..GSA3#..JPP

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
90301-12018

2GRFE..GSA3#..JPP

 1
12101 - PAN SUB-ASSY, OIL
12101-31121

2GRFE..GSA3#..JPP

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

2GRFE..GSA3#..JPP

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

2GRFE..GSA3#..JPP

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-31050

2GRFE..GSA3#..JPP

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-31070

2GRFE..GSA3#..JPP

 1
12142 - GUIDE, OIL LEVEL GAGE, NO.2
12142-31030

2GRFE..GSA3#..JPP

 1
12142A - RING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)
96721-19010

2GRFE..GSA3#..JPP

 1
12151 - GASKET, OIL PAN
12151-31010

2GRFE..GSA3#..JPP

 2
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-31090

2GRFE..GSA3#..JPP

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-31030

2GRFE..GSA3#..JPP

 3
Common parts
90105-10237
90110-06018
90119-06938
90119-06958
90126-06028
90126-08047
90126-08052
90179-06326
90210-09020
90910-02153
91551-80616
91551-80825
91551-80845
91552-K1030
91552-K1045
91671-80816
91671-80818
91671-A0612
94151-80800
