Toyota Rav4 (jpp) AXAH52 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
US
RAV4 (JPP)
AXAH52R-ANXMBW (2018)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

AXAH52R-ANXMBW (2018)

Toyota Rav4 (Jpp)

Production Nov 2018 - Jul 2020

Engine A25AFXS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1811-2007)AXAA54,AXAH5# ; (1905-2007)AXAL54 ; (1905-2007)AXAA52..X ; (2008- )AX

Click highlighted areas on diagram

AUTO AIR CONDITIONER

Part #	Description	Period	Qty
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-48170	AXAH5#..LHD..GEN;MXAA54..LHD..(G,M,V);AXAH5#,AXAL5#..EUR,GCC,RUS;MXAA52..6F..(G,M)..(EUR,GEN);AXAA5#,MXAA52..LHD..(ATM,CVT)..(G,M,V)	11/2018 - 09/2020	1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-33340	AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD	11/2018 - 07/2020	1
87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3
87106-28230	AXAH5#,AXAL5#..RHD..EUR	11/2018 - 07/2020	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-28250	MXAA52..RHD..6F..EUR;AXAH5#,AXAL5#..RHD..EUR	11/2018 - 07/2020	1

ILLUST NO. 1 OF 2(1811-2007)AXAA54,AXAH5# ; (1905-2007)AXAL54 ; (1905-2007)AXAA52..X ; (2008- )AX

Click highlighted areas on diagram

AUTO AIR CONDITIONER

Part #	Description	Period	Qty	Price
Common parts
90080-15077
90099-00968
90119-06951
90159-60303
90159-60383
90159-60431
90179-06282

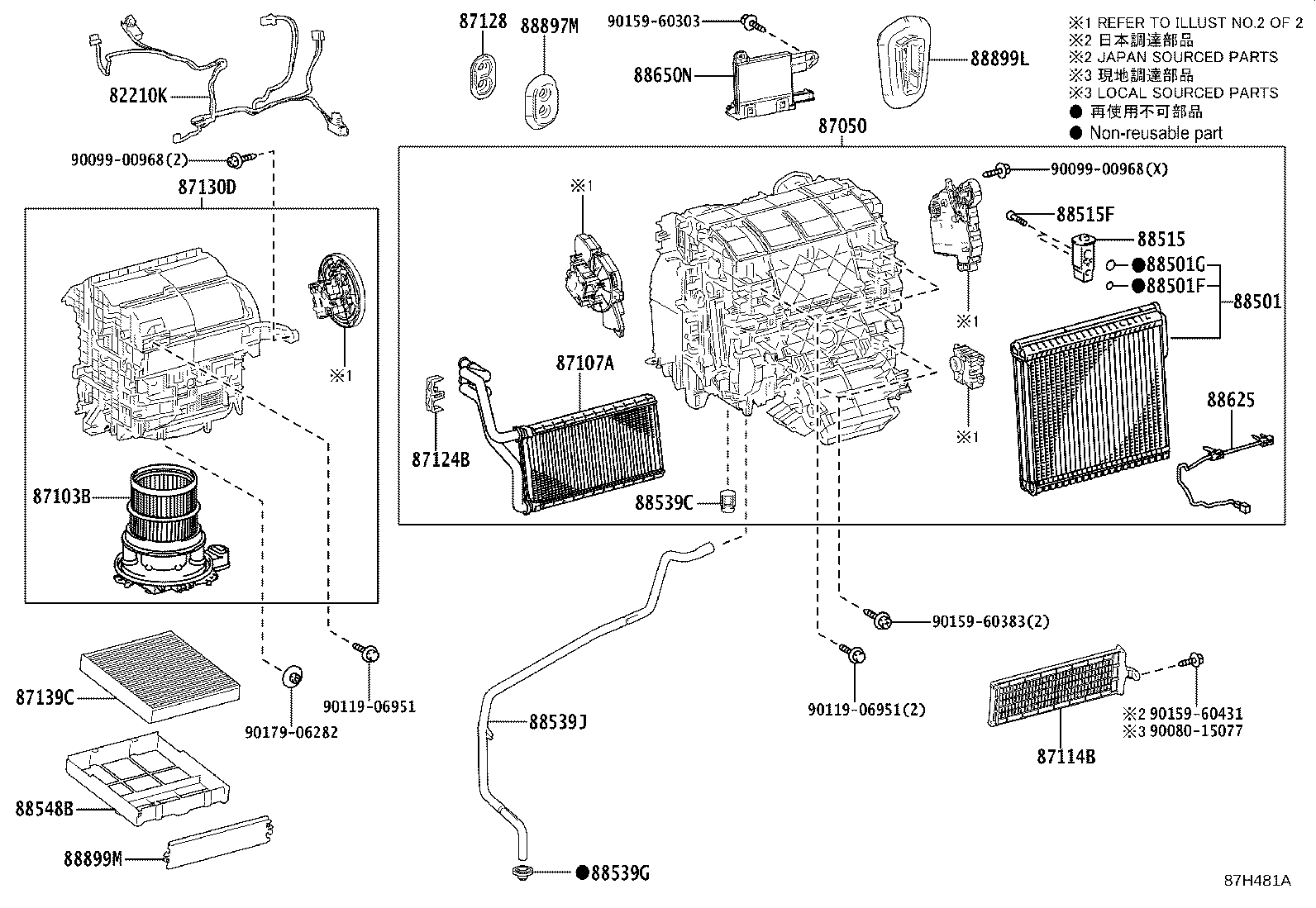

ILLUST NO. 1 OF 2(1811- )AXAH5#,AXAL5#..RHD..EUR

Click highlighted areas on diagram

AUTO AIR CONDITIONER

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-33170	AXAH5#,AXAL5#..RHD..EUR	11/2018 - 07/2020	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-33E70	AXAH5#,AXAL5#..RHD..EUR	11/2018 - 07/2020	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-58070	MXAA52..RHD..6F..EUR;AXAH5#,AXAL5#..RHD..EUR	11/2018 - 07/2020	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-33140	AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD	11/2018 - 07/2020	1
87114B - COVER, HEATER
87114-58050	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	1
87124B - CLAMP, HEATER
87124-33070	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	1
87128 - GROMMET, HEATER
87128-28010	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	1
87130D - BLOWER ASSY
87130-47300	MXAA52..RHD..6F..EUR;AXAH5#,AXAL5#..RHD..EUR	11/2018 - 07/2020	1
87139C - FILTER, CLEAN AIR
87139-28020	AXAA5#,AXAH5#,AXAL5#,MXAA5# POLLEN FILTER	11/2018 - 09/2020	1
87139-58010	AXAA5#,AXAH5#,AXAL5#,MXAA5# DEODORANT FILTER	11/2018 - 09/2020	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-33390	AXAH5#,AXAL5#..RHD..EUR	11/2018 - 07/2020	1
88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
90099-14120	AXAA5#,AXAH5#,AXAL5#,MXAA5# ID=10.8,OD=15.6	11/2018 - 09/2020	1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90099-14121	AXAA5#,AXAH5#,AXAL5#,MXAA5# ID=13.4,OD=18.2	11/2018 - 09/2020	1
88515 - VALVE, COOLER EXPANSION
88515-50320	AXAH5#,AXAL5#..RHD..EUR	11/2018 - 07/2020	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	2
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
88888-47010	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	1
88539J - HOSE, DRAIN COOLER
88539-42080	AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD	11/2018 - 07/2020	1
88548B - CASE, AIR FILTER
88899-47090	AXAH5#..LHD..GEN;MXAA52..LHD..CVT;AXAA5#,MXAA54..LHD;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS);AXAH5#,AXAL5#..EUR,GCC,RUS	11/2018 - 09/2020	1
88625 - THERMISTOR, COOLER, NO.1
88620-33040	AXAH5#,AXAL5#..EUR	11/2018 - 07/2020	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-42811	AXAA54..V..GCC;MXAA54..RHD..(M,X);MXAA54..G..(EUR,GEN);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..LHD..(G,V)..GEN;AXAA5#,AXAH5#,MXAA52..(M,X)..(GCC,GEN);AXAA54,AXAH5#,AXAL5#,MXAA52..(G,M,X)..(ARL,EUR,SA)	01/2020 - 07/2020	1
88650-42810	AXAA54..V..GCC;MXAA54..RHD..(M,X);AXAH54..ARL,EUR,RUS;MXAA54..G..(EUR,GEN);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..LHD..(G,V)..GEN;AXAA5#,AXAH5#,MXAA52..(M,X)..(GCC,GEN);AXAA54,AXAH52,MXAA52..(G,M,X)..(ARL,EUR,SA)	11/2018 - 12/2019	1
88897M - GROMMET (FOR HEATER PIPE)
87128-33020	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	1
88899L - PARTS, COOLING UNIT
88899-33090	MXAA52..RHD..EUR;AXAA54,AXAH5#,AXAL5#..EUR	11/2018 - 07/2020	1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-47120	AXAA5#,AXAH5#,AXAL5#,MXAA5#	11/2018 - 09/2020	1
Common parts
90080-15077
90099-00968
90119-06951
90159-60303
90159-60383
90159-60431
90179-06282

ILLUST NO. 2 OF 2(1811- )AXAH5#,AXAL5#..RHD..EUR

Click highlighted areas on diagram

AUTO AIR CONDITIONER

Part #	Description	Period	Qty
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-48170	AXAH5#..LHD..GEN;MXAA54..LHD..(G,M,V);AXAH5#,AXAL5#..EUR,GCC,RUS;MXAA52..6F..(G,M)..(EUR,GEN);AXAA5#,MXAA52..LHD..(ATM,CVT)..(G,M,V)	11/2018 - 09/2020	1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-33340	AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD	11/2018 - 07/2020	1
87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3
87106-28230	AXAH5#,AXAL5#..RHD..EUR	11/2018 - 07/2020	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-28250	MXAA52..RHD..6F..EUR;AXAH5#,AXAL5#..RHD..EUR	11/2018 - 07/2020	1
