AXAH52R-ANXMBW (2018)

Toyota Rav4 (Jpp)

Production Nov 2018 - Jul 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1811-1911)

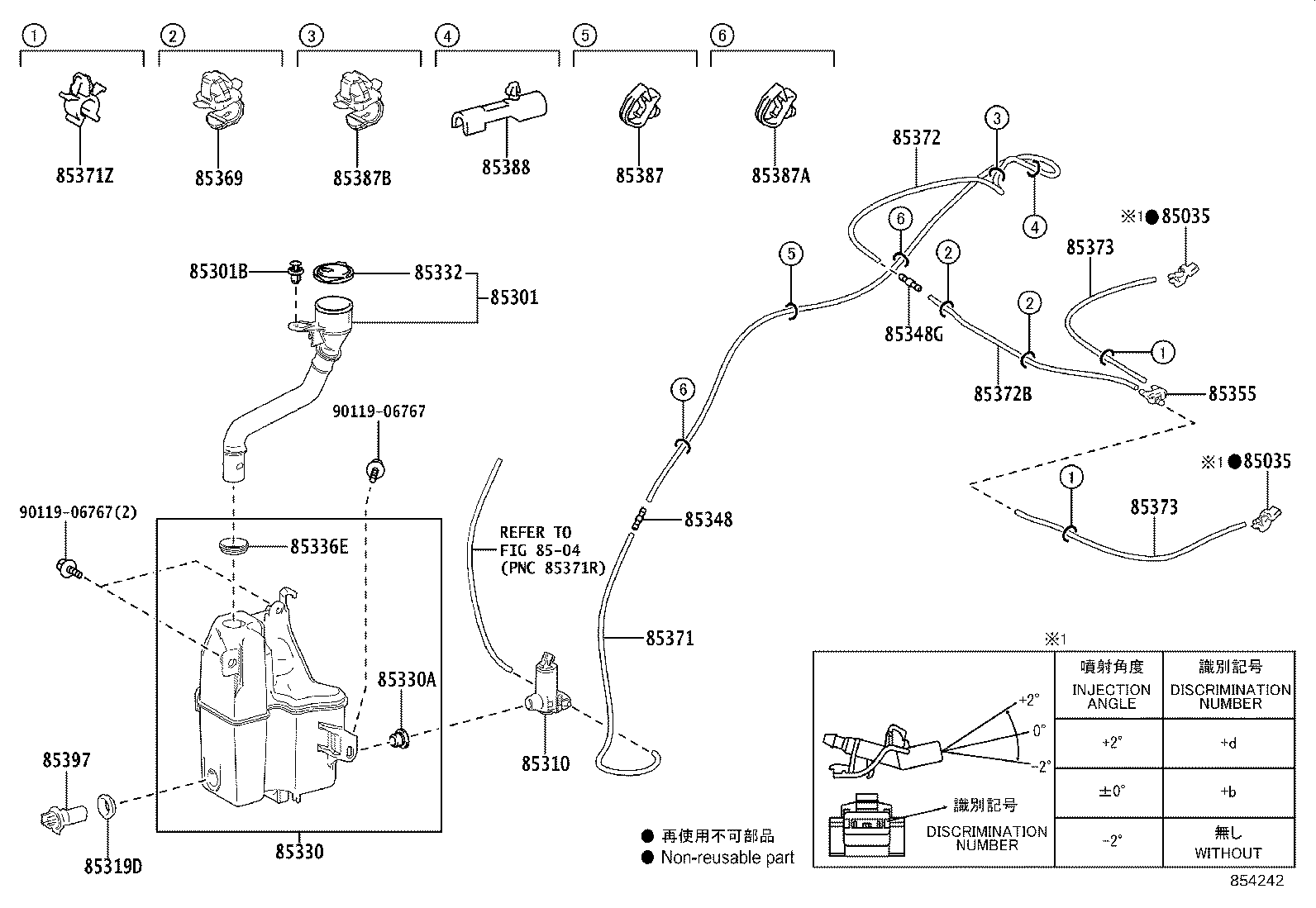

Click highlighted areas on diagram

diagram 85035 85035 8504 85301 85301B 85310 85319D 85330 85330A 85332 85336E 85348 85348G 85355 85369 85371 85371Z 85372 85372B 85373 85373 85387 85387B 85388 85397 9011906767 9011906767
Part # Description Qty Price
Common parts
90119-06767
Linked diagrams
8504

(1911-2007) ; (2008- )

Click highlighted areas on diagram

diagram 85035 85035 8504 85301 85301B 85310 85319D 85330 85330A 85332 85336E 85348 85348G 85355 85369 85371 85371Z 85372 85372B 85373 85373 85387 85387A 85387B 85388 85397 9011906767 9011906767
Part # Description Qty Price
Common parts
90119-06767
Linked diagrams
8504

(1811-1911)EUR

Click highlighted areas on diagram

diagram 85035 85035 8504 85301 85301B 85310 85330 85330A 85332 85336E 85348 85348G 85355 85369 85371 85371Z 85372 85372B 85373 85373 85387 85387B 85388 9011906767 9011906767
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-30240

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

ANGLE +2

 2
85381-30220

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

ANGLE 0

 2
85381-30230

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

ANGLE -2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30240

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

ANGLE +2

 2
85381-30220

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

ANGLE 0

 2
85381-30230

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

ANGLE -2

 2
85301 - INLET SUB-ASSY, WASHER
85301-42030

AXAA54,AXAH5#,MXAA5#..EUR,RUS

 1
85301B - CLIP, WASHER
90467-07215

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-47100

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85355-42190

MXAA52..6F..EUR;MXAA52..LHD..CVT..EUR;AXAH5#,AXAL5#..LHD..X..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..(G,M)..EUR

COLD AREA SPEC

 1
85315-42470

AXAA54,AXAH5#,AXAL5#,MXAA5#..EUR

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-42030

AXAA5#,AXAH5#,MXAA5#

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-30160

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-10260

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85369 - CLAMP
85371-12040

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

 2
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

AXAA5#,AXAH5#,AXAL5#,MXAA5#

*H,L=590

 1
90099-33080

MXAA52..6F..EUR;MXAA52..LHD..CVT..EUR;AXAH5#,AXAL5#..LHD..X..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..(G,M)..EUR

*H,L=590,COLD AREA SPEC

 1
85371Z - CLAMP, WASHER HOSE
90469-07011

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33803

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

L=1690

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

*H,L=500

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

*H,L=470

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

*H,L=470

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-35520

AXAA5#,AXAH5#,MXAA5#

 3
82711-35520

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

 1
85387B - CLAMP, WASHER, NO.3
85371-12040

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

 1
85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER)
85387-42280

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

 1
Common parts
90119-06767
Linked diagrams
8504

(1911-2007)EUR ; (2008- )EUR

Click highlighted areas on diagram

diagram 85035 85035 8504 85301 85301B 85310 85330 85330A 85332 85336E 85348 85348G 85355 85369 85371 85371Z 85372 85372B 85373 85373 85387 85387A 85387B 85388 9011906767 9011906767
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-30240

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

ANGLE +2

 2
85381-30220

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

ANGLE 0

 2
85381-30230

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

ANGLE -2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30240

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

ANGLE +2

 2
85381-30220

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

ANGLE 0

 2
85381-30230

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

ANGLE -2

 2
85301 - INLET SUB-ASSY, WASHER
85301-42030

AXAA54,AXAH5#,MXAA5#..EUR,RUS

 1
85301B - CLIP, WASHER
90467-07215

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-47100

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85355-42190

MXAA52..6F..EUR;MXAA52..LHD..CVT..EUR;AXAH5#,AXAL5#..LHD..X..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..(G,M)..EUR

COLD AREA SPEC

 1
85315-42470

AXAA54,AXAH5#,AXAL5#,MXAA5#..EUR

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-42030

AXAA5#,AXAH5#,MXAA5#

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-30160

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-10260

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85369 - CLAMP
85371-12040

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

 2
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

AXAA5#,AXAH5#,AXAL5#,MXAA5#

*H,L=590

 1
90099-33080

MXAA52..6F..EUR;MXAA52..LHD..CVT..EUR;AXAH5#,AXAL5#..LHD..X..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..(G,M)..EUR

*H,L=590,COLD AREA SPEC

 1
85371Z - CLAMP, WASHER HOSE
90469-07011

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33803

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

L=1690

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

*H,L=500

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

*H,L=470

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

*H,L=470

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-35520

AXAA5#,AXAH5#,MXAA5#

 3
82711-35520

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

 1
85387A - CLAMP, WASHER, NO.2
82711-16790

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

 2
85387B - CLAMP, WASHER, NO.3
85371-12040

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

 1
85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER)
85387-42280

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

 1
Common parts
90119-06767
Linked diagrams
8504

(1911-2002)EUR,RUS ; (2002-2007)AXAL5#..LHD..G,M; (2002-2007)AXAA54,AXAH5#,MXAA5#.

Click highlighted areas on diagram

W(HEADLAMP CLEANER & HEATER)

diagram 8504 8505 8505 85301 85301B 85310 85319D 85330 85330A 85332 85336E 85348 85348G 85355 85371 85371Z 85372 85372B 85380 85380 85387 85387A 85387B 85388 85397 9011906767 9011906767
Part # Description Qty Price
85301 - INLET SUB-ASSY, WASHER
85301-42030

AXAA54,AXAH5#,MXAA5#..EUR,RUS

 1
85301B - CLIP, WASHER
90467-07215

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-47100

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85319D - PACKING, FRONT WASHER
85319-33230

MXAA52..6F..EUR;MXAA52..LHD..CVT..EUR;AXAH5#,AXAL5#..LHD..X..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..(G,M)..EUR

COLD AREA SPEC

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85355-42190

MXAA52..6F..EUR;MXAA52..LHD..CVT..EUR;AXAH5#,AXAL5#..LHD..X..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..(G,M)..EUR

COLD AREA SPEC

 1
85315-42470

AXAA54,AXAH5#,AXAL5#,MXAA5#..EUR

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-42030

AXAA5#,AXAH5#,MXAA5#

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-30160

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-10260

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

AXAA5#,AXAH5#,AXAL5#,MXAA5#

*H,L=590

 1
90099-33080

MXAA52..6F..EUR;MXAA52..LHD..CVT..EUR;AXAH5#,AXAL5#..LHD..X..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..(G,M)..EUR

*H,L=590,COLD AREA SPEC

 1
85371Z - CLAMP, WASHER HOSE
90469-07011

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 2
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33803

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

L=1690

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

*H,L=500

 1
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-35520

AXAA5#,AXAH5#,MXAA5#

 3
82711-35520

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

 1
85387A - CLAMP, WASHER, NO.2
82711-16790

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

 2
85387B - CLAMP, WASHER, NO.3
85371-12040

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

 1
85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER)
85387-42280

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA

 1
85397 - SWITCH ASSY,LEVEL WARNING
85397-30400

MXAA52..6F..EUR;MXAA52..LHD..CVT..EUR;AXAH5#,AXAL5#..LHD..X..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..(G,M)..EUR

COLD AREA SPEC

 1
Common parts
90119-06767
Linked diagrams
8504
8505
